Nissan Cube. Manual - part 501

FUEL TANK

FL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

3.

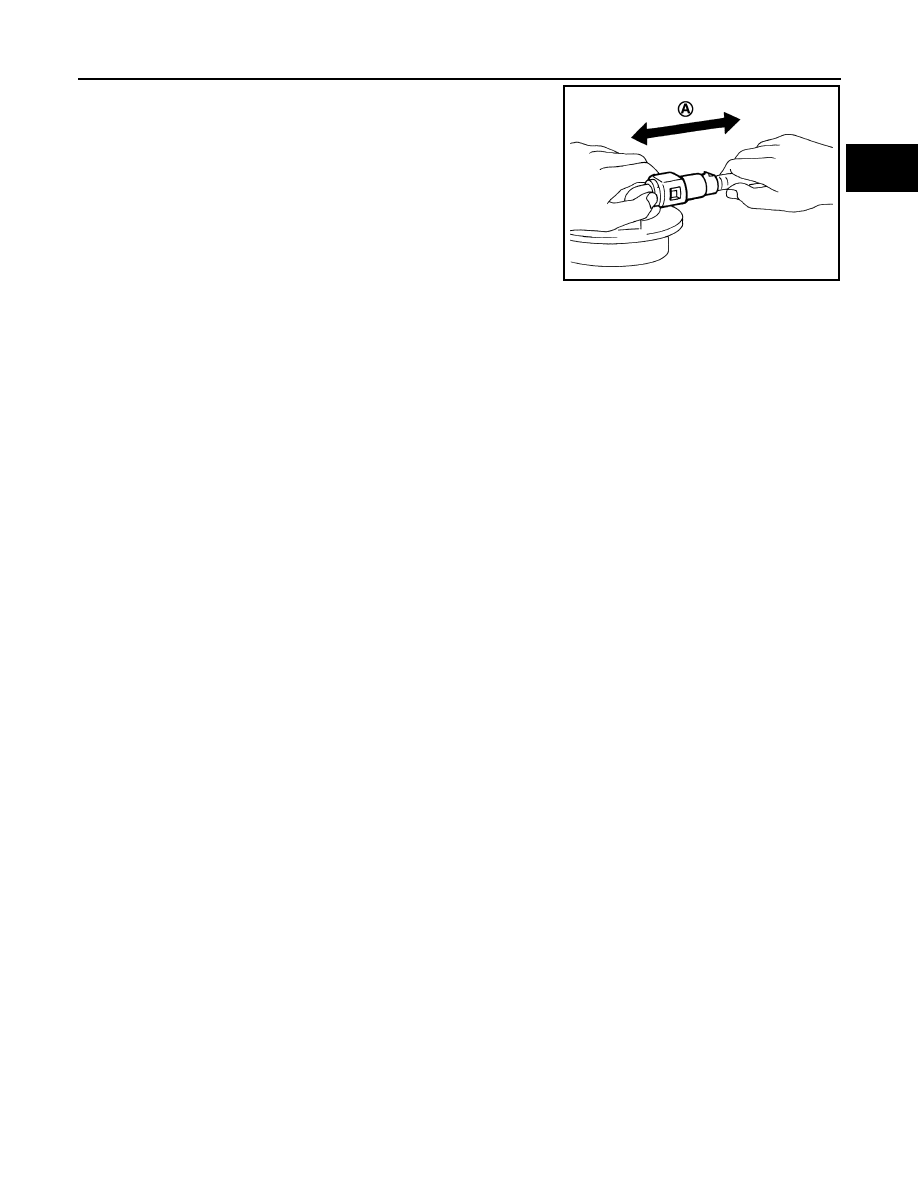

After connecting, pull out quick connector and centralized under
floor piping by hand. Check connections are secure.

Inspection

INFOID:0000000009950430

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leakage.

1.

Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.

2.

Start engine and rev it up and check there are no fuel leakage at the fuel system tube and hose connec-
tions.

A

:  Pull

JPBIA0140ZZ

FL-14

< REMOVAL AND INSTALLATION >

EVAP CANISTER

EVAP CANISTER

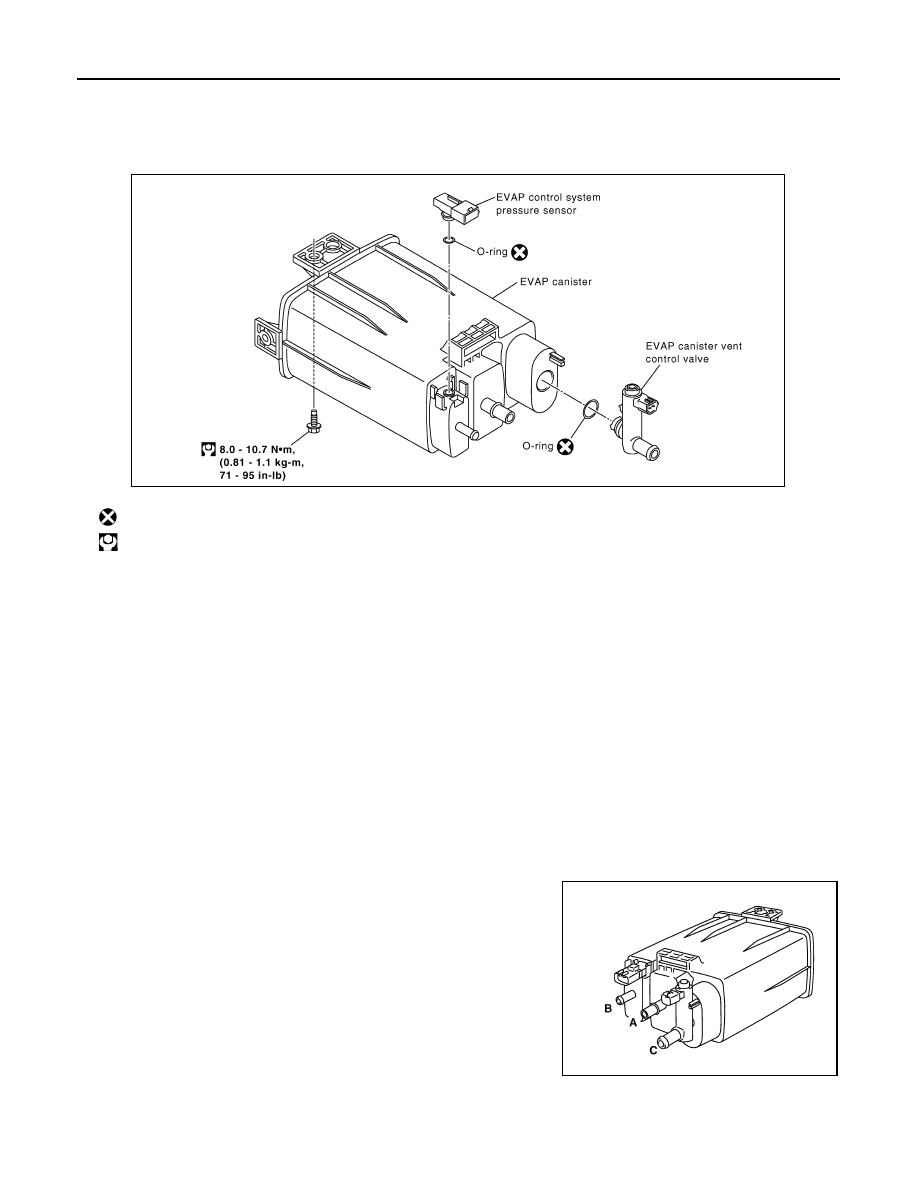

Exploded View

INFOID:0000000009950431

Removal and Installation

INFOID:0000000009950432

REMOVAL

1.

Lift up the vehicle.

2.

Remove EVAP canister fixing bolt.

3.

Remove EVAP canister.

NOTE:
The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without
removing the EVAP canister.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Tighten EVAP canister fixing bolt to the specified torque.

Inspection

INFOID:0000000009950433

Check EVAP canister as per the following:

1.

Block port (B).

2.

Blow air into port (A) and check that it flows freely out of port (C).

3.

Release blocked port (B).

4.

Apply vacuum pressure to port (B) and check that vacuum pres-
sure exists at the ports (A) and (C).

5.

Block port (A) and (B).

6.

Apply pressure to port (C) and check that there is no leakage.

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

PBIB1214E

PBIB1212E

SERVICE DATA AND SPECIFICATIONS (SDS)

FL-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000009950434

Standard and Limit

Fuel tank capacity

Approx. 50.0   (13-1/4 US gal, 11 Imp gal)

Fuel recommendation

Refer to

GI-30

FSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

FSU

A

B

FSU

N

O

P

CONTENTS

FRONT SUSPENSION

SYMPTOM DIAGNOSIS  ...............................

2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

2

NVH Troubleshooting Chart  ......................................

2

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Suspension  ......................................

3

Precautions for Removing of Battery Terminal  .........

3

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

PERIODIC MAINTENANCE ..........................

6

FRONT SUSPENSION ASSEMBLY  ...................

6

Inspection ..................................................................

6

WHEEL ALIGNMENT ..........................................

7

Inspection ..................................................................

7

Adjustment ................................................................

7

REMOVAL AND INSTALLATION ................

9

FRONT COIL SPRING AND STRUT  .................

9

Exploded View ..........................................................

9

Removal and Installation  ..........................................

9

Disassembly and Assembly .....................................

10

Inspection ................................................................

11

Disposal ...................................................................

11

TRANSVERSE LINK .........................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Inspection ................................................................

13

FRONT STABILIZER  ........................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

Inspection ................................................................

16

FRONT SUSPENSION MEMBER .....................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

Inspection ................................................................

18

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

19

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

19

Wheel Alignment  .....................................................

19

Ball Joint  ..................................................................

19

Wheelarch Height  ....................................................

20
