EXL-54

< DTC/CIRCUIT DIAGNOSIS >

OPTICAL SENSOR

 With illuminating the optical sensor, check the voltage between the optical sensor harness connector and the
ground.

*: Illuminate the optical sensor. The value may be less than the standard if brightness is weak.

Is the measurement value normal?

YES

>> GO TO 7.

NO

>> Replace the optical sensor.

4.

CHECK OPTICAL SENSOR OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the optical sensor connector and BCM connector.

3.

Check continuity between the optical sensor harness connector and the BCM harness connector.

Does continuity exist?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

5.

CHECK OPTICAL SENSOR SHORT CIRCUIT

Check the continuity between the optical sensor harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

.

6.

CHECK OPTICAL SENSOR GROUND OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the optical sensor connector and BCM connector.

3.

Check continuity between the optical sensor harness connector and the BCM harness connector.

Does continuity exist?

YES

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

.

NO

>> Repair the harnesses or connectors.

7.

CHECK OPTICAL SENSOR SIGNAL OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the optical sensor connector and BCM connector.

3.

Check continuity between the optical sensor harness connector and the BCM harness connector.

Terminals

Condition

Voltage

(Approx.)

(+)

(

−

)

Optical sensor

Ground

Optical sensor

Connector

Terminal

M17

2

When illuminating

3.1 V or more *

When shutting off light

0.6 V or less

Optical sensor

BCM

Continuity

Connector

Terminal

Connector

Terminal

M17

1

M68

17

Existed

Optical sensor

Ground

Continuity

Connector

Terminal

M17

1

Not existed

Optical sensor

BCM

Continuity

Connector

Terminal

Connector

Terminal

M17

3

M68

18

Existed

OPTICAL SENSOR

EXL-55

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Does continuity exist?

YES

>> GO TO 8.

NO

>> Repair the harnesses or connectors.

8.

CHECK OPTICAL SENSOR SHORT CIRCUIT

Check the continuity between the optical sensor harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

.

Optical sensor

BCM

Continuity

Connector

Terminal

Connector

Terminal

M17

2

M68

14

Existed

Optical sensor

Ground

Continuity

Connector

Terminal

M17

2

Not existed

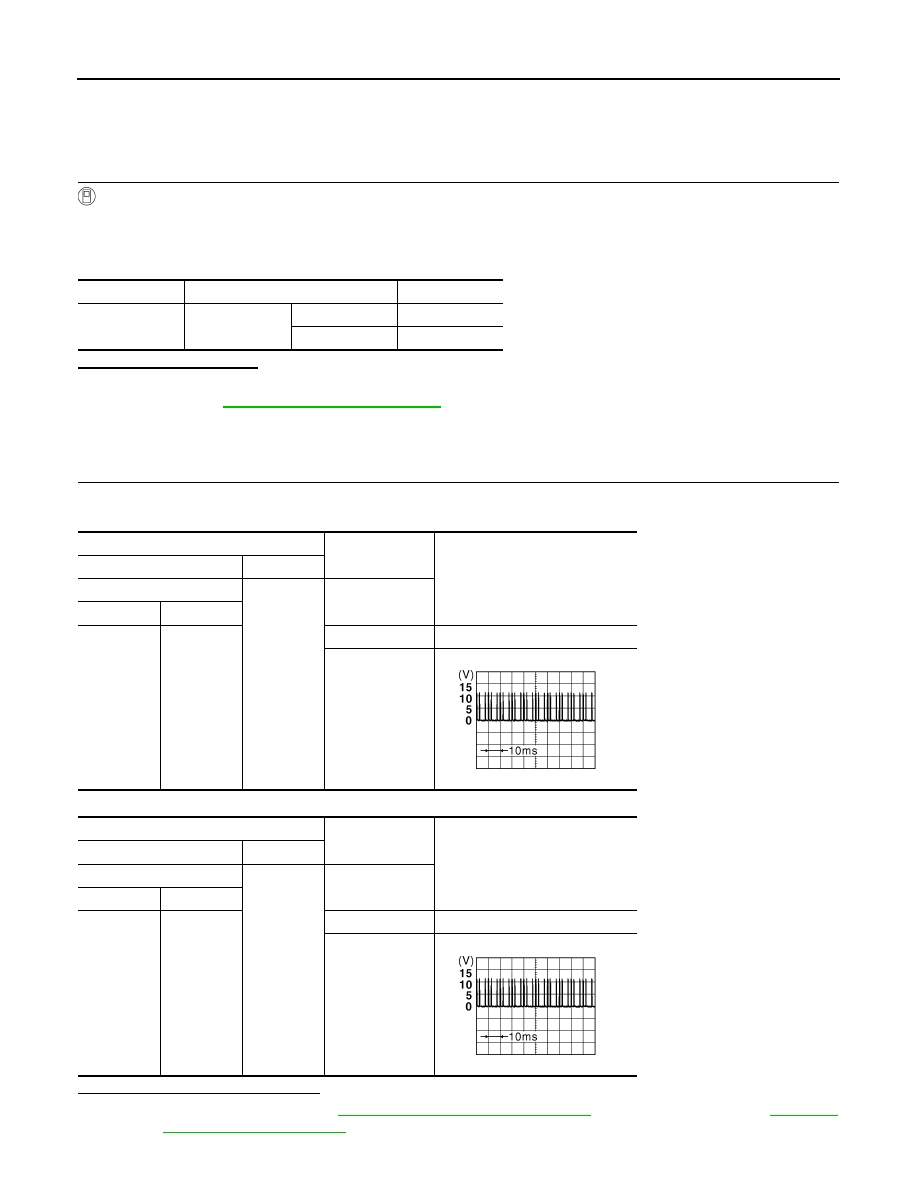

EXL-56

< DTC/CIRCUIT DIAGNOSIS >

HAZARD SWITCH

HAZARD SWITCH

Component Function Check

INFOID:0000000009945159

1.

CHECK HAZARD SWITCH SIGNAL BY CONSULT

CONSULT DATA MONITOR

1.

Turn the ignition switch ON.

2.

Select “HAZARD SW” of BCM (FLASHER) data monitor item.

3.

With operating the hazard switch, check the monitor status.

Is the item status normal?

YES

>> Hazard switch circuit is normal.

NO

>> Refer to

EXL-56, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009945160

1.

CHECK HAZARD SWITCH SIGNAL INPUT

With operating the hazard switch, check the voltage between the BCM harness connector and the ground.

With Intelligent Key

Without Intelligent Key

Is the measurement value normal?

YES

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

 (with Intelligent Key) or

BCS-155,

"Removal and Installation"

 (without Intelligent Key).

Monitor item

Condition

Monitor status

HAZARD SW

Hazard switch

ON

On

OFF

Off

Terminals

Condition

Voltage (Approx.)

(+)

(

−

)

BCM

Ground

Hazard switch

Connector

Terminal

M68

29

ON

0 V

OFF

Terminals

Condition

Voltage (Approx.)

(+)

(

−

)

BCM

Ground

Hazard switch

Connector

Terminal

M65

29

ON

0 V

OFF

JPMIA0154GB

JPMIA0154GB

HAZARD SWITCH

EXL-57

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

NO

>> GO TO 2.

2.

CHECK HAZARD SWITCH SIGNAL OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the hazard switch connector and BCM connector.

3.

Check continuity between the hazard switch harness connector and the BCM harness connector.

With Intelligent Key

Without Intelligent Key

Does continuity exist?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK HAZARD SWITCH SIGNAL SHORT CIRCUIT

Check continuity between the hazard switch harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> GO TO 4.

4.

CHECK HAZARD SWITCH GROUND OPEN CIRCUIT

Check continuity between the hazard switch harness connector and the ground.

Does continuity exist?

YES

>> Replace the hazard switch.

NO

>> Repair the harnesses or connectors.

Hazard switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M45

2

M68

29

Existed

Hazard switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M45

2

M65

29

Existed

Hazard switch

Ground

Continuity

Connector

Terminal

M45

2

Not existed

Hazard switch

Ground

Continuity

Connector

Terminal

M45

1

Existed
