Nissan Cube. Manual - part 251

DLK-270

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

HAZARD FUNCTION

HAZARD FUNCTION

Description

INFOID:0000000009950730

Perform answer-back for each operation with number of blinks.

Component Function Check

INFOID:0000000009950731

1.

CHECK FUNCTION

Check hazard warning lamp (“FLASHER”) in Active Test.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-270, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009950732

1.

CHECK HAZARD SWITCH CIRCUIT

Refer to

EXL-56, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace hazard warning switch circuit. Refer to

EXL-200, "Removal and Installation"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

KEYFOB BATTERY

DLK-271

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB BATTERY

Description

INFOID:0000000009950733

Remote door lock and unlock control entry function available when operating on button.

Component Function Check

INFOID:0000000009950734

1.

CHECK FUNCTION

Check door lock and unlock operation with keyfob button.

Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Refer to

DLK-271, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009950735

1.

CHECK KEYFOB BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA.

Is the measurement value within the specification?

YES

>> Replace keyfob.

NO

>> Replace keyfob battery. Refer to

DLK-380, "Removal

and Installation"

.

Standard

: Approx. 2.5 - 3.0V

OCC0607D

DLK-272

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEM

Wiring Diagram - POWER DOOR LOCK SYSTEM -

INFOID:0000000009950736

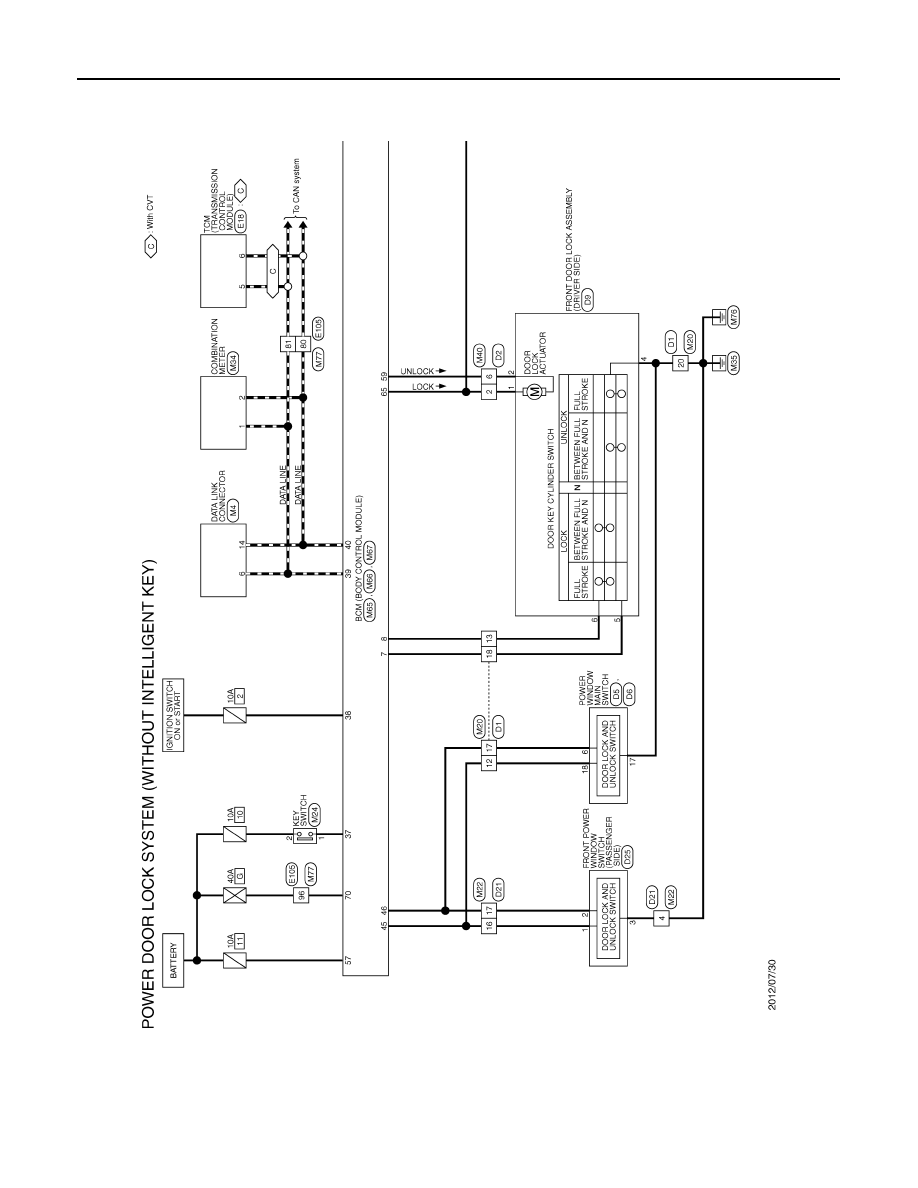

JRKWC2331GB

POWER DOOR LOCK SYSTEM

DLK-273

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

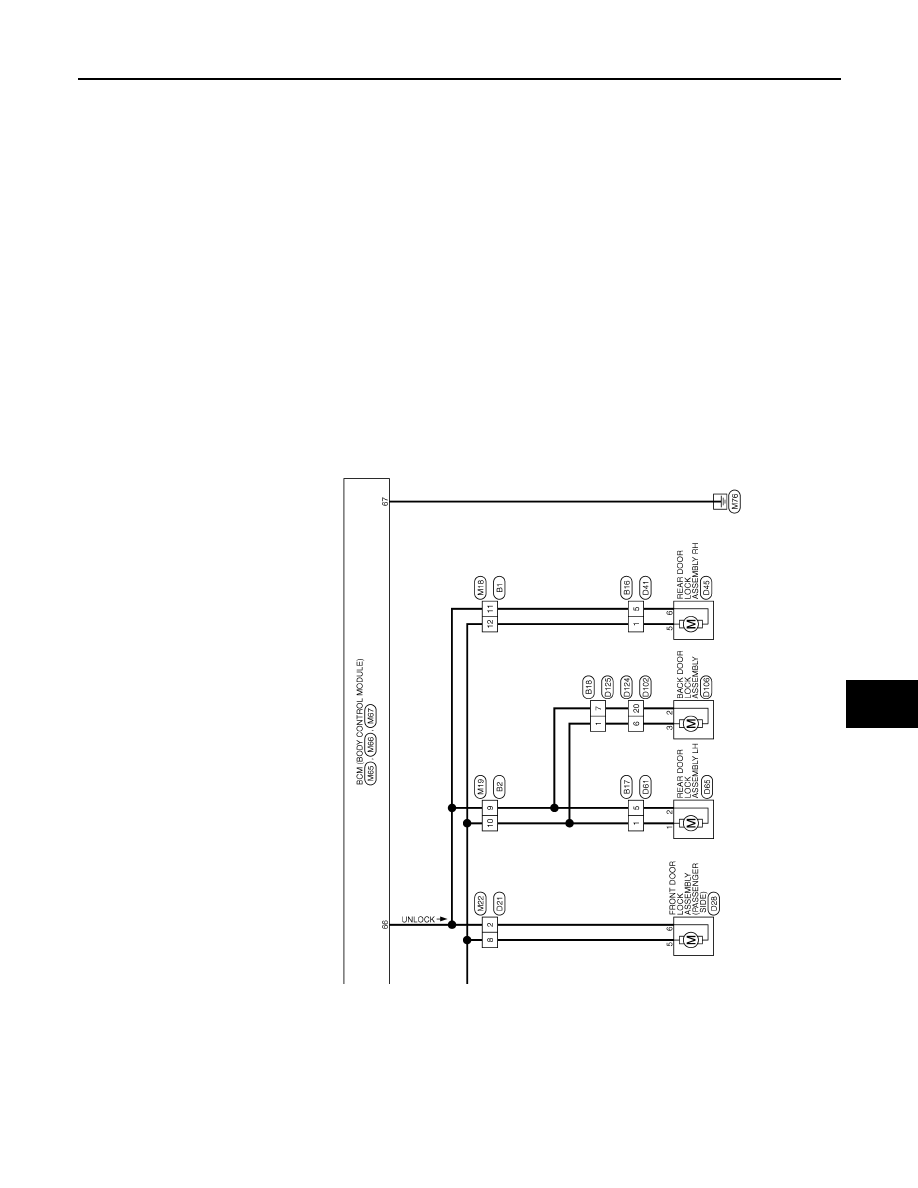

JRKWC2332GB
