PREPARATION

CL-5

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

PREPARATION

PREPARATION

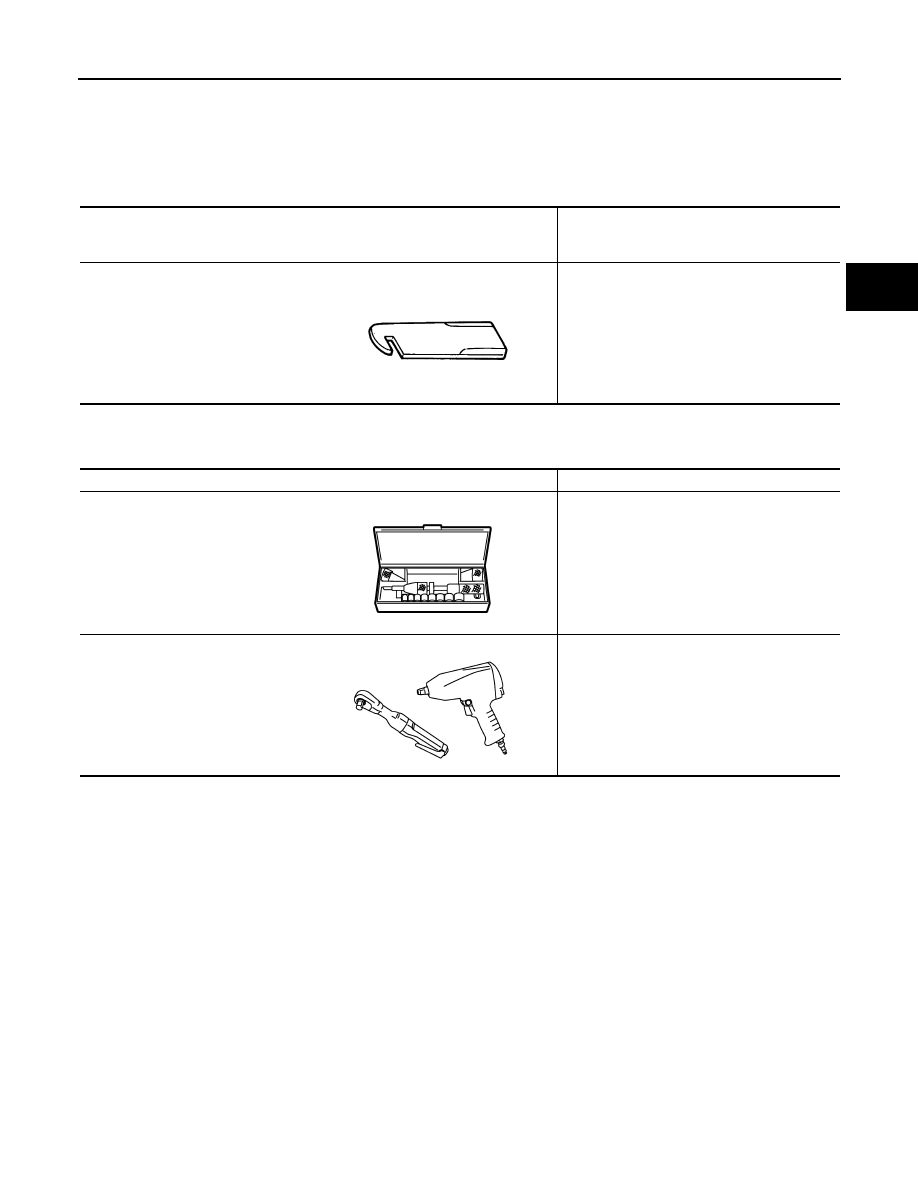

Special Service Tools

INFOID:0000000009949661

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009949662

Tool number
(Kent-Moore No.)
Tool name

Description

ST20050240
( - )
Diaphragm adjusting wrench

Adjusting unevenness of diaphragm spring le-
ver

ZZA0508D

Tool name

Description

Clutch aligner

Installing clutch disc

Power tool

Loosening bolts and nuts

MCIB0404E

PBIC0190E

CL-6

< PERIODIC MAINTENANCE >

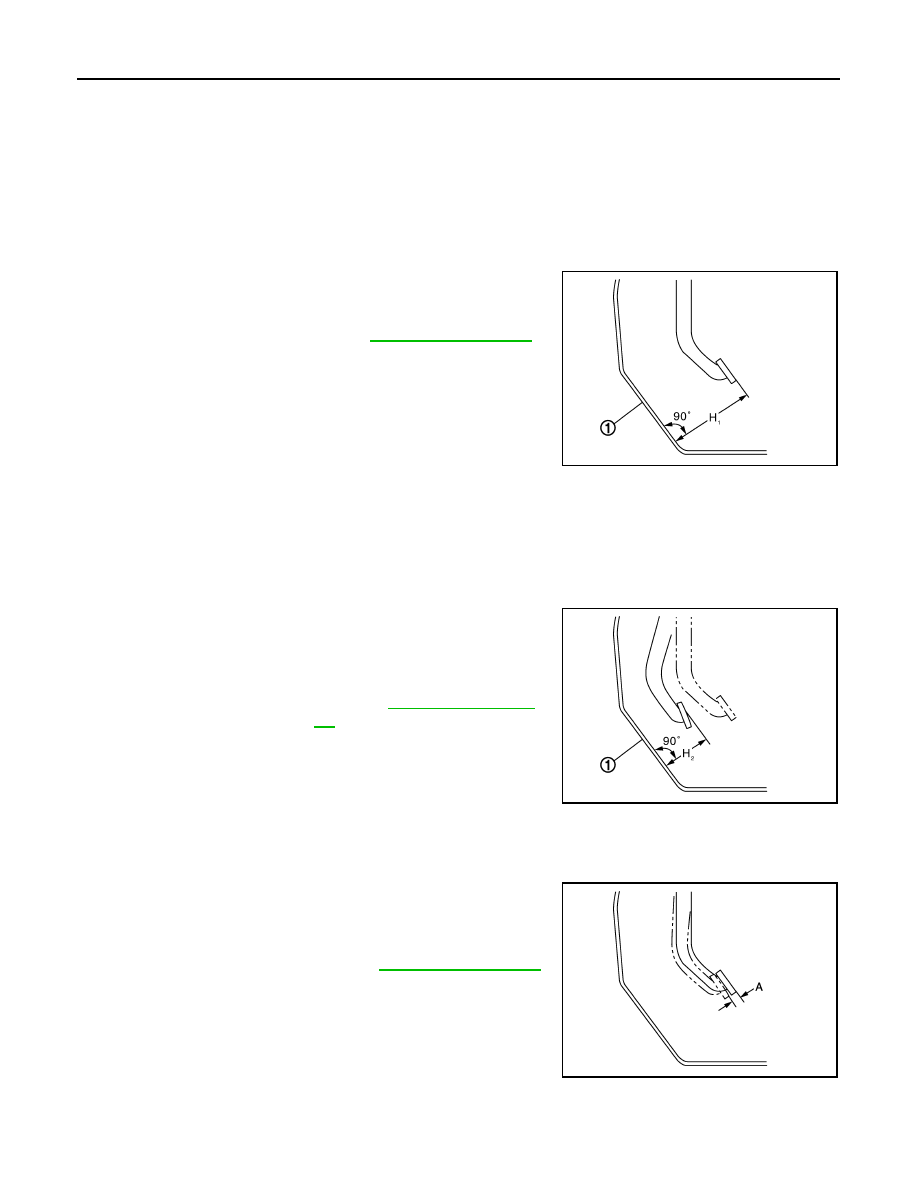

CLUTCH PEDAL

PERIODIC MAINTENANCE

CLUTCH PEDAL

Inspection and Adjustment

INFOID:0000000009949663

INSPECTION

The Height of Clutch Pedal

1.

Turn the floor carpet.

2.

Check that the clutch pedal height “H

1

” from the dash lower

panel (1) is within the reference value.

3.

Replace clutch pedal if the height is outside the reference value.

Clutch Pedal Height When Disengaging The Clutch

1.

Turn the floor carpet.

2.

Start the engine and run at idle.

3.

Apply the parking brake.

4.

Depress the brake pedal.

5.

Fully depress clutch pedal and shift to the 1st gear.

6.

Gradually release the clutch pedal and check that the clutch
pedal height “H

2

” from the dash lower panel (1) is within the ref-

erence value with a scale immediately before the clutch is
engaged.

NOTE:
Although the clutch pedal height differs according to whether the
clutch gets disengaged or engaged, clutch-engaged case is
regarded as clutch-disengaged case for easier inspection.

7.

Replace clutch pedal if the height is outside the reference value.

Clutch Pedal Play

1.

Push the pedal pad by hand until a resistance can be felt and
check that the play “A” on the upper surface of the pedal pad is
within the reference value.

2.

Replace clutch pedal if the play is outside the reference value.

Position of Clutch Interlock Switch

Clutch pedal height
“H

1

”

: Refer to

CL-21, "Clutch Pedal"

.

JPFIA0065ZZ

Clutch pedal height at
clutch disengagement
“H

2

”

: Refer to

CL-21, "Clutch Ped-

al"

.

JPFIA0068ZZ

Clutch pedal play “A”

: Refer to

CL-21, "Clutch Pedal"

.

JPFIA0121ZZ

CLUTCH PEDAL

CL-7

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

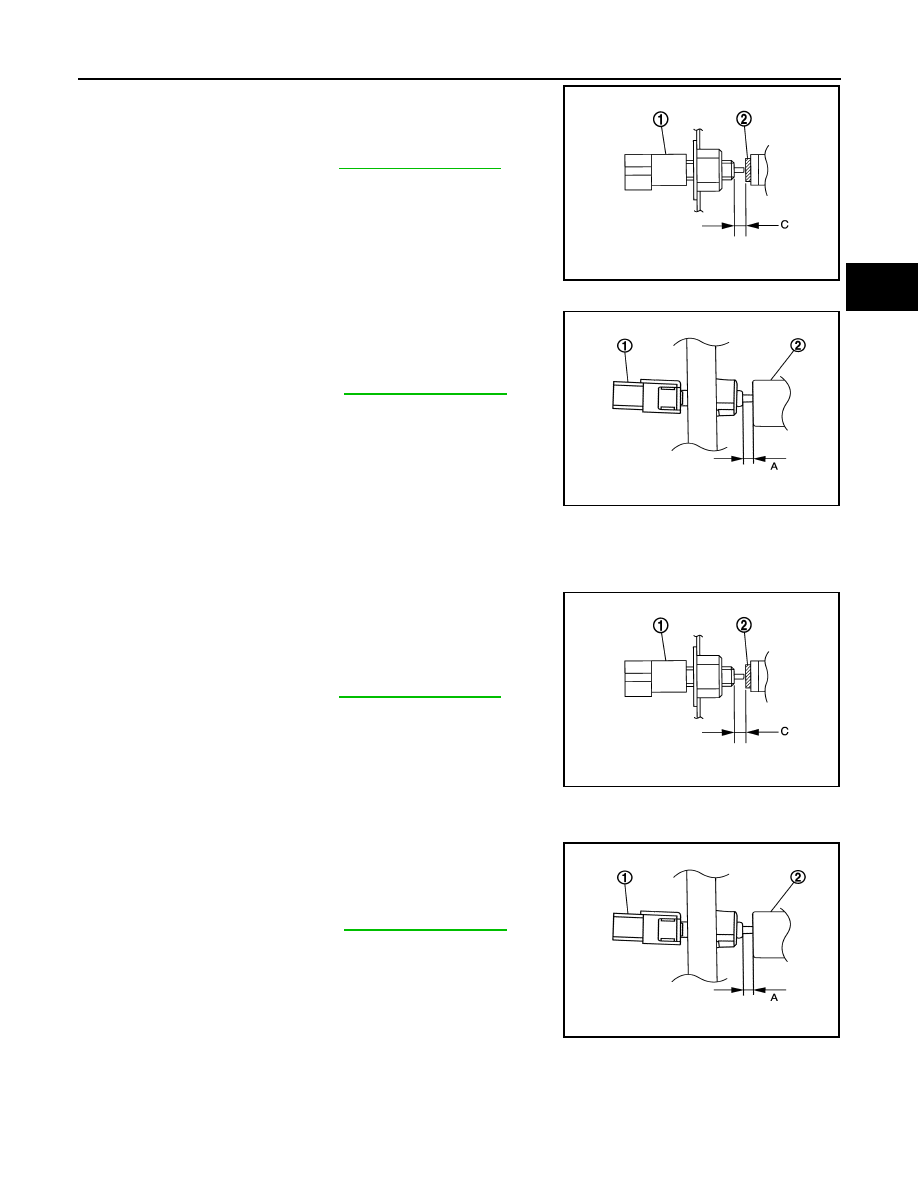

Check that the clearance “C” between the thread end of clutch inter-
lock switch (1) and stopper rubber (2) is within the specified value
while clutch pedal is fully depressed.

Position of ASCD Clutch Switch (With ASCD)

Check that the clearance “A” between the thread end of ASCD
clutch switch (1) and clutch pedal (2) is within the specified value
while clutch pedal is fully released.

ADJUSTMENT

Position of Clutch Interlock Switch

1.

Loosen clutch interlock switch by turning it 45 degrees counterclockwise.

2.

Press the clutch interlock switch (1) to bring clearance “C”
between the thread end of clutch interlock switch and stopper
rubber (2) to the specified value while clutch pedal is fully
depressed.

3.

Fasten clutch interlock switch by turning it 45 degrees clock-
wise.

Position of ASCD Clutch Switch (With ASCD)

1.

Loosen ASCD clutch switch by turning it 45 degrees counterclockwise.

2.

Press the ASCD clutch switch (1) to bring clearance “A”
between the thread end of ASCD clutch switch and clutch pedal
(2) to the specified value while clutch pedal is fully released.

3.

Fasten ASCD clutch switch by turning it 45 degrees clockwise.

Clearance “C”

: Refer to

CL-21, "Clutch Pedal"

.

JPDIB0164ZZ

Clearance “A”

: Refer to

CL-21, "Clutch Pedal"

.

JPDIB0165ZZ

Clearance “C”

: Refer to

CL-21, "Clutch Pedal"

.

JPDIB0164ZZ

Clearance “A”

: Refer to

CL-21, "Clutch Pedal"

.

JPDIB0165ZZ

CL-8

< PERIODIC MAINTENANCE >

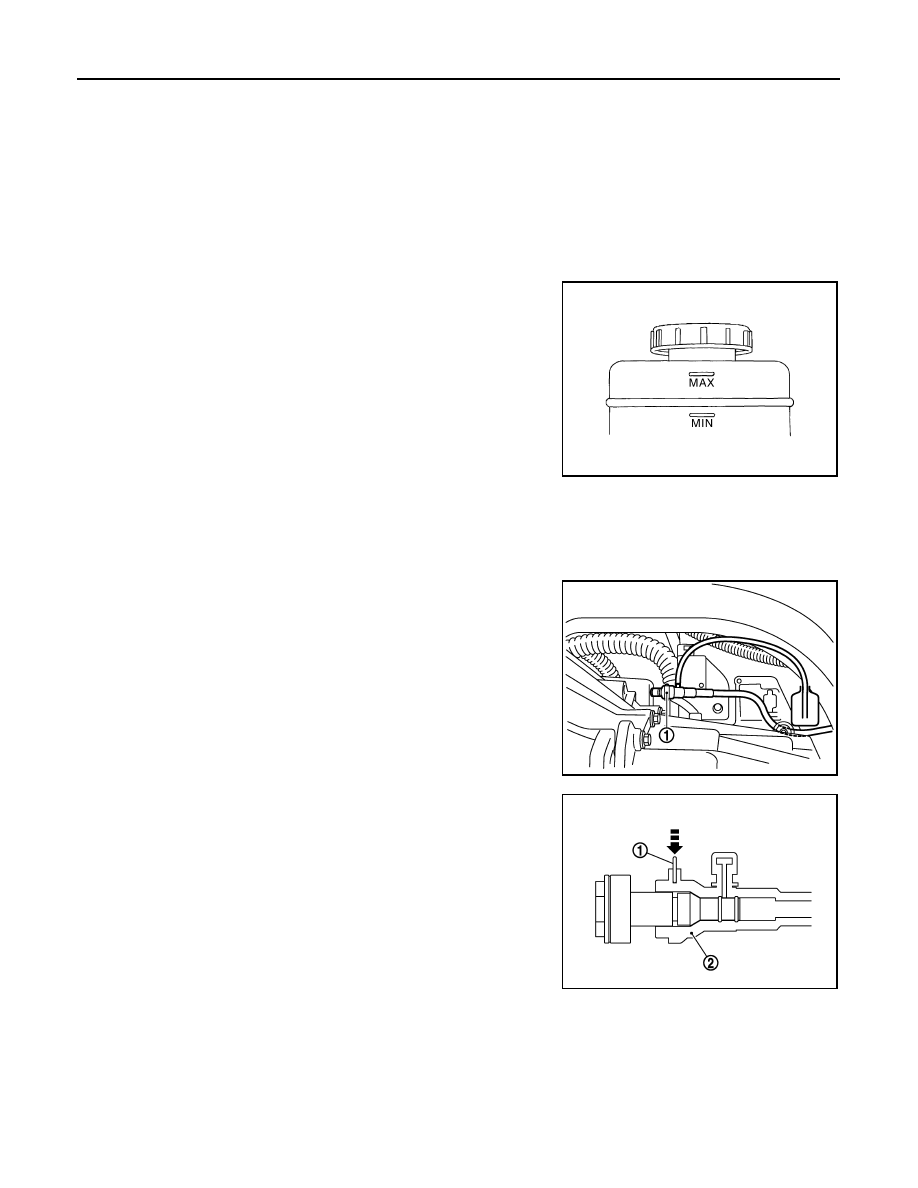

CLUTCH FLUID

CLUTCH FLUID

Inspection

INFOID:0000000009949664

FLUID LEAKAGE

• Check clutch line for cracks, deterioration or other damage. Replace any damaged parts.
• Check for fluid leakage by fully depressing clutch pedal while engine is running.

CAUTION:

If leakage occurs around joints, reinstall the joints or, if necessary, replace damaged parts.

FLUID LEVEL

• Check that the fluid level in the reservoir tank is within the specified

range (MAX – MIN lines).

• Visually check for any fluid leakage around the reservoir tank.
• Check the clutch system for any leakage if the fluid level is

extremely low (lower than MIN).

Draining

INFOID:0000000009949665

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

1.

Connect a transparent vinyl hose to air bleeder of bleeding con-
nector (1).

2.

Press the lock pin (1) into the bleeding connector (2), and main-
tain the position.

JPFIA0007ZZ

JPDIB0166ZZ

JPDIB0041ZZ
