DIAGNOSIS SYSTEM (BCM)

BCS-105

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

INFOID:0000000010249184

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

BUZZER

BUZZER : CONSULT Function (BCM - BUZZER)

INFOID:0000000010249187

CONSULT APPLICATION ITEMS

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

KEY CYL UN-SW

Indicated [On/Off] condition of unlock signal from door key cylinder

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• The door lock actuator (other) is unlocked when “OTR ULK” on CONSULT screen is touched

Monitor Item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

REAR DEF SW

Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch.

Test Item

Description

REAR DEFOGGER

Rear window defogger operates when “ON” on CONSULT screen is touched.

Test item

Diagnosis mode

Description

BUZZER

Data Monitor

Displays BCM input data in real time.

Active Test

Operation of electrical loads can be checked by sending driving signal to them.

Display item

[Unit]

Description

IGN ON SW
[On/Off]

Status of ignition switch judged by BCM.

KEY ON SW
[On/Off]

Status of key switch judged by BCM.

DOOR SW-DR
[km/h]

Status of driver side door switch judged by BCM.

BCS-106

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000010249181

WORK SUPPORT

REVERSE SW CAN
[On/Off]

This item is displayed, but cannot be monitored.

TAIL LAMP SW
[On/Off]

Status of lighting switch judged by BCM using the combination switch readout function.

FR FOG SW
[On/Off]

Status of front fog lamp switch judged by BCM using the combination switch readout function.

BUCKLE SW
[On/Off]

Status of seatbelt buckle switch (driver side) received from combination meter with CAN communica-
tion line.

VEHICLE SPEED
[km/h]

Value of vehicle speed signal received from combination meter with CAN communication line.

Display item

[Unit]

Description

Display item

[Unit]

Description

IGN KEY WARN ALM

The key warning chime operation can be checked by operating the relevant function (On/Off).

SEAT BELT WARN TEST

The seat belt warning chime operation can be checked by operating the relevant function (On/Off).

LIGHT WARN ALM

The light warning chime operation can be checked by operating the relevant function (On/Off).

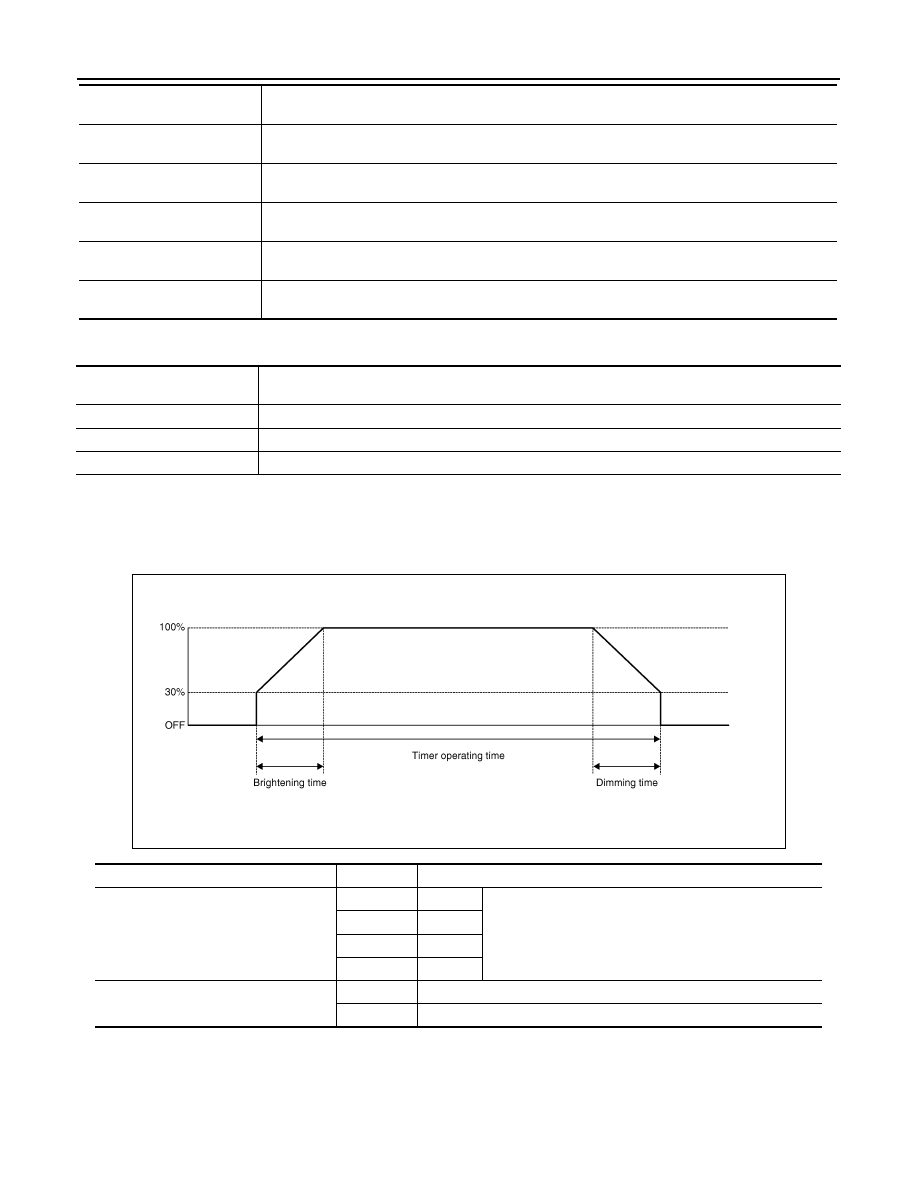

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

0 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 2

7.5 sec.

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-107

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Service item

Setting item

Setting

Monitor item

[Unit]

Description

IGN ON SW
[On/Off]

Indicated [On/Off] condition of ignition switch in ON position

ACC ON SW
[On/Off]

Indicated [On/Off] condition of ignition switch in ACC position

KEY ON SW
[On/Off]

Indicated [On/Off] condition of key switch

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW- RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW
[On/Off]

Indicated [On/Off] condition of back door switch

LOCK STATUS
[On/Off]

Indicated [On/Off] condition of driver side door

CDL LOCK SW
[On/Off]

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEYLESS LOCK
[On/Off]

Indicates [On/Off] condition of lock signal from keyfob

BCS-108

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)

INFOID:0000000010249171

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

KEYLESS UNLOCK
[On/Off]

Indicates [On/Off] condition of unlock signal from keyfob

KEY CYL LK-SW
[On/Off]

Indicated [On/Off] condition of lock signal from door key cylinder

KEY CYL UN-SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door key cylinder

TRNK/HAT MNTR
[On/Off]

NOTE:
This item is displayed, but cannot be tested

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal.

Off

Stops the interior room lamp control signal.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function

DATA MONITOR

The BCM input/output signals are displayed

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM

Monitor Item

Condition

IGN ON SW

Indicates [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicates [On/Off] condition of key switch

ACC ON SW

Indicates [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicates [On/Off] condition of lock signal from keyfob

KEYLESS UNLOCK

Indicates [On/Off] condition of unlock signal from keyfob

KYLS TRNK/HAT

NOTE:
This item is displayed, but cannot be tested

DOOR SW-DR

Indicates [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicates [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicates [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicates [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicates [On/Off] condition of back door switch

TRNK/HAT MNTR

NOTE:
This item is displayed, but cannot be tested

CDL LOCK SW

Indicates [On/Off] condition of door lock and unlock switch

CDL UNLOCK SW

Indicates [On/Off] condition of door lock and unlock switch

KEYLESS PANIC

Indicates [On/Off] condition of PANIC button of keyfob
