BCS

POWER CONSUMPTION CONTROL SYSTEM

BCS-101

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER CONSUMPTION CONTROL SYSTEM

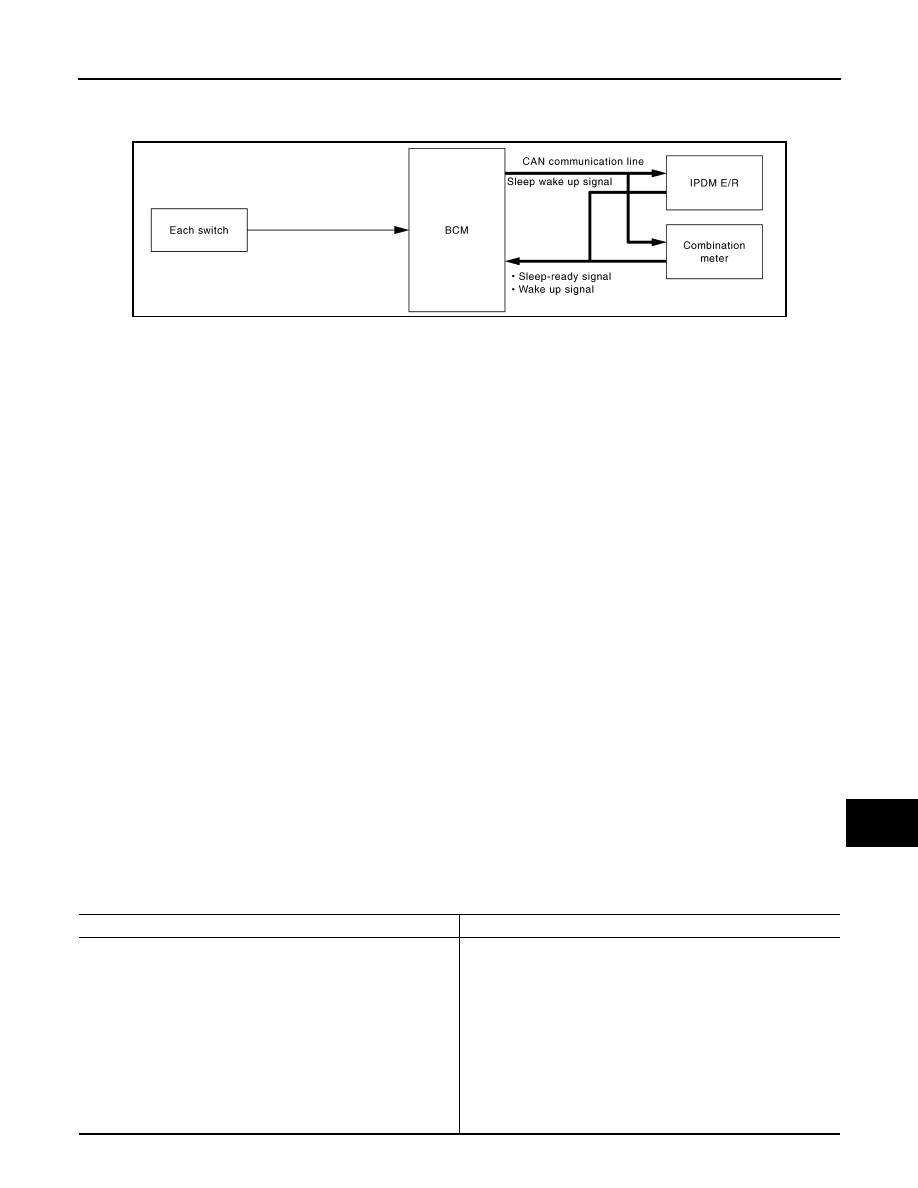

System Diagram

INFOID:0000000009949762

System Description

INFOID:0000000009949763

OUTLINE

• BCM incorporates a power saving control function that reduces the power consumption according to the

vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit (IPDM E/R and combination meter) that operates with the ignition switch OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units
- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped
- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active
- CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of the each switches changes from 10 ms interval to 60 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-

tion.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-

munication sleep mode.

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

Sleep condition

JPMIA0731GB

CAN sleep condition

BCM sleep condition

• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system and panic alarm: Not operation
• Warning chime: Not operation
• Stop lamp switch: OFF
• Turn signal indicator lamp: Not operation
• Exterior lamp: OFF
• Door lock status: No change
• CONSULT communication status: Not communication
• Door switch status: No change
• Rear window defogger: OFF
• Key switch status: No change

• Interior room lamp battery saver: Time out
• RAP system: OFF
• Nissan Vehicle Immobilizer System (NVIS) - NATS: Not opera-

tion

• Remote keyless entry receiver communication status: No com-

munication

• Tire pressure monitor system (TPMS) - AIR PRESSURE MON-

ITOR: Stop

BCS-102

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

POWER CONSUMPTION CONTROL SYSTEM

Wake-up operation

• BCM transmits sleep wake up signal (wake up) to each unit when any condition listed below is established,

and then goes into normal mode from low power consumption mode.

• Each unit starts transmissions with CAN communication by receiving sleep wake up signals. Each unit trans-

mit wake up signals to BCM with CAN communication to convey the start of CAN communication.

Wake-up condition

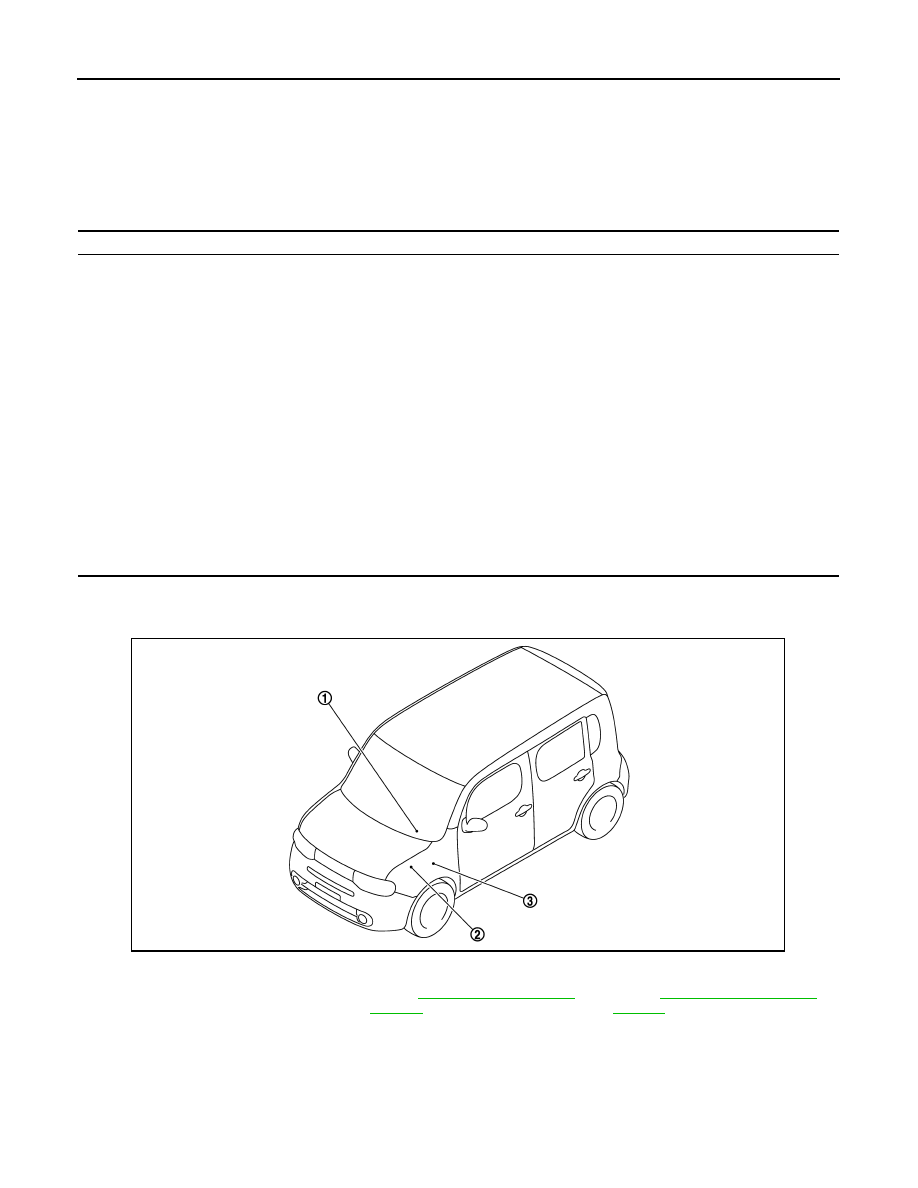

Component Parts Location

INFOID:0000000009949764

Wake-up condition

• Receiving the sleep-ready signal (Not-ready) from any units
• Hazard switch: ON
• HI BEAM switch: OFF

 ON, ON

 OFF

• PASSING switch: OFF

 ON, ON

 OFF

• HEADLAMP 1 switch: OFF

 ON, ON

 OFF

• HEADLAMP 2 switch: OFF

 ON, ON

 OFF

• TAIL LAMP switch: OFF

 ON

• TURN RH: OFF

 ON, ON

 OFF

• TURN LH: OFF

 ON, ON

 OFF

• Driver door switch: OFF

 ON, ON

 OFF

• Passenger door switch: OFF

 ON, ON

 OFF

• Rear RH door switch: OFF

 ON, ON

 OFF

• Rear LH door switch: OFF

 ON, ON

 OFF

• Back door switch: OFF

 ON, ON

 OFF

• Stop lamp switch: ON
• Door lock and unlock switch:

NEUTRAL

 LOCK, NEUTRAL

 UNLOCK

• Door key cylinder switch:

NEUTRAL

 LOCK, NEUTRAL

 UNLOCK

• Remote keyless entry receiver communication: Receiving

1.

Combination meter

2.

IPDM E/R
Refer to

PCS-36, "Component Parts

Location"

.

3.

BCM
Refer to

BCS-95, "Component Parts

Location"

.

JPMIA1549ZZ

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-103

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009949765

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

INFOID:0000000010249169

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Manual air conditioner

AIR CONDITONER

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×

Panic alarm system

PANIC ALARM

×

BCS-104

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function

DATA MONITOR

The BCM input/output signals are displayed

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM

Monitor item

Description

DOOR LOCK-UNLOCK SET

Selective unlock function mode can be changed to operate with this mode
• On: Operate
• Off: Non-operation

AUTOMATIC DOOR LOCK SE-
LECT

Automatic door lock function mode can be selected from the following in this mode
• VH SPD: All doors are locked when vehicle speed more than 24km/h (15MPH)
• P RANGE: All doors are locked when shifting the selector lever from P position to other than the

P position

AUTOMATIC DOOR UNLOCK
SELECT

Automatic door unlock function mode can be selected from the following in the mode
• MODE 1: All doors are unlocked when the power supply position is changed from ON to OFF
• MODE 2: All doors are unlocked when shifting the selector lever from any position other than

the P to P position

• MODE 3: Driver side door is unlocked when the power supply position is changed from ON to

OFF

• MODE 4: Driver side door is unlocked when shifting the selector lever from any position other

than the P to P position

• MODE 5: Driver side door is unlocked when key out of key switch
• MODE 6: All doors are unlocked when key out of key switch

AUTOMATIC LOCK/UNLOCK
SET

Automatic door lock/unlock function mode can be selected from the following in this mode
• Off: Non-operation
• Unlock Only: door unlock operation only
• Lock Only: door lock operation only
• Lock/Unlock: lock/unlock operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of driver side door

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be supported

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

Indicated [On/Off] condition of lock signal from door key cylinder
