SHIPPING MODE CANCEL OPERATION

BCS-93

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SHIPPING MODE CANCEL OPERATION

Description

INFOID:0000000009949754

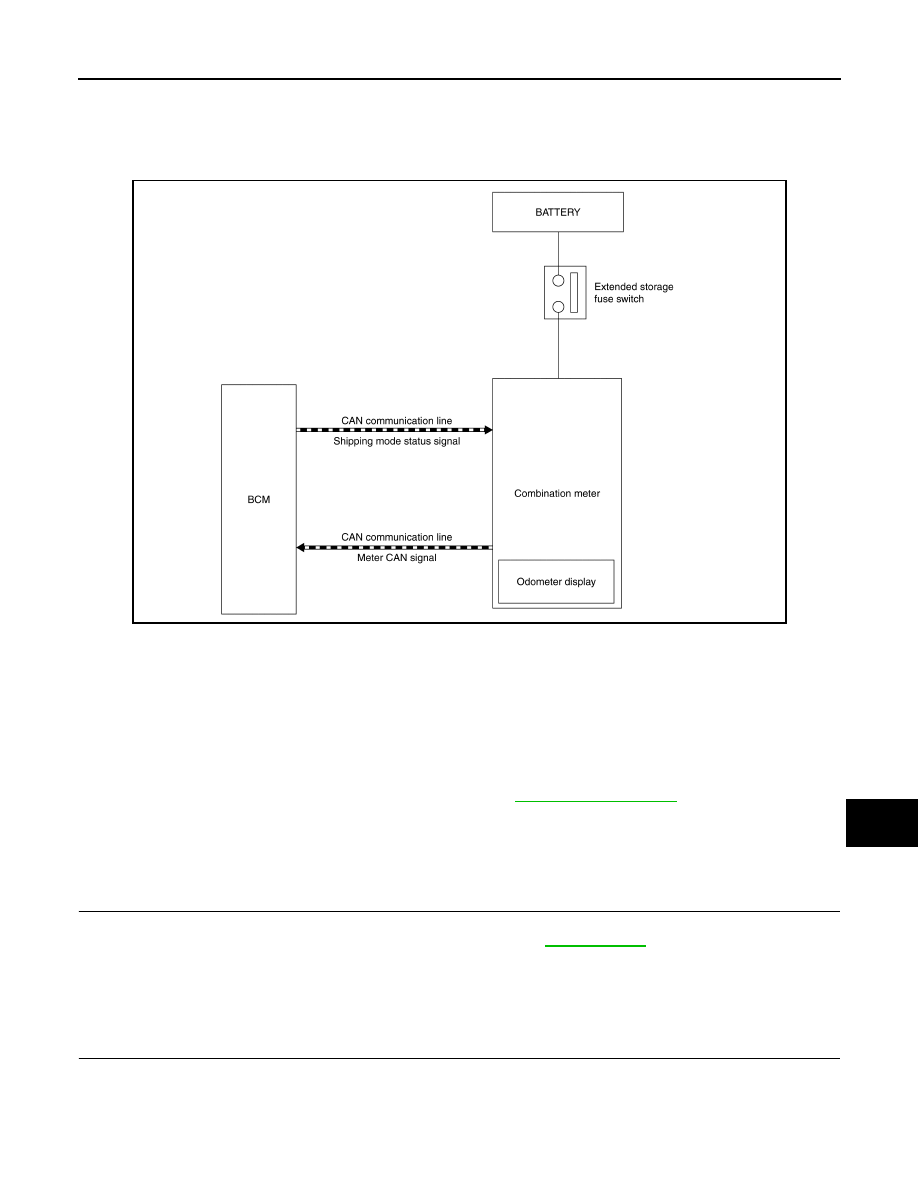

SYSTEM DIAGRAM

DESCRIPTION

• The combination meter transmits meter CAN signal*

1

 to BCM via CAN communication, when the extended

storage fuse switch is ON.

• BCM switches the status (shipping mode or normal mode) by itself according to the meter CAN signal*

1

 from

combination meter, and transmits shipping mode status signal to combination meter via CAN communica-
tion.

• The combination meter displays extended storage fuse warning message*

2

 on the odometer display, when

BCM is in shipping mode.

• BCM control functions are limited in shipping mode. Refer to

BCS-154, "Description"

.

*1: Odometer signal, wake up signal and each signal.
*2: When shipping mode function operates, “SHIP

PHASE

On

PUSH

FUSE In” is displayed.

Work Procedure

INFOID:0000000009949755

1.

TRANSIT MODE CANCEL OPERATION

1.

Turn ignition switch OFF.

2.

Push in (switch on) the extended storage fuse switch. Refer to

PG-52, "Fuse"

.

3.

Turn ignition switch ON.

4.

Turn ignition switch OFF and wait at least 2seconds.

>> GO TO 2.

2.

TRANSIT MODE CANCEL CHECK

1.

Turn ignition switch ON.

2.

Check that extended storage fuse warning message is not displays on odometer display.

>> WORK END

JMMIA1311GB

BCS-94

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BODY CONTROL SYSTEM

SYSTEM DESCRIPTION

BODY CONTROL SYSTEM

System Description

INFOID:0000000009949756

OUTLINE

• BCM (Body Control Module) controls various electrical components. It receives the information required

from CAN communication and the signals received from each switch and sensor.

• BCM has a combination switch reading function for reading the status of combination switches (light, turn

signal, wiper and washer) in addition to functions for controlling the operation of various electrical compo-
nents. It also has a signal transmission function, for other systems, and a power consumption control func-
tion that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with a diagnosis function that operates with CONSULT and allows for various settings to

be changed.

BCM FUNCTION LIST

System

Reference page

Combination switch reading system

BCS-96, "System Diagram"

Signal buffer system

BCS-100, "System Diagram"

Power consumption control system

BCS-101, "System Diagram"

Headlamp system

EXL-7, "System Diagram"

Turn signal and hazard warning lamp system

EXL-14, "System Diagram"

Parking, license plate, side maker and tail lamps system

EXL-16, "System Diagram"

Exterior lamp battery saver system

EXL-18, "System Diagram"

Interior room lamp control system

INL-6, "System Diagram"

Interior room lamp battery saver system

INL-9, "System Diagram"

Illumination control system

INL-11, "System Diagram"

Front wiper and washer system

WW-6, "System Diagram"

Rear wiper and washer system

WW-10, "System Diagram"

Manual air conditioner system

HAC-141, "System Diagram"

Warning chime system

WCS-5, "WARNING CHIME SYSTEM : System Diagram"

Power door lock system

DLK-235, "System Diagram"

Nissan vehicle immobilizer system-NATS (NVIS)

SEC-180, "System Diagram"

Vehicle security system

SEC-182, "System Diagram"

Panic alarm

SEC-182, "System Description"

Rear window defogger system

DEF-4, "System Diagram"

Remote keyless entry system

DLK-238, "System Diagram"

Power window system

PWC-7, "System Diagram"

Retained accessory power (RAP) system

PWC-7, "System Description"

Tire pressure monitor system (TPMS) - AIR PRESSURE MON-
ITOR

WT-8, "TIRE PRESSURE MONITORING SYSTEM : System De-
scription"

BCS

BODY CONTROL SYSTEM

BCS-95

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Component Parts Location

INFOID:0000000009949757

1.

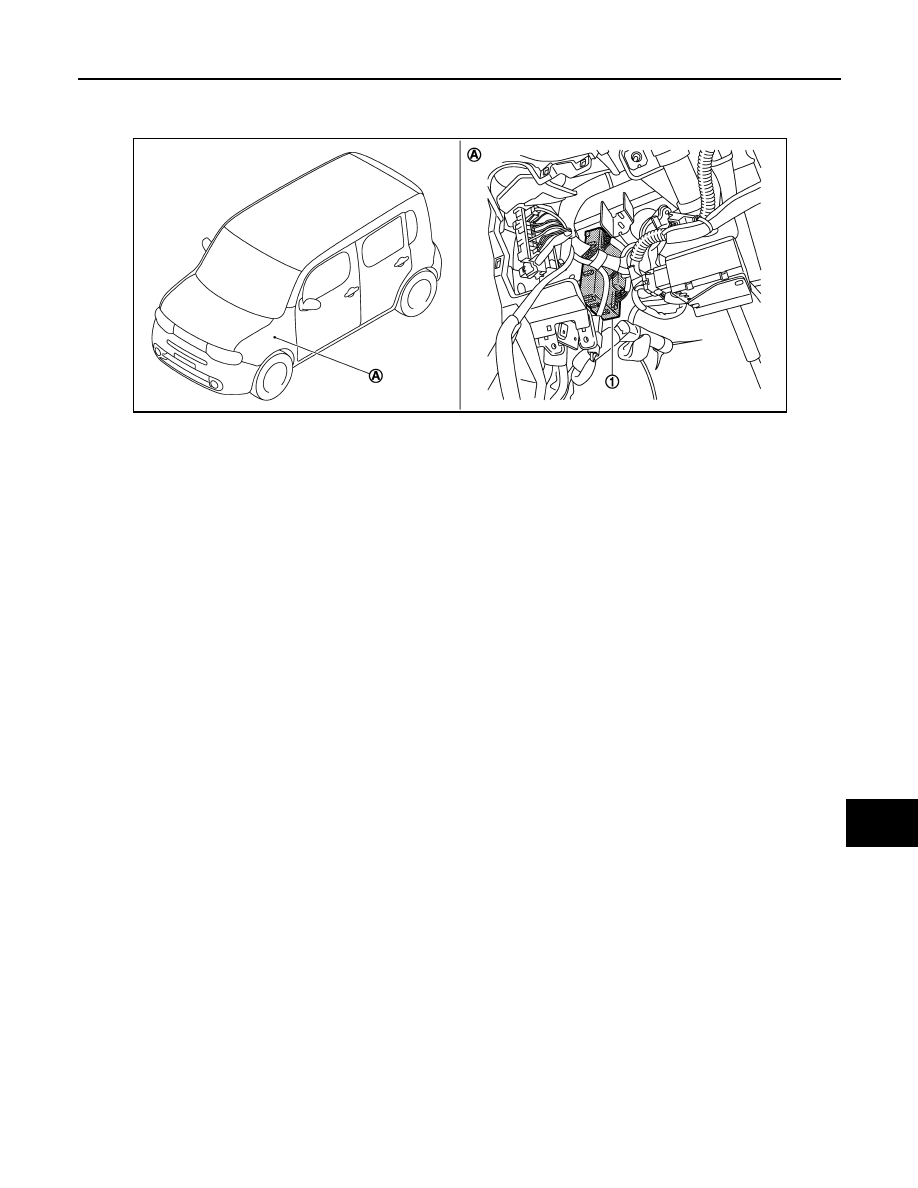

BCM

A.

Behind of instrument lower panel LH
(Left side)

JPMIA1514ZZ

BCS-96

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMBINATION SWITCH READING SYSTEM

COMBINATION SWITCH READING SYSTEM

System Diagram

INFOID:0000000009949758

System Description

INFOID:0000000009949759

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

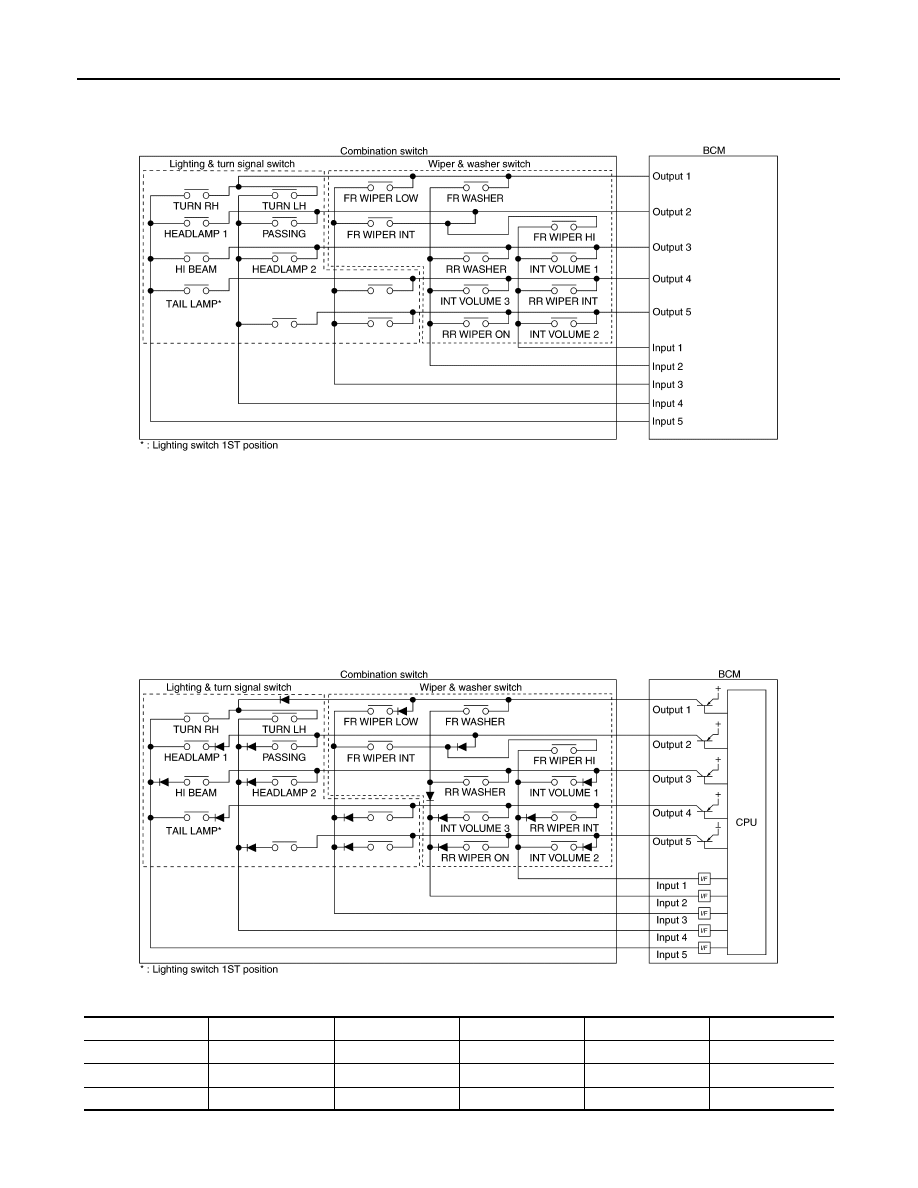

COMBINATION SWITCH MATRIX

Combination switch circuit

Combination switch INPUT-OUTPUT system list

JMMIA1037GB

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

OUTPUT 1

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

OUTPUT 2

FR WIPER HI

FR WIPER INT

PASSING

HEADLAMP 1

OUTPUT 3

INT VOLUME 1

RR WASHER

HEADLAMP 2

HI BEAM

JMMIA1038GB
