Nissan Cube. Manual - part 60

BCS

COMBINATION SWITCH

BCS-89

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH

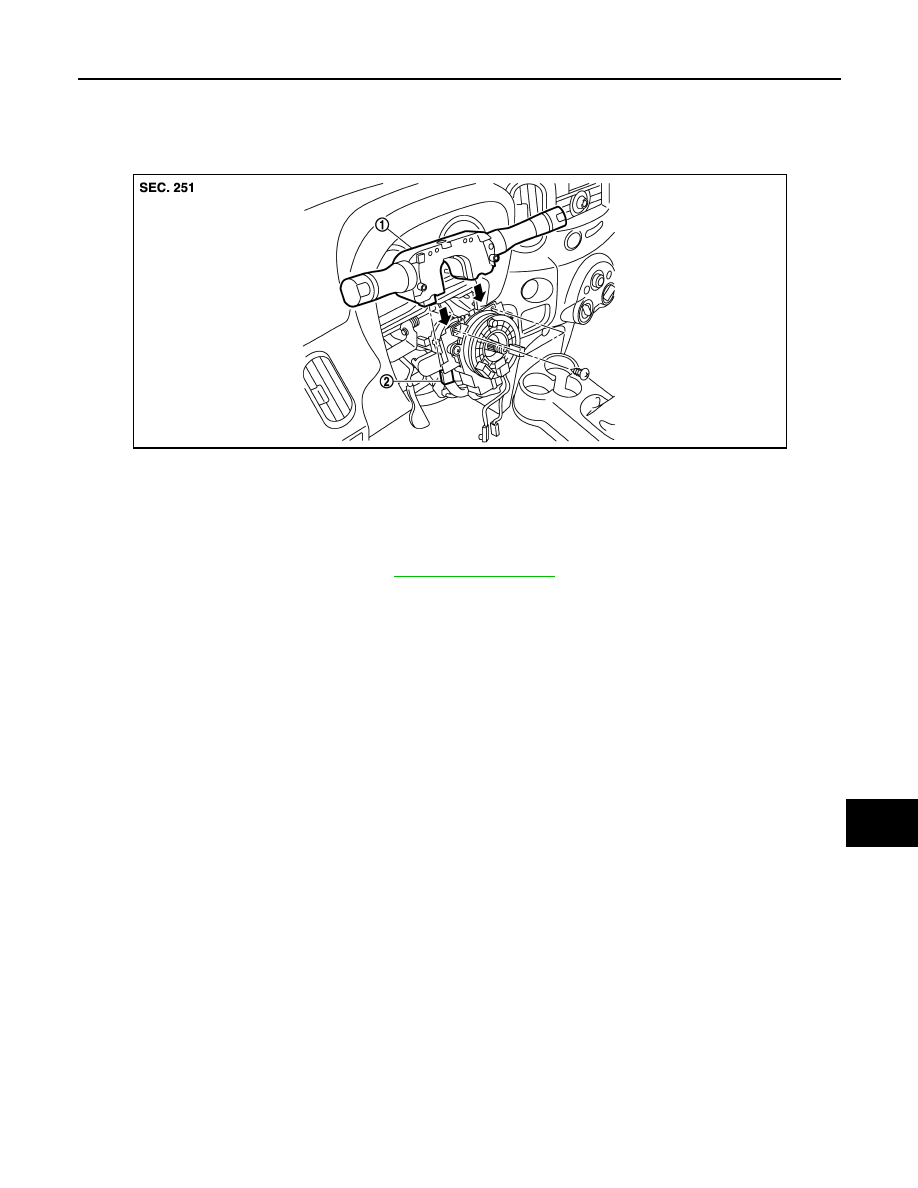

Exploded View

INFOID:0000000009949747

Removal and Installation

INFOID:0000000009949748

REMOVAL

1.

Remove steering column cover. Refer to

IP-13, "Exploded View"

.

2.

Remove screws.

3.

Disconnect the connector.

4.

Pull up the combination switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Combination switch

2.

Combination switch connector

JPMIA1517ZZ

BCS-90

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

BASIC INSPECTION

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

Description

INFOID:0000000009949749

BEFORE REPLACEMENT

When replacing BCM, save or print current vehicle specification with CONSULT configuration before replace-
ment.
NOTE:
If “READ CONFIGURATION” cannot be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.

AFTER REPLACEMENT

CAUTION:

When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,
BCM control function does not operate normally.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.
NOTE:
• When replacing BCM, perform the system initialization (NATS) (if equipped).
• When replacing BCM, perform the keyfob ID registration (if equipped).

Work Procedure

INFOID:0000000009949750

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to

BCS-91, "Descrip-

tion"

.

NOTE:
If “READ CONFIGURATION” cannot be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.

>> GO TO 2.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-155, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” to write
vehicle specification. Refer to

BCS-91, "Work Procedure"

.

>> GO TO 4.

4.

INITIALIZE BCM (NATS) (IF EQUIPPED)

Perform BCM initialization. (NATS)

>> GO TO 5.

5.

KEYFOB ID REGISTRATION (IF EQUIPPED)

Perform keyfob ID registration. Refer to

DLK-234, "ADDITIONAL SERVICE WHEN REPLACING CONTROL

UNIT : Description"

.

>> WORK END

BCS

CONFIGURATION (BCM)

BCS-91

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CONFIGURATION (BCM)

Description

INFOID:0000000009949751

Vehicle specification needs to be written with CONSULT because it is not written after replacing BCM.
Configuration has three functions as follows.

NOTE:

Manual setting item: Items which need selection by vehicle specifications

Automatic setting item: Items which are written in automatically (Setting cannot be changed)

For some models and specifications, the automatic setting item may not be displayed.

CAUTION:

When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,
BCM control function does not operate normally.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• Never perform “WRITE CONFIGURATION” except for new BCM.
• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.

Work Procedure

INFOID:0000000009949752

1.

WRITING MODE SELECTION

CONSULT Configuration

Select “CONFIGURATION” of BCM.

When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.

2.

PERFORM “WRITE CONFIGURATION - CONFIG FILE”

CONSULT Configuration

Perform “WRITE CONFIGURATION - Config file”.

>> WORK END

3.

PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”

CONSULT Configuration

1.

Select "WRITE CONFIGURATION - Manual selection".

2.

Identify the correct model and configuration list. Refer to

BCS-92, "Configuration list"

.

3.

Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally
if the setting is not correct.
NOTE:
If items are not displayed, touch “SETTING”. Refer to

BCS-92, "Configuration list"

 for written items and

setting value.

4.

Select "SETTING".

CAUTION:

Make sure to select “SETTING” even if the indicated configuration of brand new BCM is same as
the desirable configuration. If not, configuration which is set automatically by selecting vehicle
model cannot be memorized.

5.

When "COMMAND FINISHED", select "END".

Function

Description

READ CONFIGURATION

• Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.

WRITE CONFIGURATION - Manual selection

Writes the vehicle configuration with manual selection.

WRITE CONFIGURATION - Config file

Writes the vehicle configuration with saved data.

BCS-92

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

CONFIGURATION (BCM)

>> GO TO 4.

4.

OPERATION CHECK

Confirm that each function controlled by BCM operates normally.

>> WORK END

Configuration list

INFOID:0000000009949753

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally if
the setting is not correct.

⇔

: Items which confirm vehicle specifications

SETTING ITEM

NOTE

Items

Setting value

CAN FAULT DETECTION

MODE4

⇔

 WITHOUT

• MODE4: Except M/T models
• WITHOUT: M/T models

AUTO LIGHT

WITHOUT

—

DTRL

WITH

⇔

 WITHOUT

• WITH: With daytime running light system
• WITHOUT: Without daytime running light system
