STEERING SWITCH

Exploded View

INFOID:0000000009949652

Refer to

ST-9, "Exploded View"

.

Removal and Installation

INFOID:0000000009949653

REMOVAL

Refer to

ST-9, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-142

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009949654

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Exploded View"

.

2.

Disconnect rear view camera connector.

3.

Remove rear view camera nuts to remove rear view camera.

INSTALLATION

Install in the reverse order of removal.

AV

USB CONNECTOR AND AUX JACK

AV-143

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR AND AUX JACK

Removal and Installation

INFOID:0000000009949655

REMOVAL

1.

Remove instrument lower cover. Refer to

IP-13, "Exploded View"

.

2.

Push the pawl from the back of instrument lower cover to remove USB connector and AUX jack.

INSTALLATION

Install in the reverse order of removal.

AV-144

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

ANTENNA FEEDER

ANTENNA FEEDER

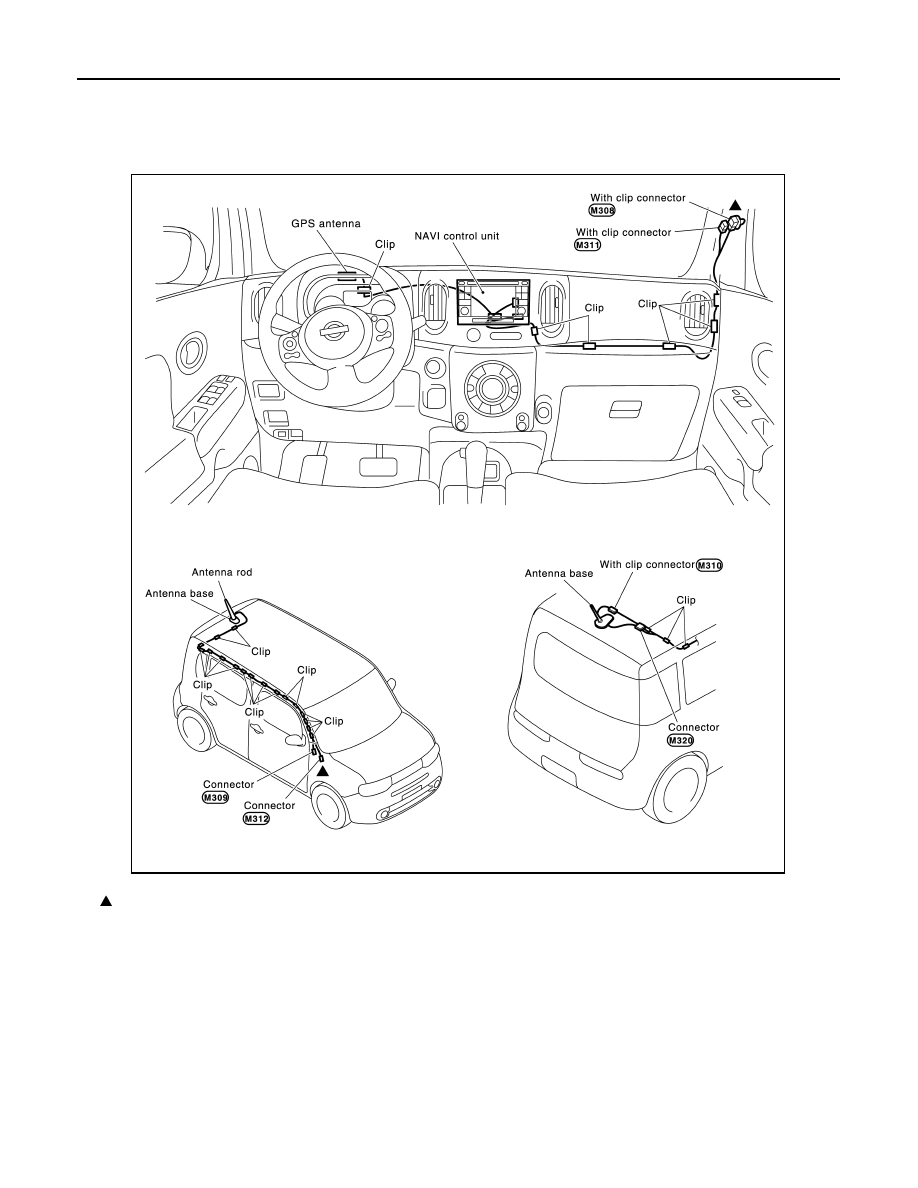

Feeder Layout

INFOID:0000000009949656

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA3999GB
