AV

FRONT DOOR SPEAKER

AV-133

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

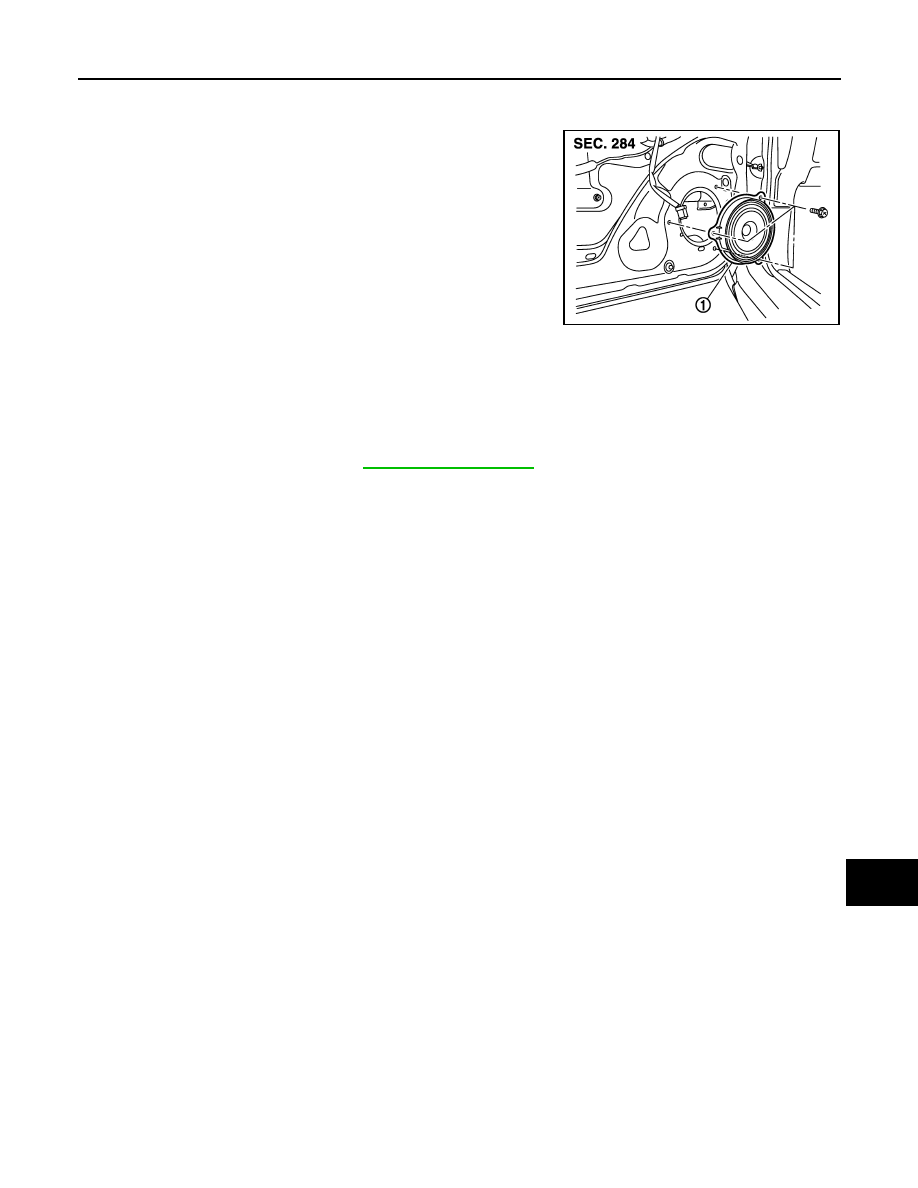

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000009949637

Removal and Installation

INFOID:0000000009949638

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "Exploded View"

.

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA1640ZZ

1.

Front door speaker

AV-134

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

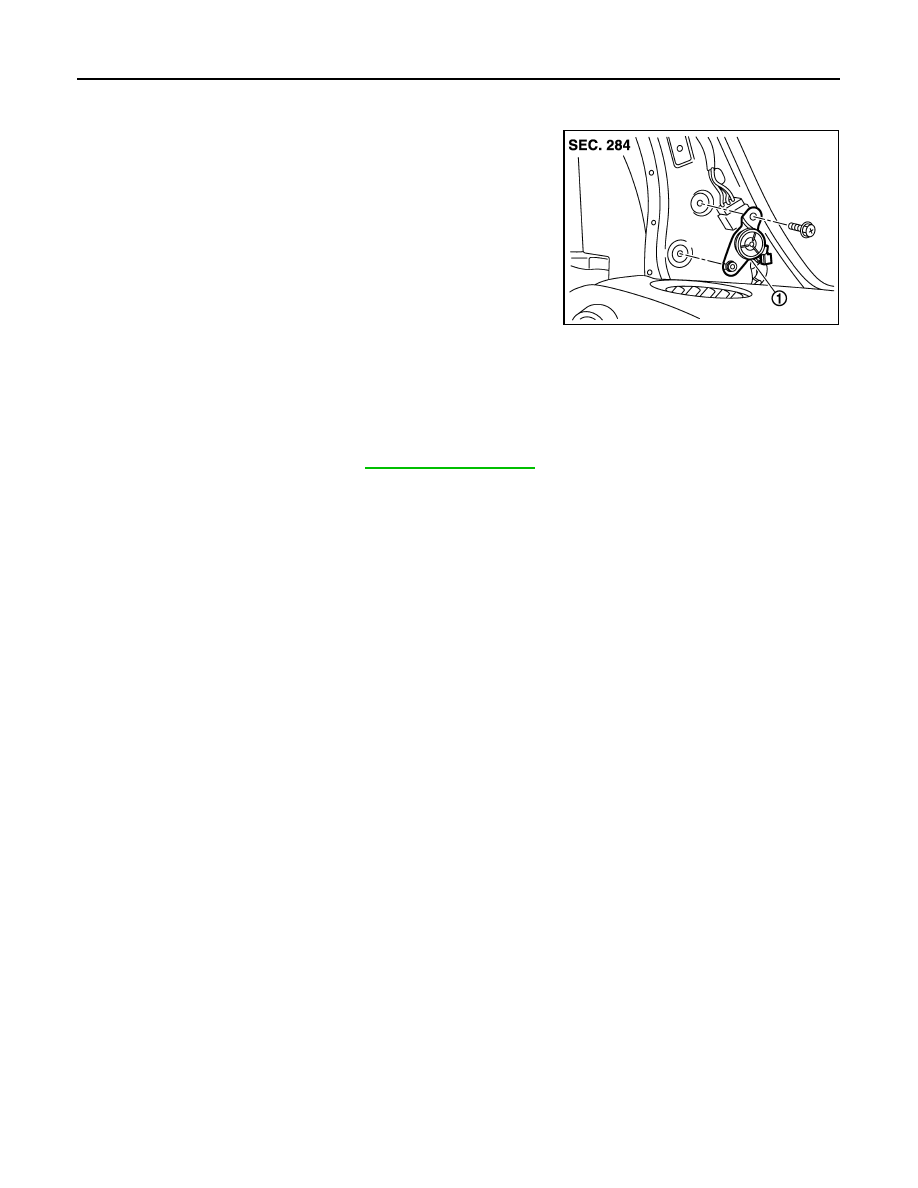

TWEETER

TWEETER

Exploded View

INFOID:0000000009949639

Removal and Installation

INFOID:0000000009949640

REMOVAL

1.

Remove front pillar garnish. Refer to

INT-16, "Exploded View"

.

2.

Remove tweeter screw and clip, then disconnect tweeter connector and remove tweeter.

INSTALLATION

Install in the reverse order of removal.

JPNIA1696ZZ

1.

Tweeter

AV

REAR DOOR SPEAKER

AV-135

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

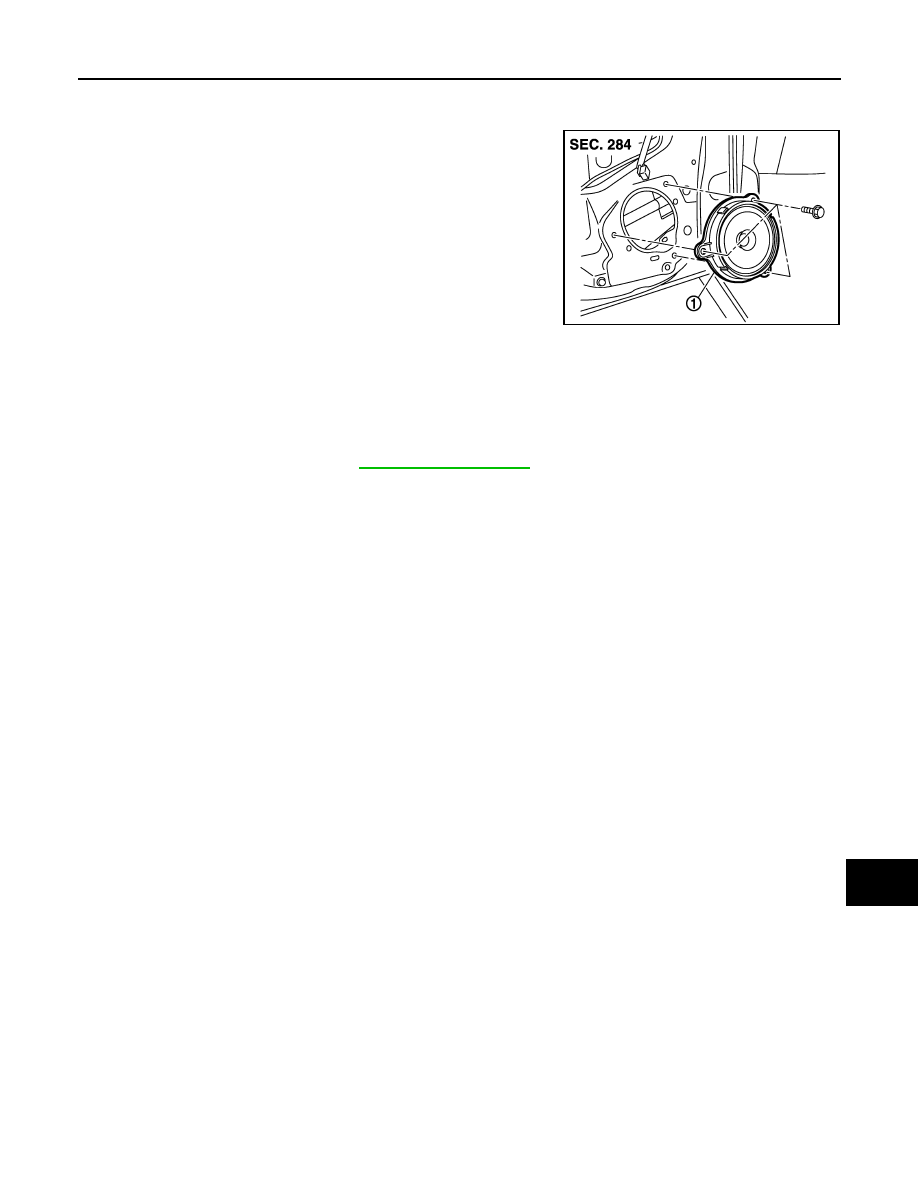

REAR DOOR SPEAKER

Exploded View

INFOID:0000000009949641

Removal and Installation

INFOID:0000000009949642

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Exploded View"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA1697ZZ

1.

Rear door speaker

AV-136

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

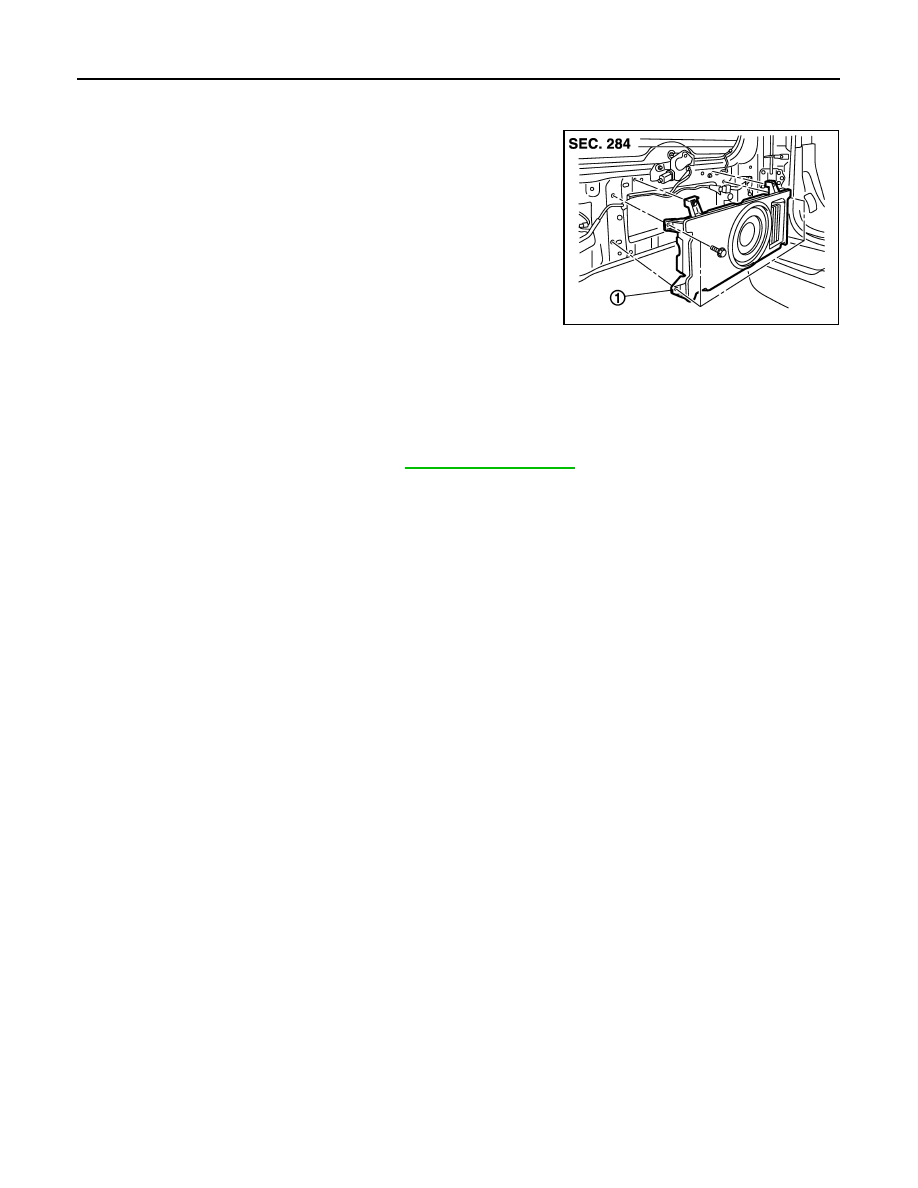

WOOFER

WOOFER

Exploded View

INFOID:0000000009949643

Removal and Installation

INFOID:0000000009949644

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Exploded View"

.

2.

Remove screws and clips, then disconnect woofer connector and remove the woofer.

INSTALLATION

Install in the reverse order of removal.

JPNIA1698ZZ

1.

Woofer
