TIRE PRESSURE MONITORING SYSTEM

WT-17

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

AAEIA0084GB

WT-18

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

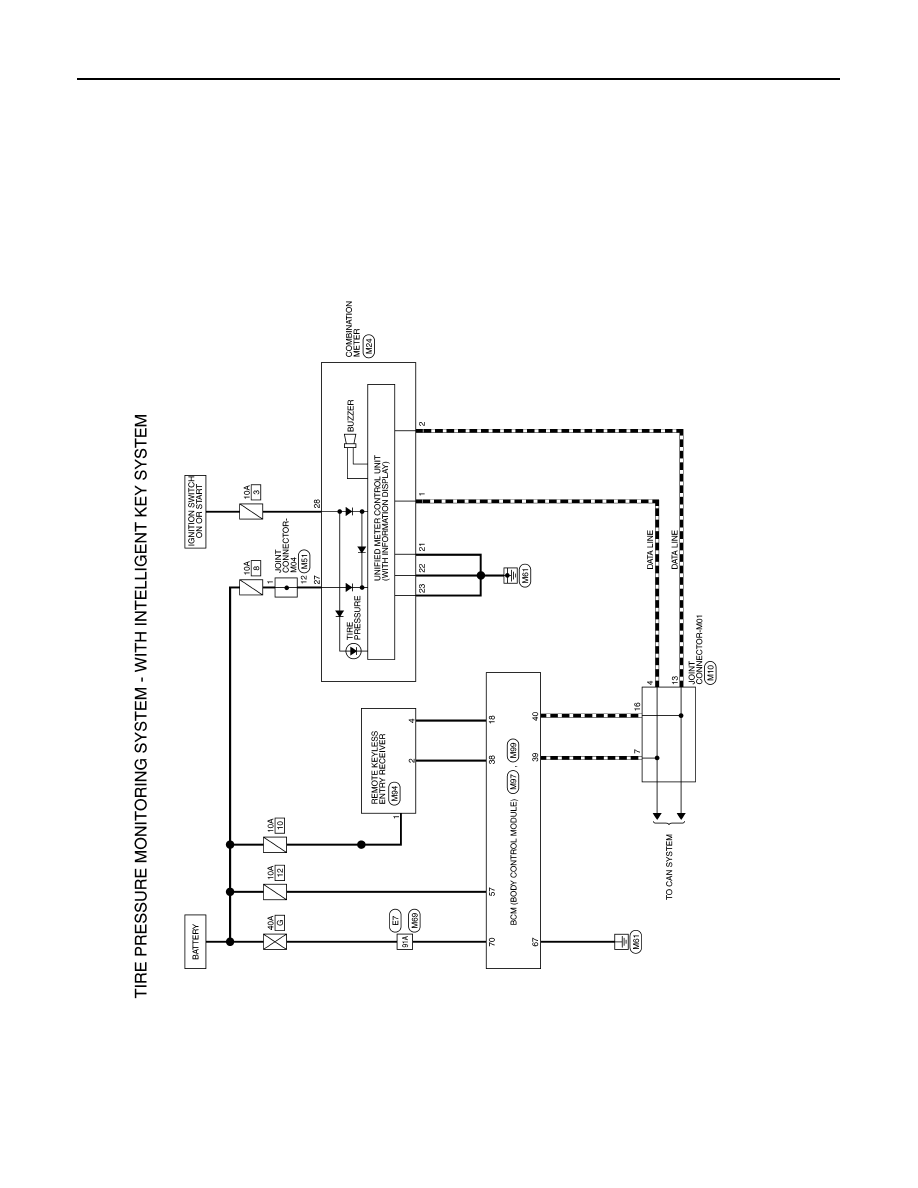

Wiring Diagram - With Intelligent Key

INFOID:0000000009761227

AAEWA0041GB

TIRE PRESSURE MONITORING SYSTEM

WT-19

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

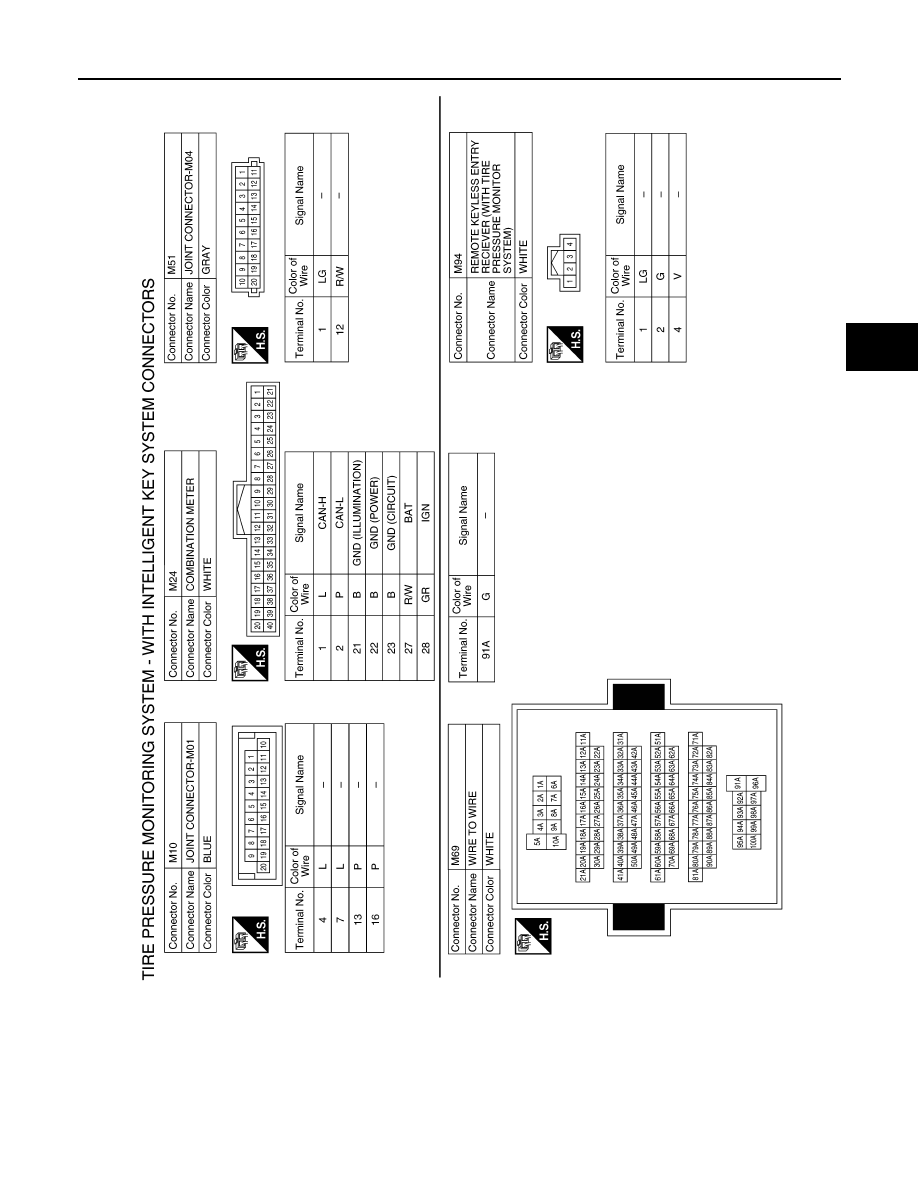

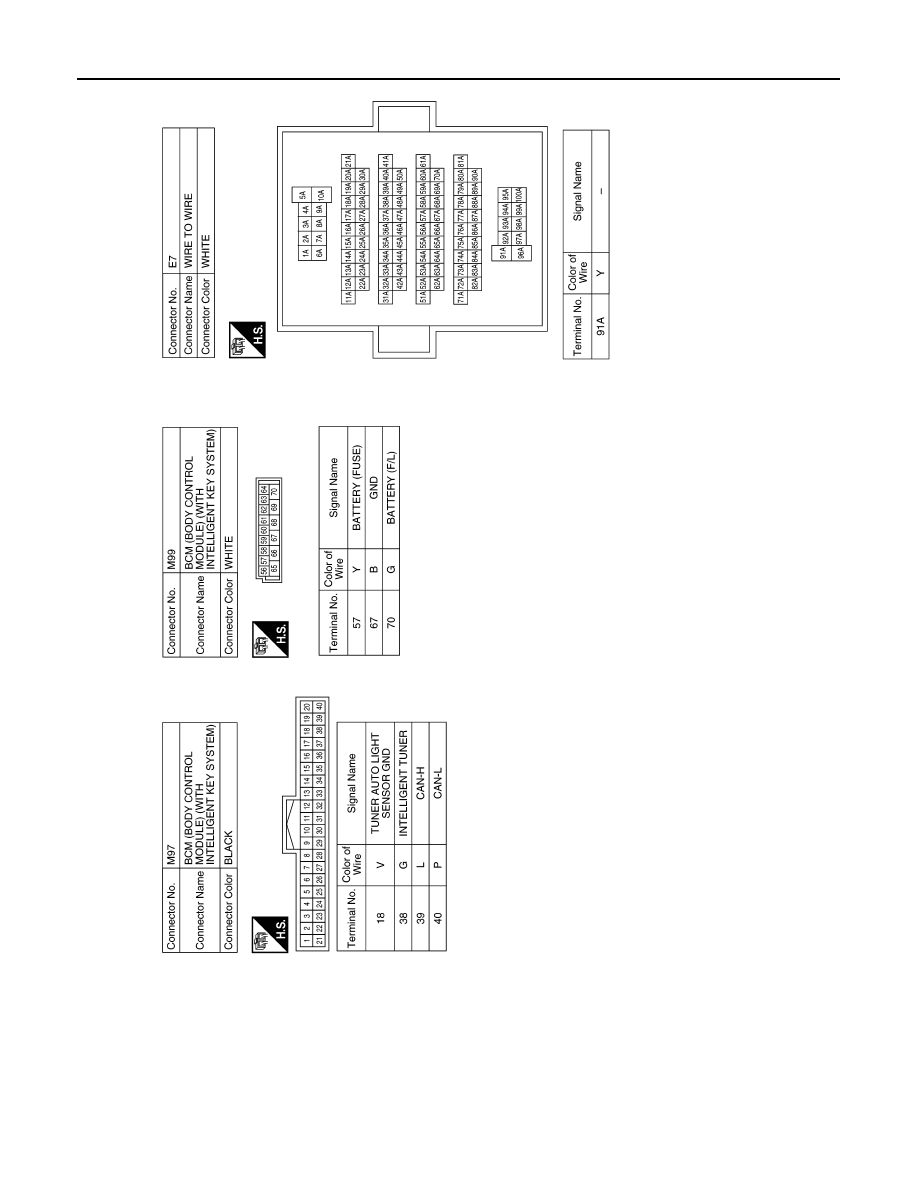

AAEIA0081GB

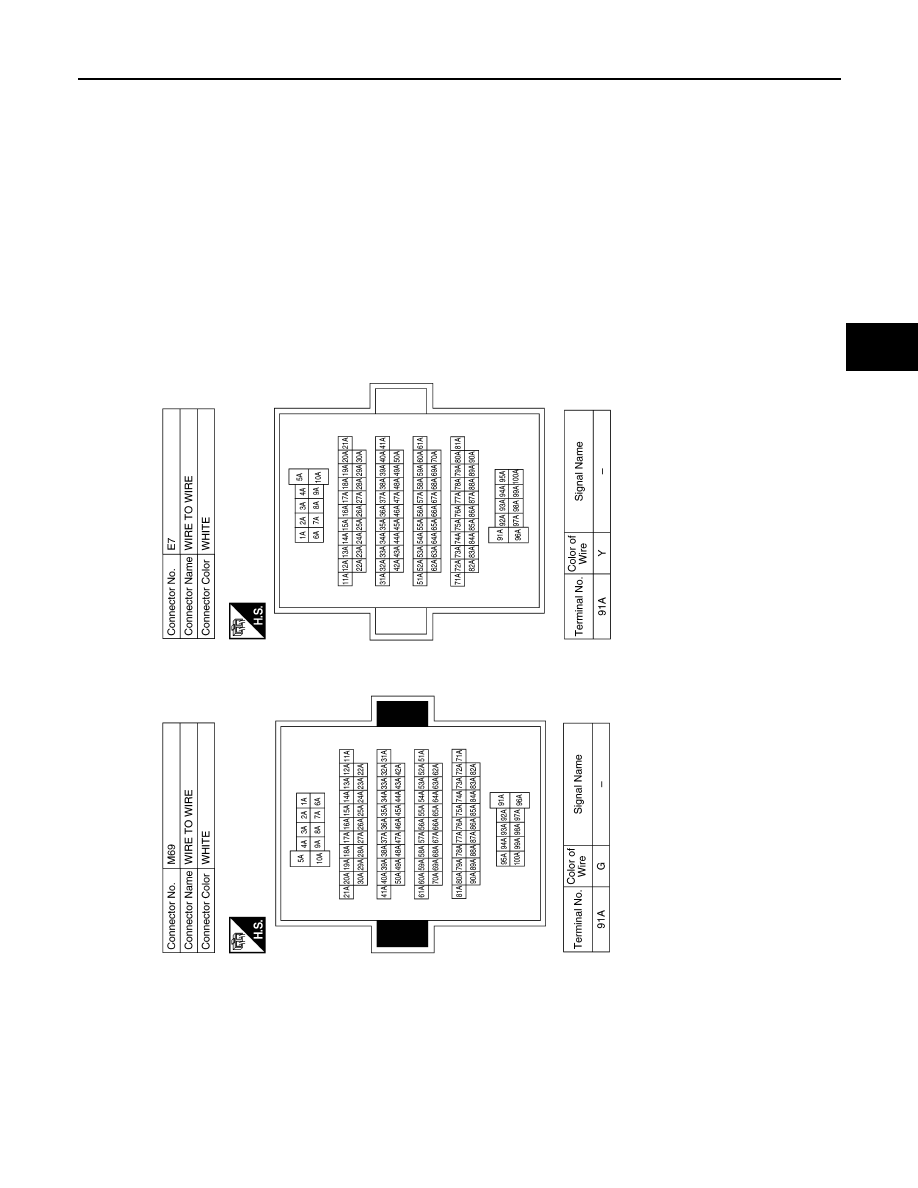

WT-20

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

AAEIA0082GB
