SYSTEM

WT-9

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

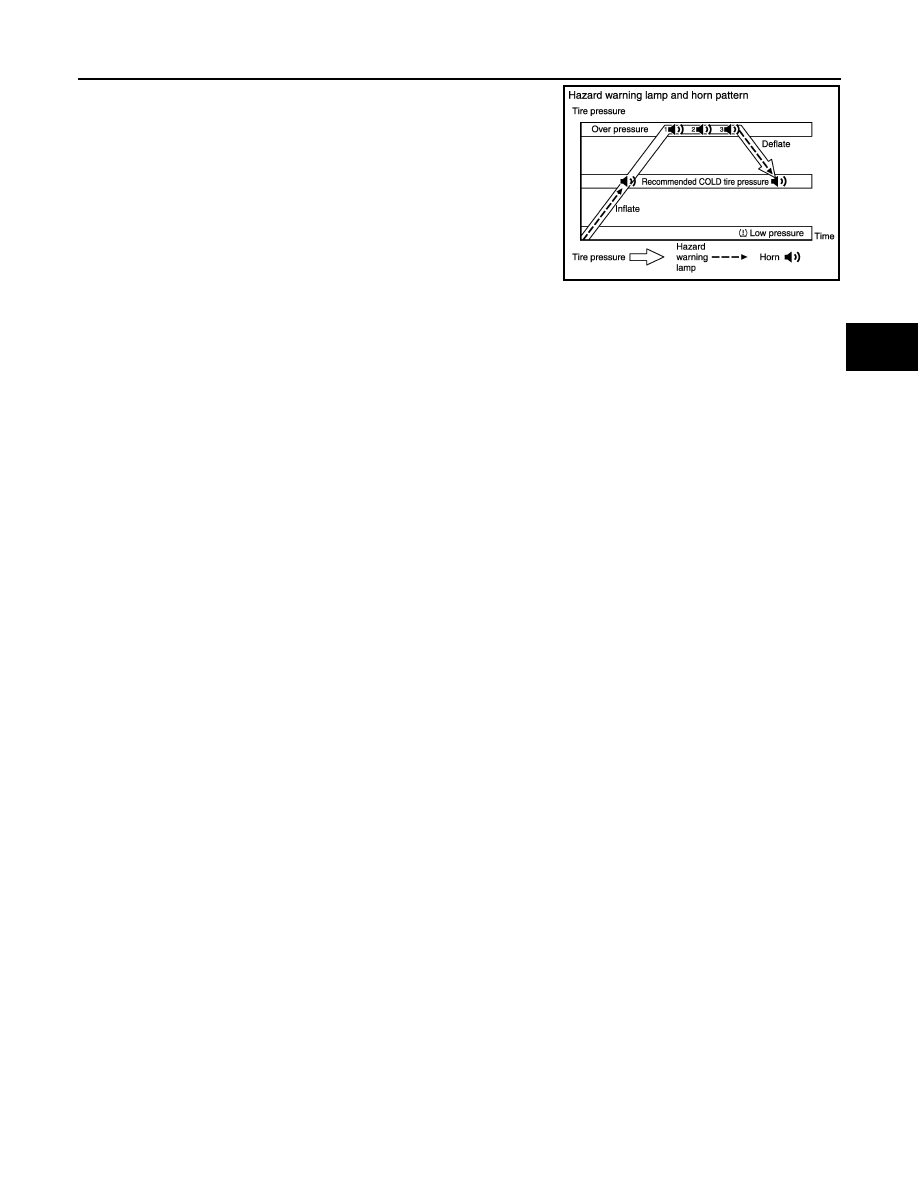

• This function informs the driver of the satisfaction of the recom-

mended COLD tire pressure.

The hazard warning lamp blinks when reaching the recommended

COLD tire pressure during radio wave reception. After reaching the

recommended COLD tire pressure, the horn sounds once and the

hazard warning lamp stops blinking.

• When tire pressure becomes a value equal to or more than 30 kPa

(0.31 kg/cm

2

, 4 psi) more than the recommended COLD tire pres-

sure, the hazard warning lamp and the horn operates three times.

After deflating the tire and reaching the recommended COLD tire

pressure, the horn sounds only once and the hazard warning lamp

stops blinking.

NOTE:

• After starting to inflate the tire, it takes a few seconds for the easy fill tire alert to function.

• If there is no response for approximately 15 seconds or more after inflating the tires, cancel the use of the

easy fill tire alert function or move the vehicle approximately 1 m (3.2 ft) backward or forward to try again.

The air filler pressure may be weak or out of service area.

JSEIA0214GB

WT-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

WITH INTELLIGENT KEY
WITH INTELLIGENT KEY : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009698606

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

ECU identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU id

en

tif

ica

tion

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a

 M

on

ito

r

Acti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

ig

ur

at

io

n

CAN DIAG SUP

P

OR

T MNTR

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

WT-11

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

WITH INTELLIGENT KEY : CONSULT Function (BCM - AIR PRESSURE MONITOR)

INFOID:0000000009698607

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

• Check Intelligent Key relative signal strength

• Confirm vehicle Intelligent Key antenna signal strength

SELF DIAGNOSTIC RESULT

NOTE:

Before performing self diagnostic result, be sure to register the ID, or else the actual malfunction may be differ-

ent from that displayed on CONSULT.

Refer to

BCS-48, "DTC Index"

.

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

WITHOUT INTELLIGENT KEY
WITHOUT INTELLIGENT KEY : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009698608

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Monitor Item [Unit]

Description

AIR PRESS FL [kPa, kg/cm

2

 or Psi]

Indicates air pressure of front LH tire.

AIR PRESS FR [kPa, kg/cm

2

 or Psi]

Indicates air pressure of front RH tire.

AIR PRESS RR [kPa, kg/cm

2

 or Psi]

Indicates air pressure of rear RH tire.

AIR PRESS RL [kPa, kg/cm

2

 or Psi]

Indicates air pressure of rear LH tire.

ID REGST FL1 [Done/Yet]

Indicates ID registration status of front LH transmitter.

ID REGST FR1 [Done/Yet]

Indicates ID registration status of front RH transmitter.

ID REGST RR1 [Done/Yet]

Indicates ID registration status of rear RH transmitter.

ID REGST RL1 [Done/Yet]

Indicates ID registration status of rear LH transmitter.

WARNING LAMP [Off/On]

Indicates condition of low tire pressure warning lamp in combination meter.

BUZZER [Off/On]

Indicates condition of buzzer in combination meter.

Test Item

Description

HORN

This test is able to check horn operation [On].

FLASHER

This test is able to check turn signal lamp operation [Off/LH/RH].

ID REGIST WARNING

This test is able to check ID registration warning chime operation [On/Off].

WARNING LAMP

This test is able to check tire pressure warning lamp operation [On/Off].

Support Item

Description

ID READ

The registered ID number is displayed.

ID REGIST

Refer to

WT-22, "Description"

.

WT-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

SYSTEM APPLICATION

BCM can perform the following functions.

WITHOUT INTELLIGENT KEY : CONSULT Function (BCM - AIR PRESSURE MONI-
TOR)

INFOID:0000000009698609

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

Direct Diagnostic Mode

Description

ECU identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a

 M

on

ito

r

Ac

tive

 T

est

W

o

rk su

pp

ort

Conf

ig

ura

tio

n

CAN DIAG SUPP

O

R

T MNTR

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×
