TM-228

< PERIODIC MAINTENANCE >

[CVT: RE0F11A]

CVT FLUID

• During adjustment of the CVT fluid level, check CONSULT so that the oil temperature may be main-

tained from 35 to 45

°C (95 to 113°F).

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
1. Check that the selector lever is in the “P” position, then completely engage the parking brake.
2. Start the engine.
3. Adjust the CVT fluid temperature to be approximately 40

°C (104°F).

NOTE:

The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the

“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.

4. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

5. Lift up the vehicle.
6. Check that there is no CVT fluid leakage.
7. Remove the drain plug. Refer to

TM-240, "Removal and Installation"

.

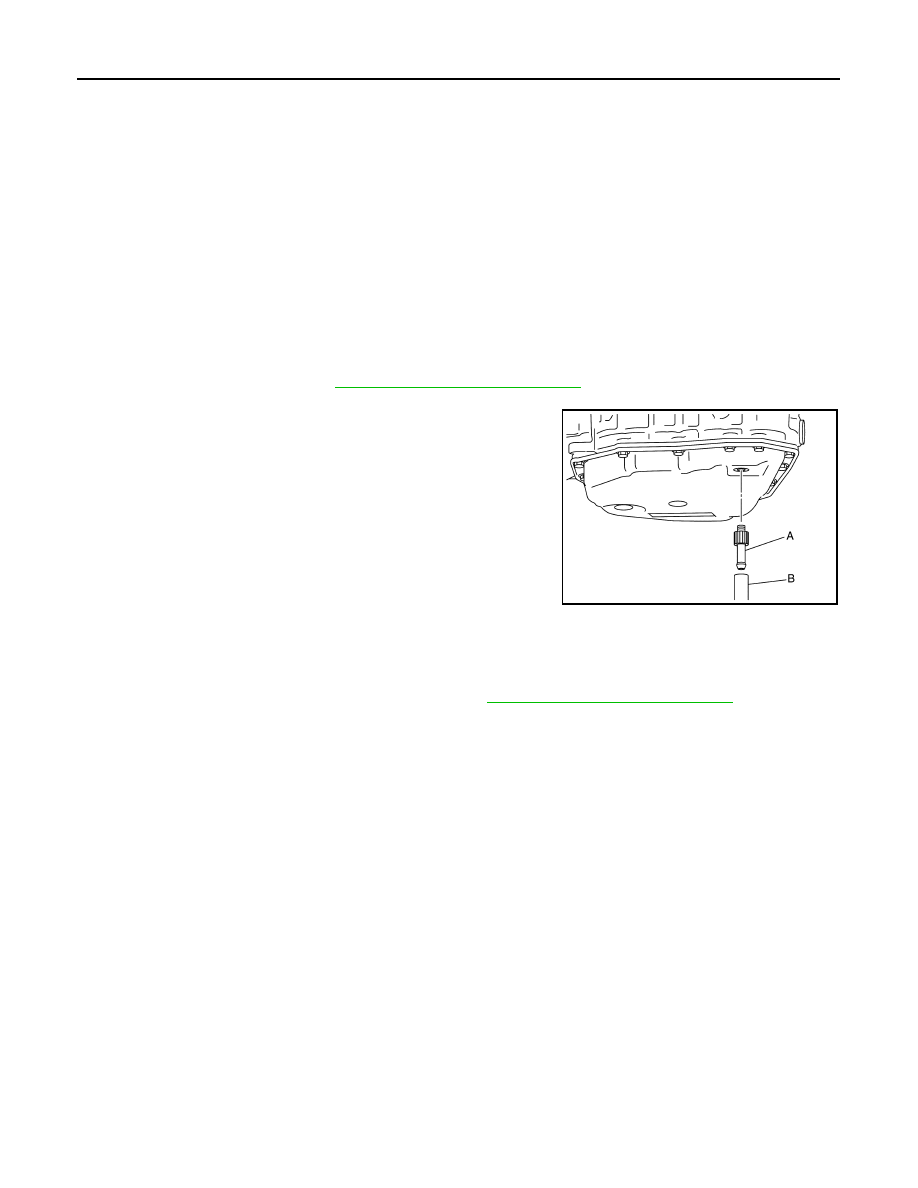

8. Install the charging pipe set (KV311039S0) (A) into the drain

plug hole.

CAUTION:

Tighten the charging pipe by hand.

9. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

10. Fill approximately 0.5 liter (1/2 lmp qt) of the CVT fluid.
11. Remove the ATF changer hose from the charging pipe, and

check that the CVT fluid drains out from the charging pipe. If it

does not drain out, perform charging again.

CAUTION:

Perform this work with the vehicle idling.

12. When the flow of CVT fluid slows to a drip, remove the charging pipe from the oil pan.
13. Tighten the drain plug to the specified torque. Refer to

TM-240, "Removal and Installation"

.

CAUTION:

Never reuse drain plug gasket.

14. Lift down the vehicle.
15. Stop the engine.

JSDIA1876ZZ

CVT SHIFT SELECTOR

TM-229

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

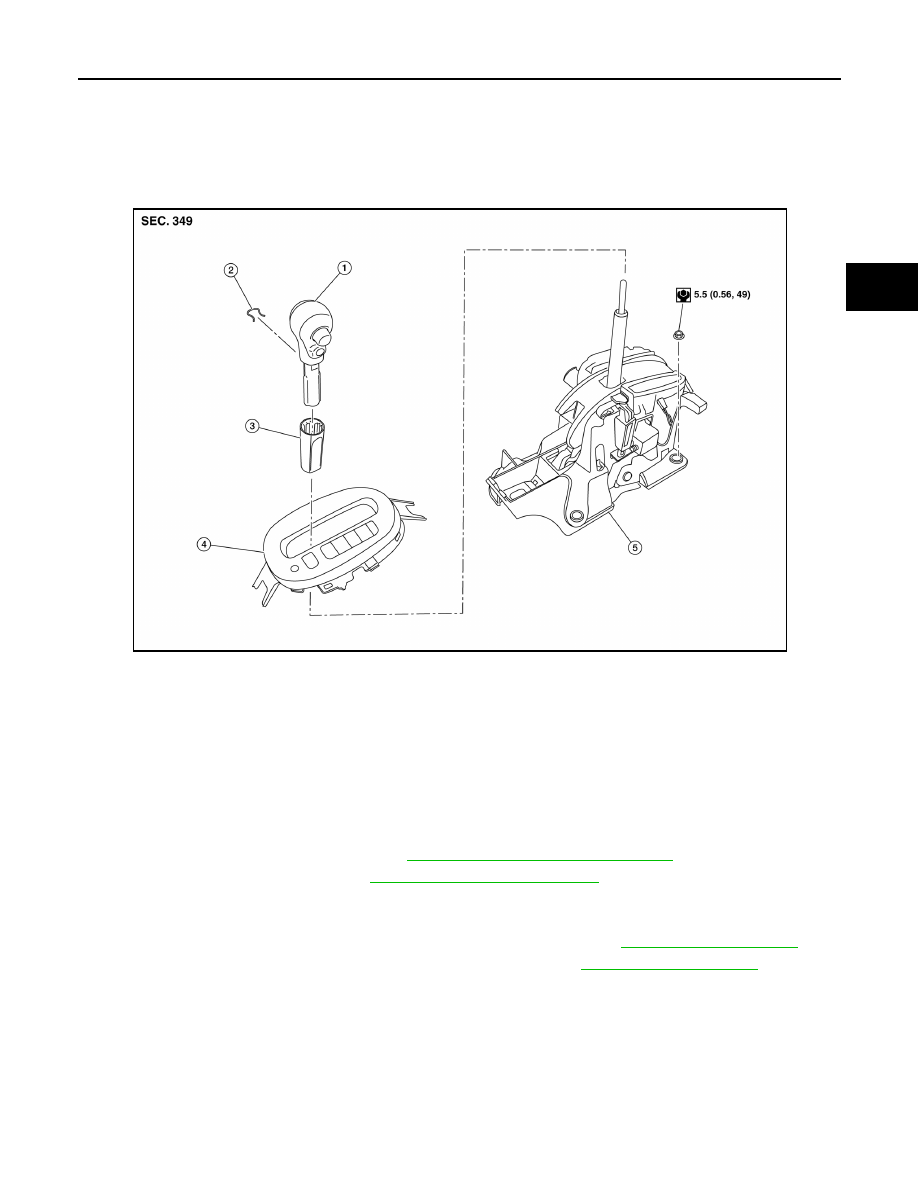

Exploded View

INFOID:0000000009019767

Removal and Installation

INFOID:0000000009019768

CAUTION:

Always apply the parking brake before performing removal and installation.

REMOVAL

1. Move the shift selector to the “N” position.
2. Remove the shift selector handle. Refer to

TM-230, "Disassembly and Assembly"

.

3. Remove the center console. Refer to

IP-18, "Removal and Installation"

.

4. Disconnect the harness connectors from shift selector.
5. Move the shift selector to the “P” position.
6. Remove the key interlock cable from the shift selector assembly. Refer to

TM-235, "Exploded View"

.

7. Remove the control cable from the shift selector assembly. Refer to

TM-232, "Exploded View"

.

8. Remove the shift selector assembly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Shift selector handle

2.

Lock pin

3.

Shift selector handle cover

4.

Position indication panel

5.

Shift selector assembly

ALDIA0263GB

TM-230

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

CVT SHIFT SELECTOR

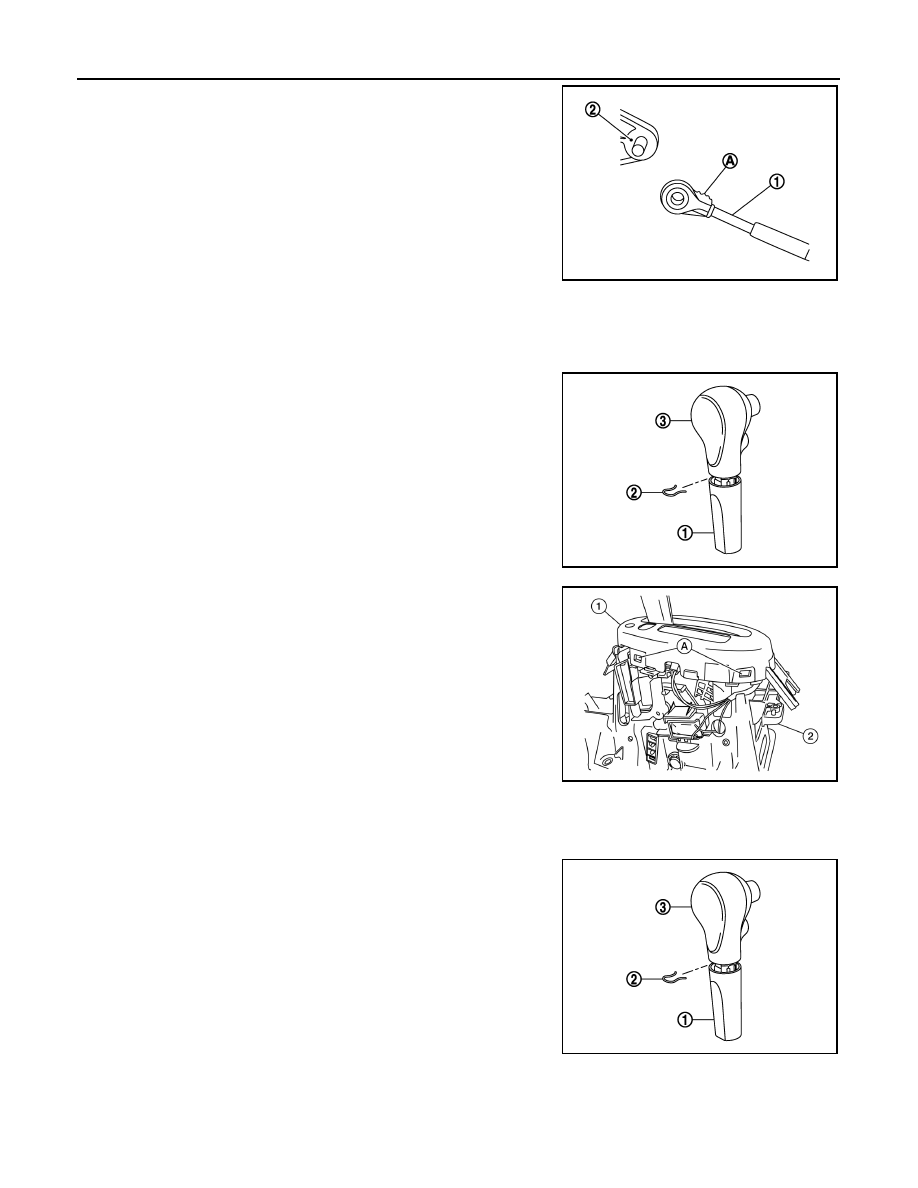

• When connecting the control cable (1) to the shift selector assem-

bly (2), face the grooved surface of the rib (A) up and insert the

control cable until it stops.

Disassembly and Assembly

INFOID:0000000009019769

DISASSEMBLY

1. Slide the shift selector handle cover (1) down.

CAUTION:

Do not damage the shift selector handle cover.

2. Pull out the lock pin (2).
3. Pull the shift selector handle (3) and shift selector handle cover

upward to remove.

4. Remove the position lamp.

5. Disengage the hooks (A) (4 locations), and lift up the position

indication panel (1) to separate it from the shift selector assem-

bly (2).

CAUTION:

Do not damage the shift selector assembly.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Follow the procedure below to install the shift selector handle.

1. Install the lock pin (2) onto the shift selector handle (3).

2. Install the shift selector handle cover (1) onto the shift selector

handle.

3. Press the shift selector handle onto the shift selector until it

clicks.

CAUTION:

• When pressing the shift selector handle onto the shift

selector, do not press the shift selector handle button.

• Do not strike the shift selector handle to install it.

Inspection

INFOID:0000000009019770

INSPECTION AFTER INSTALLATION

JSDIA1624ZZ

JSDIA1796ZZ

ALDIA0264ZZ

JSDIA1796ZZ

CVT SHIFT SELECTOR

TM-231

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Check CVT position. Refer to

TM-133, "Inspection"

.
