PRECAUTIONS

STC-3

< PRECAUTION >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009499763

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Service Notice and Precautions for EPS System

INFOID:0000000008969726

• Check the following item when performing the trouble diagnosis:

- Check for possible causes of the malfunction by interviewing the customer as to what conditions were

present when the symptom occurred.

- Check if the steering wheel and the EPS control unit are genuine parts.

- Check if the air pressure and size of each tire is correct.

- Check if the installation of the links and suspension components are correct.

- Check if the tires are worn evenly, indicating the wheel alignment is correct.

- Check if the installation of the steering column and the steering gear are correct. Check for loose bolts, dam-

aged links, cracked boots and leaking grease, etc.

- Check for damage or modification to suspension or body resulting in increased weight or altered ground

clearance.

- Check if the battery voltage is proper.

- Check the EPS control unit harness to be sure the harness connectors are fully seated.

• Before connecting or disconnecting the EPS control unit harness connector, turn ignition switch “OFF” and

disconnect the battery cable from the negative terminal. Battery voltage is applied to the EPS control unit

even if ignition switch is turned “OFF”.

STC-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000009667170

A.

Steering column assembly

No.

Component

Function

1.

Combination meter
(EPS warning lamp)

• Transmits mainly the following signal to EPS control unit via

CAN communication.

- Vehicle speed signal (Meter)
• Turns ON the EPS warning lamp according to the signal

from EPS control unit via CAN communication.

• For detailed installation location, refer to

MWI-5, "METER

SYSTEM : Component Parts Location"

.

2.

ABS actuator and electric unit (control unit)

• Transmits mainly the following signal to EPS control unit via

CAN communication.

- Vehicle speed signal (ABS)
• For detailed installation location, refer to

BRC-7, "Compo-

nent Parts Location"

.

3.

ECM

• Transmits mainly the following signals to EPS control unit

via CAN communication.

- Engine status signal
• For detailed installation location, refer to

EC-14, "ENGINE

CONTROL SYSTEM : Component Parts Location"

.

• Receives mainly the following signal from EPS control unit

via CAN communication.

- EPS torque signal

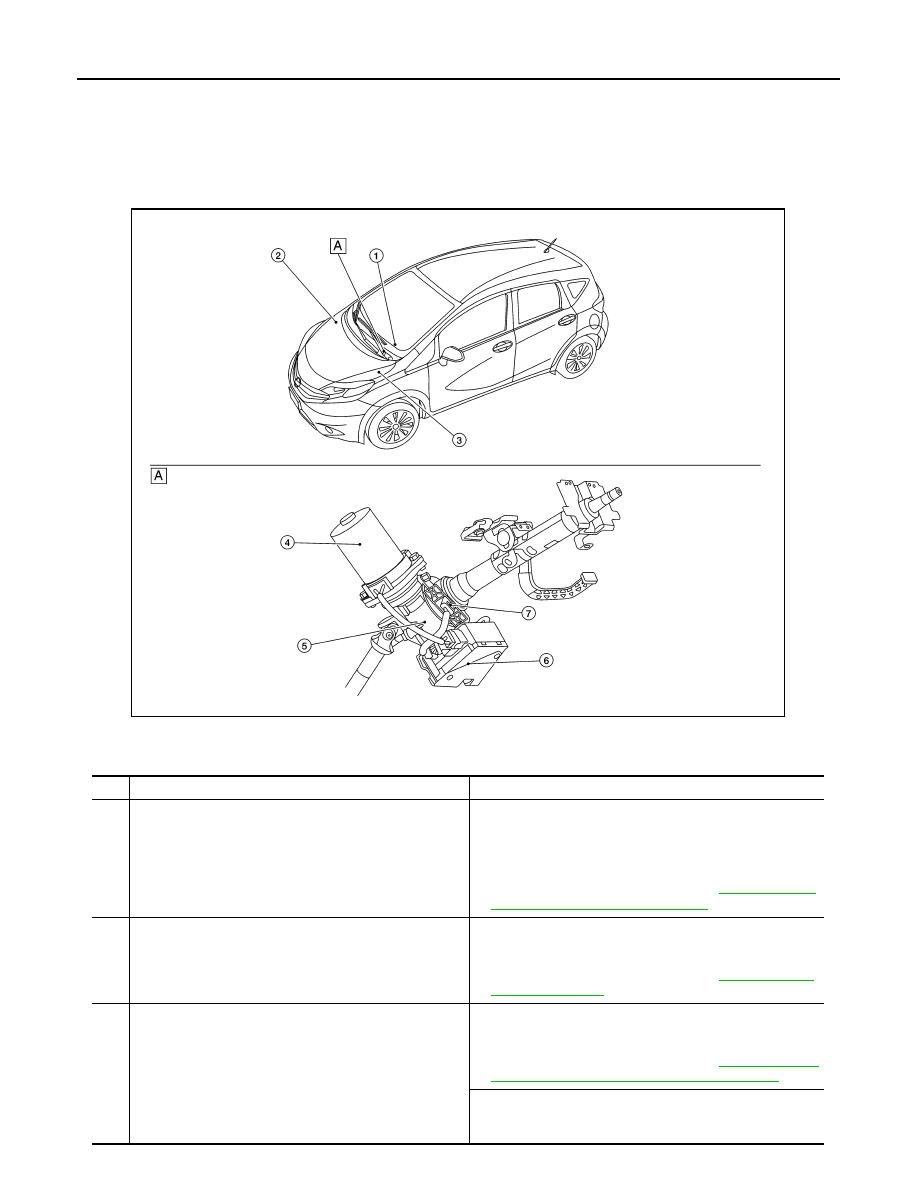

ALGIA0166ZZ
