SIDE CURTAIN AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

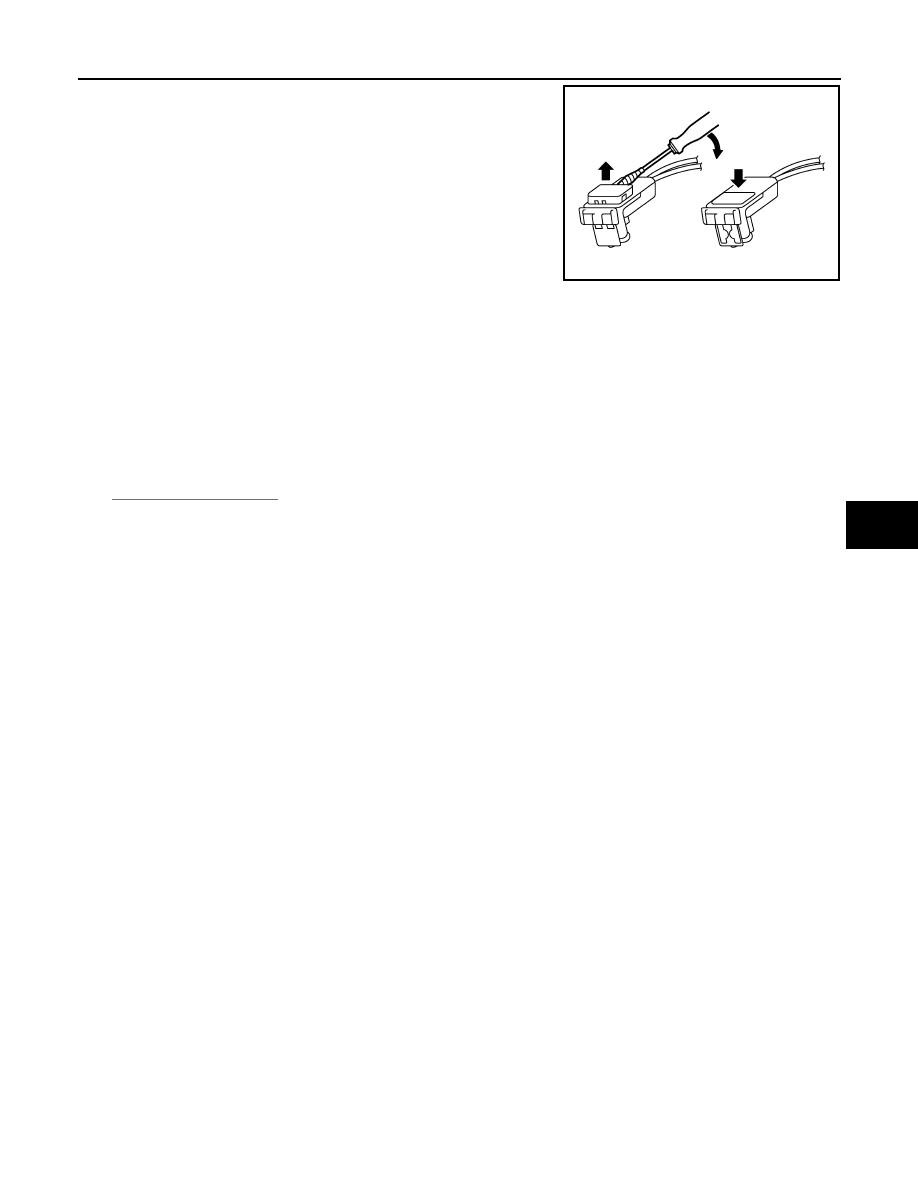

• For removing/installing the side curtain air bag module

harness connector, insert a thin screwdriver wrapped in

tape into the notch, lift the lock and remove the harness

connector as shown.

• Install the harness connector with the lock raised, and

push the lock into the harness connector as shown.

• After installing the harness connector, check that the lock

is pushed in securely.

4. Remove the tether bolt, then the remaining side curtain air bag module bolts.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

When installing the side curtain air bag module make sure it is not twisted between attachment brack-

ets.

CAUTION:

• Make sure to attach the double stick tape to the tether and adhere it to the pillar.

• Do not damage the harness while installing the side curtain air bag module.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

to

SRC-14, "Description"

.

PHIA0953J

SR-22

< REMOVAL AND INSTALLATION >

SIDE AIR BAG MODULE

SIDE AIR BAG MODULE

Removal and Installation

INFOID:0000000009423890

The side air bag module is part of the front seatback. Refer to

SE-24, "DRIVER SIDE : Side Air Bag Module"

(DRIVER SIDE) or

SE-25, "PASSENGER SIDE : Side Air Bag Module"

 (PASSENGER SIDE).

CRASH ZONE SENSOR

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

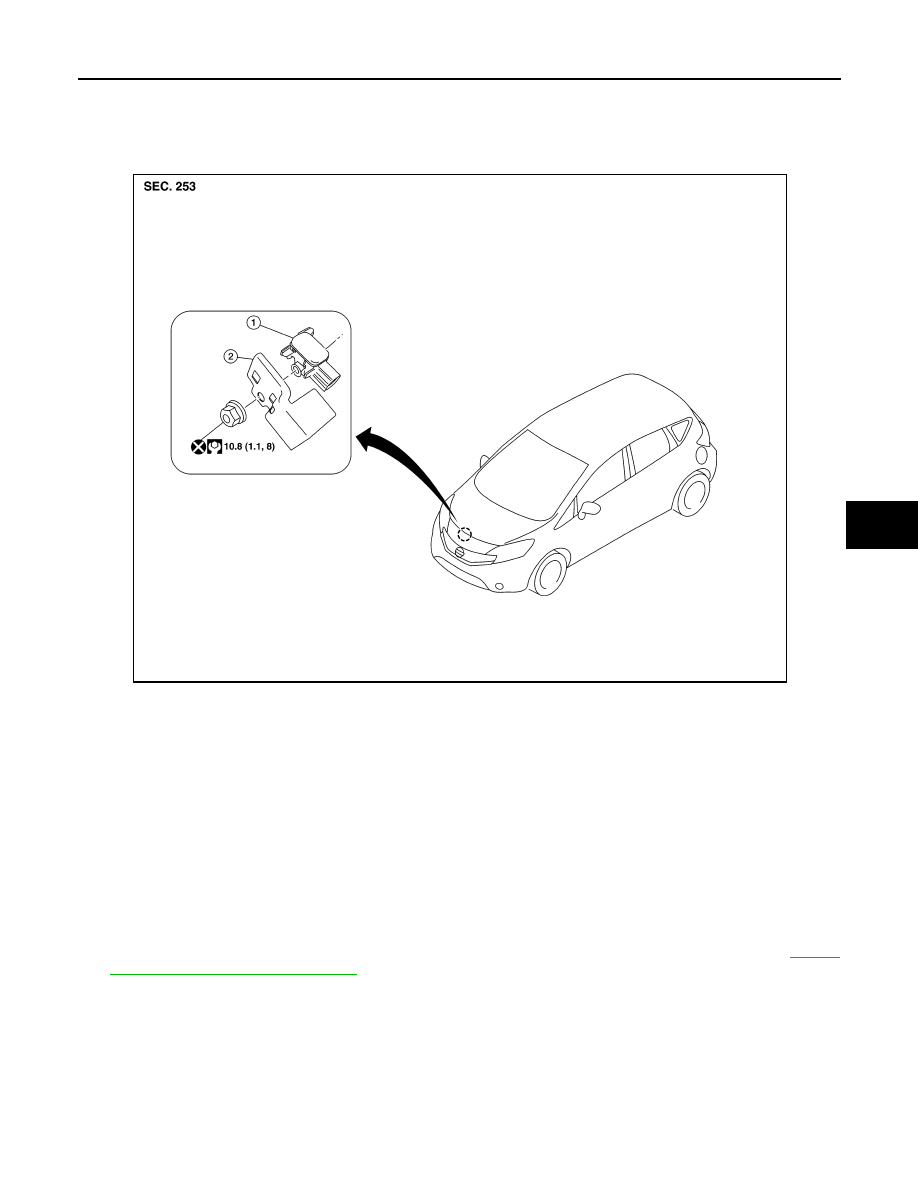

CRASH ZONE SENSOR

Exploded View

INFOID:0000000008969290

Removal and Installation

INFOID:0000000008969291

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Replace the crash zone sensor if it has been dropped or sustained an impact.

• Replace the crash zone sensor if either the driver air bag module, the front passenger air bag mod-

ule, or a front seat belt pre-tensioner has been deployed.

• Do not strike the crash zone sensor.

• Do not use air tools or electric tools for servicing.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

1. Crash zone sensor

2. Bracket

ALHIA0305ZZ

SR-24

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

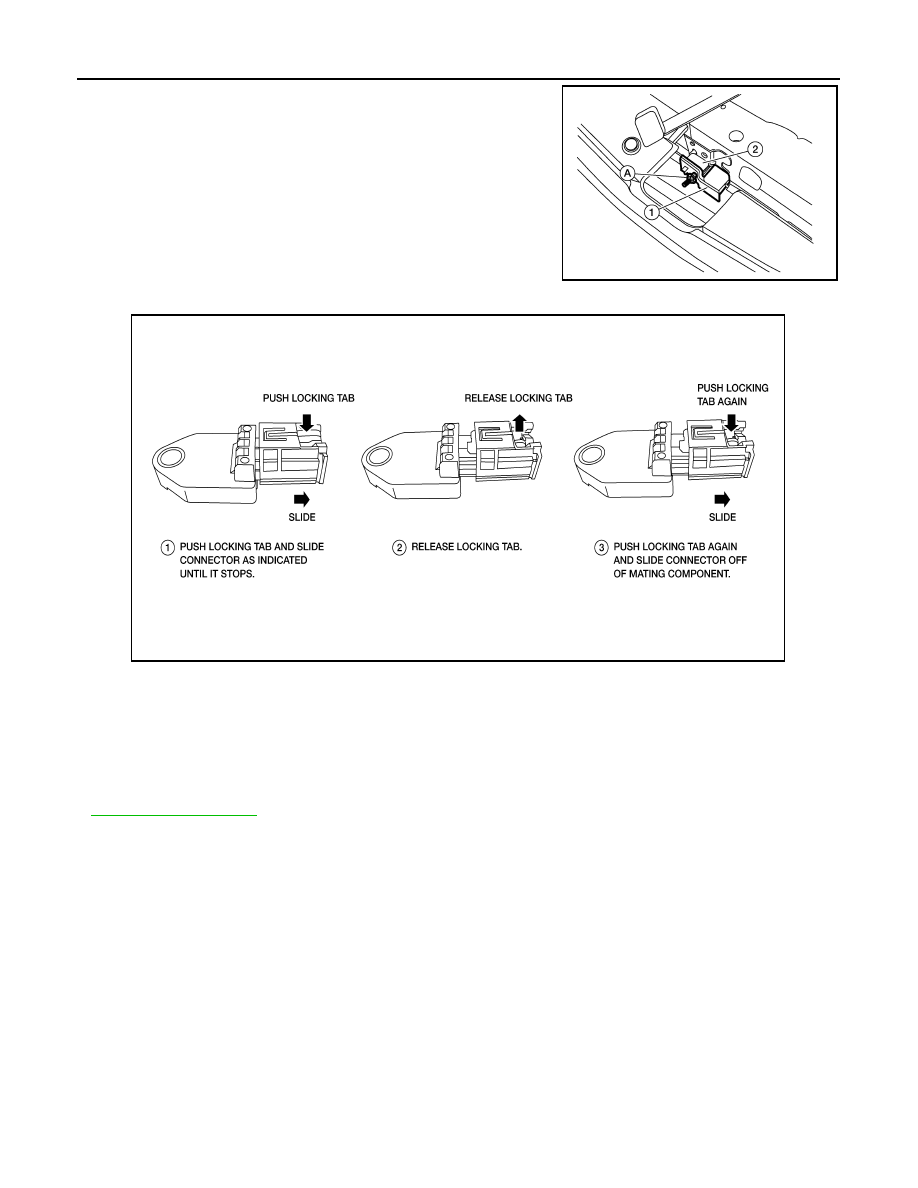

2. Remove and discard crash zone sensor nut (A).

CAUTION:

Do not reuse crash zone sensor nut.

3. Remove bracket (1) and crash zone sensor (2).

4. Disconnect the slide double locking type harness connector from the crash zone sensor, as shown.

INSTALLATION

Installation is in the reverse order of removal.

Position the crash zone sensor using the locating pin before tightening the nut to specification.

CAUTION:

• Do not reuse the crash zone sensor nut.

• Do not damage the harness connector during installation.

• After the work is completed, perform diagnosis to check that no malfunction is detected. Refer to

SRC-14, "Description"

.

ALHIA0306ZZ
