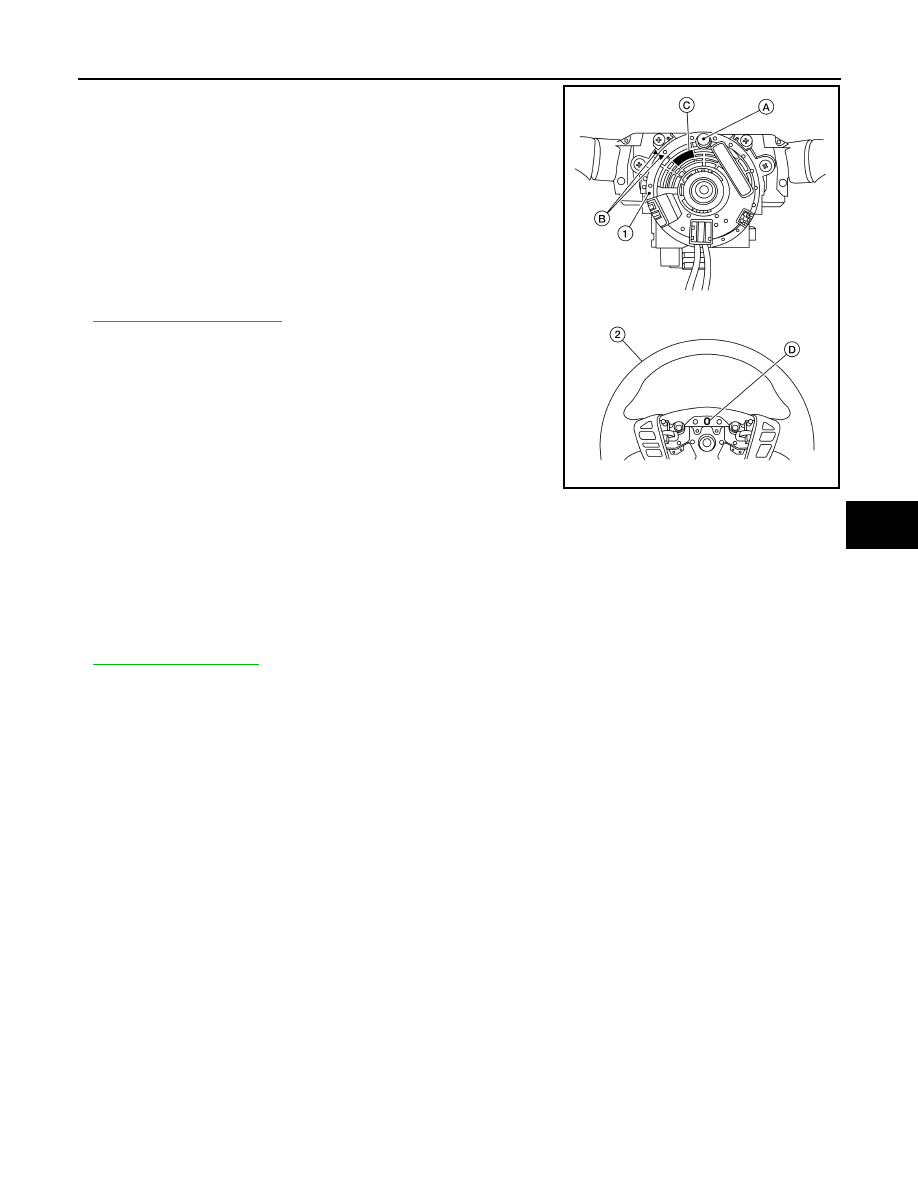

• Set the spiral cable neutral position by carefully turning the spiral

cable (1) clockwise to the stop position. Turn the spiral cable coun-

terclockwise 2.5 turns stopping when the locating pin (A) is at the

top most position, triangles (B) are aligned as shown and the win-

dow (C) appears white.

NOTE:

If a new service part is installed, the neutral position is already set

with a stopper clip in place and should not be adjusted after the

stopper clip is removed. Make sure the stopper clip is removed

before installing the steering wheel.

• During steering wheel (2) installation, make sure the locating pin

hole (D) is aligned with the locating pin (A) of the spiral cable.

• Adjust the neutral position of the steering angle sensor. Refer to

BRC-53, "Work Procedure"

.

CAUTION:

• The spiral cable may snap during steering operation if the spiral cable is installed in an improper

position.

• Do not overturn the spiral cable or go beyond the maximum number of turns allowed. This will cause

the cable to snap.

• Do not apply lubricant to the spiral cable.

• Do not allow oil, grease, detergent or water to come in contact with the spiral cable.

• After the work is completed, perform diagnosis to check that no malfunction is detected. Refer to

SRC-14, "Description"

.

AWHIA0531ZZ

SR-18

< REMOVAL AND INSTALLATION >

FRONT PASSENGER AIR BAG MODULE

FRONT PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000008969286

Removal and Installation

INFOID:0000000008969287

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Always work from the side of air bag module. Do not work in front of it.

• Do not expose the front passenger air bag module to temperatures exceeding 90

°C (194°F).

• Do not attempt to disassemble the front passenger air bag module.

• Do not insert any foreign objects (screwdriver, etc.) into the front passenger air bag module.

• Do not use air tools or electric tools for servicing.

CAUTION:

• Do not allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Remove the glove box assembly. Refer to

IP-25, "Removal and Installation"

.

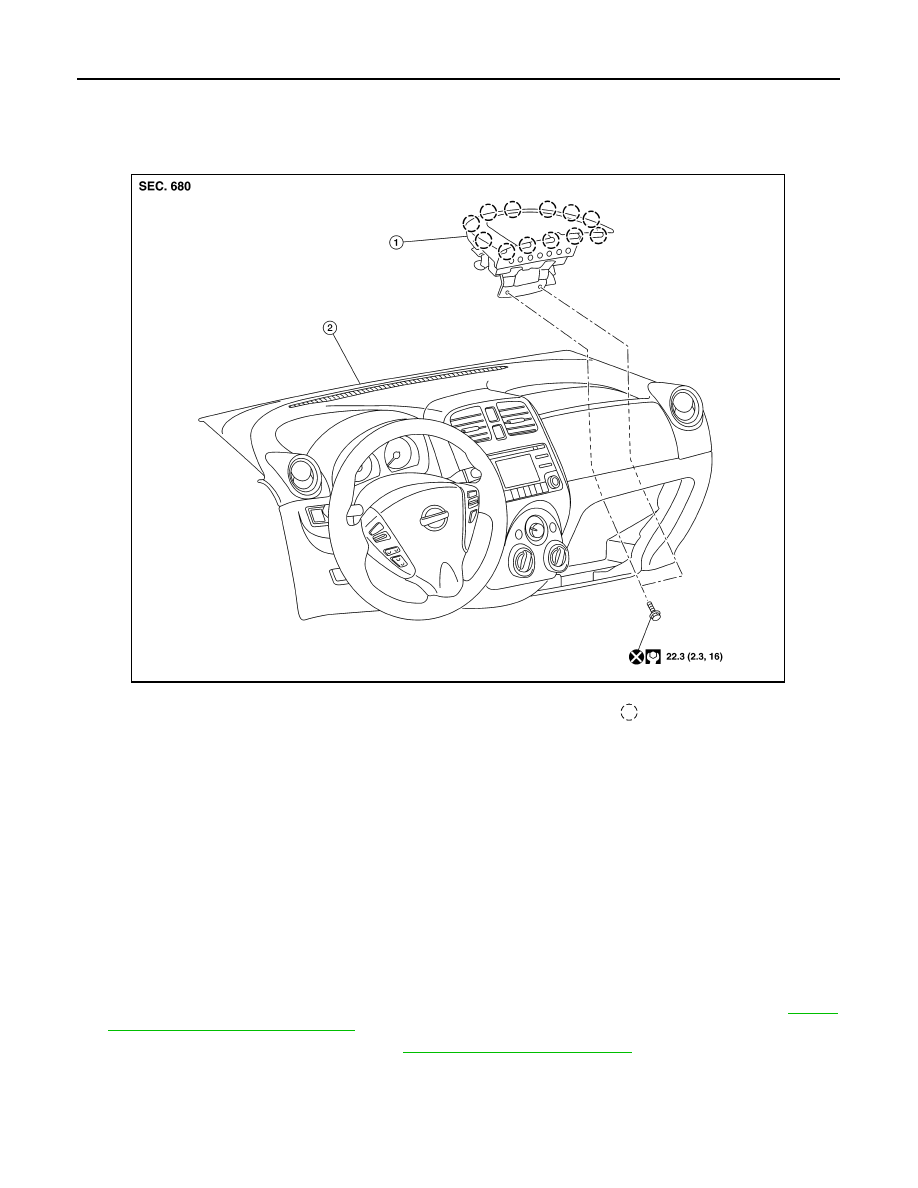

1.

Front passenger air bag module

2.

Instrument panel assembly

Pawl

AWHIA0529ZZ

FRONT PASSENGER AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

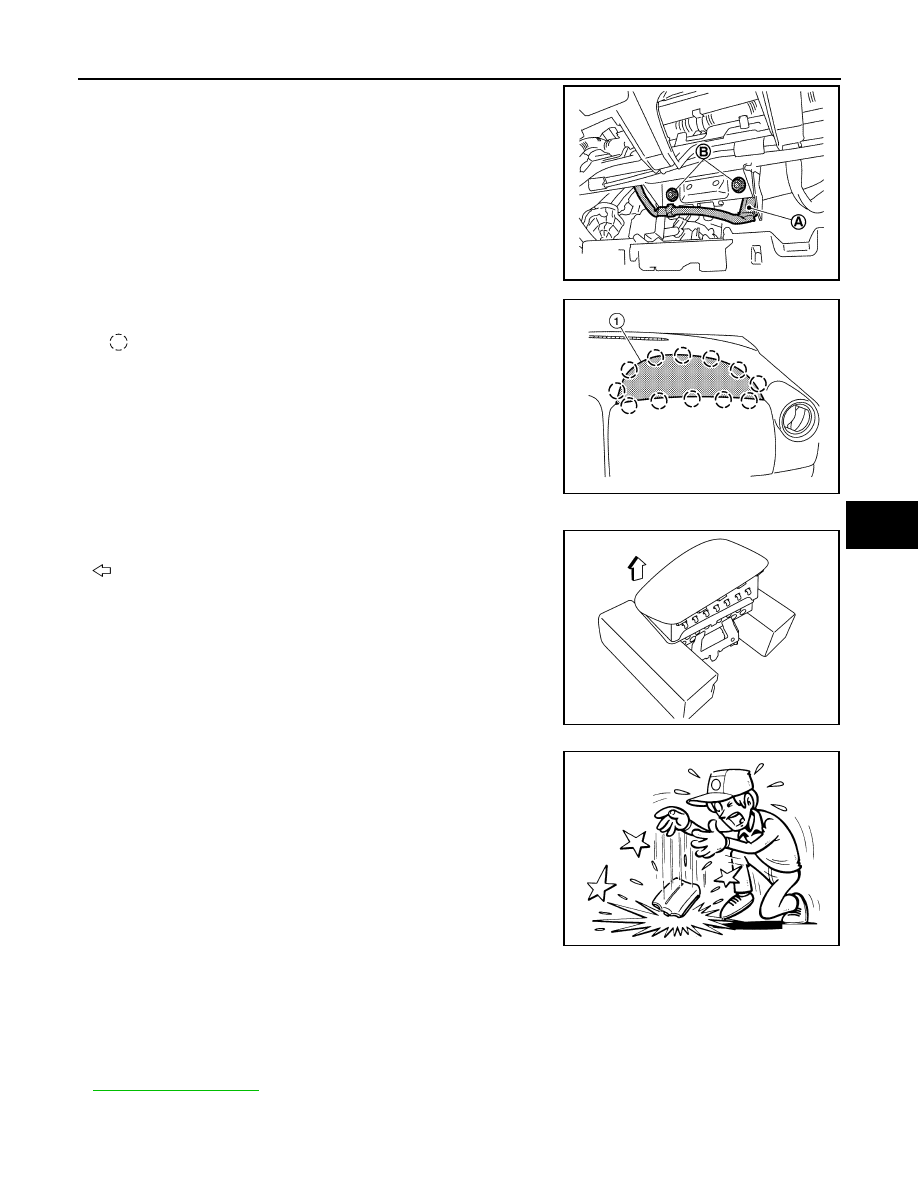

3. Disconnect the harness connector (A) from front passenger air

bag module.

4. Remove and discard the front passenger air bag module bolts

(B).

CAUTION:

Do not reuse front passenger air bag module bolts.

5. Release pawls using a suitable tool and remove front passenger

air bag module (1).

: Pawl

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward.

: Upward

• Do not strike the front passenger air bag module.

• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the front passenger air bag module bolts.

• Do not damage the front passenger air bag module harness during installation.

• After the work is completed, perform diagnosis to check that no malfunction is detected. Refer to

SRC-14, "Description"

.

JMHIA2022ZZ

AWHIA0527ZZ

JMHIA2461ZZ

JMHIA0009ZZ

SR-20

< REMOVAL AND INSTALLATION >

SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000008969288

Removal and Installation

INFOID:0000000008969289

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Always work from the side of air bag module. Do not work in front of it.

• Replace the side curtain air bag module if it has been dropped or sustained an impact.

• Do not attempt to disassemble the side curtain air bag module.

• Do not strike the side curtain air bag module.

• Do not insert any objects (screwdriver, etc.) into the side curtain air bag module.

• Do not expose the side curtain air bag module to temperatures exceeding 93

°C (200°F).

• Do not use air tools or electric tools for servicing.

CAUTION:

• Do not allow oil, grease, detergent or water to come in contact with the side curtain air bag module.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Remove the headlining. Refer to

INT-31, "Removal and Installation"

.

3. Disconnect the harness connector from the side curtain air bag module.

CAUTION:

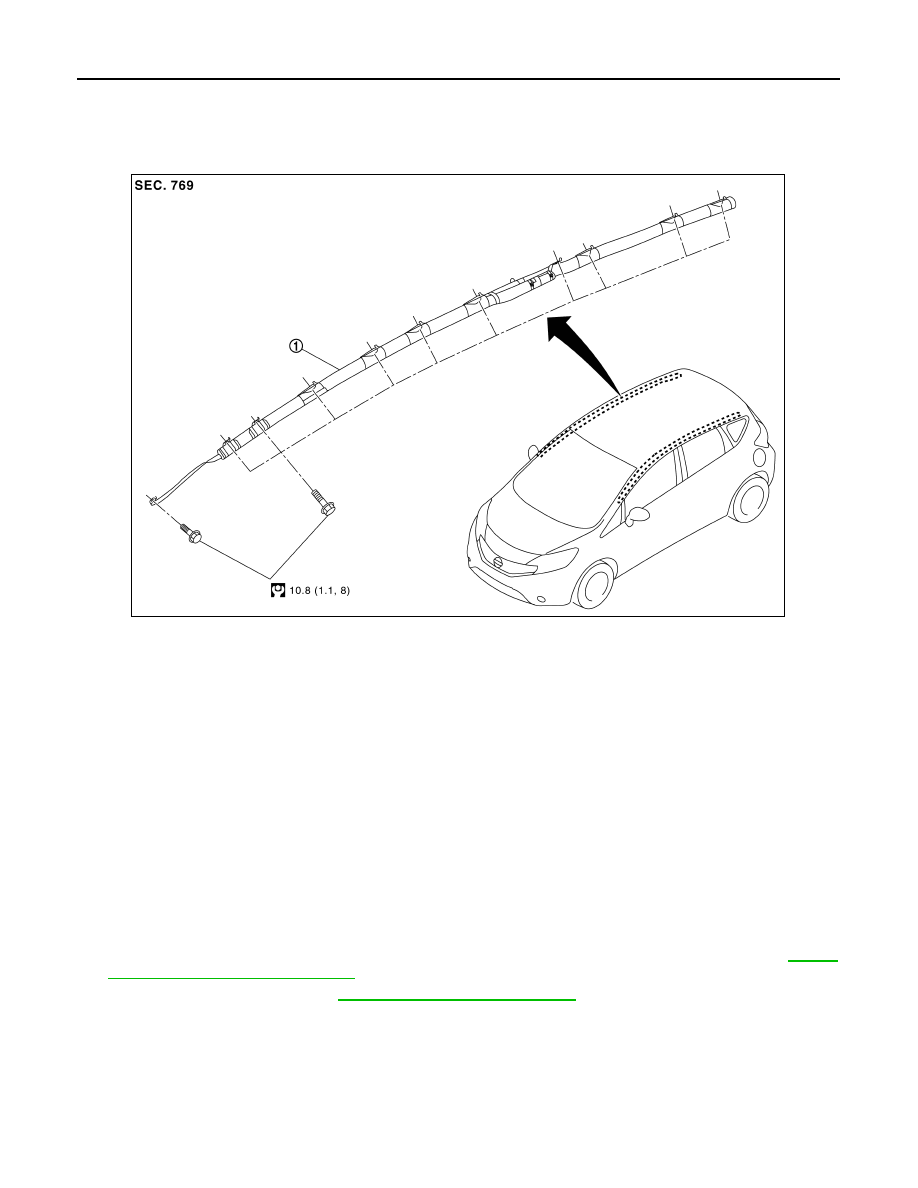

1. Side curtain air bag module

JMHIA2457GB
