B2198 NATS ANTENNA AMP.

SEC-75

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

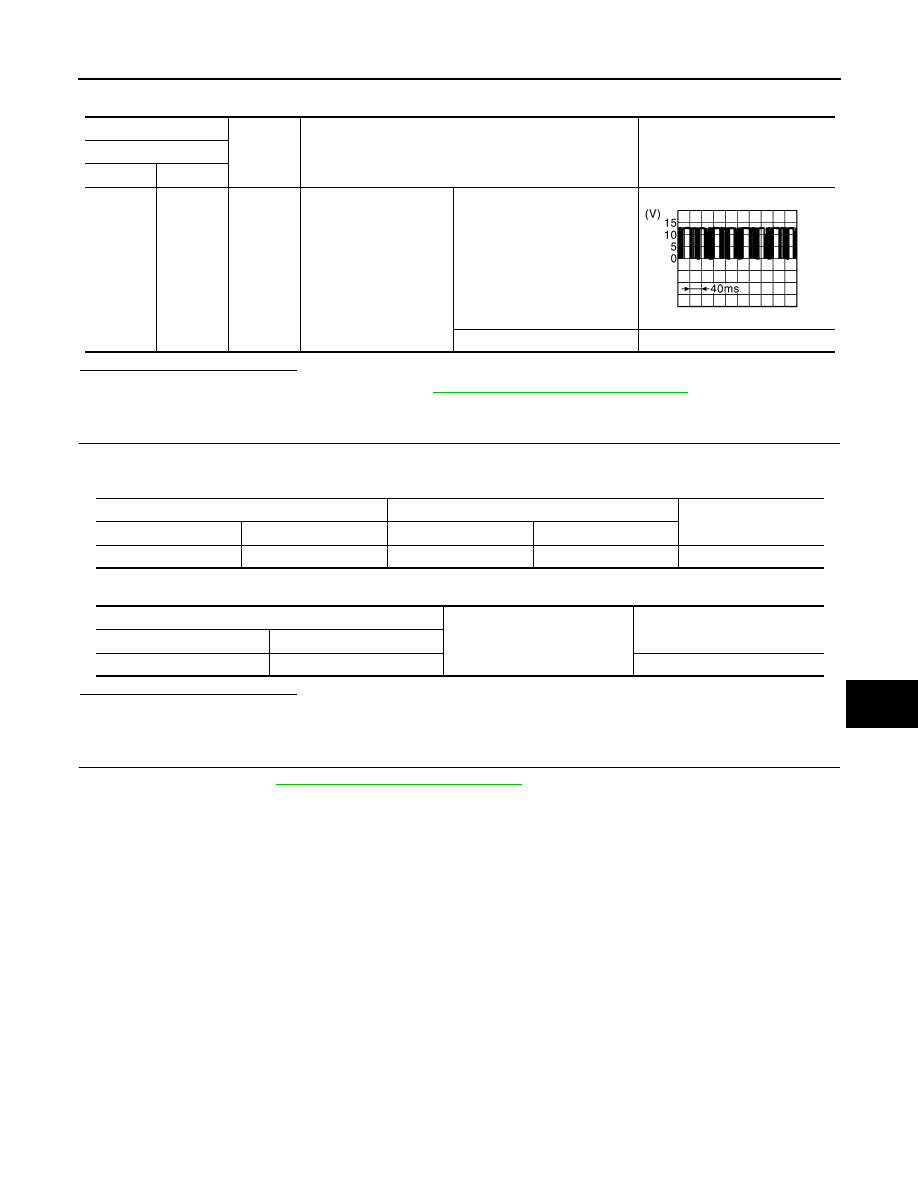

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> Replace NATS antenna amp. Refer to

SEC-126, "Removal and Installation"

.

NO

>> GO TO 8.

8.

CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 2

1. Disconnect BCM connector.

2. Check continuity between NATS antenna amp. harness connector and BCM connector.

3. Check continuity between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace harness.

9.

REPLACE BCM

1. Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

2. Perform initialization of BCM and registration of all Intelligent Keys using CONSULT. Refer to the CON-

SULT Immobilizer mode and follow the on-screen instructions.

>> Inspection End

(+)

(–)

Condition

Voltage (V)

(Approx.)

NATS antenna amp.

Connector

Terminal

M21

3

Ground

Intelligent Key: Intelligent
Key battery is removed

Brake pedal: Depressed
NOTE:
Waveform varies each time
when brake pedal is depressed

Brake pedal: Not depressed

12

JMKIA6233JP

NATS antenna amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M21

3

M97

25

Yes

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M21

3

No

SEC-76

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2555 STOP LAMP

B2555 STOP LAMP

DTC Logic

INFOID:0000000009705877

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Depress brake pedal and wait 1 second or more.

2. Check DTC in Self Diagnostic Result mode of BCM using CONSULT.
Is DTC detected?

YES

>> Go to

SEC-76, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009705878

Regarding Wiring Diagram information, refer to

SEC-40, "Wiring Diagram"

.

1.

CHECK STOP LAMP SWITCH INPUT SIGNAL 1

1. Turn ignition switch OFF.

2. Disconnect BCM connector.

3. Check voltage between BCM harness connector and ground.

Is the inspection normal?

YES

>> GO TO 2.

NO-1 >> Check 10 A fuse [No. 30, located in the fuse block (J/B)].

NO-2 >> Check harness for open or short between BCM and fuse.

2.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1. Disconnect stop lamp switch connector.

2. Check voltage between stop lamp switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check harness for open or short between stop lamp switch and fuse.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2555

STOP LAMP CIRCUIT

BCM makes a comparison between the
upper voltage and lower voltage of stop
lamp switch. It judges from their values to
detect the malfunctioning circuit.

• Harness or connectors

(Stop lamp switch circuit is open or
shorted.)

• Stop lamp switch
• Fuse
• BCM

(+)

(–)

Voltage (V)

(Approx.)

BCM

Connector

Terminal

M98

105

Ground

Battery voltage

(+)

(–)

Voltage (V)

(Approx.)

Stop lamp switch

Connector

Terminal

E13 (CVT)

1

Ground

Battery voltage

E57 (MT)

B2555 STOP LAMP

SEC-77

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

3.

CHECK STOP LAMP SWITCH INPUT SIGNAL 2

1. Connect stop lamp switch connector.

2. Check voltage between BCM harness connector and ground.

Is the inspecting result normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

REPLACE BCM

1. Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

2. Perform initialization of BCM and registration of all Intelligent Keys using CONSULT. Refer to the CON-

SULT Immobilizer mode and follow the on-screen instructions.

>> Inspection End.

5.

CHECK STOP LAMP SWITCH CIRCUIT

1. Disconnect stop lamp switch connector.

2. Check continuity between stop lamp switch harness connector and BCM harness connector.

3. Check continuity between stop lamp switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK STOP LAMP SWITCH

Refer to

SEC-77, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace stop lamp switch. Refer to

BR-19, "Exploded View"

.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009705879

1.

CHECK STOP LAMP SWITCH

1. Turn ignition switch OFF.

(+)

(–)

Condition

Voltage (V)

(Approx.)

BCM

Connector

Terminal

M97

9

Ground

Brake pedal

Depressed

Battery voltage

Not depressed

0

Stop lamp switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

E13 (CVT)

2

M97

9

Yes

E57 (MT)

Stop lamp switch

Ground

Continuity

Connector

Terminal

E13 (CVT)

2

No

E57 (MT)

SEC-78

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2555 STOP LAMP

2. Disconnect stop lamp switch connector.

3. Check continuity between stop lamp switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace stop lamp switch. Refer to

BR-19, "Exploded View"

.

Stop lamp switch

Condition

Continuity

Terminal

1

2

Brake pedal

Not depressed

No

Depressed

Yes
