Nissan Versa Note. Manual - part 698

B2196 DONGLE UNIT

SEC-71

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2196 DONGLE UNIT

Description

INFOID:0000000009520927

BCM performs ID verification between BCM and dongle unit.

When verification result is OK, BCM permits cranking.

DTC Logic

INFOID:0000000009520928

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Turn ignition switch OFF.

3. Turn ignition switch ON.

4. Check DTC in Self-diagnosis result mode of BCM using CONSULT.
Is the DTC detected?

YES

>> Refer to

SEC-71, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009520929

Regarding Wiring Diagram information, refer to

SEC-146, "Wiring Diagram"

.

1.

PERFORM INITIALIZATION

1. Perform initialization of BCM and registration of all mechanical keys using CONSULT.

For initialization and registration procedures, refer to CONSULT Immobilizer mode and follow the on-

screen instructions.

2. Start the engine.
Dose the engine start?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK DONGLE UNIT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and dongle unit connector.

3. Check continuity between BCM harness connector and dongle unit harness connector.

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2196

DONGLE NG

The ID verification results between BCM
and dongle unit is invalid.

• Harness or connectors

(Dongle unit circuit is open or shorted.)

• Dongle unit

BCM

Dongle unit

Continuity

Connector

Terminal

Connector

Terminal

M97

24

M6

1

Yes

BCM

Ground

Continuity

Connector

Terminal

M97

24

No

SEC-72

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2196 DONGLE UNIT

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK DONGLE UNIT GROUND CIRCUIT

Check continuity between dongle unit harness connector and ground.

Is the inspection result normal?

YES

>> Replace dongle unit.

NO

>> Repair or replace harness.

Dongle unit

Ground

Continuity

Connector

Terminal

M6

4

Yes

B2198 NATS ANTENNA AMP.

SEC-73

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2198 NATS ANTENNA AMP.

DTC Logic

INFOID:0000000009705874

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Make the conditions that BCM enters in the low power consumption mode (BCM sleep condition).

Refer to

BCS-12, "POWER CONSUMPTION CONTROL SYSTEM : System Description"

.

2. Turn ignition switch ON.

3. Check DTC in Self Diagnostic Result mode of BCM using CONSULT.
Is DTC detected?

YES

>> Go to

SEC-73, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009705875

Regarding Wiring Diagram information, refer to

SEC-40, "Wiring Diagram"

.

1.

CHECK FUSE

1. Turn power switch OFF.

2. Check that the following fuse in IPDM E/R is not blown.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the cause of blowing.

2.

CHECK NATS ANTENNA AMP. POWER SUPPLY

1. Disconnect NATS antenna amp. connector.

2. Check voltage between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK NATS ANTENNA AMP. POWER SUPPLY CIRCUIT

1. Disconnect IPDM E/R connector.

2. Check continuity between IPDM E/R harness connector and NATS antenna amp. connector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2198

NATS ANTENNA AMP

Inactive communication between NATS
antenna amp. and BCM is detected when
BCM enters in the low power consumption
mode (BCM sleep condition)

• Harness or connectors

(NATS antenna amp. circuit is open or
shorted.)

• NATS antenna amp.
• BCM

Signal name

Fuse No.

Battery power supply

53 (20 A)

(+)

(–)

Voltage (V)

(Approx.)

NATS antenna amp.

Connector

Terminal

M21

1

Ground

Battery voltage

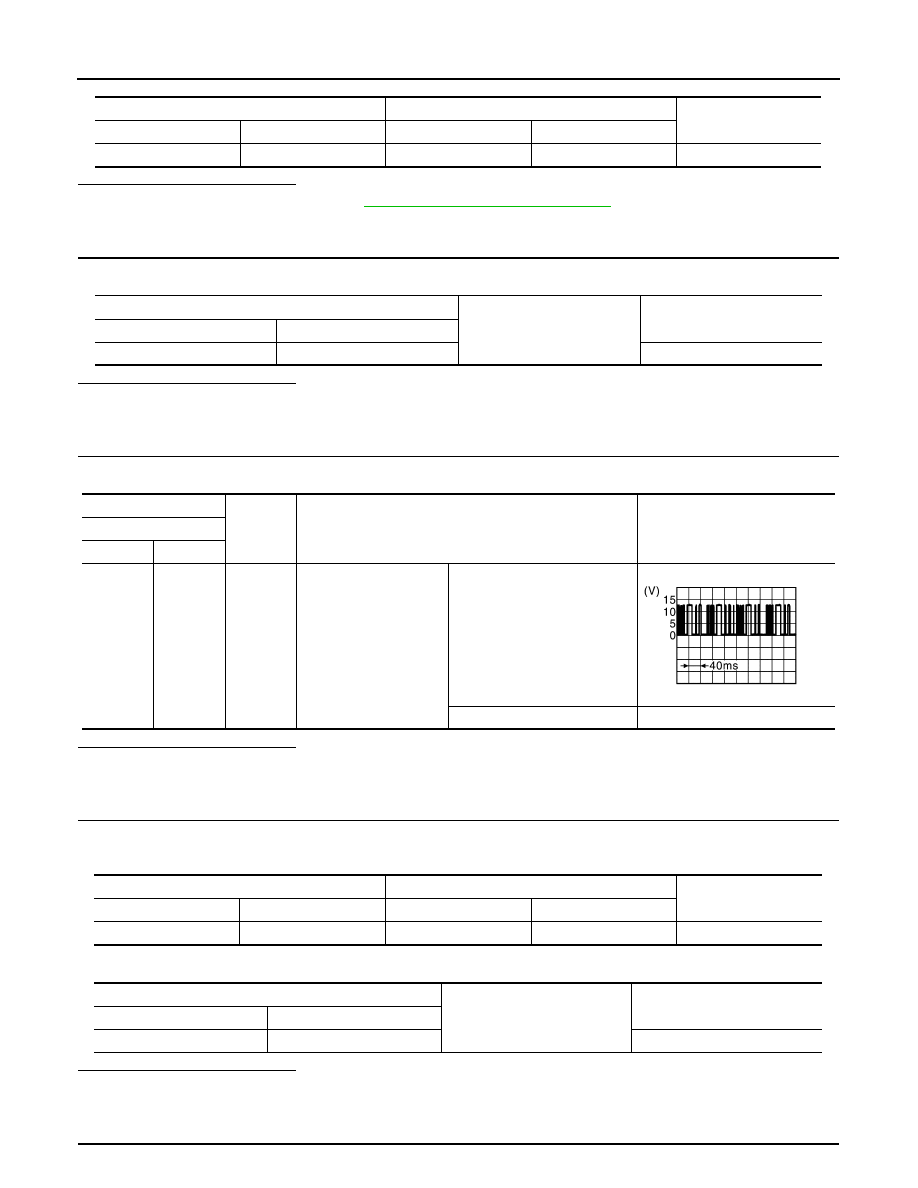

SEC-74

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2198 NATS ANTENNA AMP.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-31, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK NATS ANTENNA AMP. GROUND CIRCUIT

Check continuity between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 1

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 1

1. Disconnect BCM connector.

2. Check continuity between NATS antenna amp. harness connector and BCM connector.

3. Check continuity between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace harness.

7.

CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 2

IPDM E/R

NATS antenna amp.

Continuity

Connector

Terminal

Connector

Terminal

F42

35

M21

1

Yes

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M21

4

Yes

(+)

(–)

Condition

Voltage (V)

(Approx.)

NATS antenna amp.

Connector

Terminal

M21

2

Ground

Intelligent Key: Intelligent
Key battery is removed

Brake pedal: Depressed
NOTE:
Waveform varies each time
when brake pedal is depressed

Brake pedal: Not depressed

12

JMKIA6232JP

NATS antenna amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M21

2

M97

21

Yes

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M21

2

No
