Charging The Battery

CAUTION:

• Never “quick charge” a fully discharged battery.

• Keep the battery away from open flame while it is being charged.

• When connecting the charger, connect the leads first, then turn on the charger. Never turn on the

charger first, as this may cause a spark.

• If battery electrolyte temperature rises above 55

°C (131 °F), stop charging. Always charge battery at

a temperature below 55

°C (131 °F).

Charging Rates (Standard Charge)

Charging Rates (Quick Charge)

NOTE:

The ammeter reading on your battery charger will automatically decrease as the battery charges. This indi-

cates that the voltage of the battery is increasing normally as the state of charge improves. The charging amps

indicated above refer to initial charge rate.

• If, after charging, the specific gravity of any two cells varies more than 0.050, the battery should be replaced.

4 (40)

−0.016

−1 (30)

−0.020

−7 (20)

−0.024

−12 (10)

−0.028

−18 (0)

−0.032

Battery electrolyte temperature [

°C (°F)]

Add to specific gravity reading

Corrected specific gravity

Approximate charge condition

1.260 - 1.280

Fully charged

1.230 - 1.250

3/4 charged

1.200 - 1.220

1/2 charged

1.170 - 1.190

1/4 charged

1.140 - 1.160

Almost discharged

1.110 - 1.130

Completely discharged

Approximate charge condi-

tion

Charge current (A)

Charge time (h)

Fully charged

7

2

3/4 charged

2.5

1/2 charged

5

1/4 charged

7.5

Almost discharged

9

Completely discharged

10

Approximate charge condi-

tion

Charge current (A)

Charge time (h)

Fully charged

—

—

3/4 charged

16

0.5

1/2 charged

33

1/4 charged

Almost discharged

Completely discharged

—

—

PG-64

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000009712195

Required Procedure After Battery Disconnection

System

Item

Reference

Engine Control System

Idle Air Volume Learning

EC-128

Audio, Visual and Navigation System

Audio (Radio Preset)

Refer to Owner's Manual.

Navigation System

Refer to Owner's Manual.

PG

FUSE INSPECTION

PG-65

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSE INSPECTION

How To Check

INFOID:0000000008969216

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

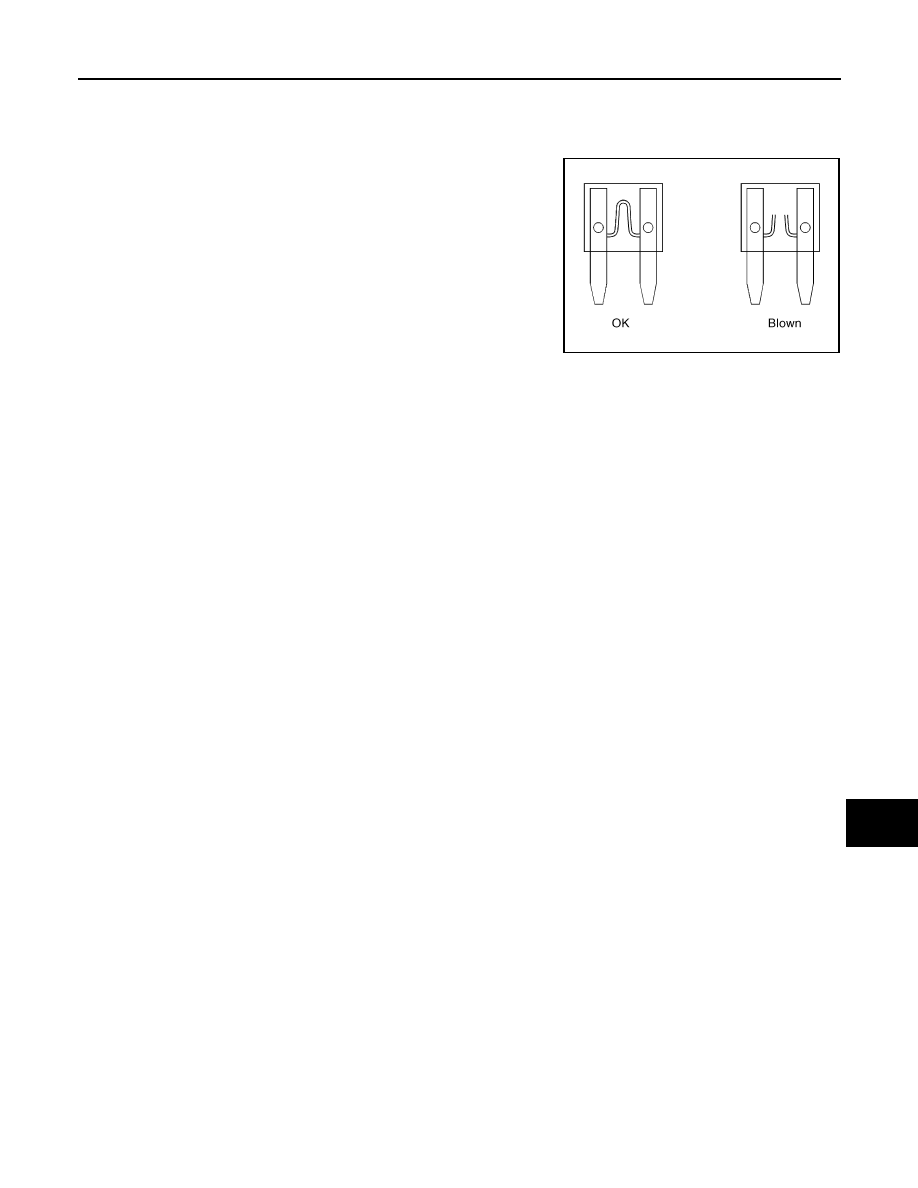

CEL083

PG-66

< BASIC INSPECTION >

FUSIBLE LINK INSPECTION

FUSIBLE LINK INSPECTION

How To Check

INFOID:0000000008969217

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is

questionable, use circuit tester or test lamp.

*: Not applicable

CAUTION:

• If fusible link should melt, it is possible that critical circuit (power supply or large current carrying

circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.

• Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other

wiring harness, vinyl or rubber parts.

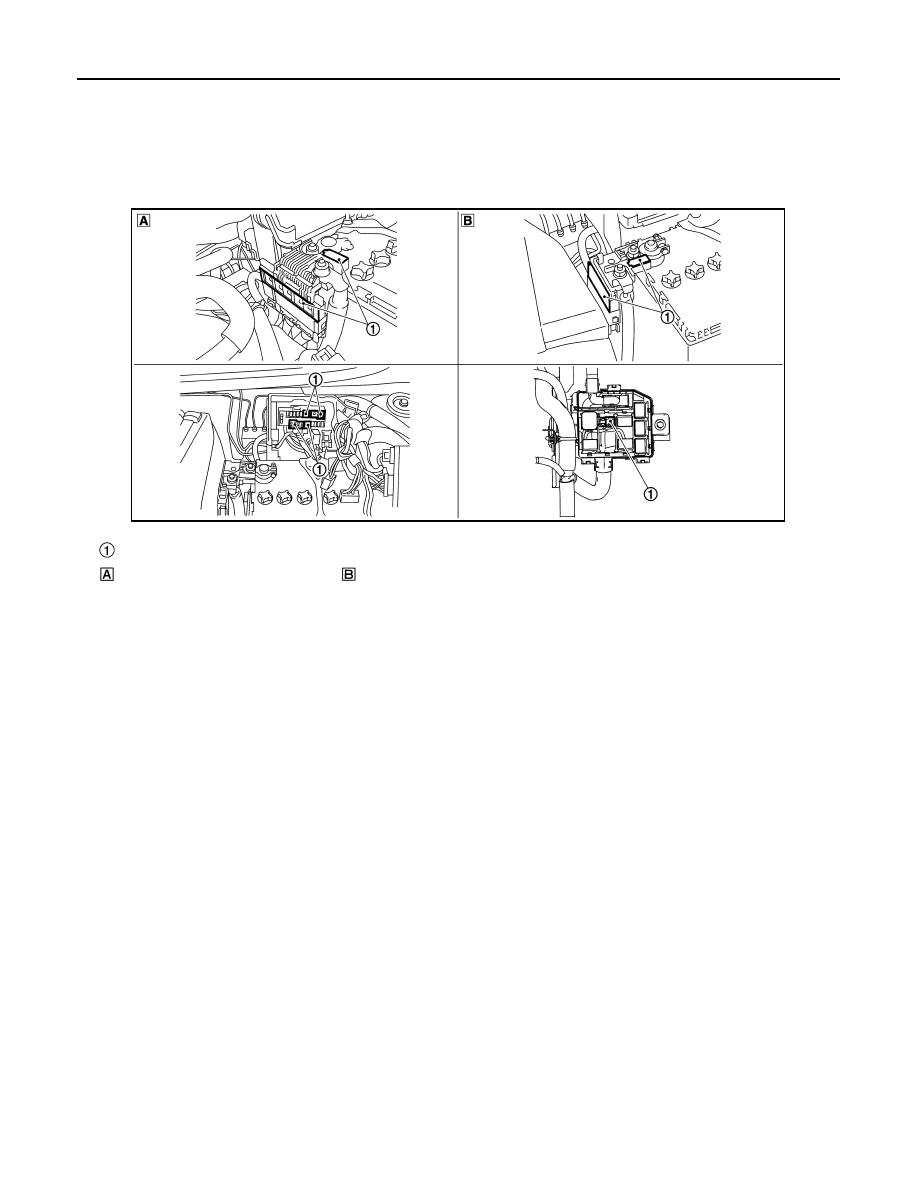

Fusible link

With stop/start system

Without stop/start system

*

JSMIA1124ZZ
