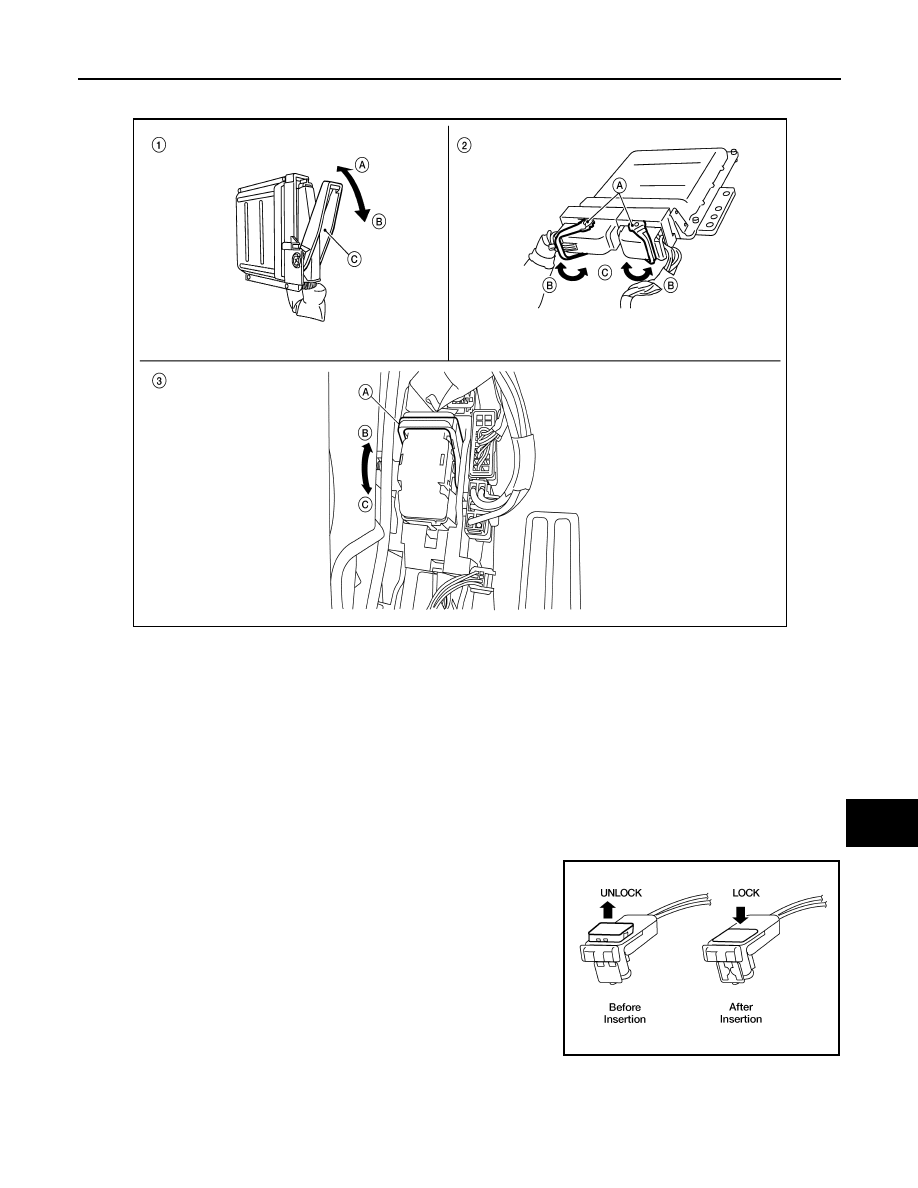

• Always confirm the lever is fully released (loosened) before attempting to disconnect or connect

these connectors to avoid damage to the connector housing or terminals.

HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)

• SRS direct-connect type harness connectors are used on certain SRS components such as air bag modules

and seat belt pre-tensioners.

• Always pull up to release black locking tab prior to removing connector from SRS components.

• Always push down to lock black locking tab after installing connector to SRS components. When locked, the

black locking tab is level with the connector housing.

CAUTION:

• Do not pull the harness or wires when removing connectors

from SRS components.

1.

Control unit with single lever

2.

Control unit with dual lever

3.

SMJ connector

A. Fasten

A. Lever

A. Lever

B. Loosen

B. Fasten

B. Fasten

C. Lever

C. Loosen

C. Loosen

LKIA0670E

WHIA0103E

PG-56

< DTC/CIRCUIT DIAGNOSIS >

STANDARDIZED RELAY

STANDARDIZED RELAY

Description

INFOID:0000000009723972

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

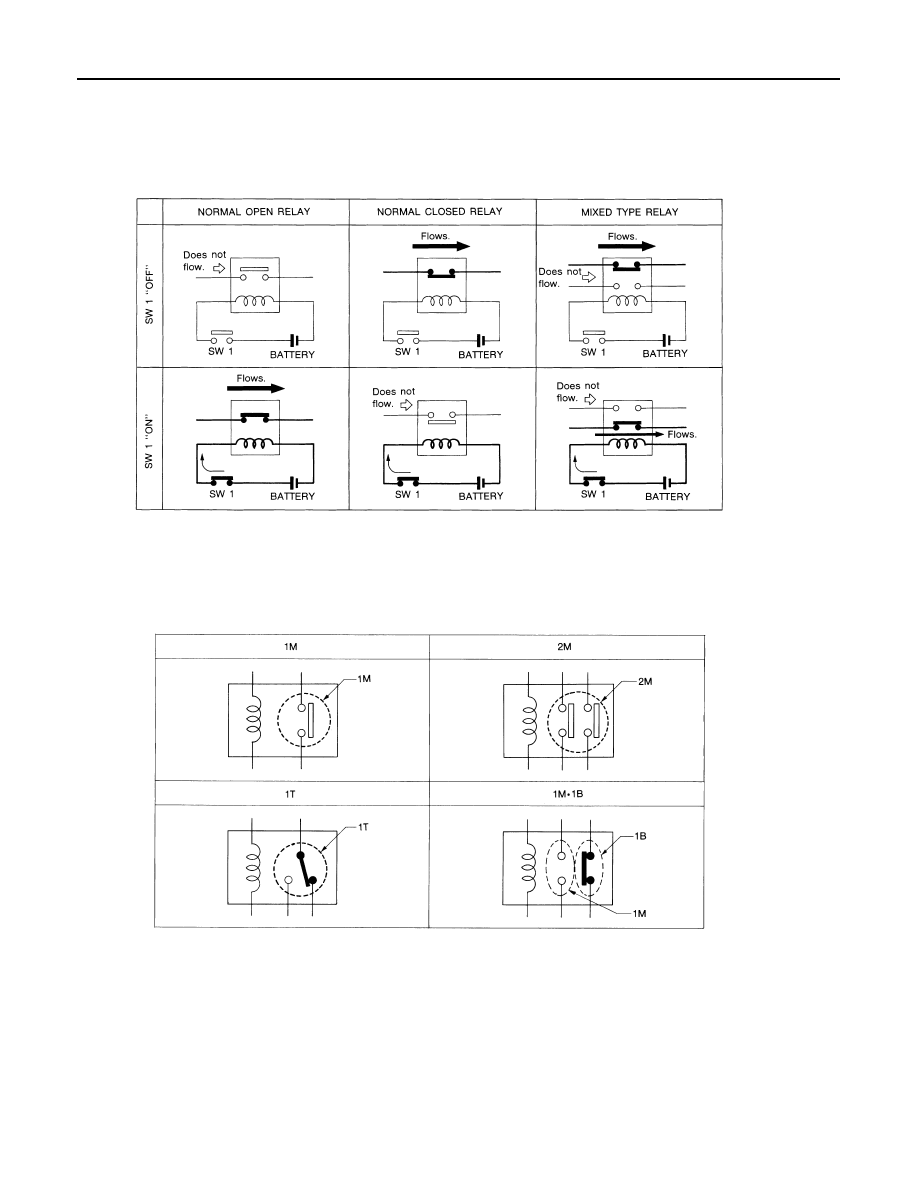

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

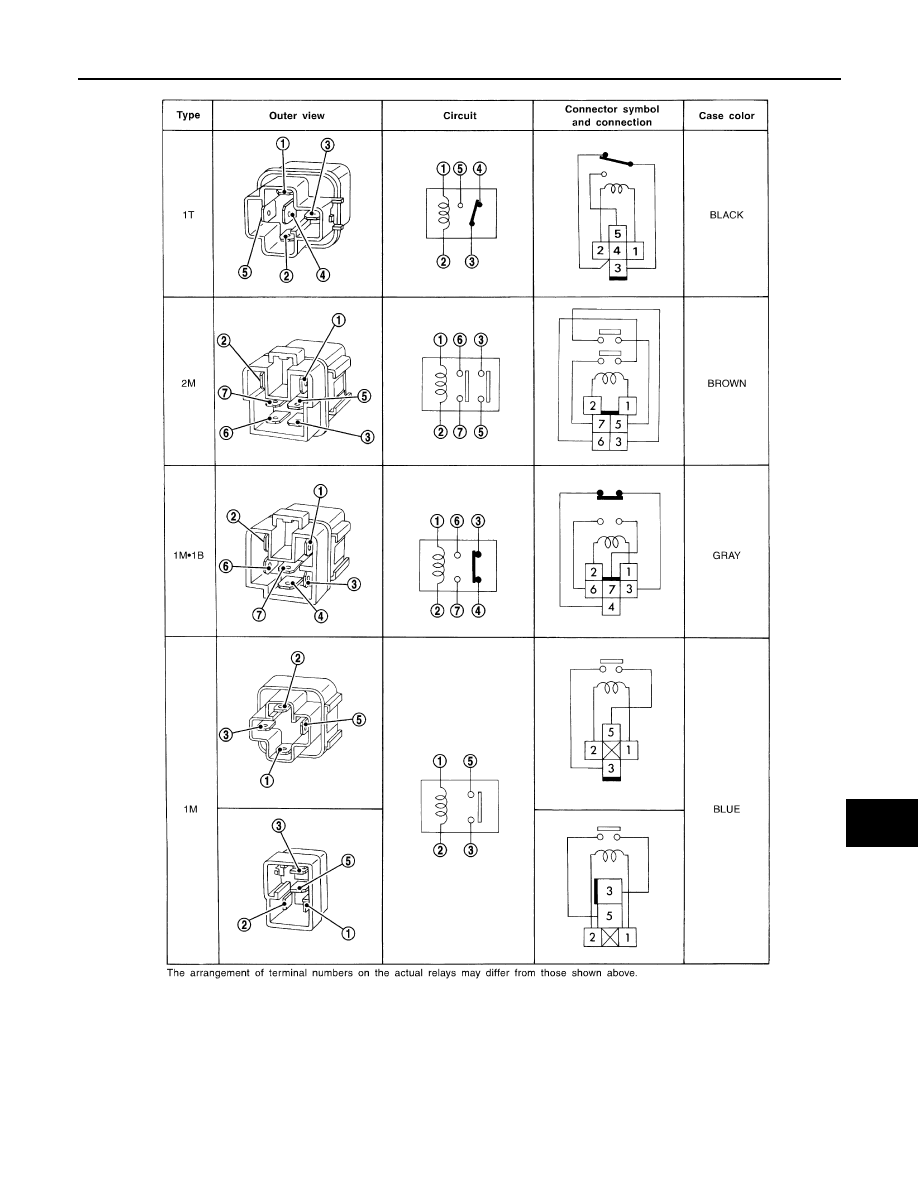

TYPE OF STANDARDIZED RELAYS

SEL881H

1M  ····················  1 Make

2M       ····················  2 Make

1T   ····················  1 Transfer

1M·1B  ····················  1 Make 1 Break

SEL882H

PG

STANDARDIZED RELAY

PG-57

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SEL188W

PG-58

< DTC/CIRCUIT DIAGNOSIS >

FUSE BLOCK - JUNCTION BOX (J/B)

FUSE BLOCK - JUNCTION BOX (J/B)

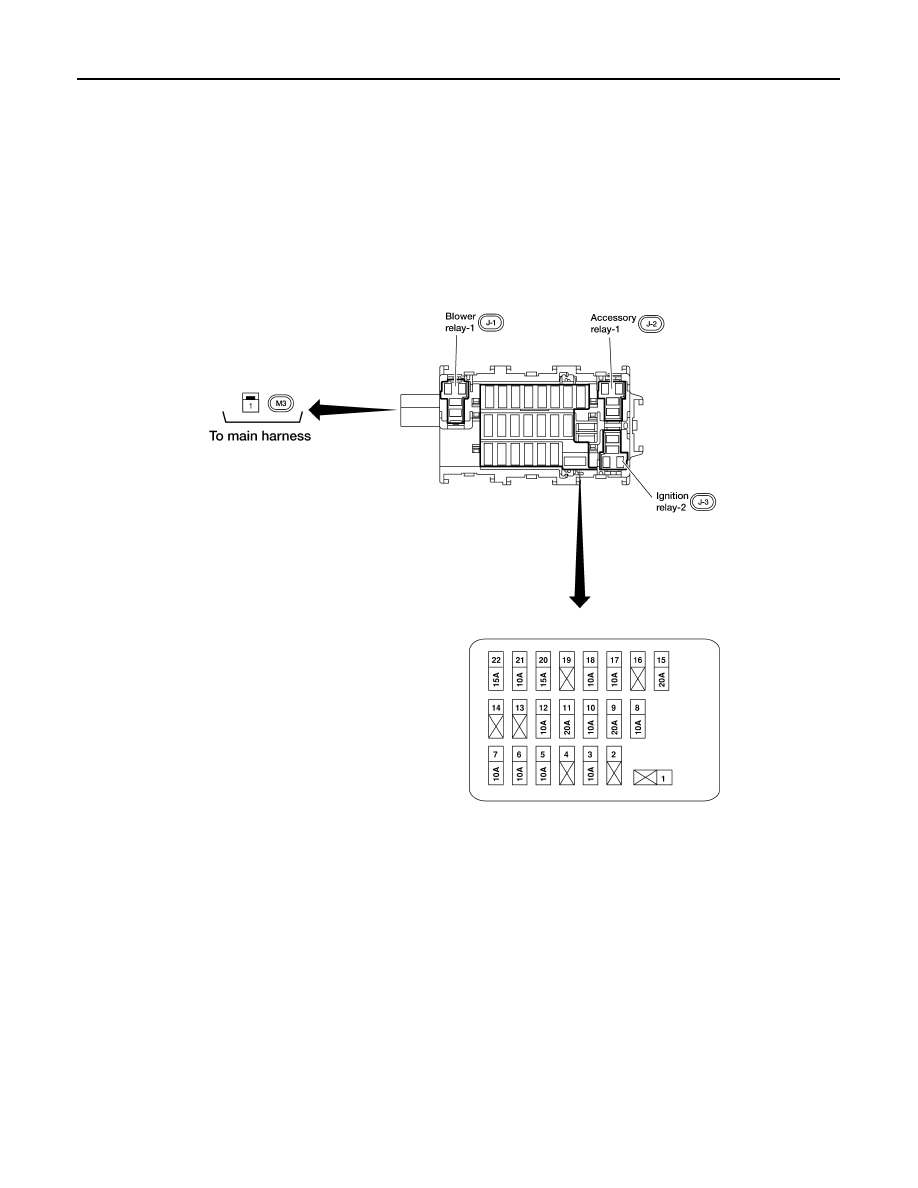

Terminal Arrangement

INFOID:0000000009723973

AAMIA1762GB
