Nissan Versa Note. Manual - part 635

PG

HARNESS

PG-47

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

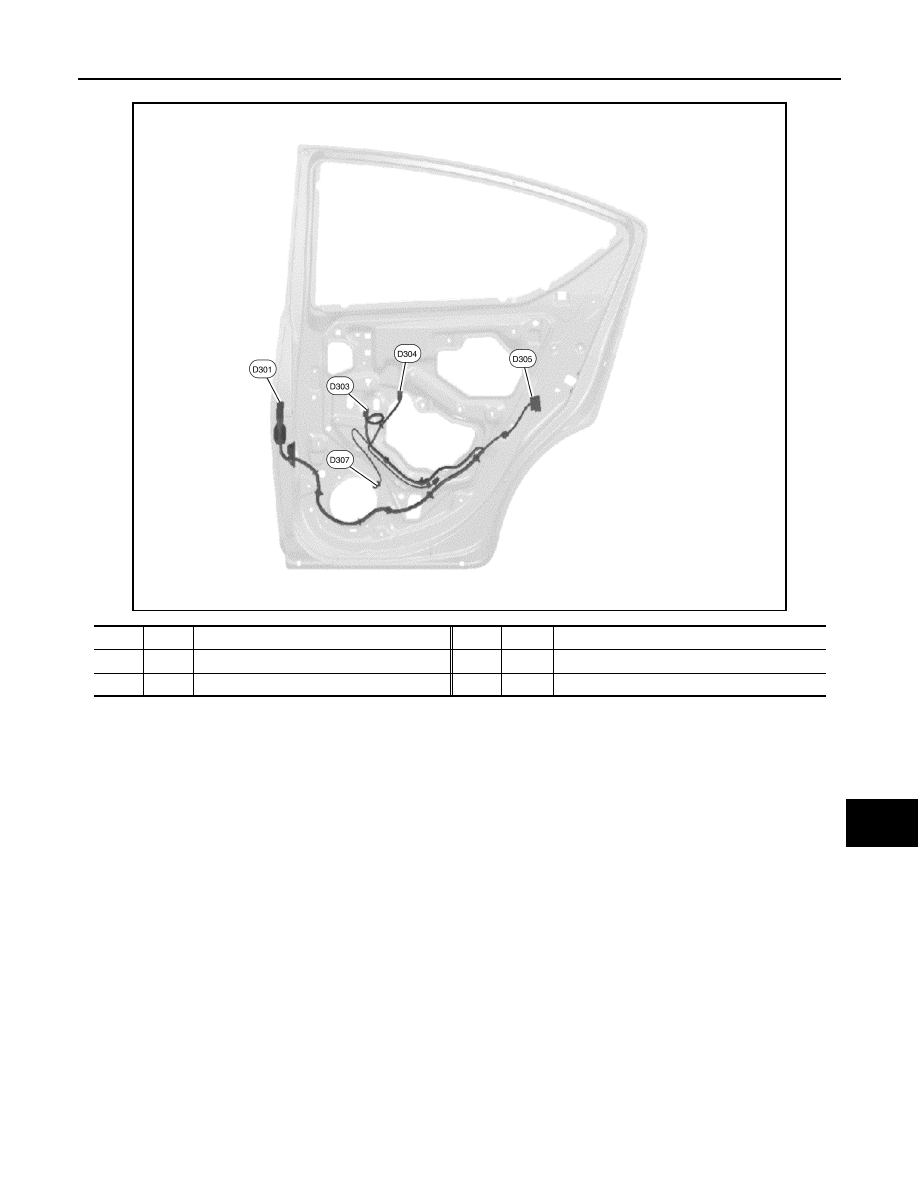

REAR DOOR RH HARNESS

AAMIA0194ZZ

D301       W/10

:  To  B11

D305       GR/6

:  Rear  door  lock  actuator  RH

D303       W/8

:  Rear  power  window  switch  RH

D307       W/2

:  Rear  door  speaker  RH

D304       B/2

:  Rear  power  window  motor  RH

PG-48

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

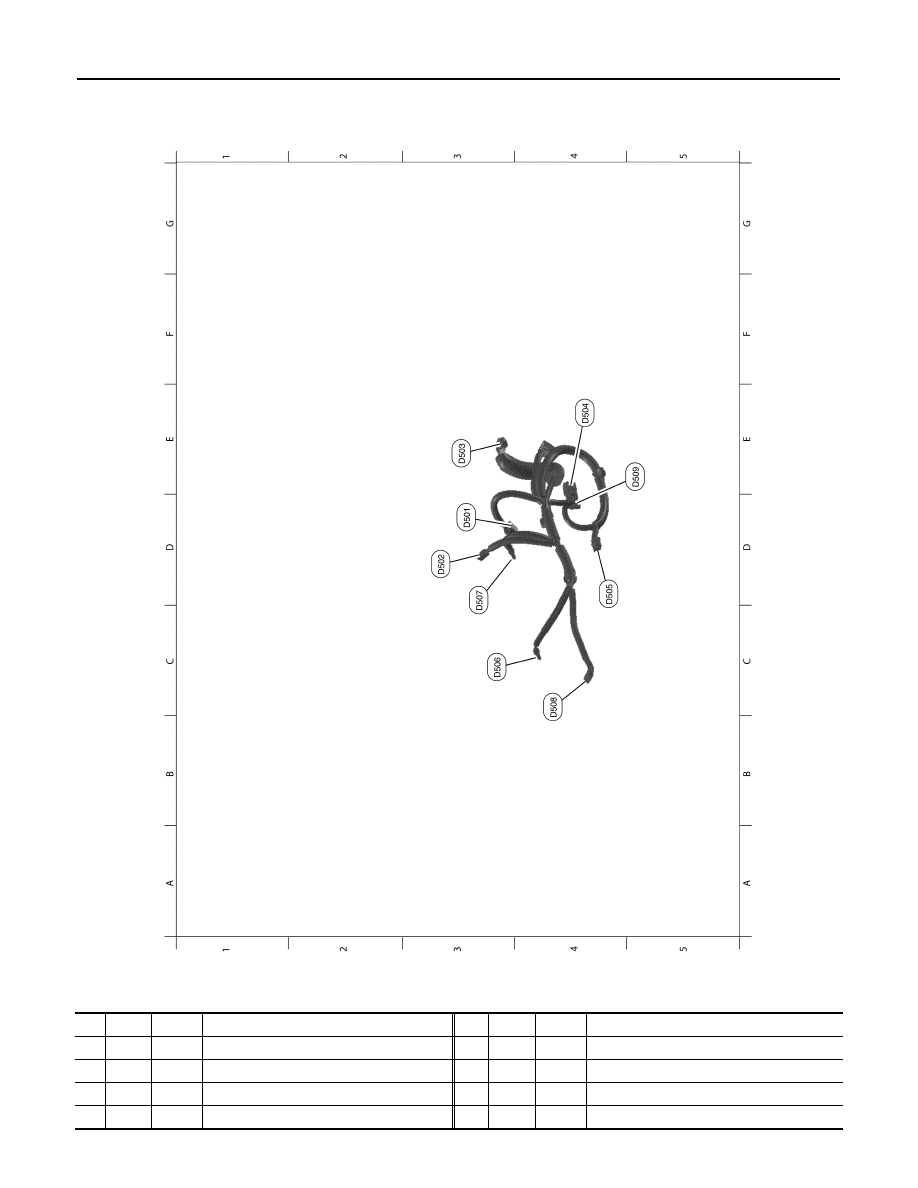

BACK DOOR HARNESS

AAMIA0195ZZ

D3 D501       B/6

:  Rear  view  camera

C3

D506       BR/2

: Back door request switch

D3 D502       W/4

:  Rear  wiper  motor

D3

D507       BR/2

:  License  plate  lamp  LH

E3

D503       W/8

:  To  B53

C4

D508       BR/2

:  License  plate  lamp  RH

E4

D504       W/4

: To B52

E5

D509       W/3

: Back door swich

D4 D505       W/2

:  Back  door  lock  actuator

PG

ELECTRICAL UNITS LOCATION

PG-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000009723970

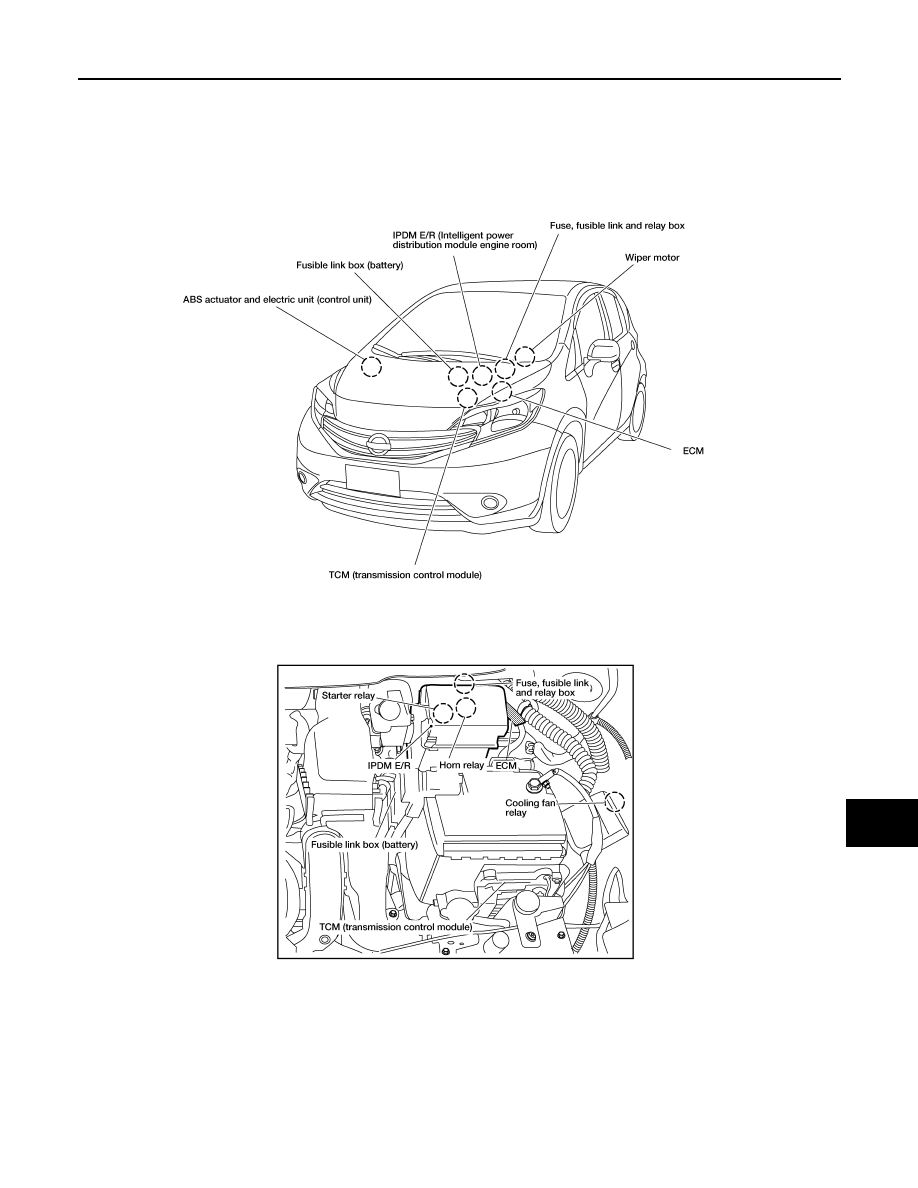

ENGINE COMPARTMENT

AAMIA1784GB

PG-50

< DTC/CIRCUIT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

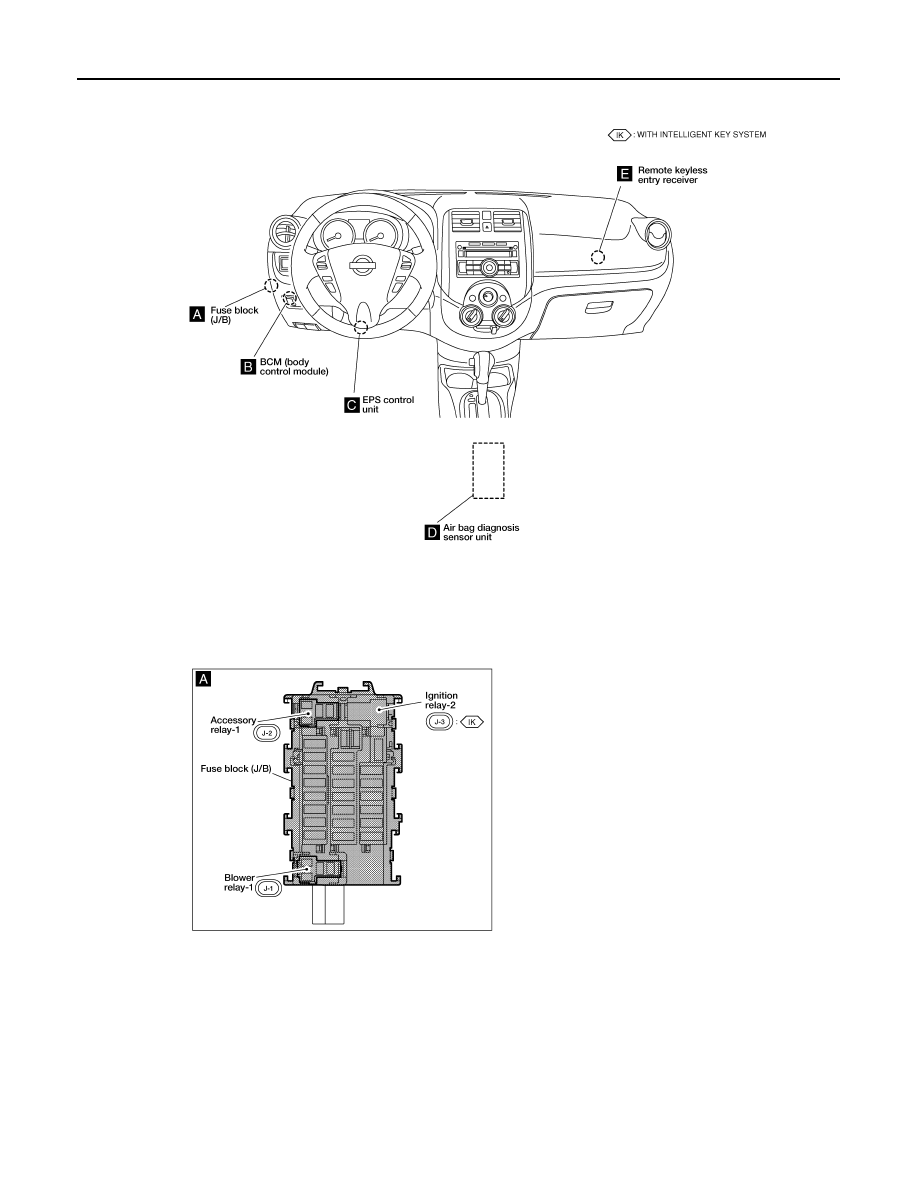

PASSENGER COMPARTMENT

AAMIA1785GB
