FLOOR TRIM

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

FLOOR TRIM

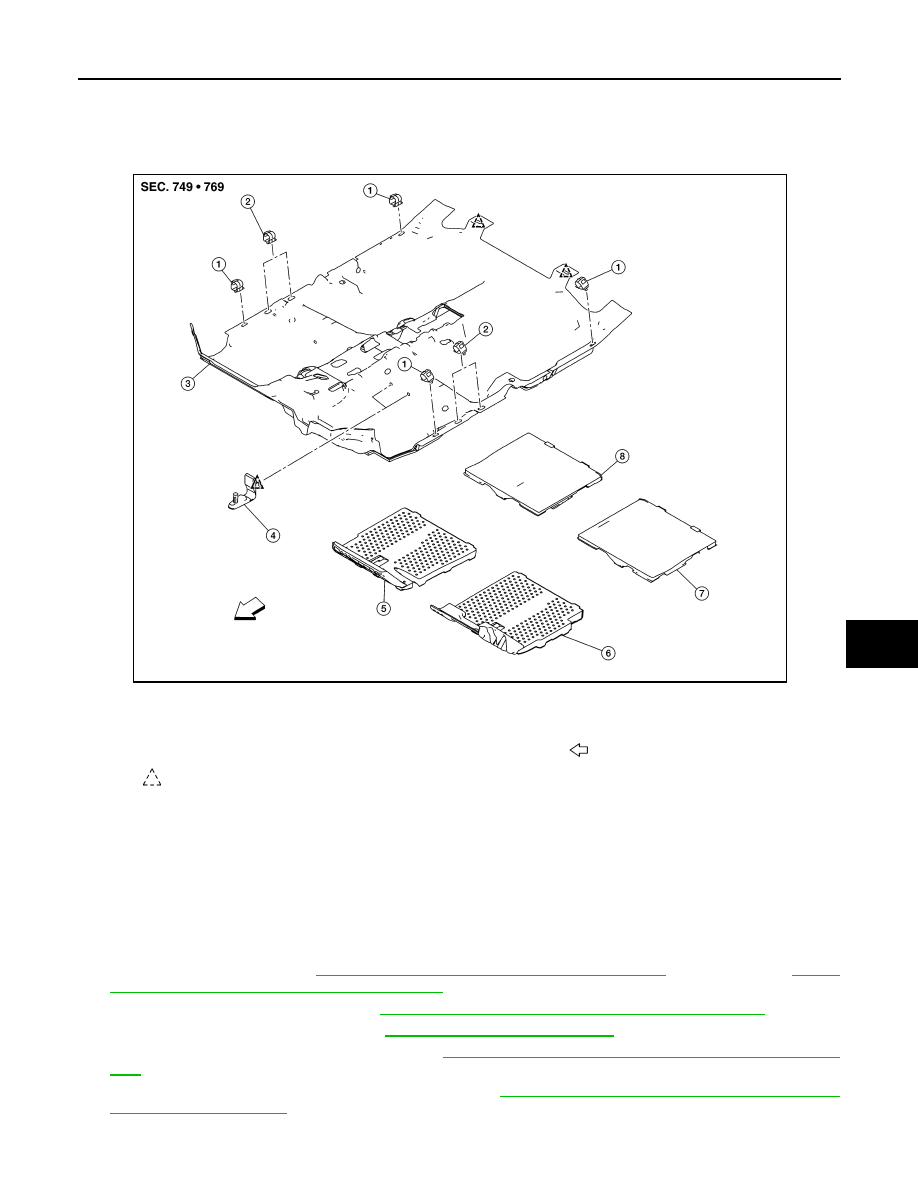

Exploded View

INFOID:0000000009446822

Removal and Installation

INFOID:0000000008969712

WARNING:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals then wait at

least three minutes.

• Do not drop the seat belt retractor. Always handle it with care.

• Always point pretensioner cylinder away from body when handling.

REMOVAL

1. Remove front seats. Refer to

SE-20, "DRIVER SIDE : Removal and Installation"

 (Driver side) and

SE-22,

"PASSENGER SIDE : Removal and Installation"

 (Passenger side).

2. Remove rear seatback hinge. Refer to

SE-31, "SEATBACK HINGE : Removal and Installation"

.

3. Remove center console lower. Refer to

IP-20, "Removal and Installation"

.

4. Remove dash side finishers (LH/RH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

5. Remove center pillar lower finishers (LH/RH). Refer to

INT-25, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

1.

Harness clip A

2.

Harness clip B

3.

Floor trim

4.

Carpet hook

5.

Front floor spacer (RH)

6.

Front floor spacer (LH)

7.

Rear floor spacer (LH)

8.

Rear floor spacer (RH)

Front

Clip

AWJIA1142ZZ

INT-28

< REMOVAL AND INSTALLATION >

FLOOR TRIM

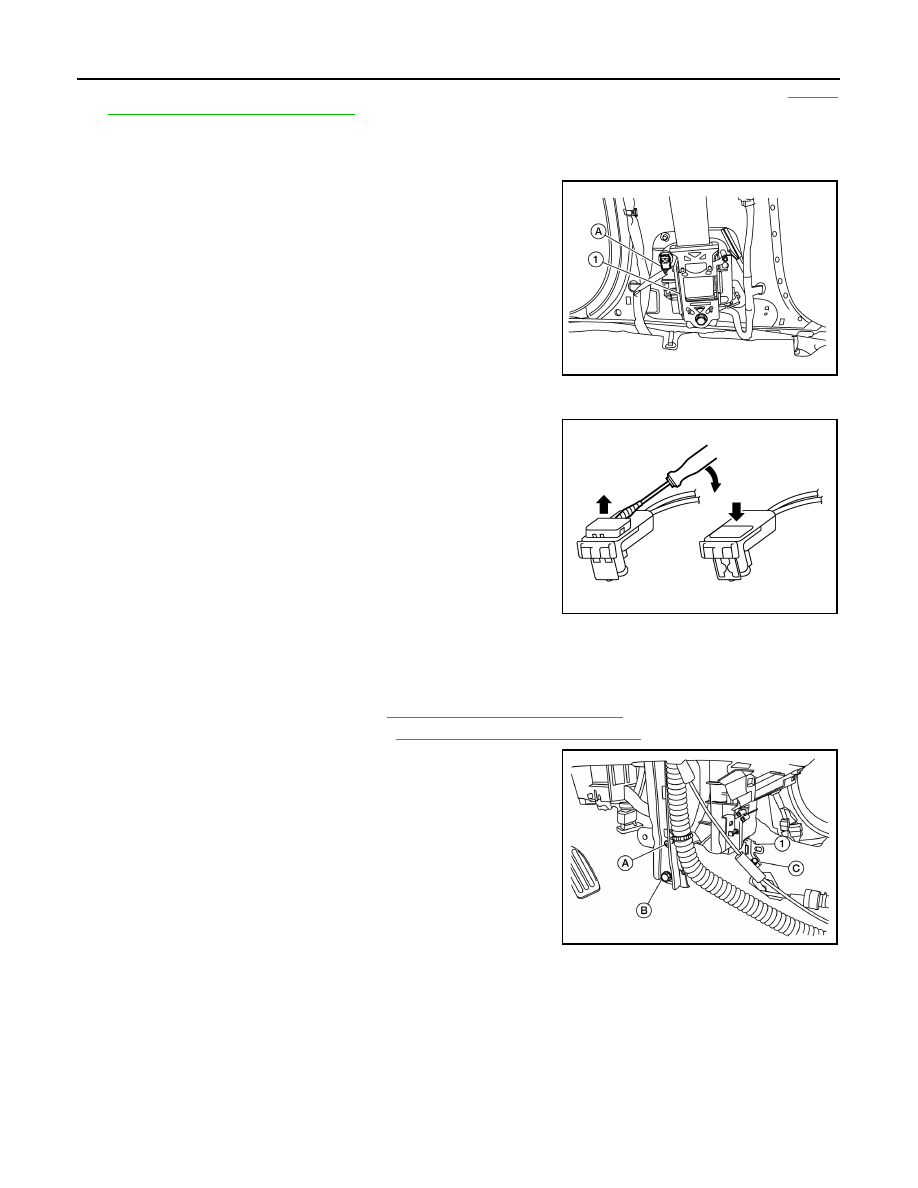

6. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

WARNING:

Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals then wait

at least three minutes.

7. Disconnect the harness connector (A) from the seat belt retrac-

tor (1).

WARNING:

• Do not drop the seat belt retractor. Always handle it with

care.

• Always point pretensioner cylinder away from body when

handling.

CAUTION:

• For removing/installing the shoulder belt pre-tensioner

harness connector, insert a thin screwdriver wrapped in

tape into the notch, then lift the lock and remove the har-

ness connector as shown.

• Install the harness connector with the lock raised, and

push the lock into the harness connector as shown.

• After installing the harness connector, check that the lock

is pushed in securely.

8. Remove seat belt lower anchor bolt.

CAUTION:

Before removing the seat belt lower anchor bolt, note the positions of washers and spacers for

correct installation.

9. Remove diagnosis sensor unit. Refer to

SR-29, "Removal and Installation"

.

10. Remove shift selector. Refer to  (5MT) or

TM-229, "Removal and Installation"

 (CVT)

11. Remove A/C unit assembly bolt (C) and bracket (1) from vehicle.
12. Remove instrument panel lower bracket bolt (B) and screw (A)

and reposition bracket as necessary to remove floor trim.

ALHIA0316ZZ

PHIA0953J

ALJIA0712ZZ

FLOOR TRIM

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

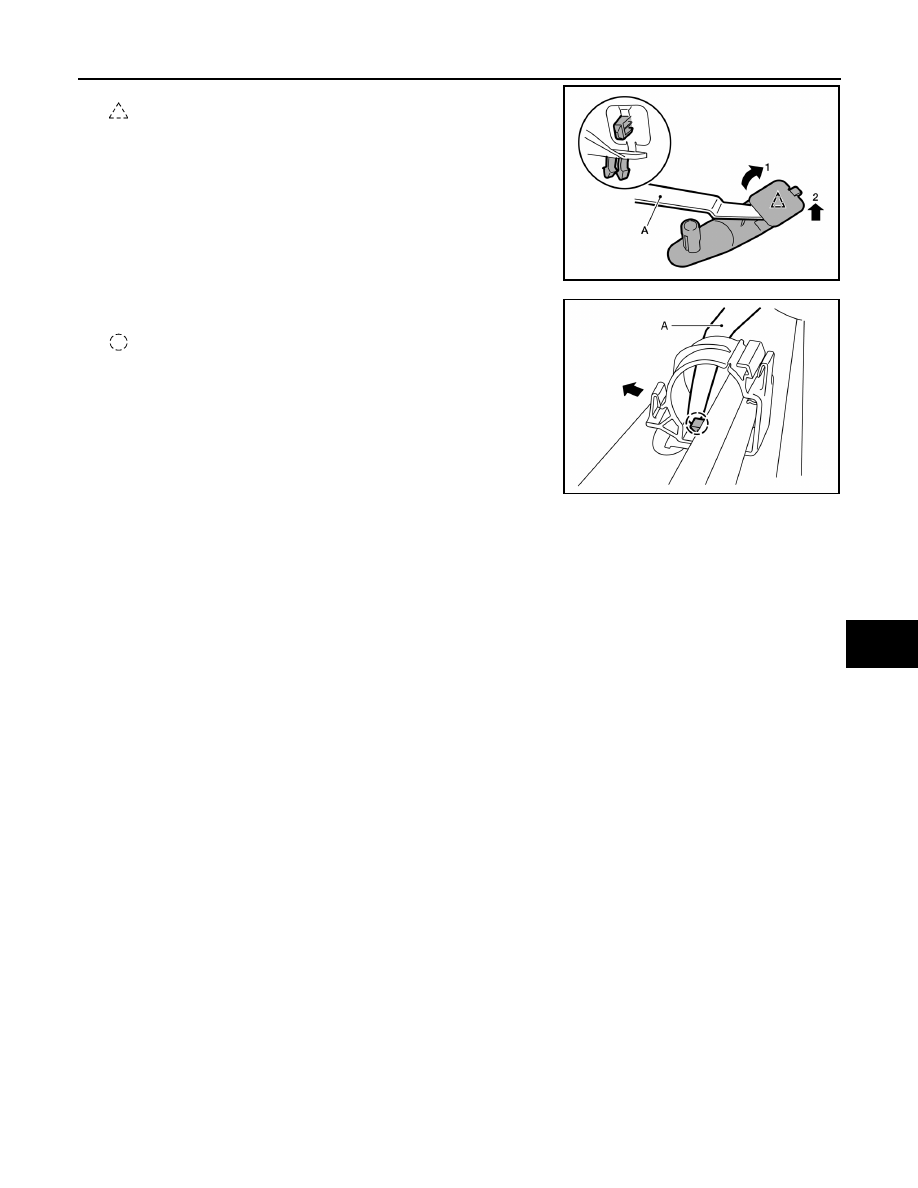

13. Release carpet hook clips with a suitable tool (A) and remove.

: Clip

14. Release pawls using a suitable tool (A) and open the harness

clips.

: Pawl

15. Remove floor trim.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace harness protector B with a new part after removal. Do not reuse harness protector B.

AWJIA0736ZZ

AWJIA0737ZZ

INT-30

< REMOVAL AND INSTALLATION >

HEADLINING

HEADLINING

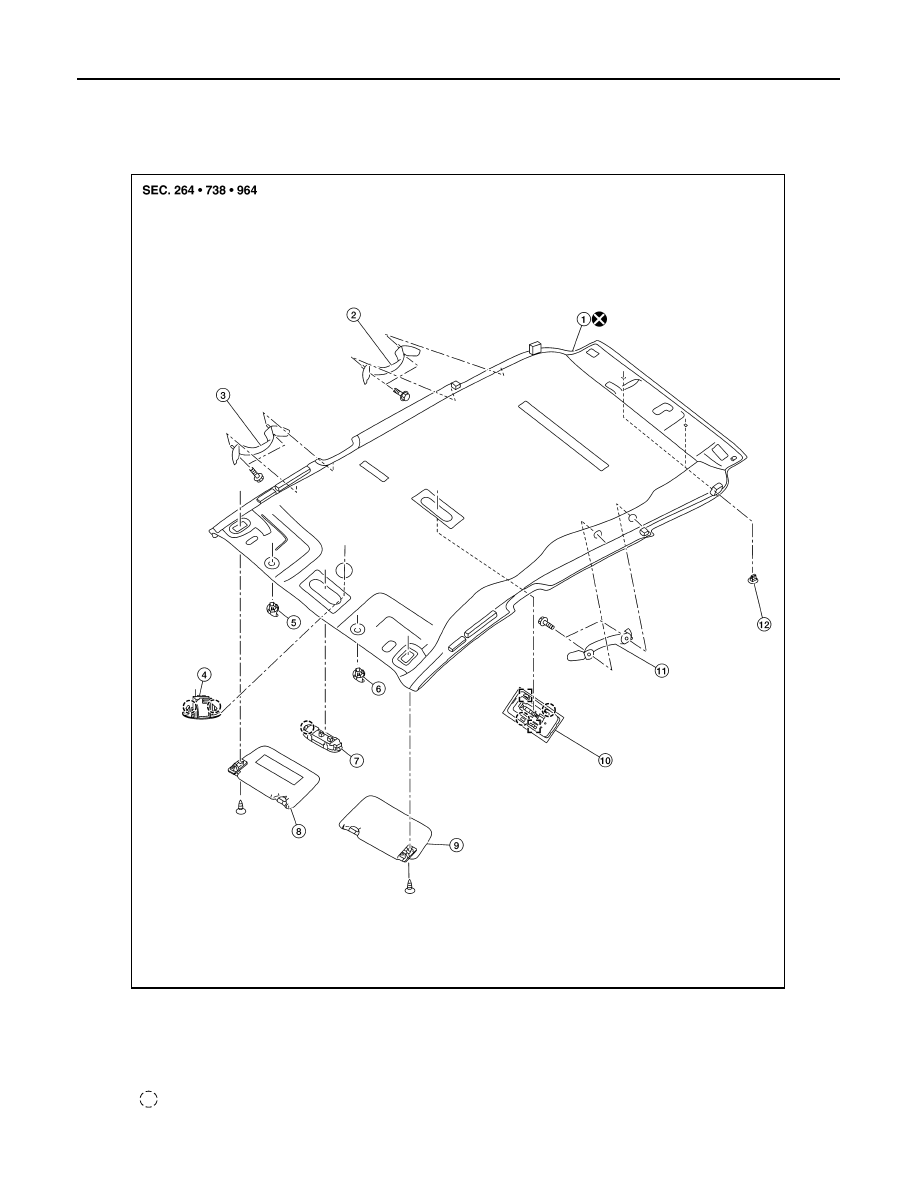

Exploded View

INFOID:0000000008969713

1. Headlining

2. Rear assist grip (RH)

3. Front assist grip (RH)

4. Microphone (if equipped)

5. Sun visor holder (RH)

6. Sun visor holder (LH)

7. Map lamp (if equipped)

8. Sun visor (RH)

9. Sun visor (LH)

10. Interior room lamp

11. Rear assist grip (LH)

A. Headlining clip

Pawl

AWJIA1143ZZ
