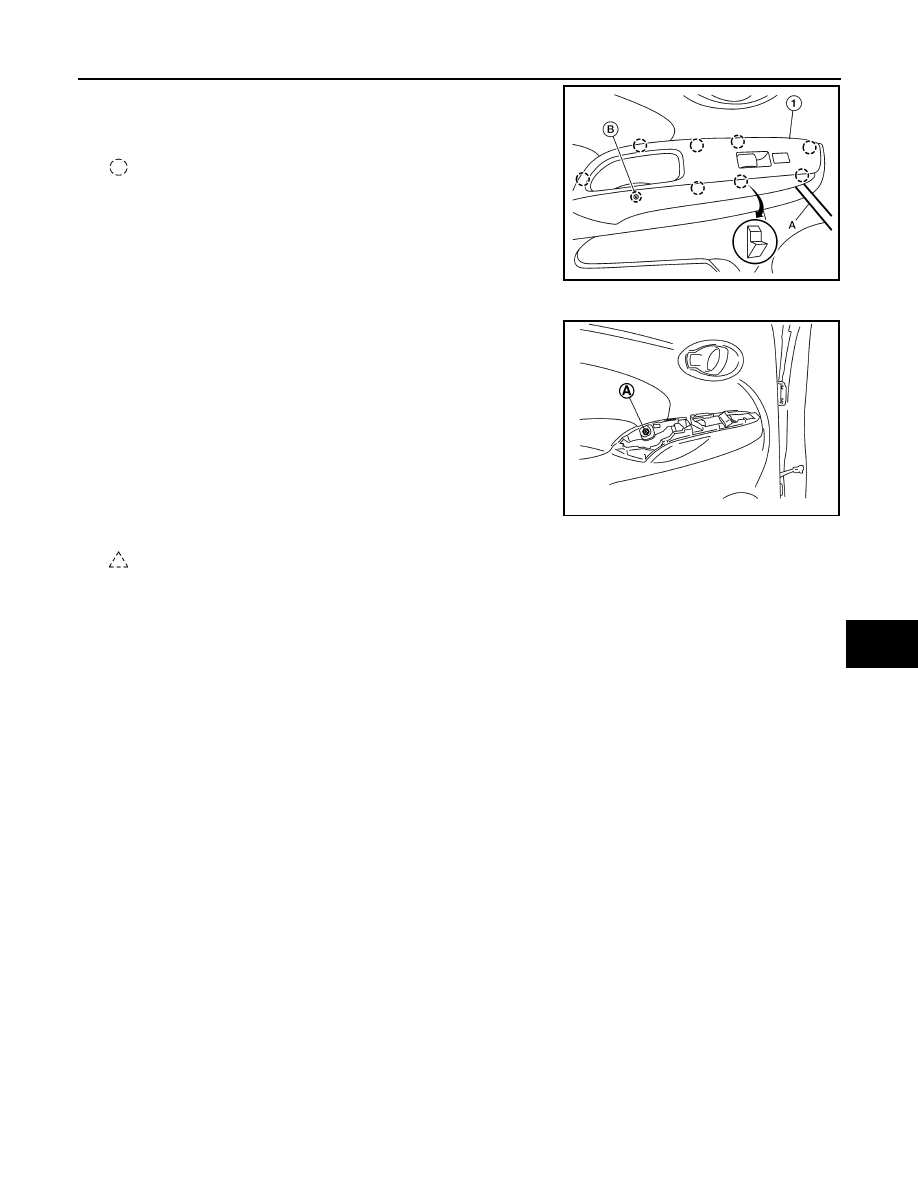

3. Remove screw (B) from power window and door lock/unlock

switch (RH) finisher.

4. Remove power window and door lock/unlock switch (RH) fin-

isher (1) using a suitable tool (A).

: Pawl

5. Disconnect the harness connector from the power window and door lock/unlock switch (RH).
6. Remove rear door finisher bolt (A).

7. Release rear door finisher clips using a suitable tool (A) and remove rear door finisher as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing rear door finisher, check that clips and pawls are securely placed into door panel

holes.

REMOVAL - MANUAL WINDOW

1. Release rear door corner finisher clip using a suitable tool.
2. Release storage tray pawls using a suitable tool and remove storage tray .

AWJIA1140ZZ

JMJIA6028ZZ

INT-20

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

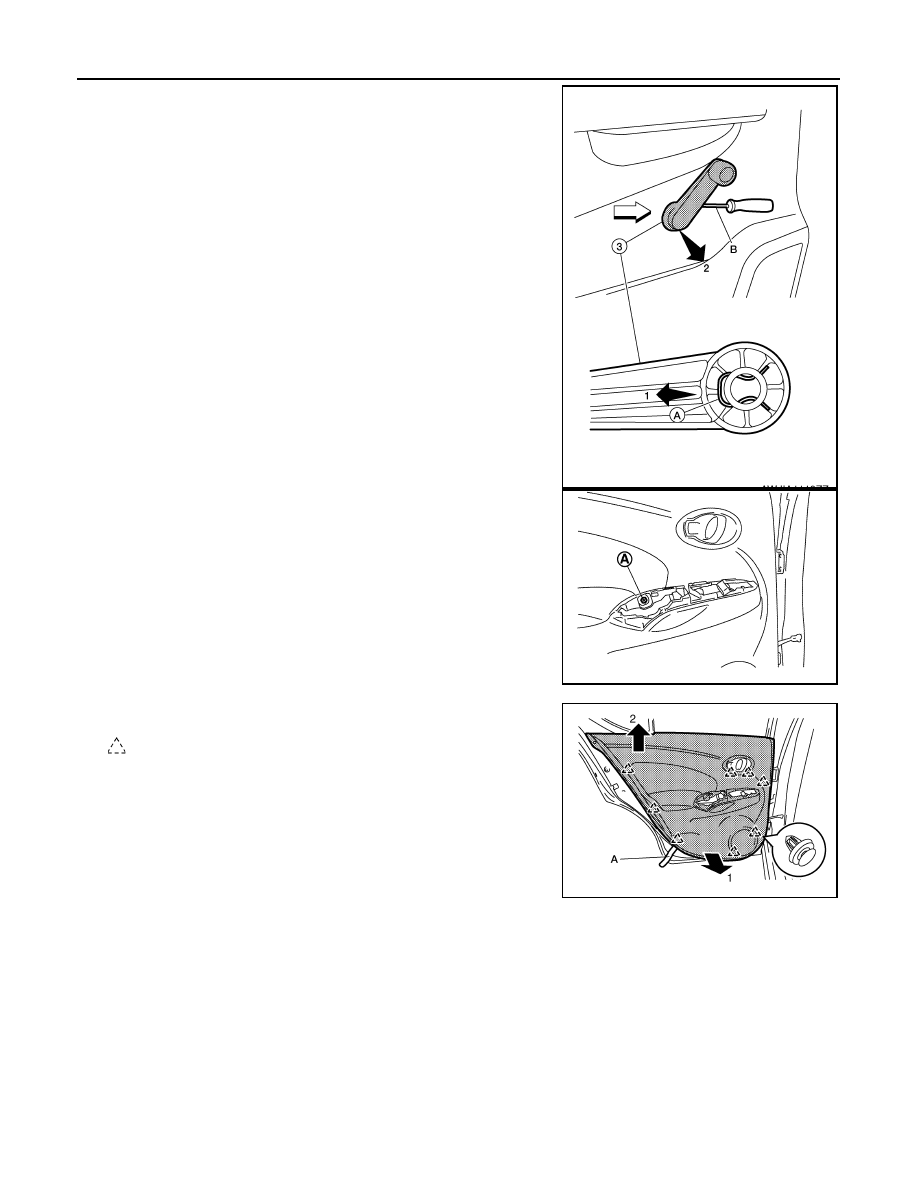

3. Release the metal clip (A) behind the manual window crank han-

dle using a suitable tool (B). Pull the manual window crank han-

dle (1) outward from the front door finisher and remove handle.

4. Remove rear door finisher bolt (A).

5. Release rear door finisher clips using a suitable tool (A) and

remove rear door finisher as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing rear door finisher, check that clips and pawls are securely placed into door panel

holes.

AWJIA1119ZZ

JMJIA6028ZZ

AWJIA1121ZZ

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

Exploded View

INFOID:0000000008969703

FRONT PILLAR FINISHER
FRONT PILLAR FINISHER : Removal and Installation

INFOID:0000000008969704

REMOVAL

1. Remove front pillar portion of front body side welt.

1. Center pillar upper finisher (RH)

2. Front body side welt (RH)

3. Front pillar finisher (RH)

4. Dash side finisher (RH)

5. Front kicking plate (RH)

6. Center pillar lower finisher (RH)

7. Rear kicking plate (RH)

8. Rear body side welt (RH)

Front

Clip

Pawl

AWJIA1141ZZ

INT-22

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

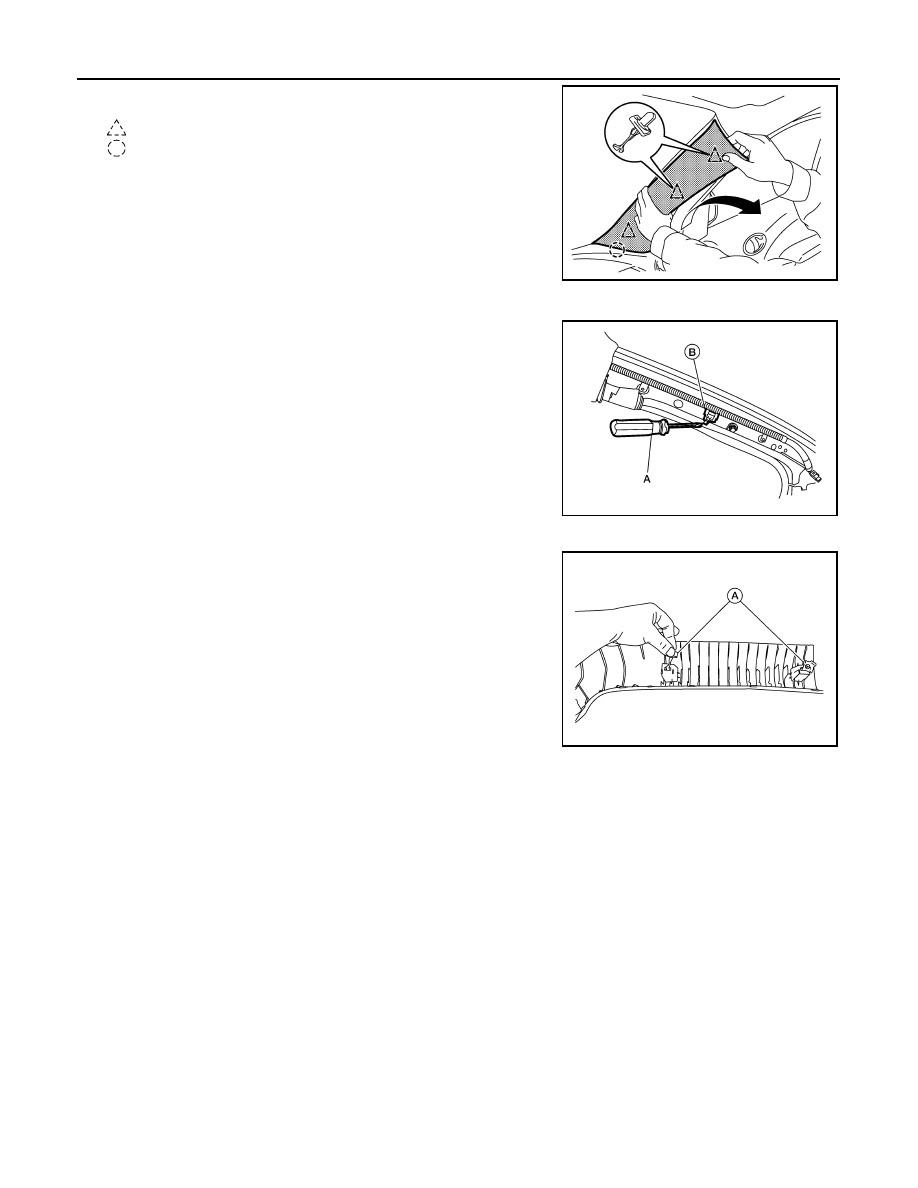

2. Pull front pillar finisher downward as shown to release the front

pillar finisher clip (bottom).

: Clip
: Pawl

3. Cut and discard front pillar finisher tether clips.
4. Remove the remaining piece of the tether clip (B) using a suit-

able tool (A).

INSTALLATION

1. Install new front pillar finisher tether clips (A) to the front pillar

finisher by inserting clip end and rotating 90 degrees to fit.

CAUTION:

• Do not reuse tether clips. Replace with new part after

removal.

• Make sure to install tether clip to front pillar finisher

before installing front pillar finisher.

• When installing tether clip to front pillar finisher, be sure

to install by aligning to the cutout.

• Visually check the clip for deformation and damage dur-

ing installation. Replace with new one if necessary.

• When installing front pillar finisher, check that clip and

tether clips are securely placed into body panel holes.

2. Install the front pillar finisher to the front pillar.

KICKING PLATE
KICKING PLATE : Removal and Installation

INFOID:0000000008969706

FRONT KICKING PLATE

Removal

AWJIA1124ZZ

AWJIA1111ZZ

AWJIA1088ZZ
