HEADLINING

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000008969714

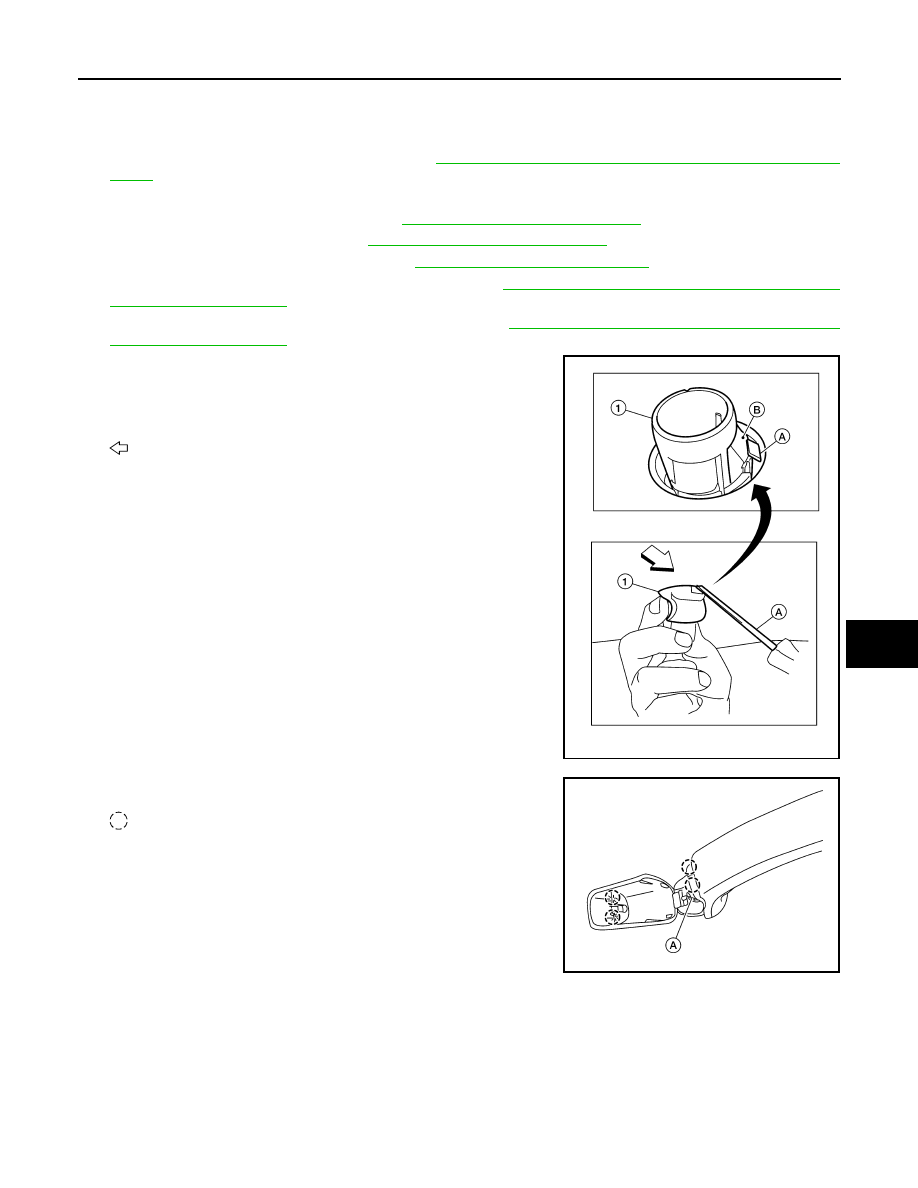

REMOVAL

1. Remove front pillar finishers (LH/RH). Refer to

INT-21, "FRONT PILLAR FINISHER : Removal and Instal-

lation"

.

2. Remove sun visor screws and sun visorS (LH/RH).
3. Remove map lamp (if equipped). Refer to

INL-51, "Removal and Installation"

.

4. Remove interior room lamp. Refer to

INL-53, "Removal and Installation"

.

5. Remove microphone (if equipped). Refer to

AV-59, "Removal and Installation"

.

6. Remove center pillar upper finishers (LH/RH). Refer to

INT-25, "CENTER PILLAR UPPER FINISHER :

Removal and Installation"

.

7. Remove luggage side upper finishers (LH/RH). Refer to

INT-35, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

8. Insert a suitable tool (A) at approximately a 30 degree angle into

the sun visor holder notch on the front of the sun visor holder (1)

and press in the locking tab (B) to release it. While holding in

lock tab (B), rotate the sun visor holder (1) 90 degrees to release

it from the headlining.

: Front

CAUTION:

Do not force the sun visor holder when removing as the

locking tab may be damaged if the suitable tool is not posi-

tioned correctly.

NOTE:

If the sun visor holder (1) does not fully rotate, make sure that

the suitable tool (A) is pressing in on the locking tab (B) and is

not positioned under locking tab (B). Reinsert the suitable tool

(A) as necessary to release the locking tab (B).

9. Release assist grip pawls and remove bolt (A) using a suitable

tool and remove all assist grips.

:Pawl

10. Remove headlining clips.
11. Remove headlining through the back door.

CAUTION:

• Do not reuse headlining.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Remove all remaining adhesive from roof panel.

• Do not reuse headlining. Replace with new part after removal.

ALJIA0537ZZ

AWJIA1126ZZ

INT-32

< REMOVAL AND INSTALLATION >

HEADLINING

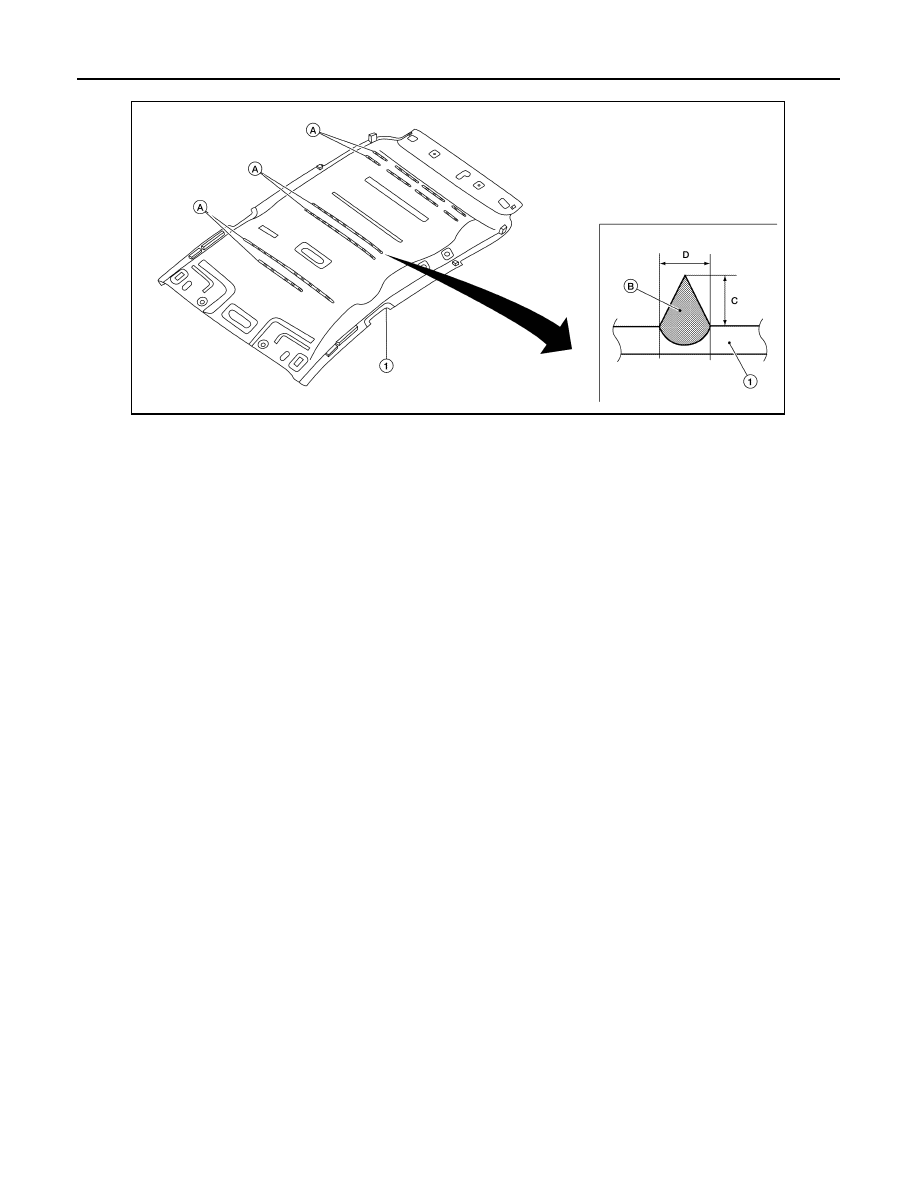

• Apply adhesive as shown before installing headlining.

• Do not bend headlining when installing.

• When installing headlining, start by installing both sun visor holders and headlining clips to hold

headlining in position.

• Be careful that the surface is not wrinkled when installing.

1. Headlining

A. Adhesive application location

B. Adhesive

C. 8 mm

D. 5 mm

AWJIA1102ZZ

LUGGAGE TRIM

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

LUGGAGE TRIM

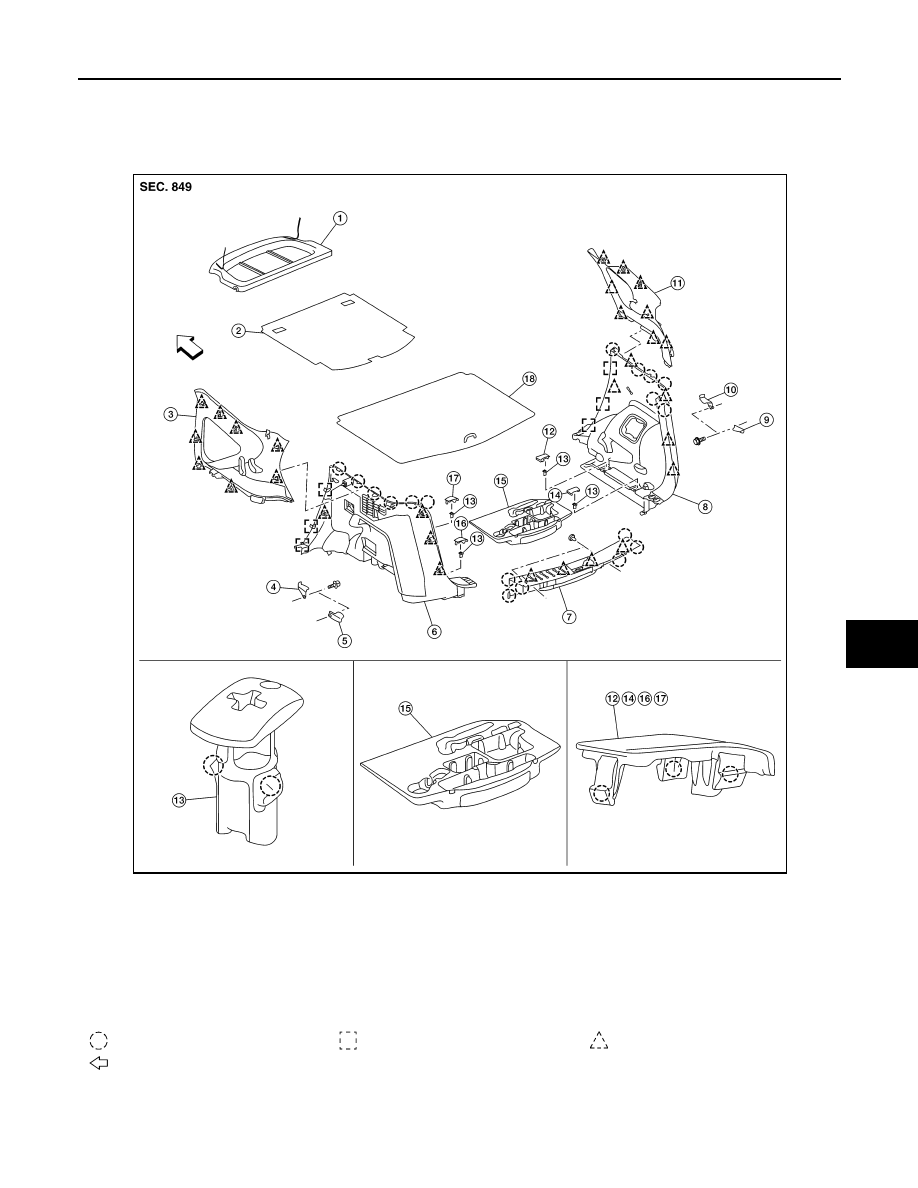

Exploded View

INFOID:0000000008969715

LUGGAGE REAR PLATE

1.

Parcel shelf finisher (if equipped)

2.

Luggage floor board (if equipped)

3.

Luggage side upper finisher (LH)

4.

Luggage side front reinforcement (LH) 5.

Luggage side rear reinforcement (LH) 6.

Luggage side lower finisher (LH)

7.

Luggage rear plate

8.

Luggage side lower finisher (RH)

9.

Luggage side rear reinforcement (RH)

10. Luggage side front reinforcement

(RH)

11. Luggage side upper finisher (RH)

12. Luggage side front cover (RH)

13. Luggage side clip

14. Luggage side rear cover (RH)

15. Luggage floor box

16. Luggage side rear cover (LH)

17. Luggage side front cover (LH)

18. Luggage floor trim

Pawl

Metal clip

Clip

Front

AWJIA1129ZZ

I N

T

- 3

4

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

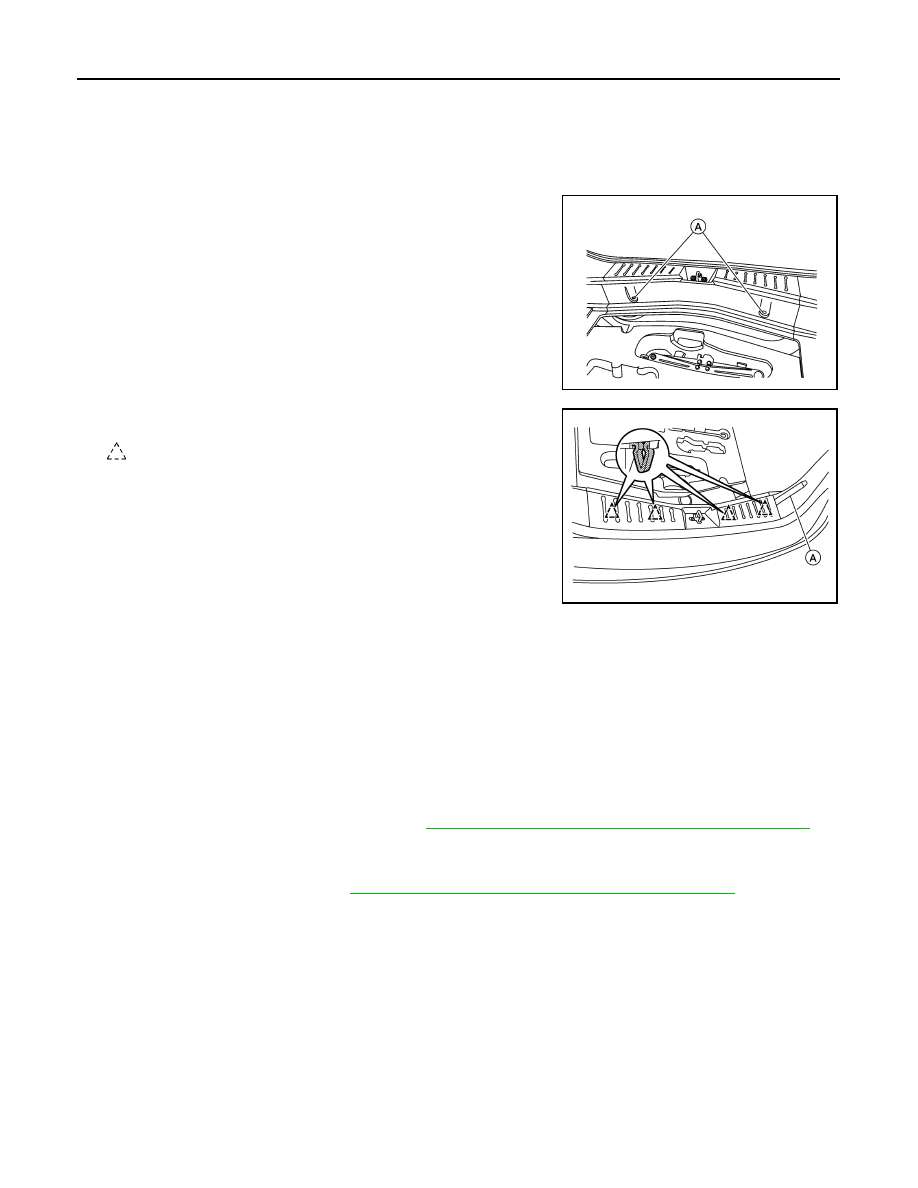

LUGGAGE REAR PLATE : Removal and Installation

INFOID:0000000008969716

REMOVAL

1. Remove luggage floor board (if equipped).
2. Remove luggage floor trim.
3. Remove luggage rear plate clips (A).

4. Release luggage rear plate clips using a suitable tool (A) and

remove luggage rear plate as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing luggage rear plate, check that clips are securely placed into body holes.

LUGGAGE SIDE LOWER FINISHER
LUGGAGE SIDE LOWER FINISHER : Removal and Installation

INFOID:0000000008969717

REMOVAL

1. Partially remove rear body side welt. Refer to

INT-24, "BODY SIDE WELT : Removal and Installation"

.

2. Remove luggage floor board (if equipped).
3. Remove luggage floor trim.
4. Remove seat back hinge. Refer to

SE-31, "SEATBACK HINGE : Removal and Installation"

.

5. Release rear parcel shelf finisher clips using a suitable tool and remove rear parcel shelf finisher (if

equipped).

6. Remove luggage side lower finisher pawls using a suitable tool.

AWJIA1127ZZ
