Nissan Versa Note. Manual - part 442





ROOF SIDE MOLDING

EXT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal

Lift using a suitable tool (A), then pull the roof side molding from the

roof panel, starting from the front of vehicle and moving toward the

rear.

: Clip

Installation

Installation is in the reverse order of removal.

CAUTION:

Replace the double-sided tape on the back surface with new double-sided tape when reusing the roof

side molding.

ROOF SIDE MOLDING CLIP

Removal

1. Remove roof side molding.
2. Heat double sided tape using a suitable tool, then remove roof side molding clips using a suitable tool.

CAUTION:

Use care not to damage the body paint.

Installation

1. Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.
2. Use two-part epoxy adhesive.

3. Apply adhesive evenly to clip tape surface.

4. Position clip to the proper location, then sufficiently press-fit until the adhesive protrudes to tape side.

5. Tape clips after press fit to temporarily hold for specified time based on the following conditions.

6. Install roof side molding from rear of vehicle to front after removing the temporary hold tape.

CAUTION:

• When installing roof side molding, check that the molding is securely inserted into the clips.

• Do not wash the vehicle within 24 hours so as to keep adhesive dry.

AWKIA2560ZZ

Adhesive

: 3M-weld DP–100 or equivalent

Thickness

: Approximately 0.5 mm (0.02 in)

Press-fit limit : 19.6 N (2.0 Kg - 4.41 lb)

× 2 seconds

 5 to 10

°C (41 to 50 °F)

: 1 hour or more

11 to 23

°C (52 to 73 °F)

: 30 minutes or more

24

°C or more (75 °F or more) : 15 minutes or more

EXT-42

< REMOVAL AND INSTALLATION >

DOOR SASH TAPE

DOOR SASH TAPE

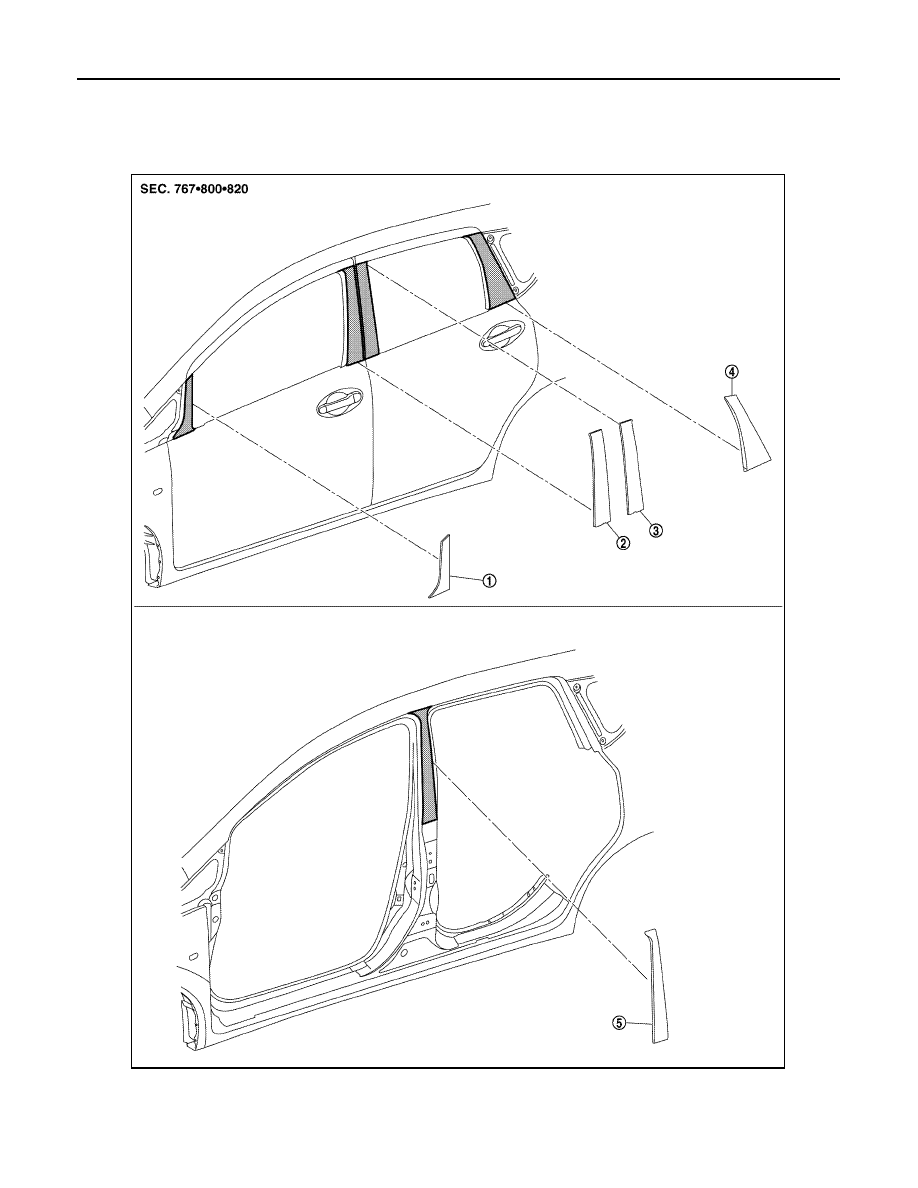

Exploded View

INFOID:0000000008969527

1.

Front door sash front tape

2.

Front door sash rear tape

3.

Rear door sash front tape

4.

Rear door sash rear tape

5.

Center pillar tape

JMKIB0613ZZ

DOOR SASH TAPE

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000009606344

REMOVAL

Heat door sash tape surface using a suitable tool and remove door sash tape.

CAUTION:

Use care not to damage body paint.

INSTALLATION

CAUTION:

• Degrease door assembly surface for sash tape.

• Grit or dust on surface of sash tape may spoil exterior appearance if not removed. Clean the surface

and check that no grit or dust remains before starting the operation.

• Do not reuse blackout tape.

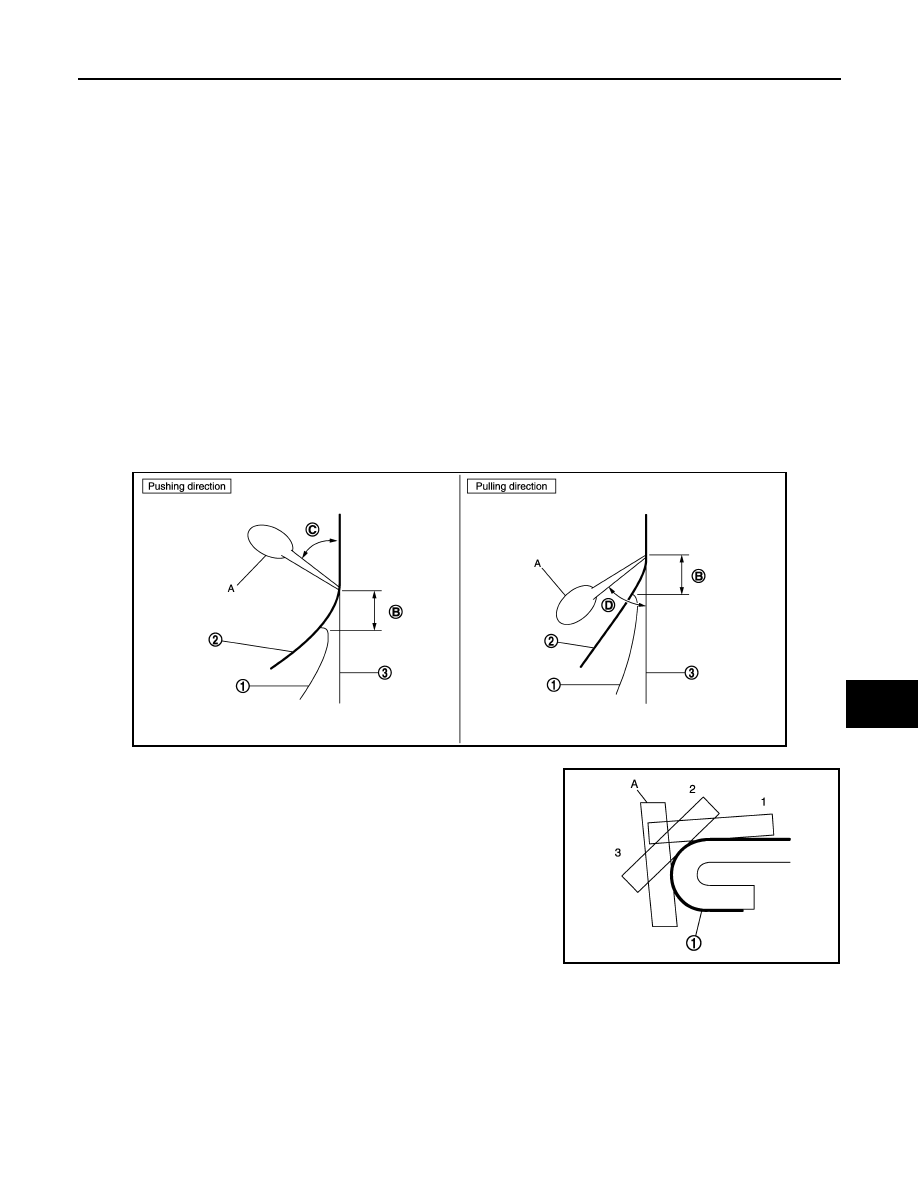

1. Affix door sash tape (2) to door panel (3) by applying pressure using a squeegee (A) while peeling off

release coated paper (1).

NOTE:

• Peel release coated paper at distance of 10 – 20 mm (0.4 – 0.8 in) ahead (B) of squeegee and affix

blackout paper.

• To prevent any bubbles from forming, slightly lift the portion not yet affixed using a squeegee, so that

portion dose not contact with panel surface. Apply pressure and affix at a low and constant speed using

squeegee tilted at 40 – 50

° angle (pushing direction) (C) 30 – 45° angle (pulling direction) (D).

2. For small radius portion of hemming part, gradually apply pres-

sure and affix door sash tape (1) using squeegee (A) as shown.

CAUTION:

Do not wash the vehicle with in 24 hours so as to keep

adhesive dry.

JMKIA4862GB

JMKIA4655ZZ

EXT-44

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

DOOR OUTSIDE MOLDING

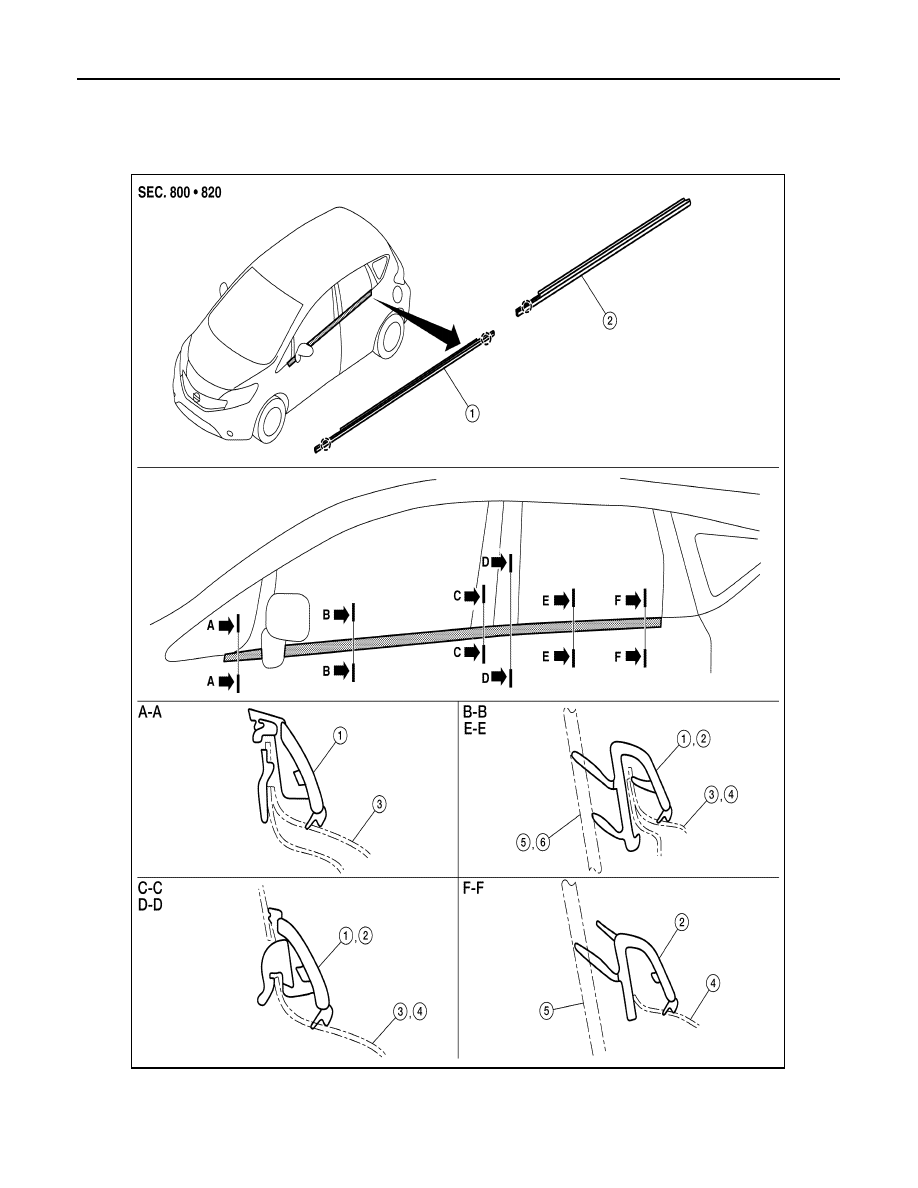

Exploded View

INFOID:0000000008969529

1.

Front door outside molding

2.

Rear door outside molding

3.

Front door panel

AWKIA2517ZZ
