Nissan Versa Note. Manual - part 440





FRONT SPOILER

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

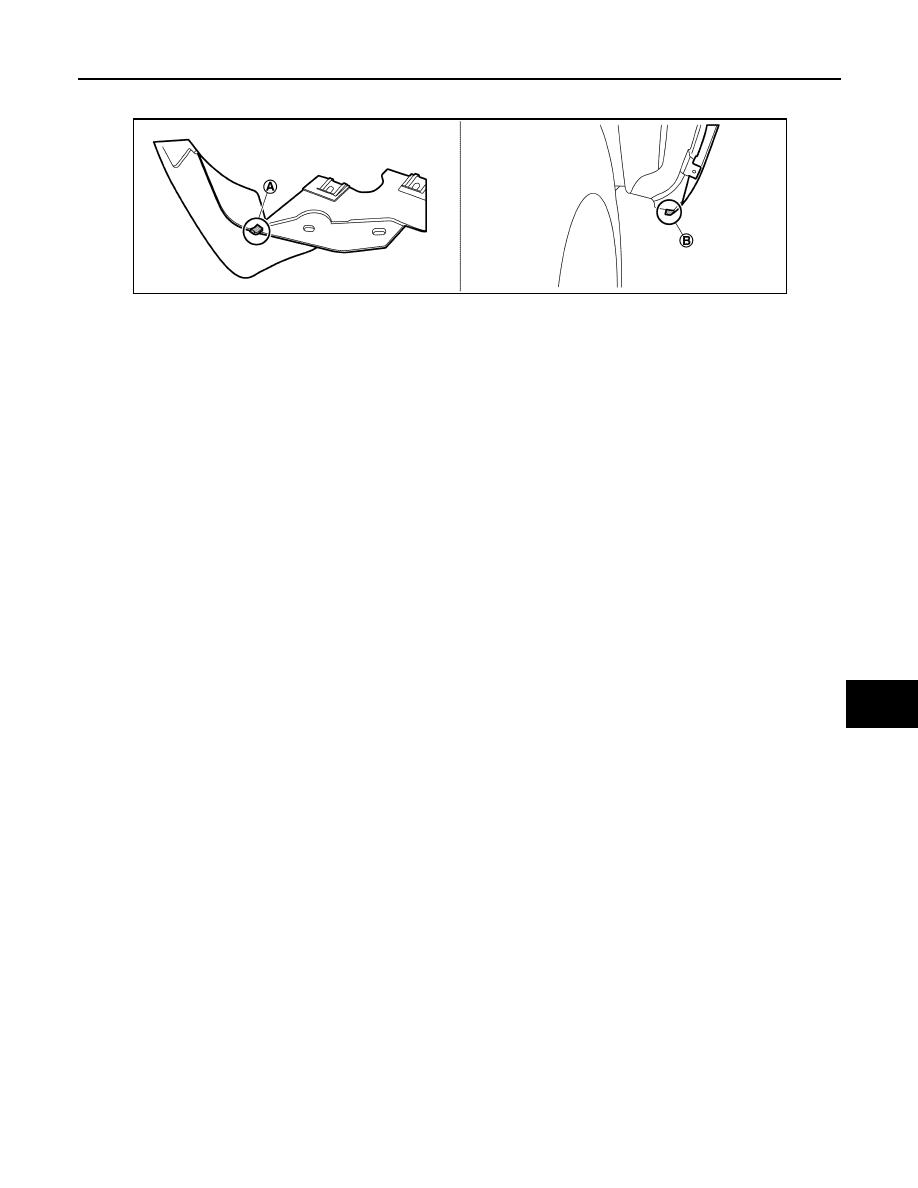

• Align portion (A) of front fascia side deflectors (LH/RH) to portion (B) of clearance between front bumper fas-

cia and front fender protector.

• Tighten front fascia side deflector (LH/RH) screws while pressing front fascia side deflectors (LH/RH) to front

bumper fascia.

JMKIB0740ZZ

EXT-34

< REMOVAL AND INSTALLATION >

COWL TOP

COWL TOP

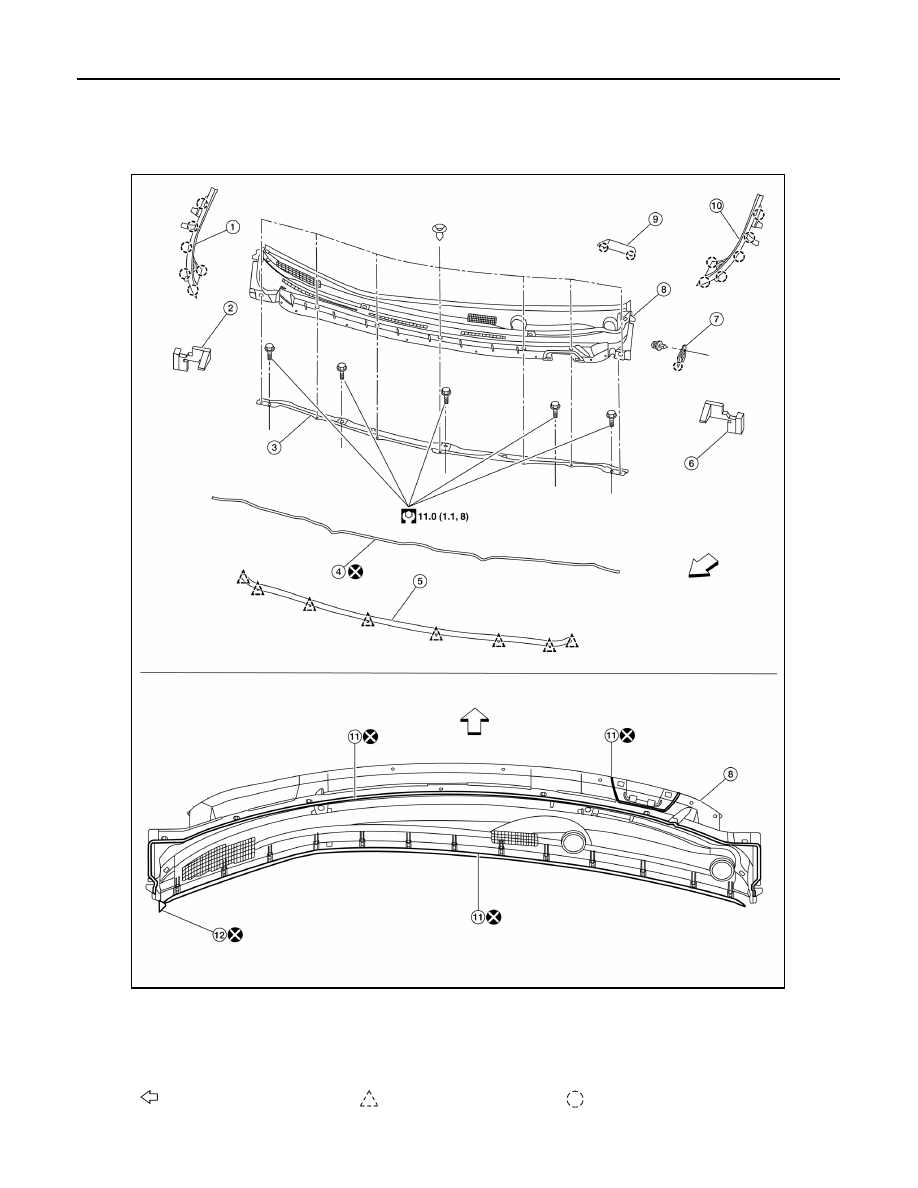

Exploded View

INFOID:0000000008969521

1.

Cowl top side cover (RH)

2.

Front fender seal (RH)

3.

Cowl top extension

4.

EPT seal [t: 5.0 mm (0.197 in)]

5.

Cowl top cover seal

6.

Front fender seal (LH)

7.

One-way valve

8.

Cowl top cover

9.

Cowl top cover cap

10. Cowl top side cover (LH)

11. EPT seal [t: 3.0 mm (0.118 in)] 12. EPT seal [t: 15.0 mm (0.591 in)]

Front

Clip

Pawl

AWKIA2518ZZ

COWL TOP

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

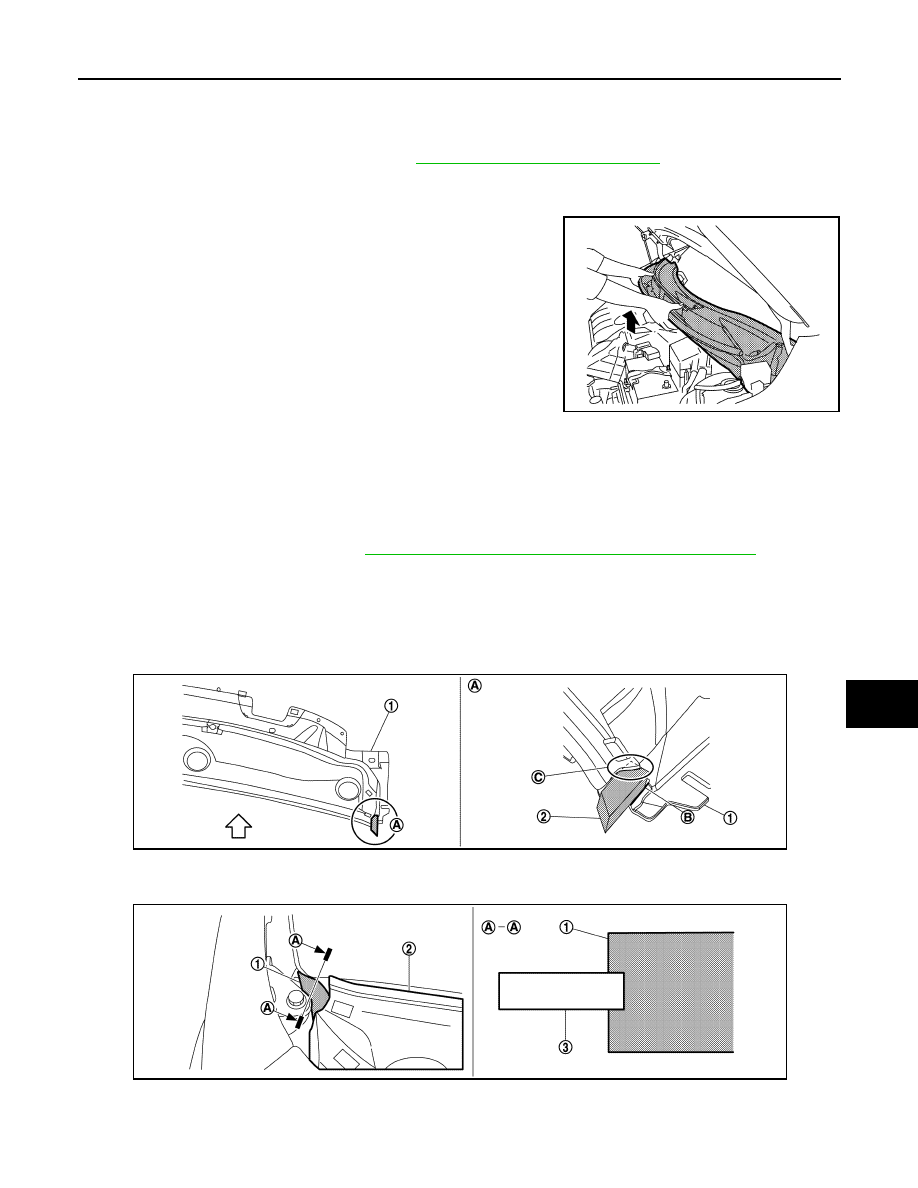

Removal and Installation

INFOID:0000000008969522

REMOVAL

1. Remove front wiper arms (LH/RH). Refer to

WW-68, "Removal and Installation"

.

2. Remove cowl top side covers (LH/RH).
3. Remove cowl top cover clips.
4. Pull forward to release cowl top cover from windshield.

CAUTION:

When performing the procedure after removing cowl top

cover, cover the lower end of windshield with urethane, etc.

to prevent damage to the windshield.

5. Disconnect the washer tube connector and harness clips.
6. Remove cowl top cover.
7. Remove the following parts after removing cowl top cover (if necessary).

• EPT seals

• Cowl top cover seal

• Washer tube

• Washer nozzles (LH/RH). Refer to

WW-65, "WASHER NOZZLE : Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace EPT seals with new ones when reusing the cowl top cover.

• When installing EPT seal (2) of portion (A) on cowl top cover (1), install EPT seal by aligning to the

line of (B) and setting portion (C) in cowl top cover.

• After installing cowl top cover (2), check that side surface of EPT seal (1) makes contact with wind-

shield glass (3).

JMKIA8047ZZ

JMKIB0738ZZ

JMKIB0739ZZ

EXT-36

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR

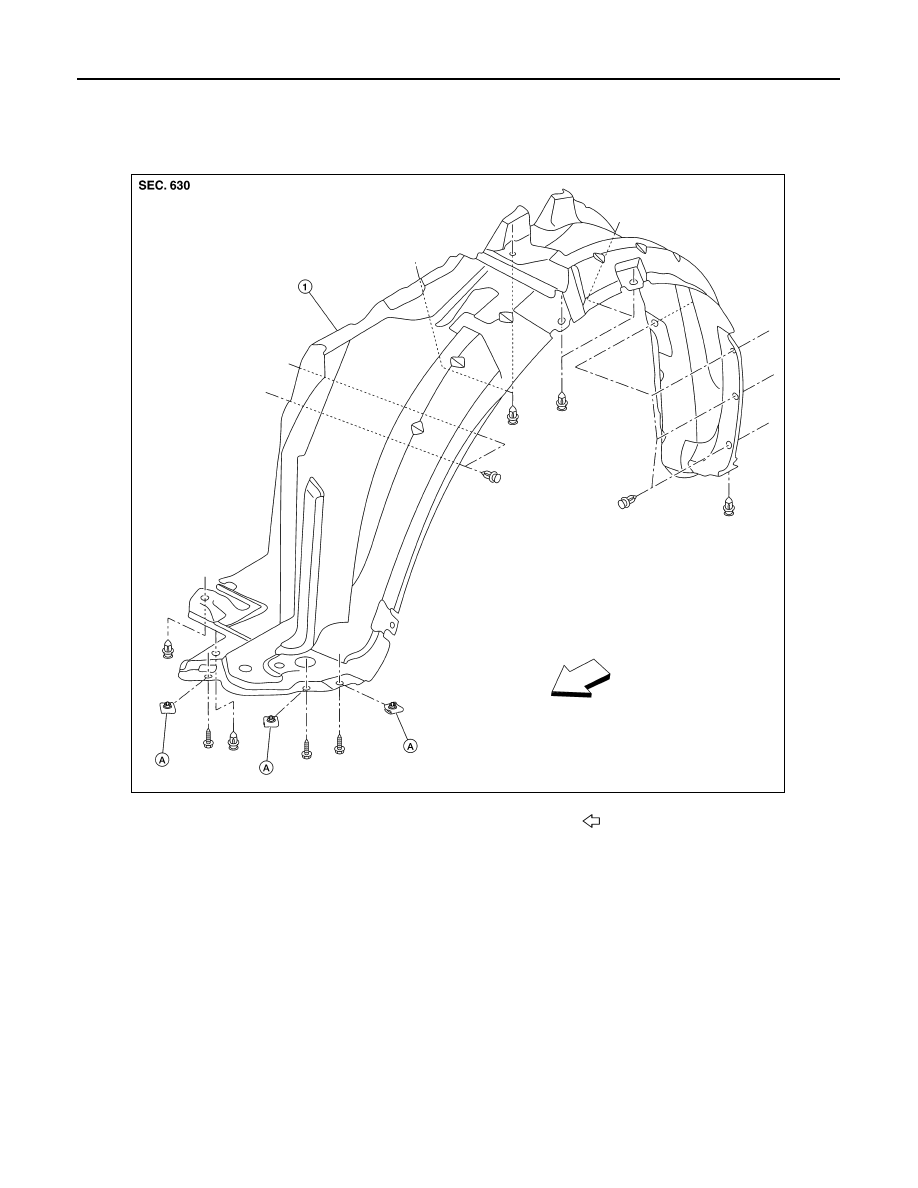

Exploded View

INFOID:0000000008969523

Removal and Installation

INFOID:0000000009444562

REMOVAL

1. Remove fender protector screws and clips.
2. Remove fender protector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front fender protector

A. J nut

Front

AWKIA2513ZZ
