FRONT GRILLE

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FRONT GRILLE

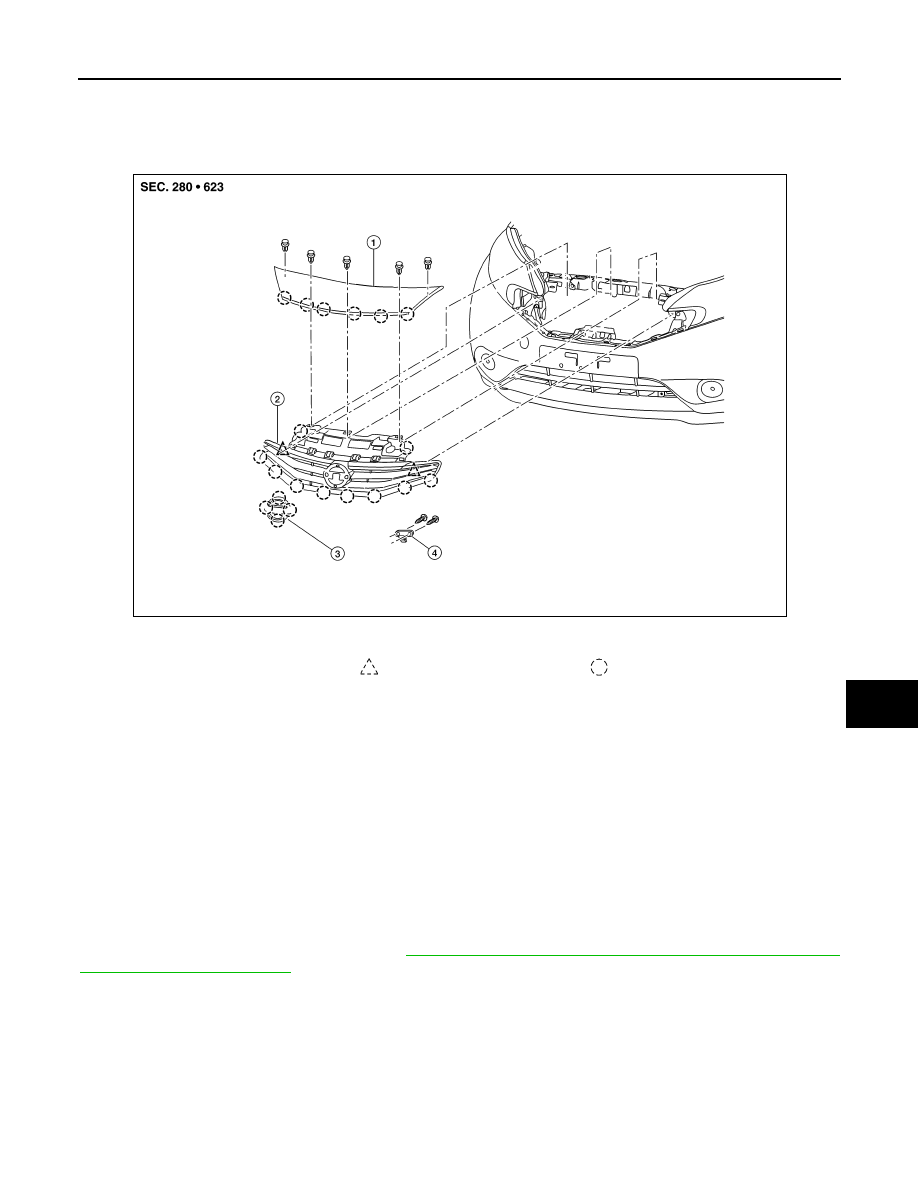

Exploded View

INFOID:0000000008969517

Removal and Installation

INFOID:0000000008969518

REMOVAL

1. Remove the front grille finisher clips.
2. Release pawls using a suitable tool and remove the front grille finisher.
3. Disconnect the harness connector from the front camera (if equipped).
4. Release the clips using a suitable tool, then pull the front grille away from vehicle to release pawls and

remove.

5. Release pawls and remove front emblem from front grille (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

1.

Front grille finisher

2.

Front grille

3.

Front emblem

4.

Front camera (if equipped)

Clip

Pawl

AWKIA2554ZZ

EXT-30

< REMOVAL AND INSTALLATION >

ACTIVE GRILLE SHUTTER

ACTIVE GRILLE SHUTTER

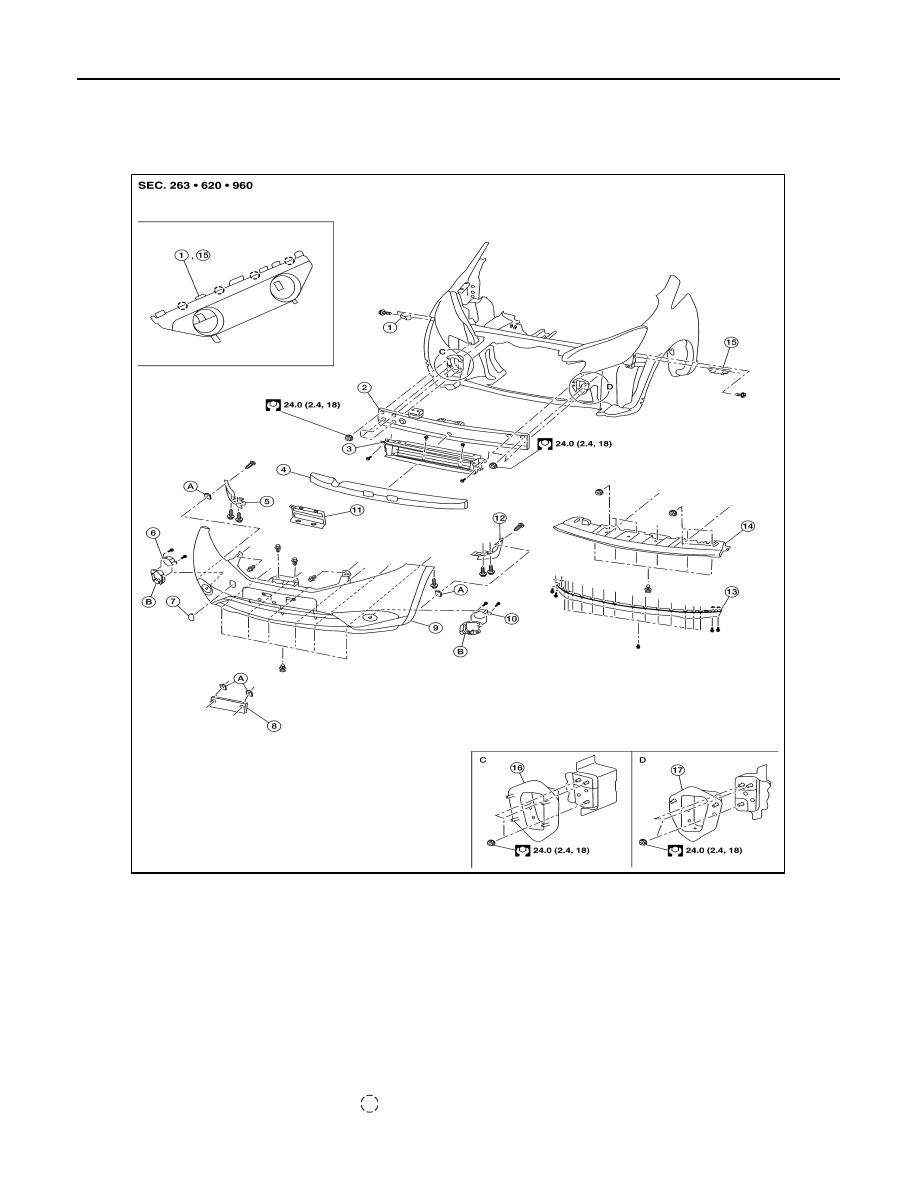

Exploded View

INFOID:0000000009640472

1.

Front bumper fascia side bracket
(RH)

2.

Front bumper reinforcement

3.

Active grille shutter

4.

Front energy absorber

5.

Front fascia side deflector
(RH)

6.

Front fog lamp (RH) (if equipped)

7.

Tow cover

8.

Front license plate bracket

9.

Front bumper fascia

10. Front fog lamp (LH) (if equipped) 11. Front bumper finisher

(if equipped)

12. Front fascia side deflector (LH)

13. Front air spoiler

14. Front under cover

15. Front bumper fascia side bracket

(LH)

16. Front bumper reinforcement

bracket (RH)

17. Front bumper reinforcement

bracket (LH)

A.

J nut

B.

Front fog lamp bracket

Pawl

AWKIA2516ZZ

ACTIVE GRILLE SHUTTER

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000009640471

REMOVAL

1. Remove the front bumper fascia. Refer to

EXT-24, "Removal and Installation"

.

2. Remove the radiator core support upper. Refer to

DLK-139, "RADIATOR CORE SUPPORT UPPER :

Removal and Installation"

.

3. Reposition the radiator and condenser as necessary to access active grille shutter bolts.
4. Remove the active grille shutter bolts.
5. Release active grille shutter harness clips using a suitable tool.

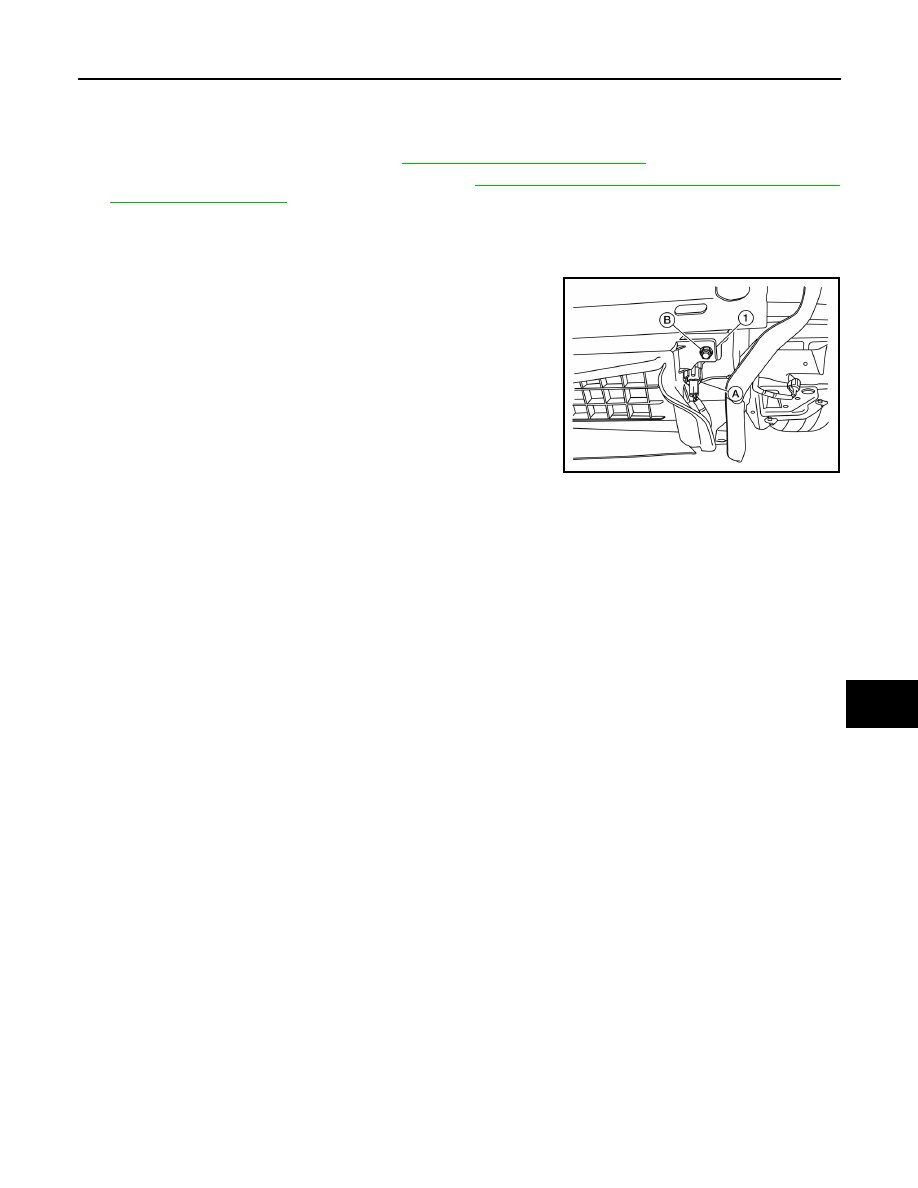

6. Disconnect the harness connector (A) from the active grille shut-

ter (1).

7. Remove the active grille shutter nut (B) (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3150ZZ

EXT-32

< REMOVAL AND INSTALLATION >

FRONT SPOILER

FRONT SPOILER

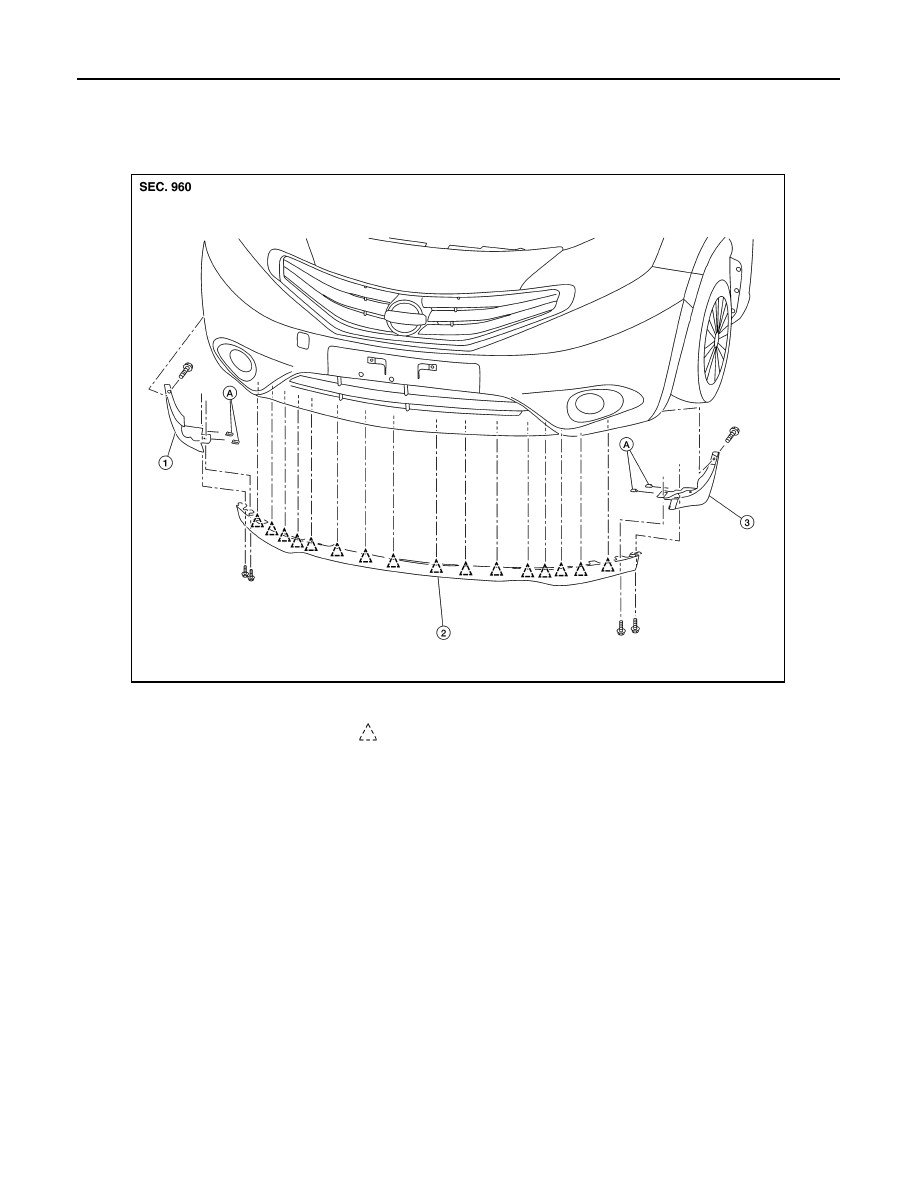

Exploded View

INFOID:0000000008969519

Removal and Installation

INFOID:0000000008969520

REMOVAL

1. Remove front fascia side deflector screws from each front fascia side deflector (LH/RH) and remove.
2. Remove front air spoiler clips and front air spoiler.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

When installing front fascia side deflectors (LH/RH), install parts as shown to front bumper fascia.

1.

Front fascia side deflector (RH)

2.

Front air spoiler

3.

Front fascia side deflector (LH)

A.

J nut

Clip

AWKIA2566ZZ
