FRONT BUMPER

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

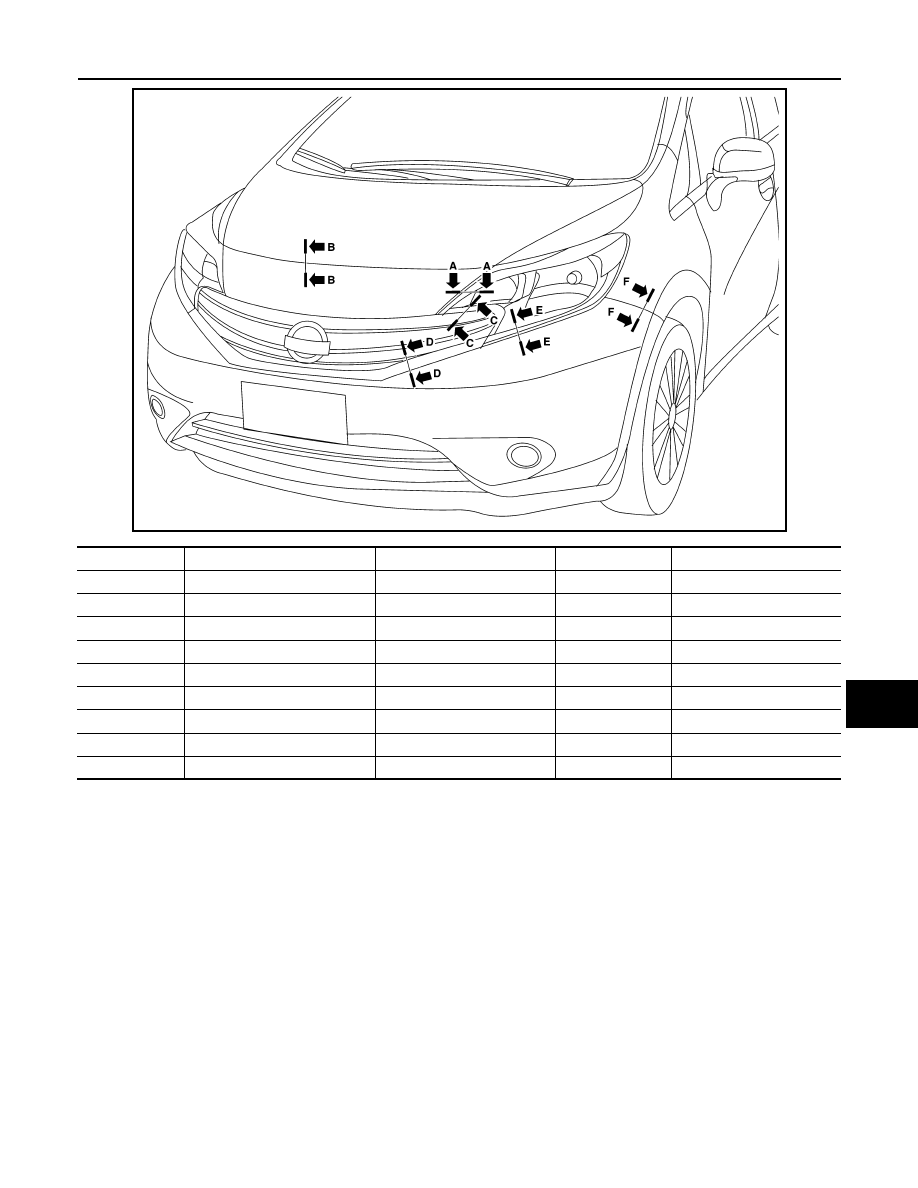

AWKIA2515ZZ

Section

Measurement

Minimum

Target Value

Maximum

A-A

Clearance

0.0 (0.00)

2.0 (0.08)

4.0 (0.16)

B-B

Clearance

2.4 (0.09)

4.4 (0.17)

6.4 (0.25)

B-B

Surface height

-1.5 (-0.06)

0.5 (0.02)

1.99 (0.08)

C-C

Clearance

0.0 (0.00)

2.0 (0.08)

4.0 (0.16)

D-D

Clearance

0.0 (0.00)

1.5 (0.06)

3.0 (0.12)

D-D

Surface height

0.0 (0.00)

1.5 (0.06)

3.0 (0.12)

E-E

Clearance

0.01 (0.00)

2.0 (0.08)

4.0 (0.16)

F-F

Clearance

0.1 (0.00)

0.3 (0.01)

1.0 (0.04)

F-F

Surface height

-0.1 (0.00)

0.7 (0.03)

1.7 (0.07)

EXT-26

< REMOVAL AND INSTALLATION >

REAR BUMPER

REAR BUMPER

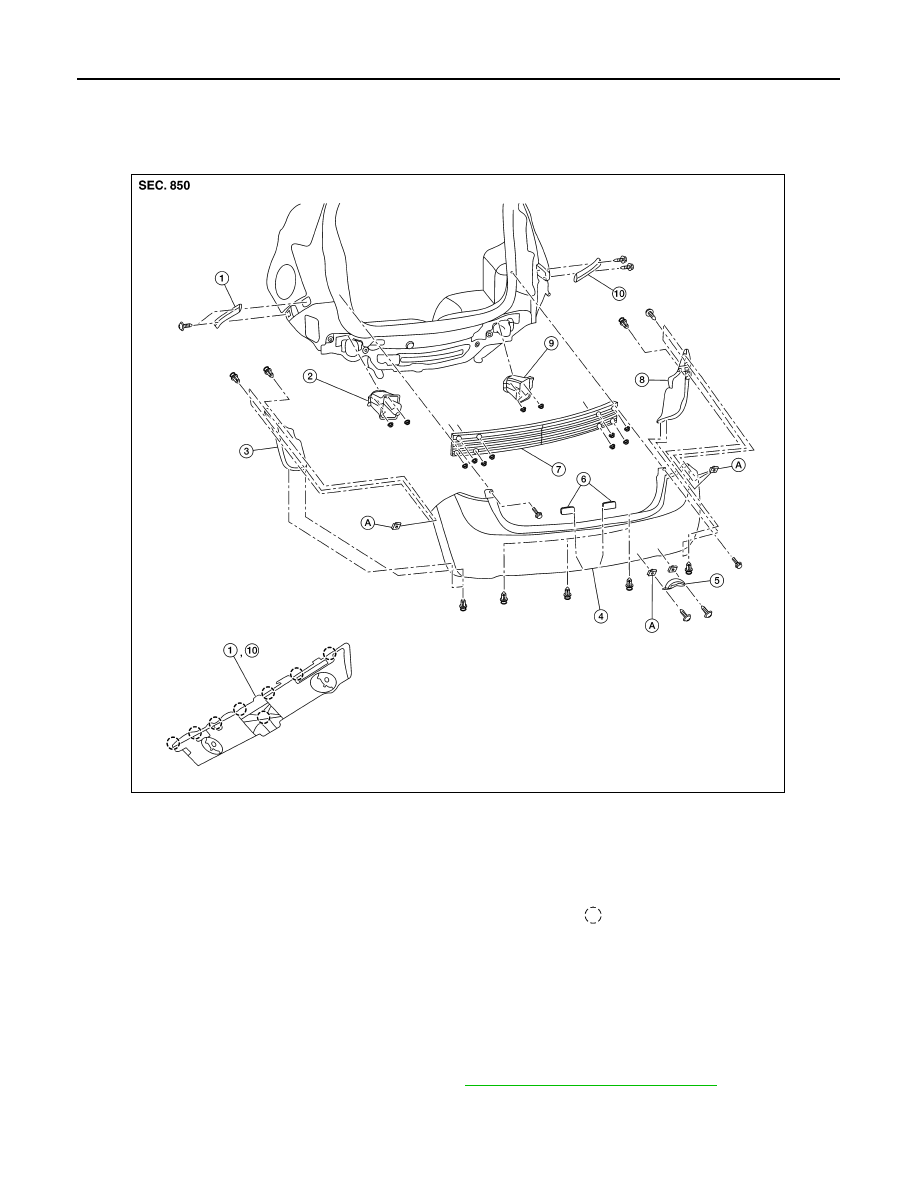

Exploded View

INFOID:0000000008969515

Removal and Installation

INFOID:0000000008969516

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily

substances.

REMOVAL

1. Remove rear combination lamps (LH/RH). Refer to

EXL-105, "Removal and Installation"

.

1.

Rear bumper fascia side
bracket (LH)

2.

Rear bumper reinforcement support
(LH)

3.

Rear bumper closing (LH)

4.

Rear bumper fascia

5.

Rear bumper finisher

6.

Rear bumper fascia spacer

7.

Rear bumper reinforcement

8.

Rear bumper closing (RH)

9.

Rear bumper reinforcement
support (RH)

10. Rear bumper fascia side

bracket (RH)

A.

J nut

Pawl

AWKIA2520ZZ

REAR BUMPER

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

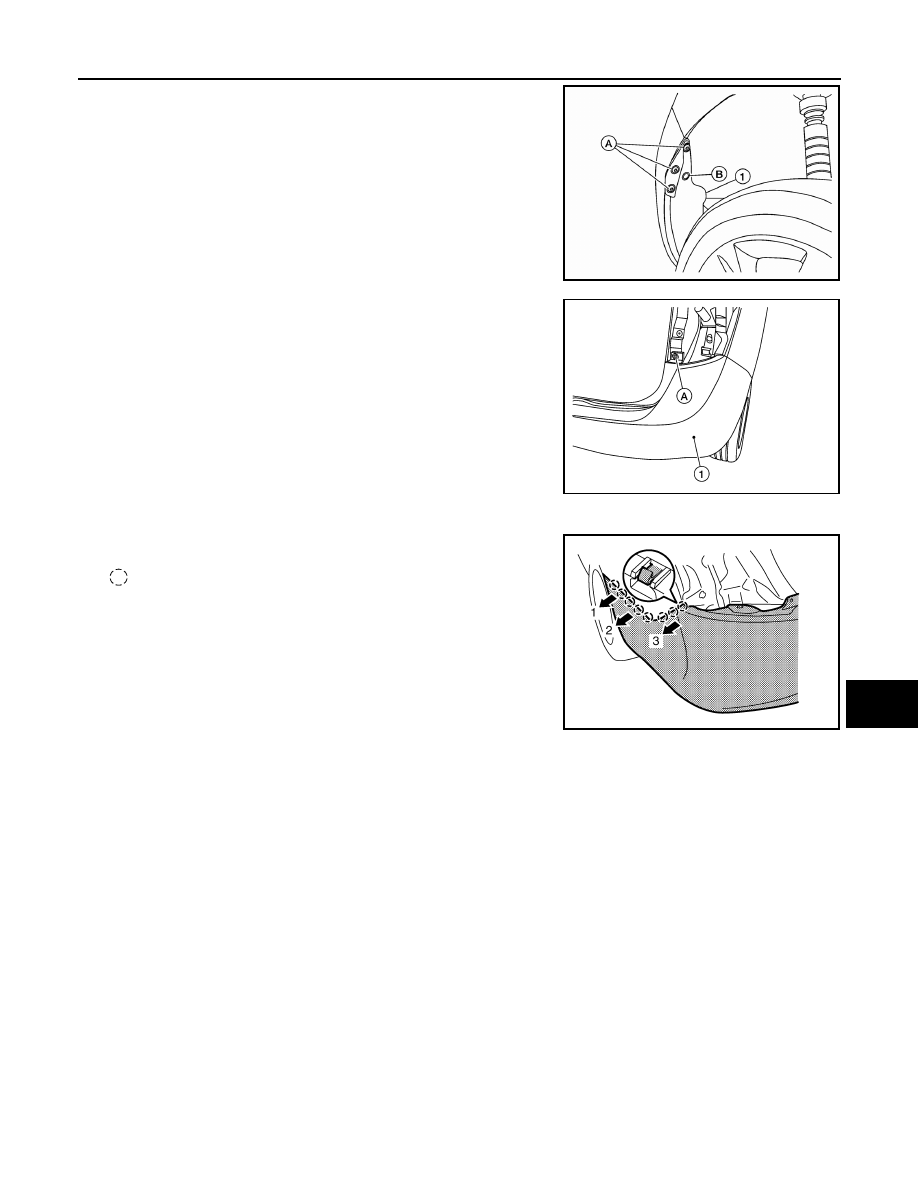

2. Remove screws (A) and clip (B) from rear bumper closings (1)

(LH/RH).

3. Remove the rear bumper fascia upper bolt (A) (LH/RH) from

each side of the rear bumper fascia (1).

4. Remove rear bumper fascia lower clips.
5. Remove the rear bumper fascia from the rear bumper fascia

side brackets (LH/RH) by releasing the pawls as shown.

: Pawl

CAUTION:

When removing rear bumper fascia, two people are

required to avoid damaging.

6. Remove the following parts after removing rear bumper fascia (if necessary).

• Two clips each and rear bumper closings (LH/RH)

• Two screws and rear bumper finisher

• Rear bumper fascia spacers

• Two bolts each and rear bumper side brackets (LH/RH)

7. Remove rear bumper reinforcement nuts and rear bumper reinforcement (if necessary).
8. Remove rear bumper reinforcement support nuts from each and the rear bumper reinforcement supports

(LH/RH) (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation specifications.

• Fitting adjustment cannot be performed.

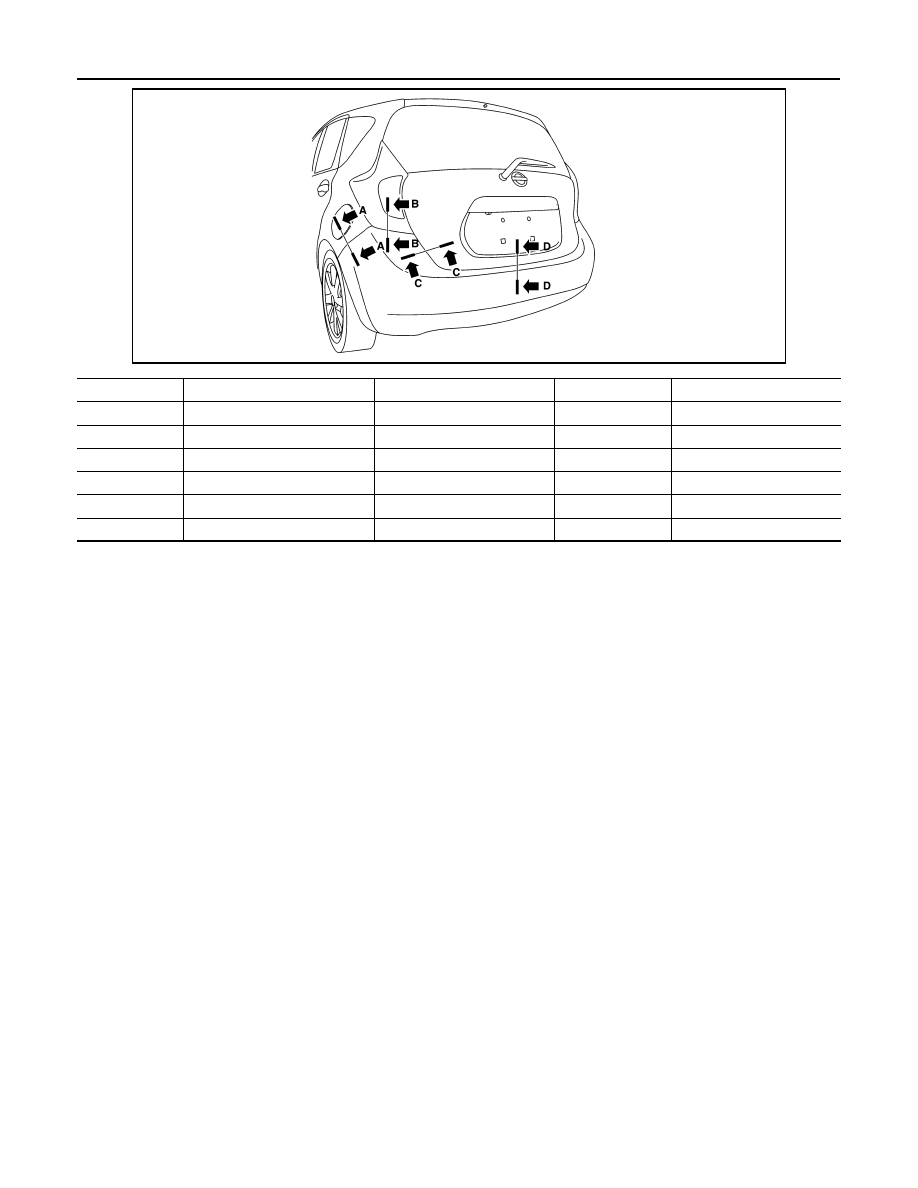

ALKIA2525ZZ

AWKIA2526ZZ

AWKIA2523ZZ

EXT-28

< REMOVAL AND INSTALLATION >

REAR BUMPER

ALKIA3207ZZ

Section

Measurement

Minimum

Target Value

Maximum

A-A

Clearance

0.1 (0.00)

0.3 (0.01)

1.0 (0.04)

B-B

Clearance

0.0 (0.00)

1.5 (0.06)

3.5 (0.14)

B-B

Surface height

-1.5 (-0.06)

0.5 (0.02)

2.5 (0.10)

C-C

Clearance

3.0 (0.12)

5.0 (0.20)

7.0 (0.28)

C-C

Surface height

-2.0 (-0.08)

-1.5 (-0.06)

3.5 (0.14)

D-D

Clearance

5.0 (0.20)

7.0 (0.28)

9.0 (0.35)
