DOOR OUTSIDE MOLDING

EXT-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000009444566

FRONT DOOR OUTSIDE MOLDING

Removal

1. Lower front door glass fully.
2. Release the pawls using a suitable tool, then rotate front door outside molding toward the outside of the

vehicle and lift up to remove.

Installation

Installation is in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING

Removal

1. Lower rear door glass fully.
2. Release the pawl using a suitable tool, then rotate rear door outside molding toward the outside of the

vehicle and lift up to remove.

Installation

Installation is in the reverse order of removal.

4.

Rear door panel

5.

Rear door glass

6.

Front door glass

Pawl

EXT-46

< REMOVAL AND INSTALLATION >

BACK DOOR OUTER FINISHER

BACK DOOR OUTER FINISHER

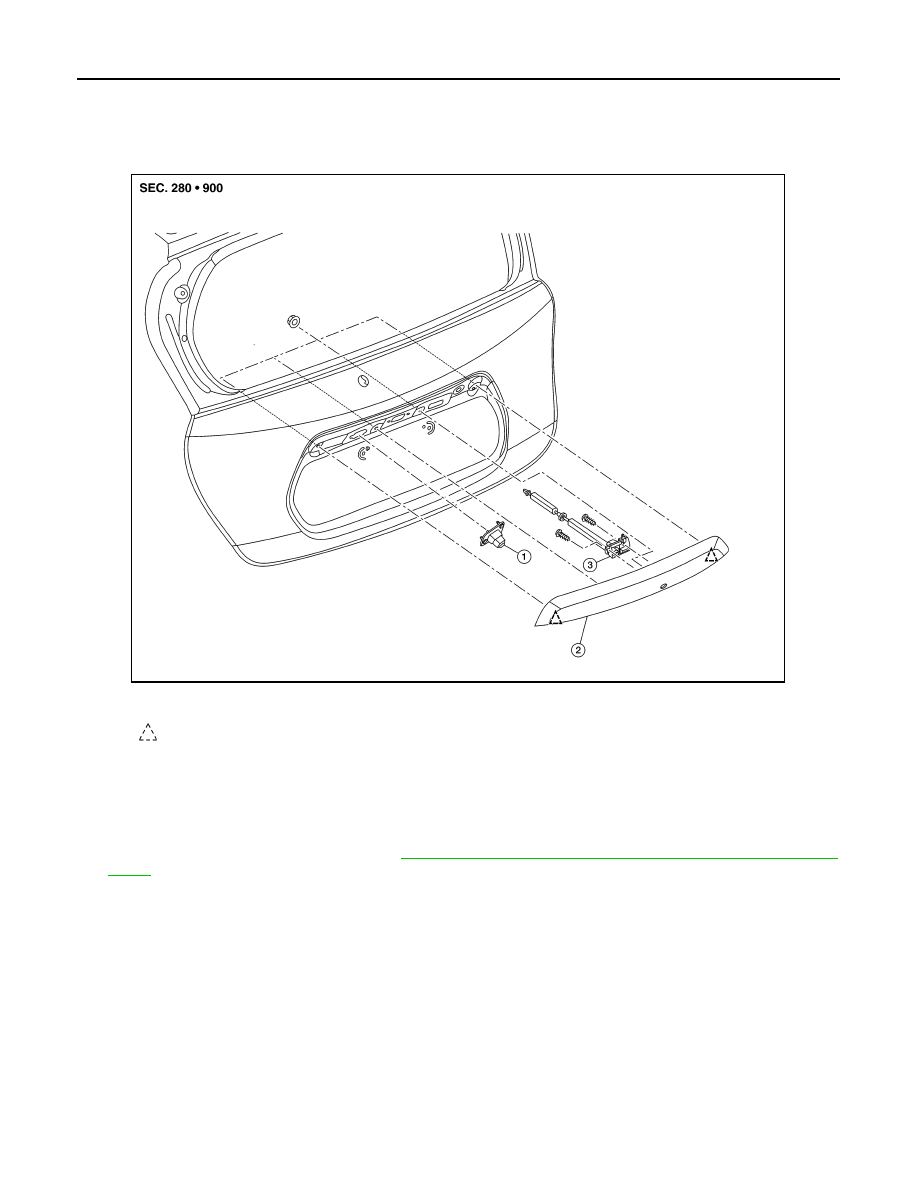

Exploded View

INFOID:0000000008969530

Removal and Installation

INFOID:0000000008969531

REMOVAL

1. Remove back door inner finisher. Refer to

INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-

lation"

.

2. Disconnect the harness connectors from back door request switch.
3. Remove back door outer finisher nuts.
4. Release clips and remove the back door outer finisher.
5. Remove back door request switch from the back door outer finisher (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing back door finisher, check that clips are securely placed into body panel holes.

1.

Rear camera (if equipped)

2.

Back door outer finisher

3.

Back door request switch

Clip

AWKIA2514ZZ

FAX-1
