Nissan Versa Note. Manual - part 389

EM-72

< REMOVAL AND INSTALLATION >

[HR16DE]

CAMSHAFT

c.

Disconnect ignition coil and injector harness connectors.

3. Remove intake valve timing control solenoid valve. Refer to

EM-60, "Exploded View"

.

4. Crank engine, and then check that engine oil comes out from

intake valve timing control solenoid valve hole (A). End crank

after checking.

WARNING:

Be careful not to touch rotating parts (drive belts, idler pul-

ley, and crankshaft pulley, etc.).

CAUTION:

• Prevent splashing by using a shop cloth to prevent injury

from splashing engine oil and so as to prevent engine oil contamination.

• Use a shop cloth to prevent engine oil from being splashed to engine and vehicle. Especially be

careful not to spill engine oil to rubber parts of drive belts, engine mounting insulator, etc. Wipe

engine oil off immediately if it is splashed.

5. Perform the following inspection if engine oil does not come out from intake valve timing control solenoid

valve oil hole of the cylinder head.

• Remove oil filter, and then clean it. Refer to

LU-10, "Removal and Installation"

.

• Clean oil groove between oil strainer and intake valve timing control solenoid valve. Refer to

LU-5,

"Engine Lubrication System"

.

6. Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT),

and then check each oil groove for clogging.

• Clean oil groove if necessary. Refer to

LU-5, "Engine Lubrication System"

.

7. After inspection, installation of components is in the reverse order of removal

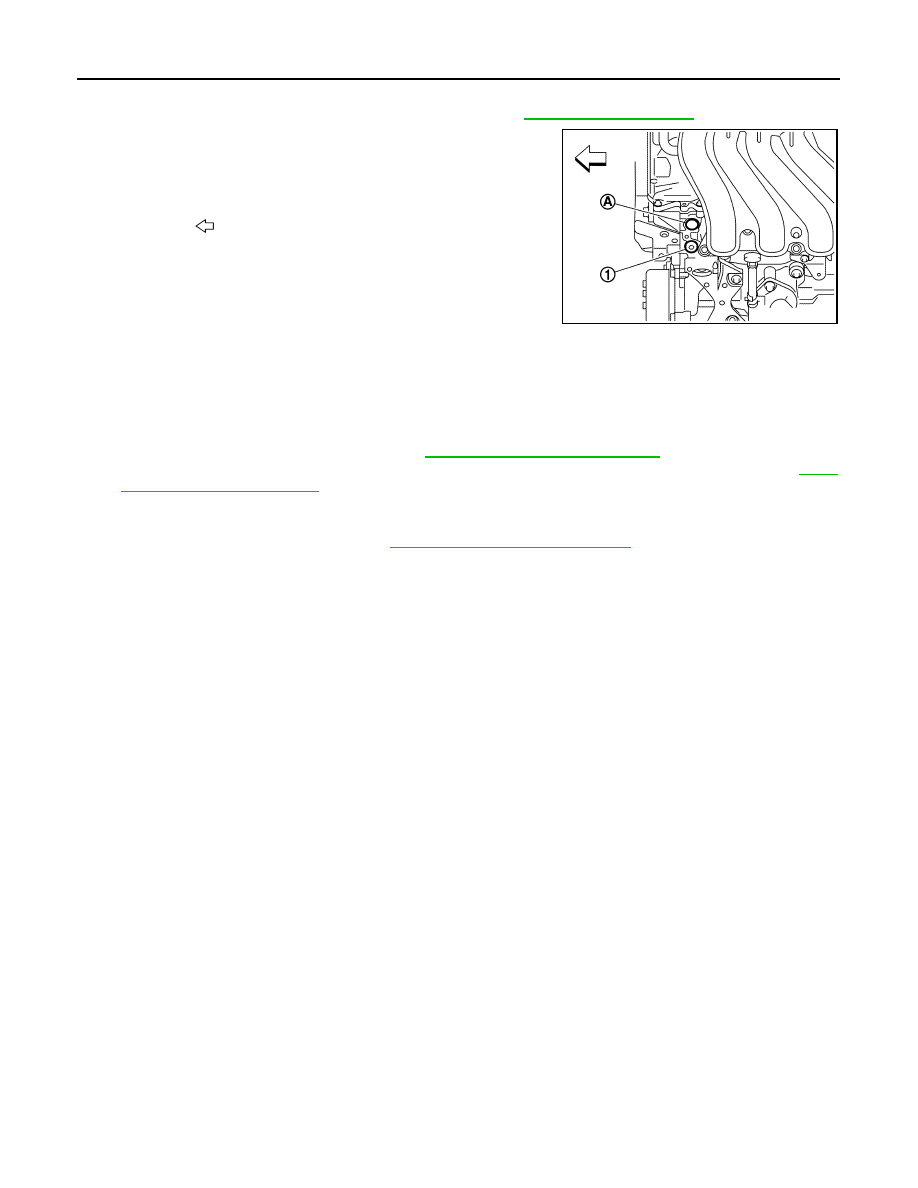

(1) : Plug

:Engine front

JPBIA4194ZZ

OIL SEAL

EM-73

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL SEAL

VALVE OIL SEAL
VALVE OIL SEAL : Removal and Installation

INFOID:0000000009444739

REMOVAL

1. Remove camshafts. Refer to

EM-60, "Removal and Installation"

.

2. Remove valve lifters. Refer to

EM-60, "Removal and Installation"

.

3. Rotate crankshaft, and set piston with valve oil seal to be removed to TDC. This will prevent the valve

from dropping into cylinder.

CAUTION:

When rotating crankshaft, be careful to avoid scarring front cover with timing chain.

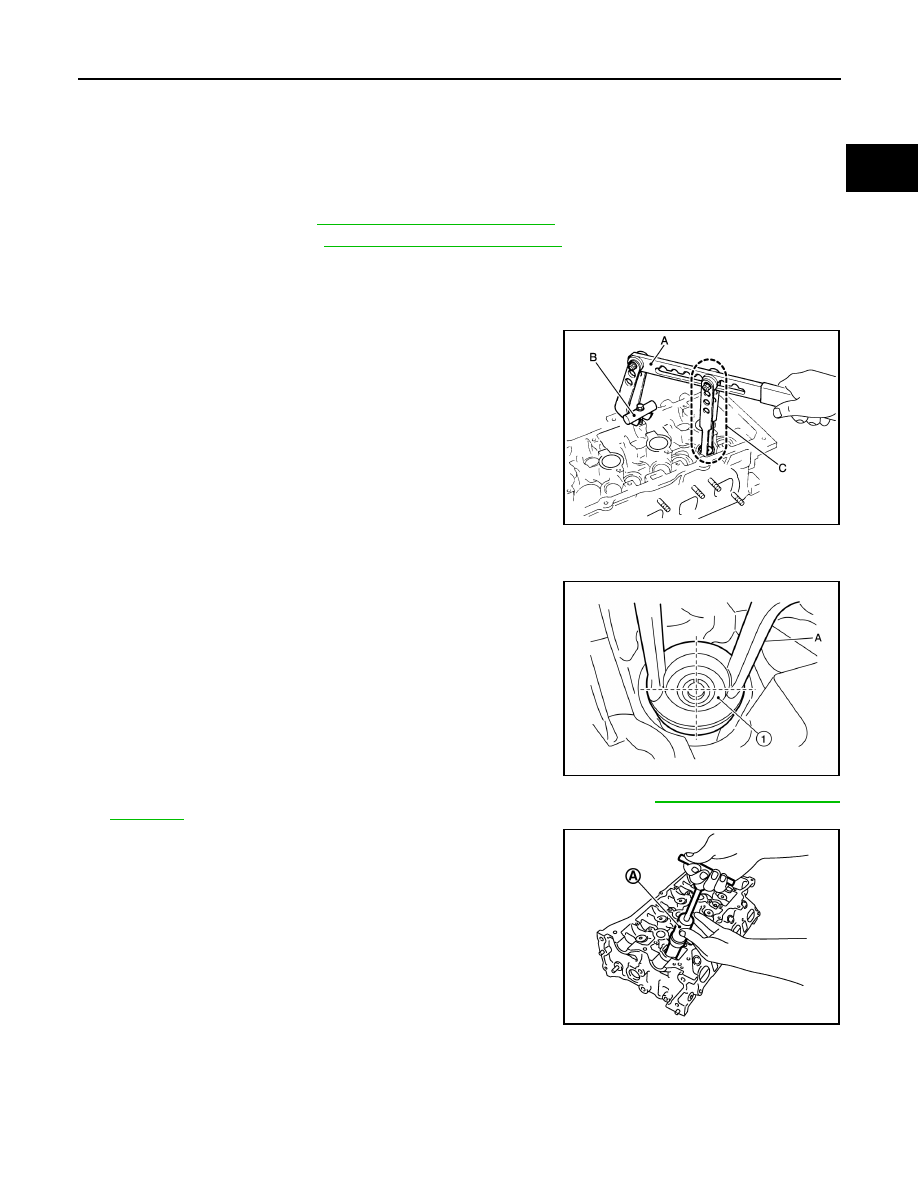

4. Remove valve collet, valve spring retainer, and valve spring

using Tools.

CAUTION:

• Do not damage valve lifter holes.

• Install Tool (A) in the center of valve spring retainer to

press it.

5. Remove valve spring retainer, valve spring and valve spring seat. Refer to

EM-78, "Disassembly and

Assembly"

.

6. Remove valve oil seal with Tool (A).

INSTALLATION

1. Apply new engine oil to valve oil seal joint surface and seal lip.

Tool number (A)

: KV1016200 (J-26336-A)

Tool number (B)

: KV10109220 ( — )

Tool number (C)

: KV10115900 (J-26336-20)

JPBIA1365ZZ

(1)

: Valve spring retainer

(A)

: Attachment

Tool number

: KV10115900 (J-26336-20)

AWBIA1422ZZ

Tool number

: KV10107902 (J-38959)

PBIC3728E

EM-74

< REMOVAL AND INSTALLATION >

[HR16DE]

OIL SEAL

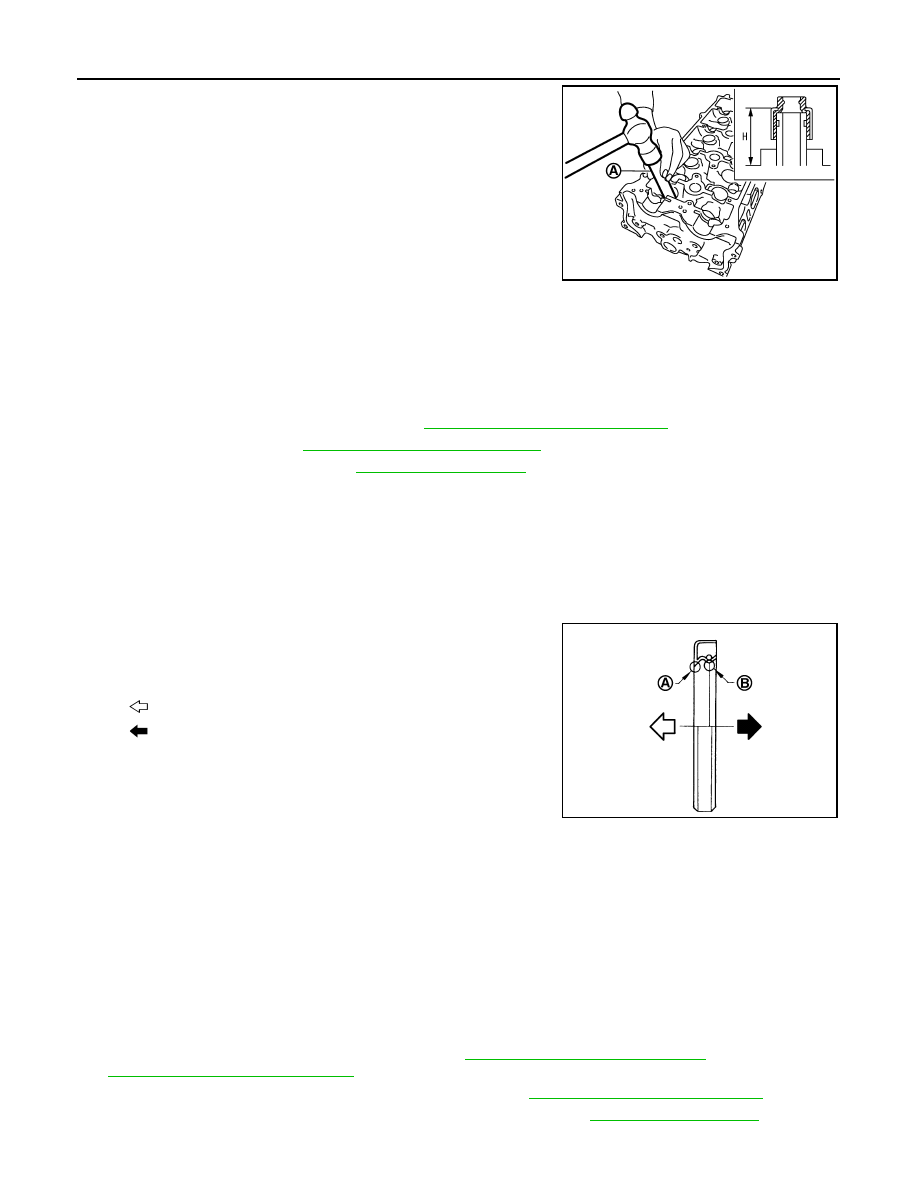

2. Press in valve oil seal to the height “H” shown with Tool (A).

3. Installation of the remaining components is in the reverse order of removal.

FRONT OIL SEAL
FRONT OIL SEAL : Removal and Installation

INFOID:0000000009444740

REMOVAL

1. Remove front fender protector (RH). Refer to

EXT-36, "Removal and Installation"

.

2. Remove drive belt. Refer to

EM-16, "Removal and Installation"

.

3. Remove crankshaft pulley. Refer to

EM-51, "Exploded View"

.

4. Remove front oil seal using suitable tool.

CAUTION:

Be careful not to damage front cover and crankshaft.

5. Installation of the remaining components is in the reverse order of removal.

INSTALLATION

1. Apply new engine oil to new front oil seal joint surface and seal lip.
2. Install front oil seal so that each seal lip is oriented as shown.

• Press-fit front oil seal using a suitable drift.

CAUTION:

• Be careful not to damage front cover and crankshaft.

• Press-fit oil seal straight to avoid causing burrs or tilting.

3. Installation of the remaining components is in the reverse order of removal.

REAR OIL SEAL
REAR OIL SEAL : Removal and Installation

INFOID:0000000009444741

REMOVAL

1. Remove engine and transaxle assembly. Refer to

TM-24, "Removal and Installation"

 (M/T models) and

TM-252, "Removal and Installation"

  (CVT models).

2. Remove clutch cover and clutch disk (M/T models). Refer to

CL-18, "Removal and Installation"

.

3. Remove flywheel (M/T models) or drive plate (CVT models). Refer to

EM-92, "Exploded View"

.

4. Remove rear oil seal using suitable tool.

Height “H”

: 13.2 - 13.8 mm (0.520 - 0.543 in)

Tool number

: KV10115600 (J-38958)

PBIC3211J

(A)

: Dust seal lip

(B)

: Oil seal lip

: Engine outside

: Engine inside

PBIC3485J

OIL SEAL

EM-75

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAUTION:

Be careful not to damage crankshaft and cylinder block.

INSTALLATION

1. Apply the liquid gasket lightly to entire outside area of new rear oil seal.

Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-22, "Recommended Chemical Products

and Sealants"

.

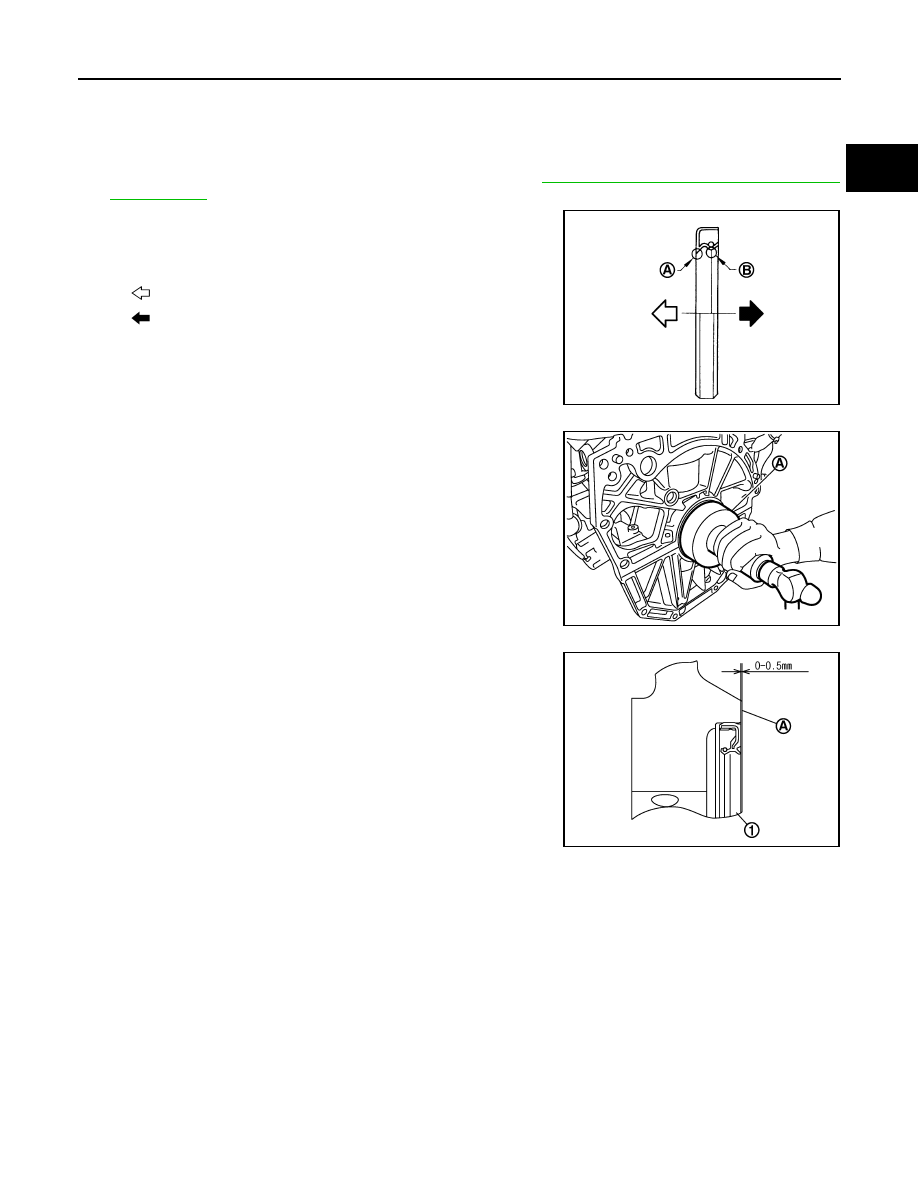

2. Install rear oil seal so that each seal lip is oriented as shown.

• Press-fit rear oil seal with a suitable drift (A) outer diameter

113 mm (4.45 in) and inner diameter 90 mm (3.54 in).

CAUTION:

• Be careful not to damage crankshaft and cylinder block.

• Press-fit oil seal straight to avoid causing burrs or tilt-

ing.

• Do not touch grease applied onto oil seal lip.

• Press in rear oil seal (1) to the position as shown.

3. Installation of the remaining components is in the reverse order of removal.

(A)

: Dust seal lip

(B)

: Oil seal lip

: Engine outside

: Engine inside

PBIC3485J

PBIC3660E

(A)

: Rear end surface of cylinder block

(b)

: 0 - 0.5 mm (0 - 0.020 in)

PBIC3149J
