• Check door lock for poor lubrication. Apply a suitable multi-

purpose grease to door lock if necessary.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000009645205

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Partially remove vapor barrier. Refer to

GW-21, "Exploded View"

.

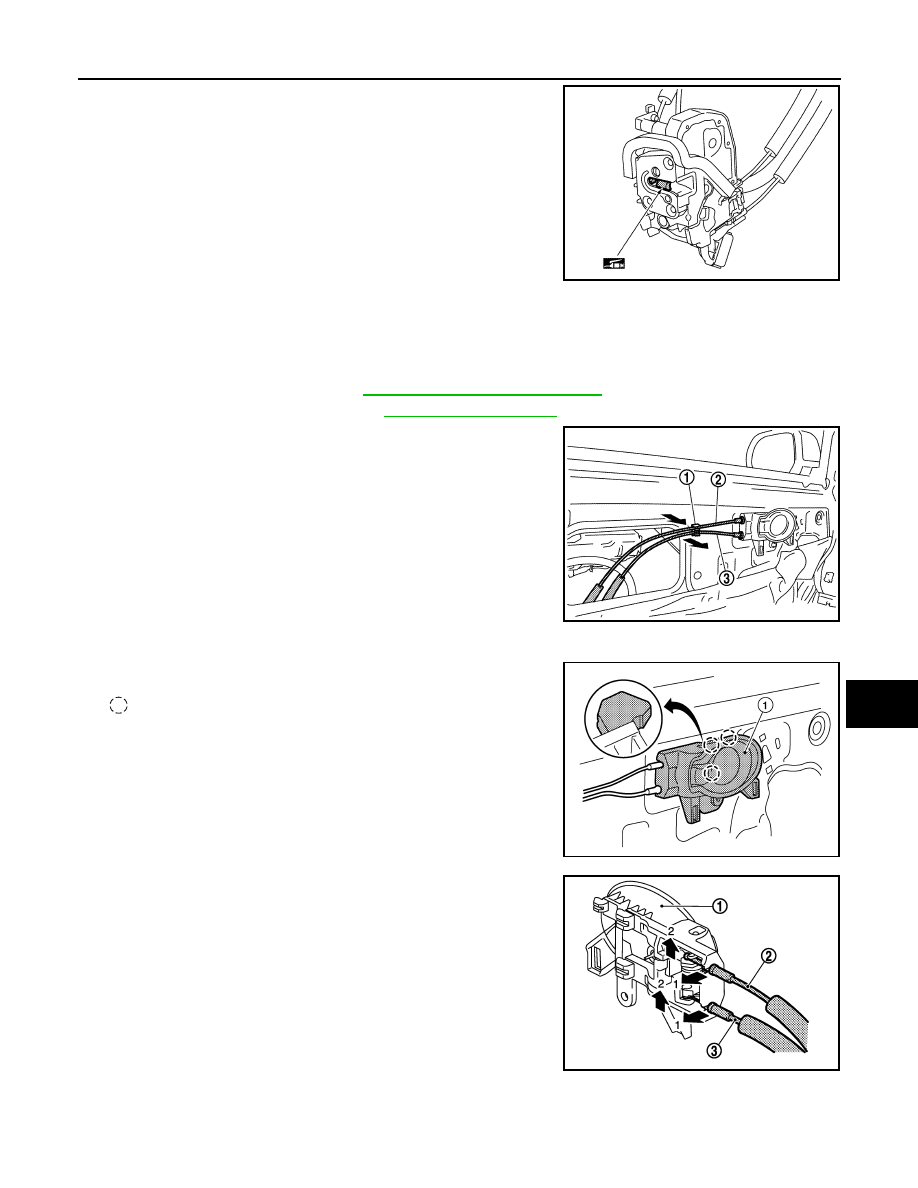

3. Release lock knob (2) and inside handle cable (3) from clip (1)

using a suitable tool.

4. Remove inside handle bolt.
5. Release inside handle (1) from door panel using a suitable tool

and remove.

: Pawl

6. Release inside handle cable (3) and lock cable (2) from inside

handle (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

JMKIA8077ZZ

JMKIA8078ZZ

AWKIA2500ZZ

JMKIA5885ZZ

DLK-290

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

• Check that door lock cables are properly engaged to inside handle.

• After installation, check door open/close, lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009645206

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Partially remove vapor barrier. Refer to

GW-21, "Exploded View"

.

3. Open rod holder (1) by pulling downward and separate key rod

(3) from door lock assembly (2) (driver side only).

4. Release outside handle cable (1) from cable clip (A).

5. Remove door grommet (1) and bolt from grommet hole (2).

6. While pulling outside handle, remove outside handle escutch-

eon.

JMKIA8080ZZ

AWKIA2574ZZ

JMKIA5888ZZ

JMKIA0560ZZ

FRONT DOOR LOCK

DLK-291

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

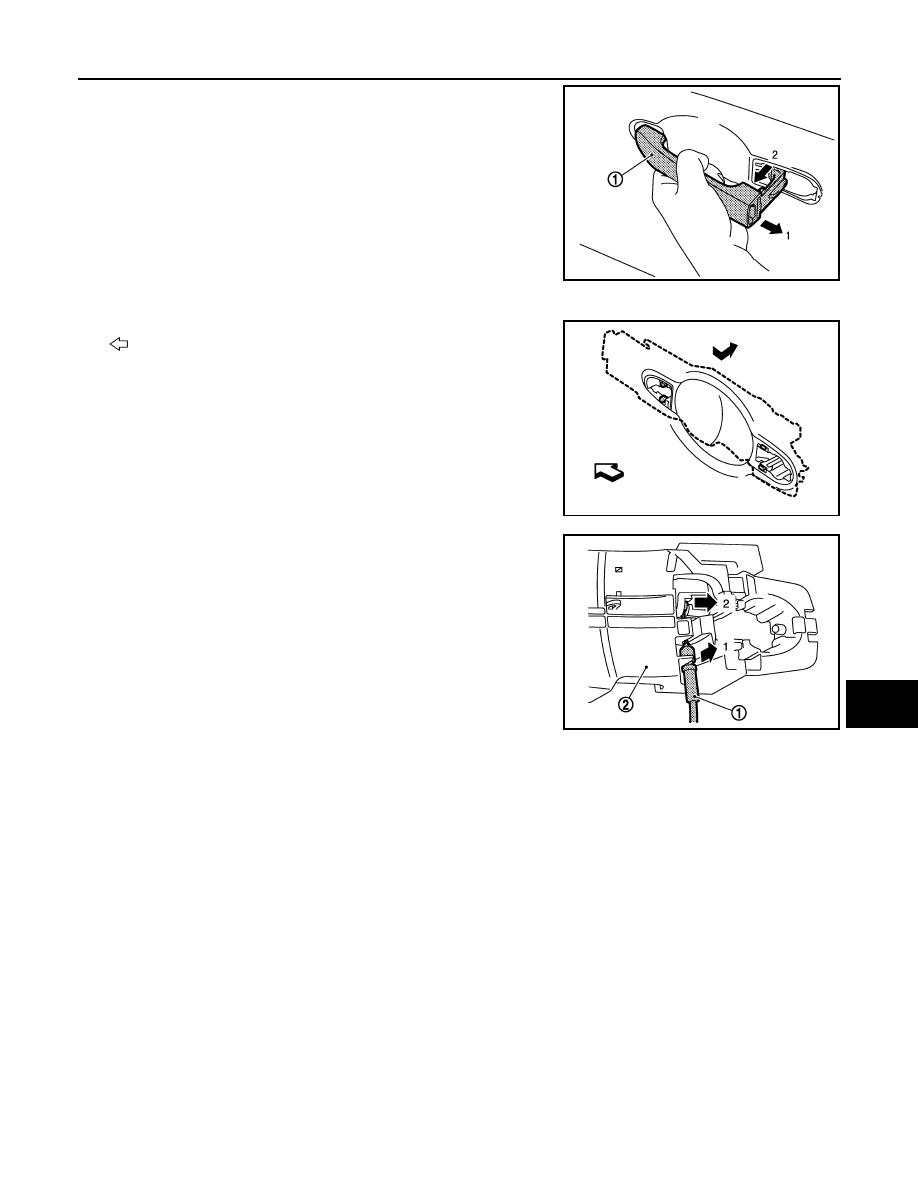

7. While pulling outside handle (1), slide toward rear of vehicle to

remove.

8. Remove front gasket and rear gasket.
9. Slide outside handle bracket toward rear of vehicle to remove.

: Front

10. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check that door lock cables are properly engaged with outside handle bracket.

• After installation, check door open/close, and lock/unlock operation.

JMKIA0524ZZ

JMKIA5890ZZ

JMKIA5891ZZ

DLK-292

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

REAR DOOR LOCK

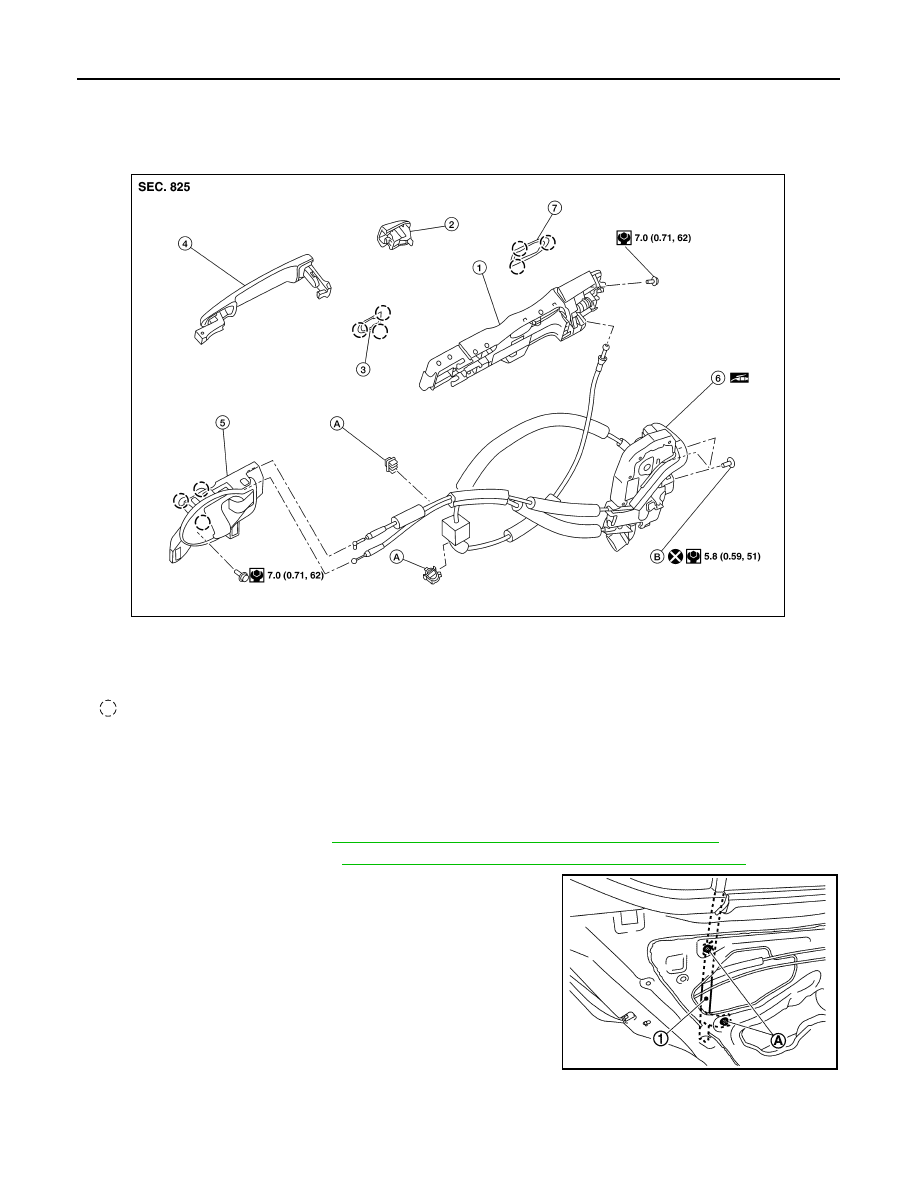

Exploded View

INFOID:0000000009671248

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000009645208

REMOVAL

1. Remove inside handle. Refer to

DLK-293, "INSIDE HANDLE : Removal and Installation"

.

2. Remove outside handle. Refer to

DLK-294, "OUTSIDE HANDLE : Removal and Installation"

.

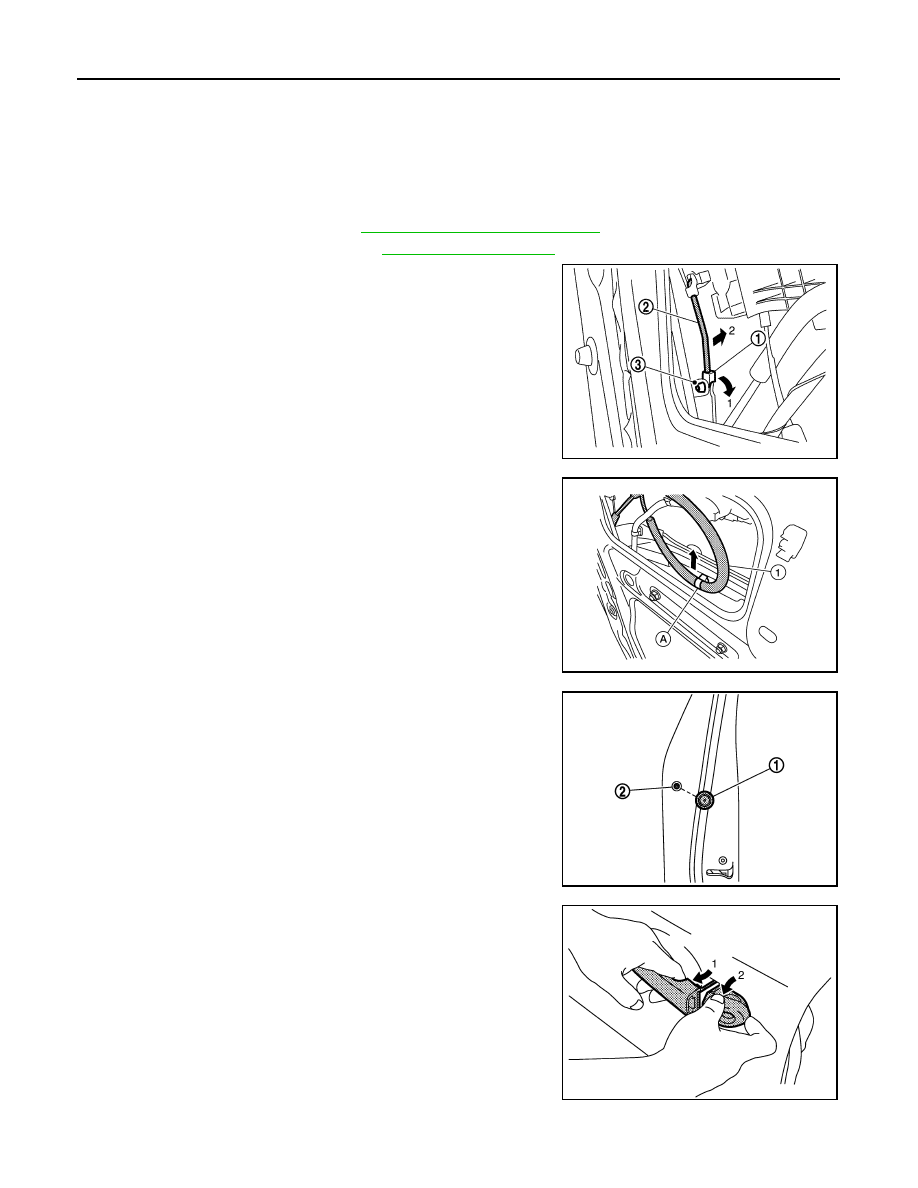

3. Remove bolts (A) from rear door glass rear run (1).

4. Disconnect the harness connector from door lock actuator.
5. Remove bolts and door lock.

1.

Outside handle bracket

2.

Outside handle escutcheon

3.

Front gasket

4.

Outside handle

5.

Inside handle

6.

Door lock

7.

Door lock

A.

Clip

B.

Bolt

Pawl

AWKIA2575ZZ

JMKIA8086ZZ
