REAR DOOR LOCK

DLK-293

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

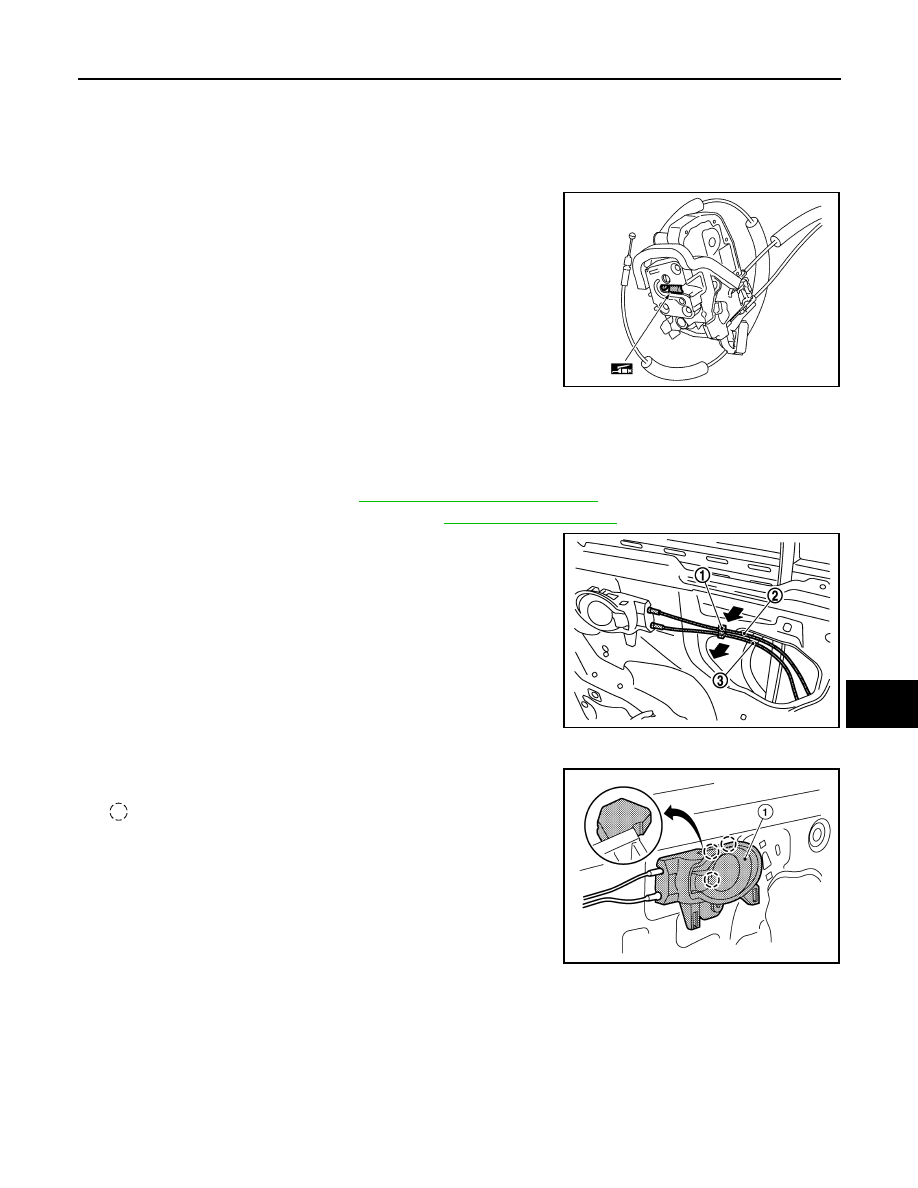

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door lock assembly bolts.

• After installation, check door open/close, lock/unlock operation.

• Check door lock cable is properly engaged with inside handle and outside handle bracket.

• Check door lock assembly for poor lubrication. If necessary,

apply a suitable multi-purpose grease.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000009645209

REMOVAL

1. Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove upper portion of vapor barrier. Refer to

GW-25, "Exploded View"

.

3. Release lock knob (2) and inside handle cable (3) from clip (1)

using a suitable tool.

4. Remove inside handle bolt.
5. Release inside handle (1) from door panel using a suitable tool

and remove.

: Pawl

JMKIA8087ZZ

JMKIA5704ZZ

AWKIA2500ZZ

DLK-294

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

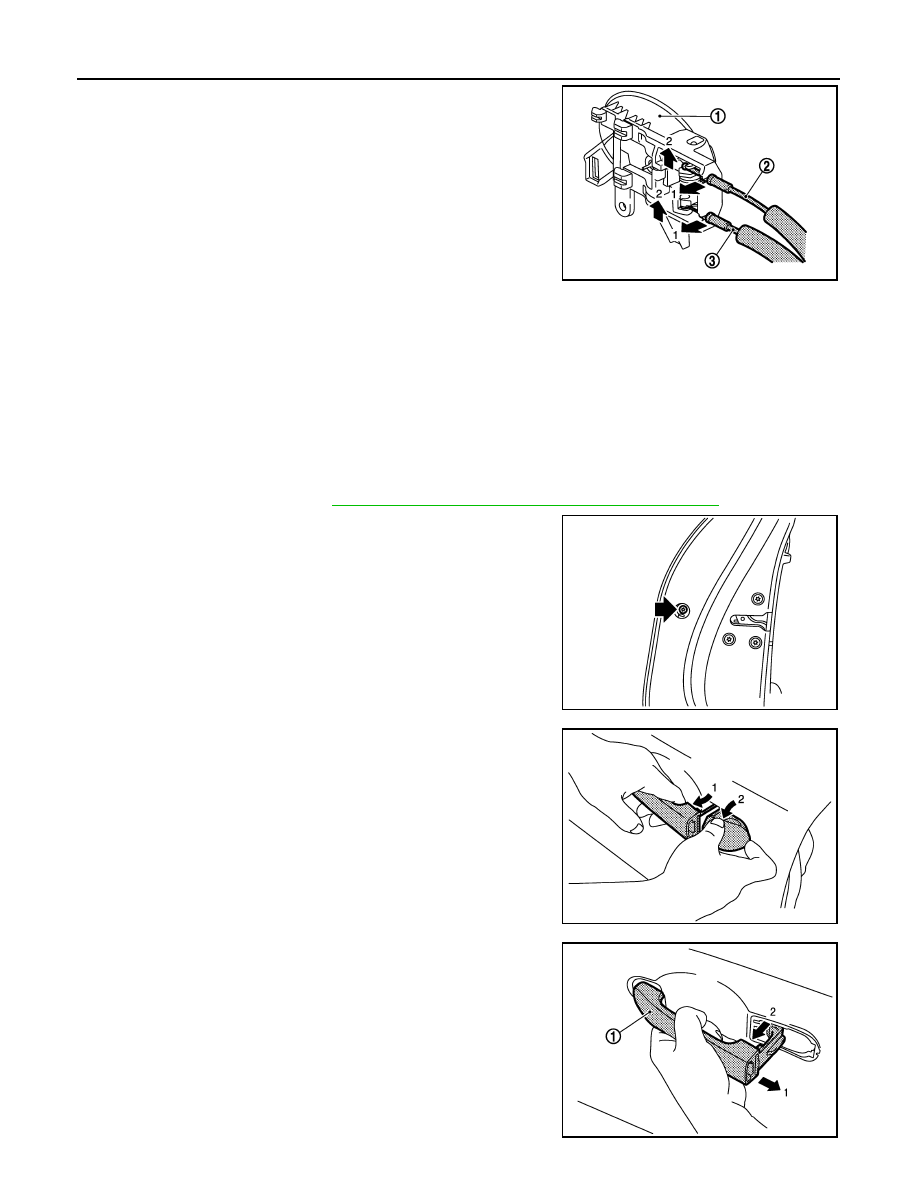

6. Release inside handle cable (3) and lock cable (2) from inside

handle (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check that door lock cables are properly engaged to inside handle.

• After installation, check door open/close, lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009645210

REMOVAL

1. Remove inside handle. Refer to

DLK-293, "INSIDE HANDLE : Removal and Installation"

2. Remove door grommet and bolt from grommet hole.

3. While pulling outside handle, remove outside handle escutch-

eon.

4. While pulling outside handle (1), slide towards rear of vehicle to

remove.

JMKIA5885ZZ

JMKIA1467ZZ

JMKIA5342ZZ

JMKIA0524ZZ

REAR DOOR LOCK

DLK-295

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

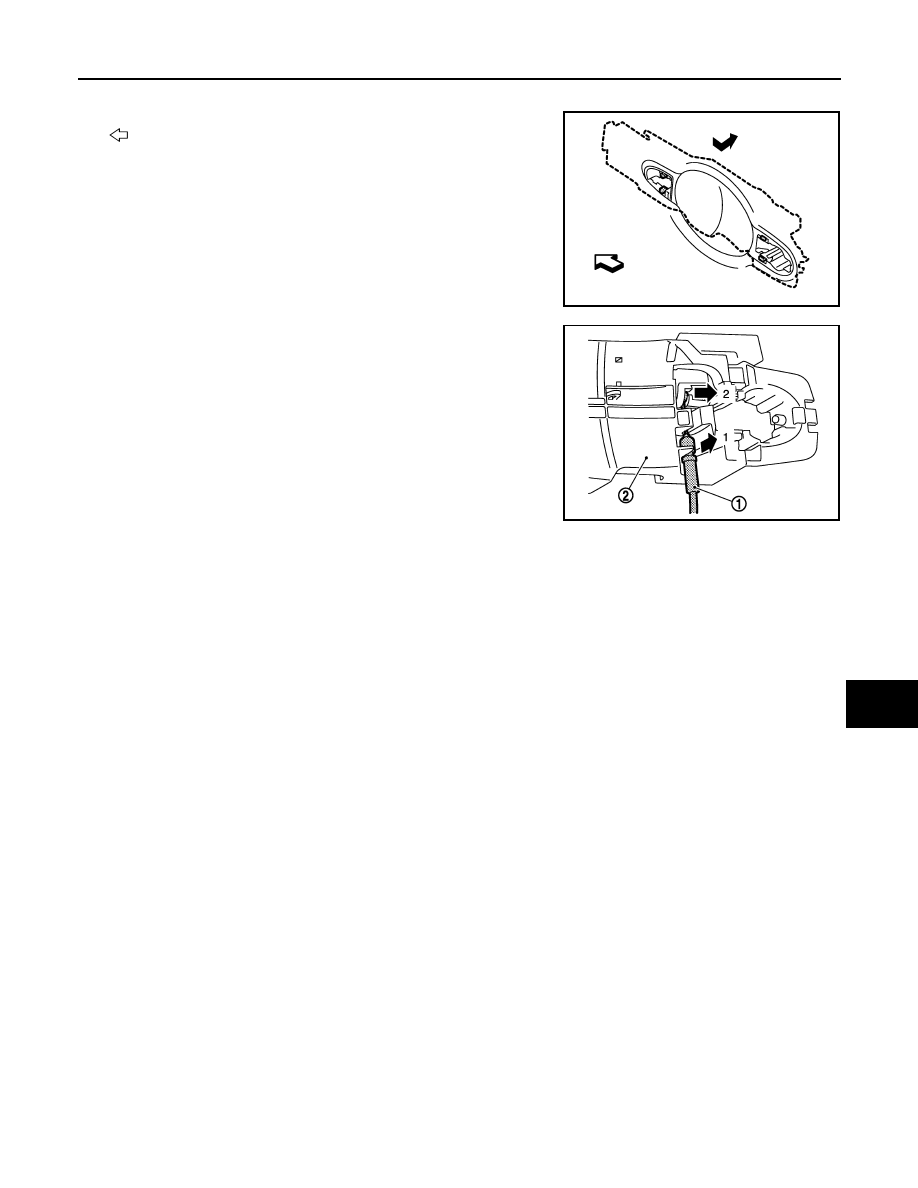

5. Remove front gasket and rear gasket.
6. Slide outside handle bracket toward rear of vehicle to remove.

: Front

7. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check door open/close, lock/unlock operation.

• Check door lock cable is properly engaged with outside handle bracket.

JMKIA5890ZZ

JMKIA5891ZZ

DLK-296

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

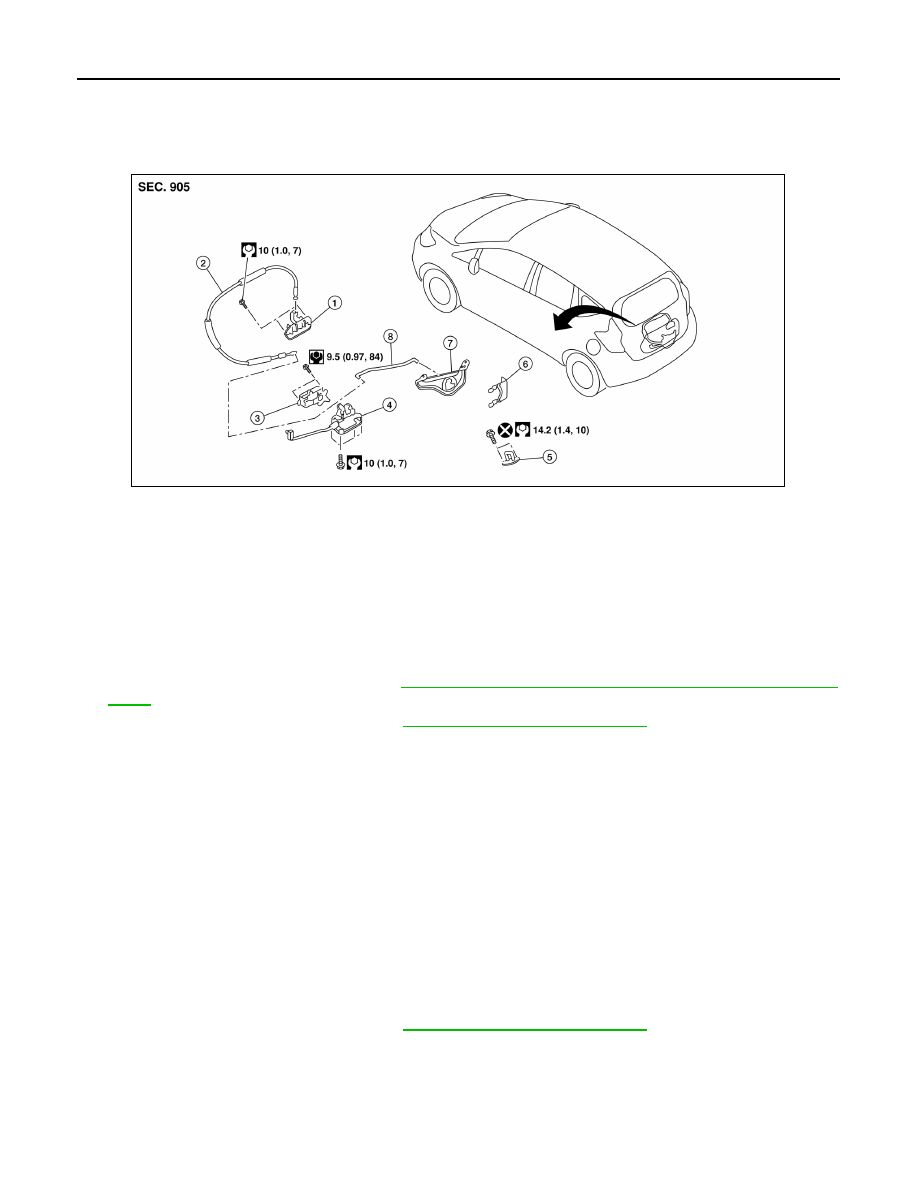

Exploded View

INFOID:0000000009645211

BACK DOOR LOCK
BACK DOOR LOCK : Removal and Installation

INFOID:0000000009645212

REMOVAL

1. Remove back door inner finisher. Refer to

INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-

lation"

.

2. Remove back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

3. Disconnect lock rod from key cylinder (if equipped).
4. Disconnect the harness connectors from the back door lock.
5. Disconnect door lock cable from handle.
6. Remove back door lock bolts and back door lock.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten back door bolts to specification.

• After installation, check back door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009645213

REMOVAL

1. Remove back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

2. Release the back door lock cable from the outside handle.
3. Remove outside handle bolts and outside handle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

1.

Outside handle

2.

Back door lock cable

3.

Back door lock actuator

4.

Back door lock

5.

Door striker

6.

Key cylinder rod clip (if equipped)

7.

Key cylinder rod bracket (if equipped) 8.

Key cylinder rod (if equipped)

AWKIA2576ZZ
