BACK DOOR

DLK-281

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

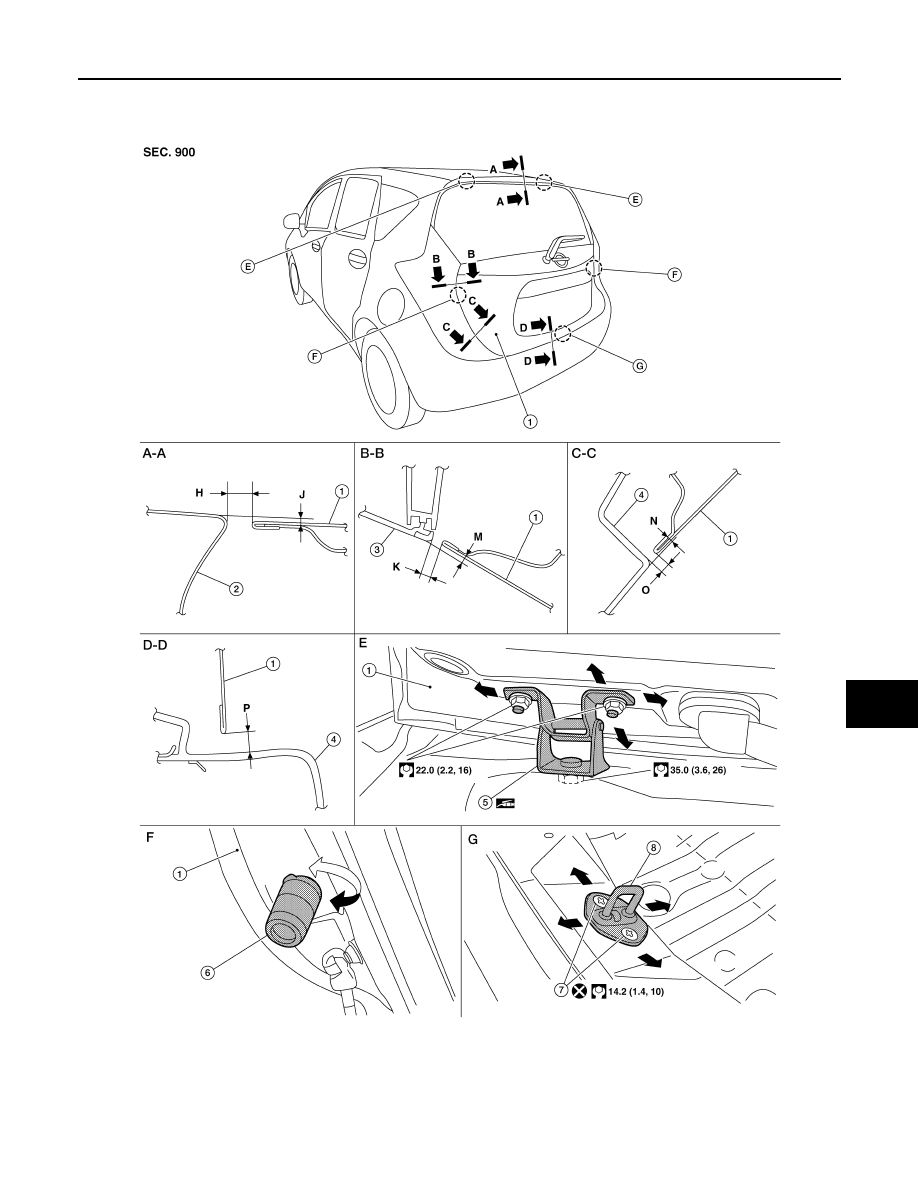

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000009645189

1.

Back door panel

2.

Roof panel

3.

Rear combination lamp

4.

Rear bumper fascia

5.

Back door hinge

6.

Bumper rubber

7.

Bolt

8.

Back door striker

AWKIA2495ZZ

DLK-282

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

Check the clearance and the surface height between back door and each part by visual inspection and tactile

feel. If the clearance and the surface height are out of specification, adjust them according to the adjustment

procedure.

Unit: mm (in)

1. Loosen back door hinge nuts (door side).
2. Lift up back door approximately 100 – 150 mm (3.94 – 5.91 in) height then close it lightly and check that it

is engaged firmly with back door closed.

3. Check the clearance and surface height and adjust back door as necessary.
4. Tighten back door hinge nuts to specified torque.

CAUTION:

• After installation, check back door open/close, lock/unlock operation.

• Check back door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-pur-

pose grease.

• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.

BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and Installation

INFOID:0000000009645190

REMOVAL

1. Remove back door kicking plate using a suitable tool.
2. Remove bolts and back door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse back door striker bolts.

• After installation, check back door open/close, lock/unlock operation.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-281, "BACK

DOOR ASSEMBLY : Adjustment"

.

BACK DOOR STRIKER : Adjustment

INFOID:0000000009645191

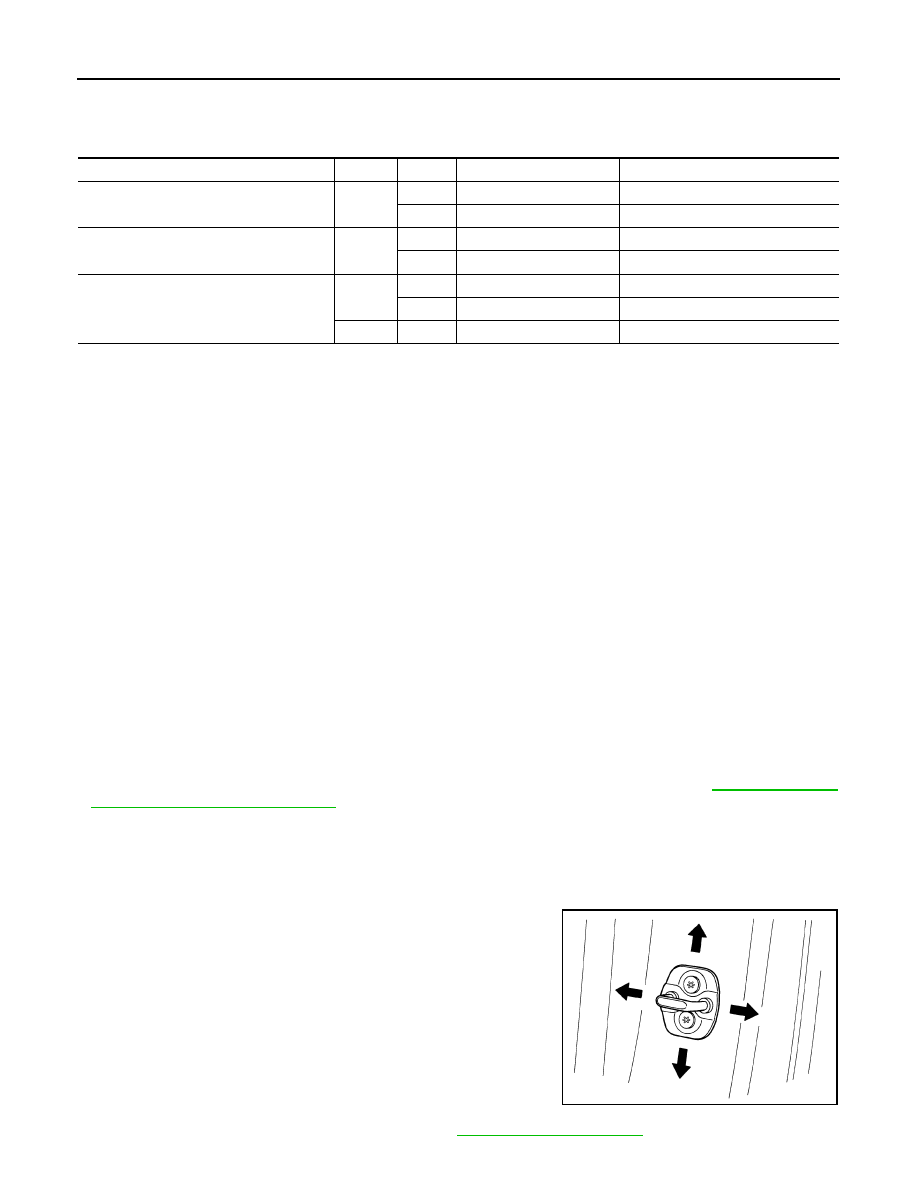

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with back door

lock insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-279, "Exploded View"

.

Portion

Section

Item

Measurement

Standard

Back door panel – Roof panel

A – A

H

Clearance

6.0

± 1.0 (0.24 ± 0.04)

I

Surface height

0.0 +0.5, -1.5 (0.00 +0.02, -0.06)

Rear combination lamp – Back door panel

B – B

J

Clearance

5.0

± 2.0 (0.20 ± 0.08)

K

Surface height

-2.0

± 2.0 (-0.08 ± 0.08)

Rear bumper fascia – Back-door panel

C – C

L



Clearance

5.0

± 2.0 (0.20 ± 0.08)

M

Surface height

0.0 +0.5, -2.0 (0.0 +0.02, -0.08)

D – D

M

Clearance

7.0

± 2.0 (0.28 ± 0.08)

PIIB2804J

BACK DOOR

DLK-283

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR HINGE
BACK DOOR HINGE : Removal and Installation

INFOID:0000000009645192

REMOVAL

1. Remove back door assembly. Refer to

DLK-279, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2. Partially remove back door weatherstrip. Refer to

DLK-284, "BACK DOOR WEATHER-STRIP : Removal

and Installation"

.

3. Remove back door hinge nuts and bolts (body side) and then remove back door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the surface between hinge and body side.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-281, "BACK

DOOR ASSEMBLY : Adjustment"

.

BACK DOOR STAY
BACK DOOR STAY : Removal and Installation

INFOID:0000000009645194

REMOVAL

1. Support the back door with a suitable tool too prevent it from falling.

WARNING:

Body injury may occur if no supporting rod is holding the back door open when removing the

back door stay.

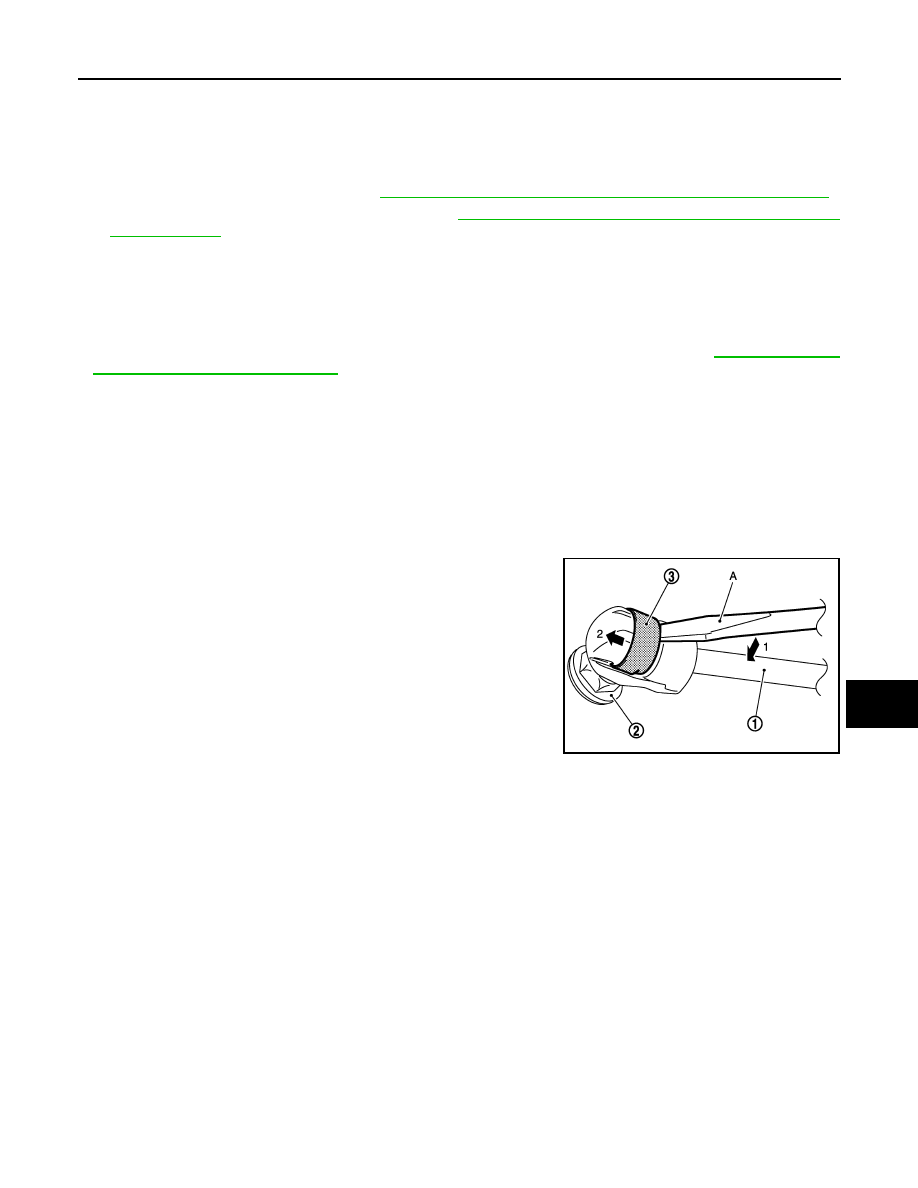

2. Remove the metal clip (3) located on the connection between

the back door stay (1) and the stud ball (2) (back door side) by

using a flat blade screwdriver (A).

3. Remove the back door stay (back door side).

4. In the same way, remove the back door stay from the body side.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Check the back door open/close operation after installation.

BACK DOOR STAY : Disposal

INFOID:0000000009645195

BACK DOOR STAY DISPOSAL

WARNING:

When performing disposal procedure, wear protective gloves and glasses.

JMKIA2255ZZ

DLK-284

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

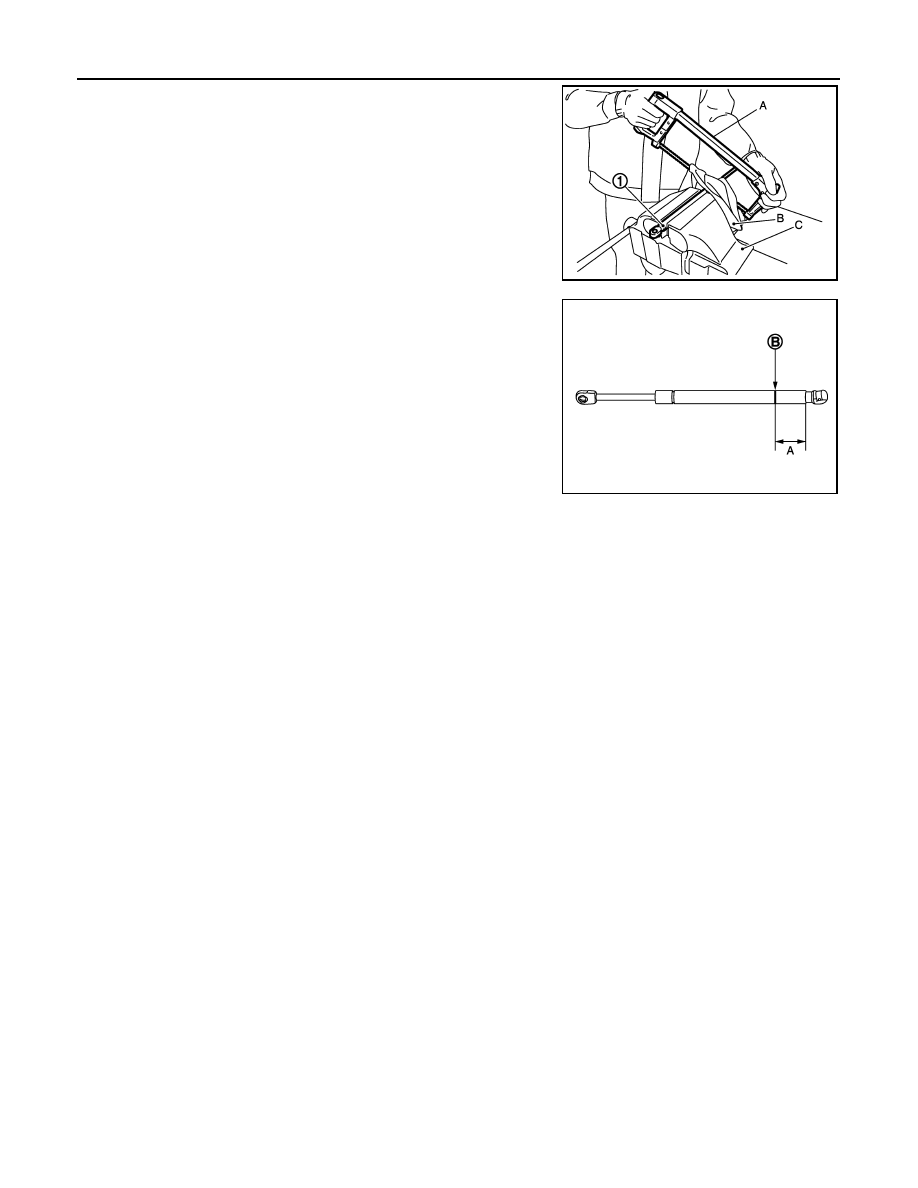

1. Secure back door stay (1) using a vice (C).

CAUTION:

When cutting back door stay, always cover suitable tool (A)

using a shop cloth (B) to avoid scattering metal fragments

or oil.

2. Slowly cut a hole in back door stay and drain the gas using a

hacksaw at position (B) as shown.

A: 20 mm (0.79 in)

BACK DOOR WEATHER-STRIP
BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000009645196

REMOVAL

1. Support back door using a suitable tool.
2. Carefully remove back door weather-strip from opening door joint.

INSTALLATION

1. Beginning with upper section, align weather-strip mark with vehicle center position mark and install

weather strip to the vehicle.

2. For the lower section, align weather-strip seam with center of back door striker.
NOTE:

Pull weather-strip gently to make sure that there are no loose sections.
