FRONT DOOR

DLK-273

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Tighten door striker bolts to specification. Refer to

DLK-270, "Exploded View"

.

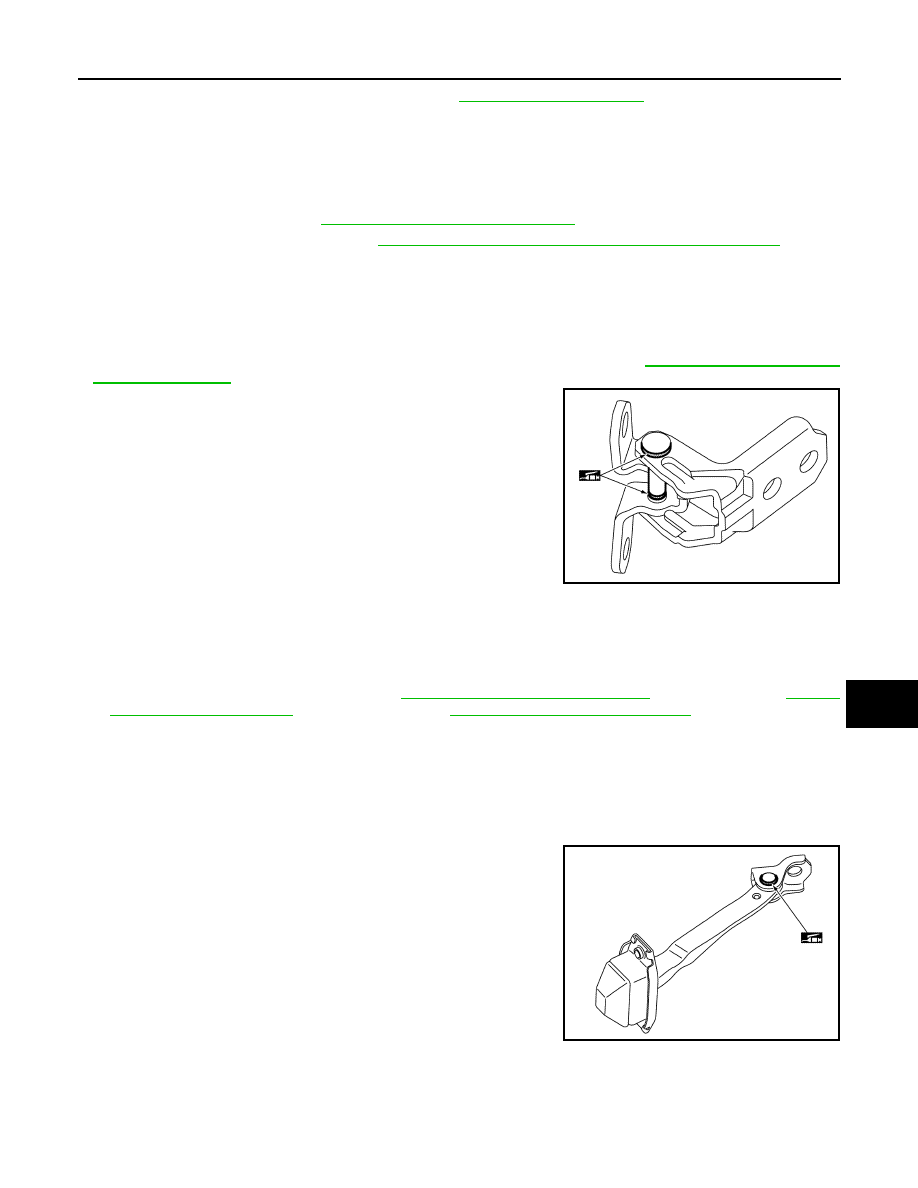

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000009645175

REMOVAL

1. Remove front fender. Refer to

DLK-268, "Removal and Installation"

.

2. Remove front door assembly. Refer to

DLK-270, "DOOR ASSEMBLY : Removal and Installation"

.

3. Remove front door hinge bolts (body side) and front door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent to the hinge mating surface.

• After installation, perform the front door adjustment procedure. Refer to

DLK-271, "DOOR ASSEM-

BLY : Adjustment"

.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009645176

REMOVAL

1. Remove front door speaker. Refer to

AV-54, "Removal and Installation"

 (BASE AUDIO),

AV-119,

"Removal and Installation"

 (DISPLAY AUDIO) or

AV-242, "Removal and Installation"

 (NAVIGATION).

2. Remove door check link bolt (body side).
3. Remove door check link bolts (door side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check rear door open/close, lock/unlock operation.

• Check door check link rotating point for poor lubrication. If

necessary, apply a multi-purpose grease.

JMKIA8072ZZ

JMKIA8074ZZ

DLK-274

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

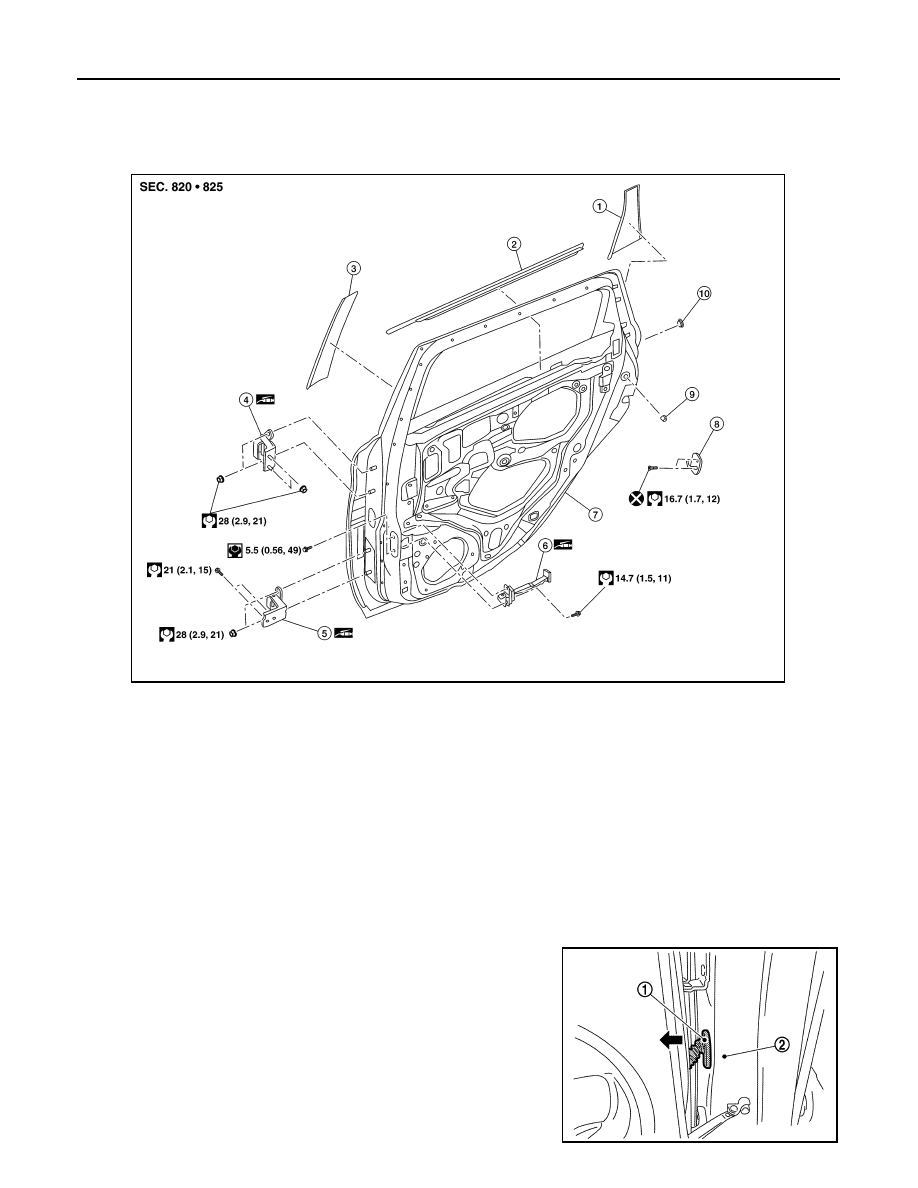

REAR DOOR

REAR DOOR

Exploded View

INFOID:0000000009645177

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009645179

CAUTION:

• Use two people when removing or installing rear door due to its heavy weight.

• When removing and installing rear door assembly, support door using a suitable tool.

REMOVAL

1. Remove rear door harness grommet (1) from body side outer

(2), then pull out rear door harness.

1.

Door sash rear tape

2.

Inside seal

3.

Door sash front tape

4.

Door upper hinge

5.

Door lower hinge

6.

Door check link

7.

Rear door panel

8.

Door striker

9.

Grommet

10. Body panel plug

AWKIA2570ZZ

JMKIA8083ZZ

REAR DOOR

DLK-275

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

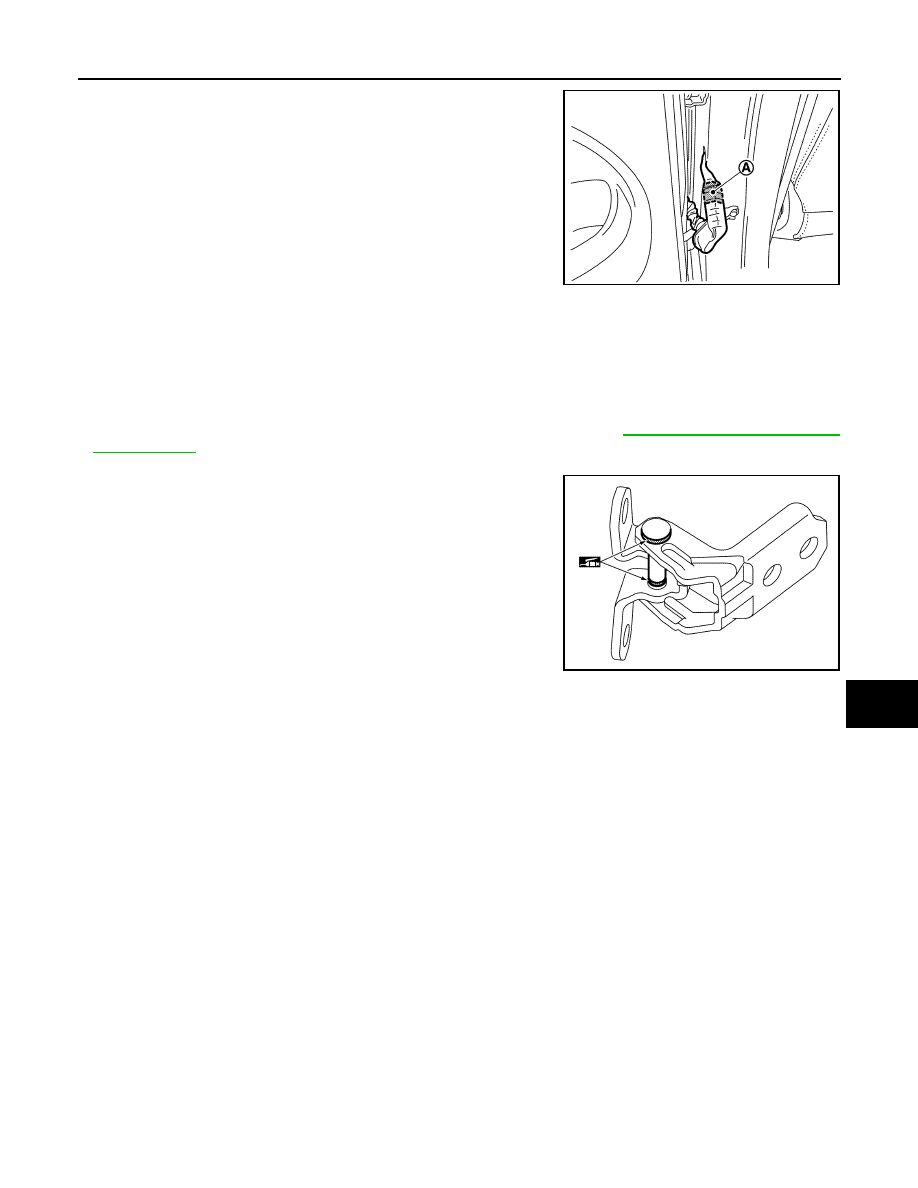

2. Disconnect the harness connector (A) from rear door.

3. Remove door check link bolt (body side).
4. Remove door hinge nuts (door side) and rear door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent to the hinge mating surface.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-276, "DOOR ASSEMBLY

: Adjustment"

.

• After adjusting, apply touch-up paint (body color) to the head of door hinge nuts.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

JMKIA8084ZZ

JMKIA8072ZZ

DLK-276

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR

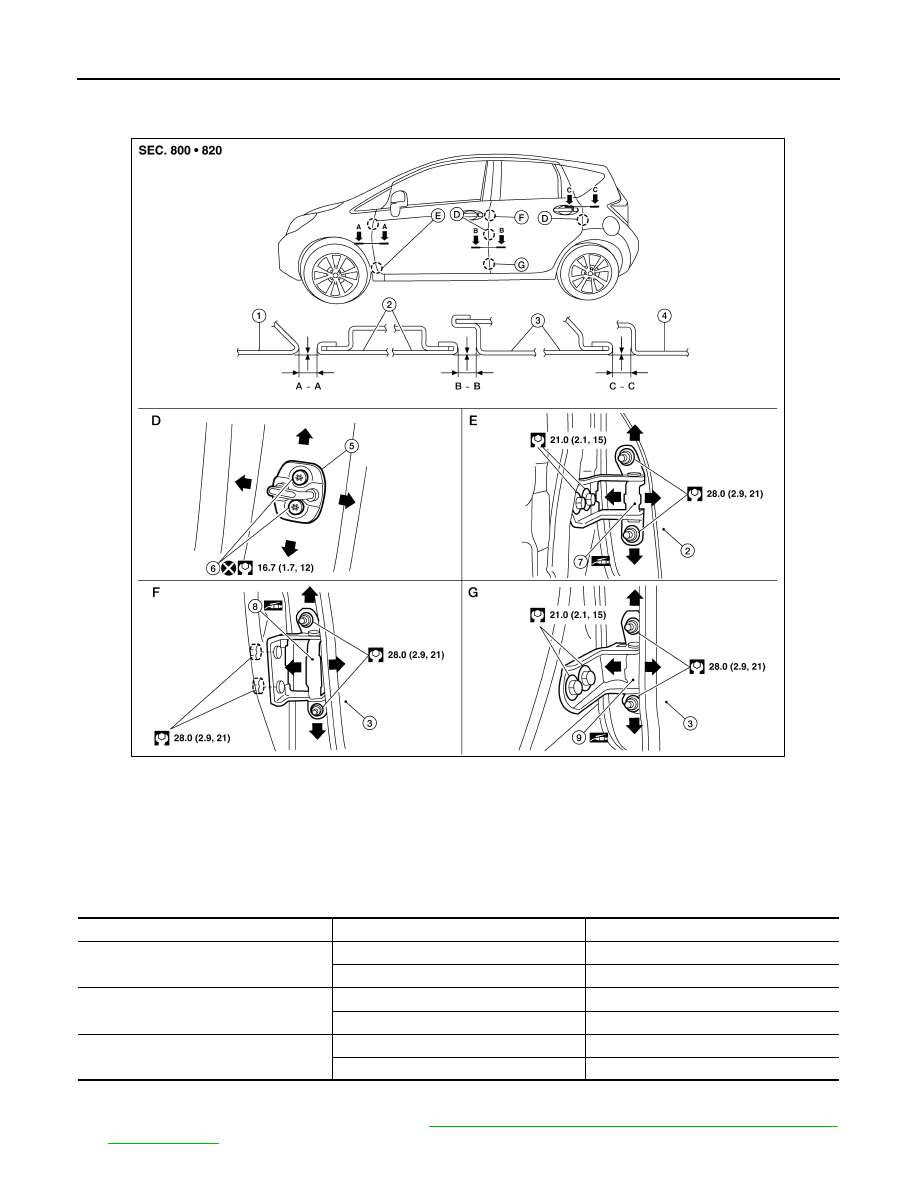

DOOR ASSEMBLY : Adjustment

INFOID:0000000009645180

Check the clearance and surface height between rear door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

1. Remove center pillar lower finisher. Refer to

INT-25, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Striker bolt

7.

Front door hinge

8.

Rear door upper hinge

9.

Rear door lower hinge

AWKIA2493ZZ

Section

Measurement

Standard

A – A

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

B – B

Clearance

4.6

± 2.0 (0.18 ± 0.08)

Surface height

0.0

± 1.5 (0.0 ± 0.06)

C – C

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)
