Nissan Versa Note. Manual - part 245

RADIATOR CORE SUPPORT

DLK-265

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

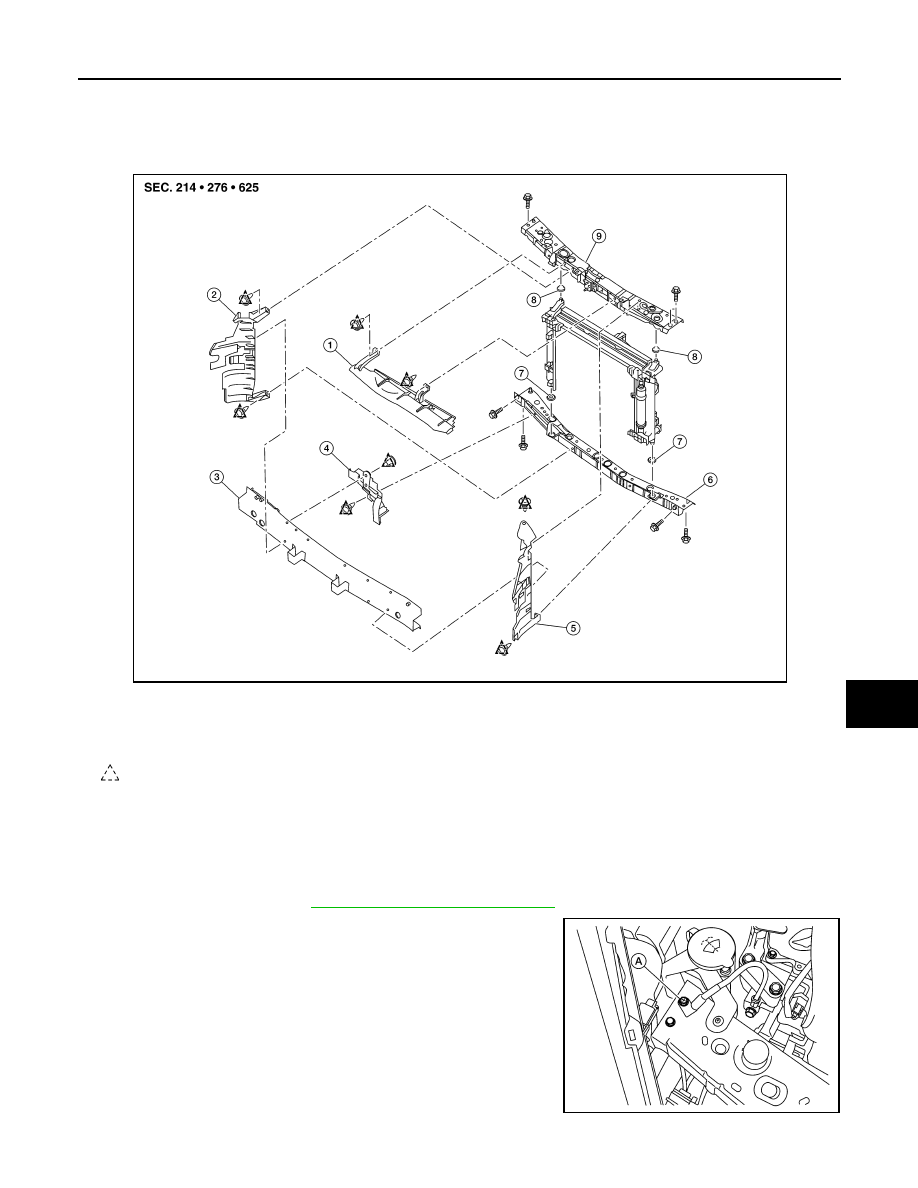

RADIATOR CORE SUPPORT

Exploded View

INFOID:0000000009645164

RADIATOR CORE SUPPORT UPPER
RADIATOR CORE SUPPORT UPPER : Removal and Installation

INFOID:0000000009645165

REMOVAL

1. Remove front grille. Refer to

EXT-29, "Removal and Installation"

.

2. Remove ground harness bolt (A).

1.

Upper air guide

2.

Air guide (RH)

3.

Front bumper reinforcement

4.

Lower air guide

5.

Air guide (LH)

6.

Radiator core lower support

7.

Lower grommet

8.

Upper grommet

9.

Radiator core upper support

Clip

ALKIA3172ZZ

ALKIA3174ZZ

DLK-266

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

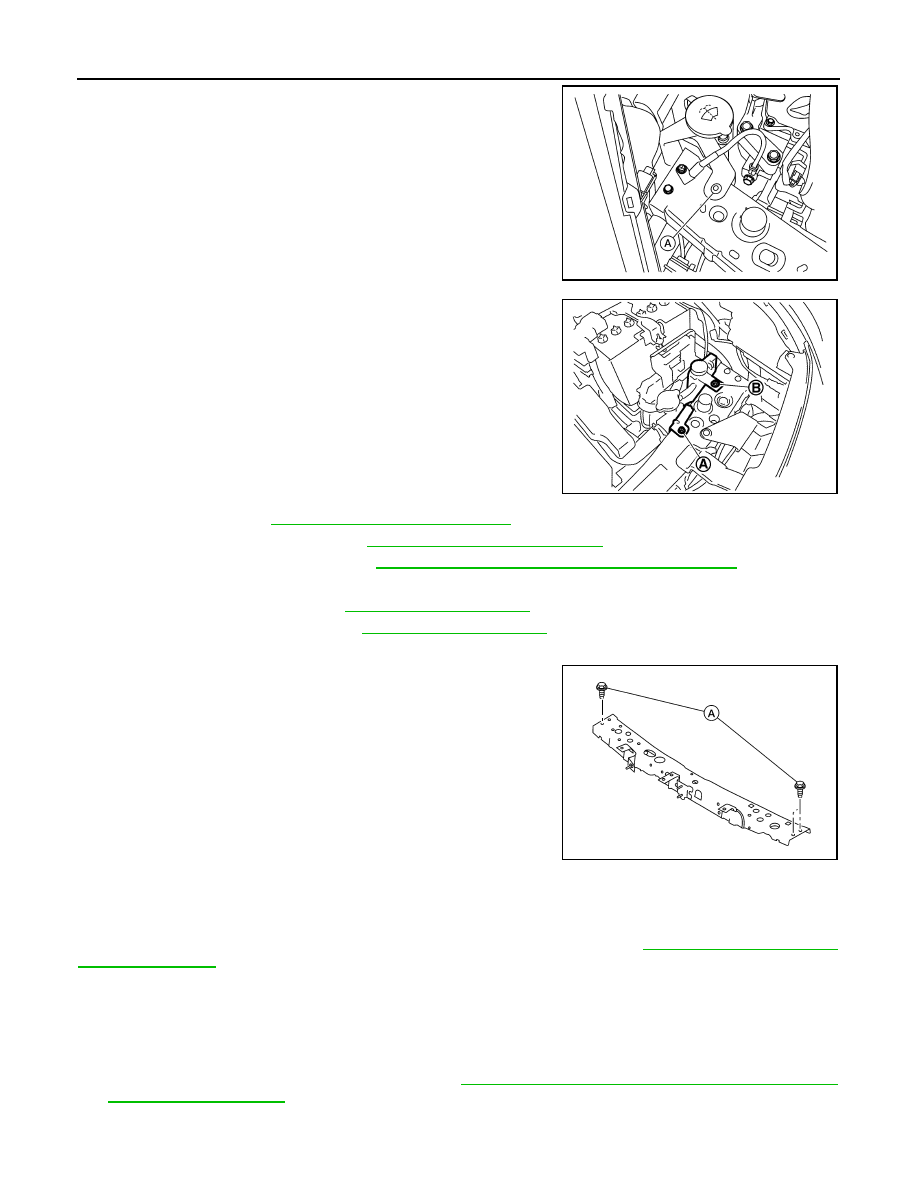

3. Remove washer tube inlet clip (A).

4. Remove radiator cap adapter bracket bolt (A) and radiator reser-

voir tank bolt (B).

5. Remove horn. Refer to

HRN-6, "Removal and Installation"

.

6. Remove crash zone sensor. Refer to

SR-23, "Removal and Installation"

.

7. Remove hood lock assembly. Refer to

DLK-285, "HOOD LOCK : Removal and Installation"

.

8. Release hood lock release cable clips from radiator core support upper using a suitable tool.
9. Remove upper air guide. Refer to

DLK-265, "Exploded View"

.

10. Remove air guide (LH/RH). Refer to

DLK-265, "Exploded View"

.

11. Release all harness connector clips from radiator core support upper using a suitable tool.
12. Remove bolts (A) and radiator core support upper.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, perform hood assembly adjustment procedure. Refer to

DLK-262, "HOOD ASSEM-

BLY : Adjustment"

.

RADIATOR CORE SUPPORT LOWER
RADIATOR CORE SUPPORT LOWER : Removal and Installation

INFOID:0000000009645166

REMOVAL

1. Remove radiator core support upper. Refer to

DLK-265, "RADIATOR CORE SUPPORT UPPER :

Removal and Installation"

.

2. Reposition the radiator and condenser.

AWKIA2567ZZ

JMKIA8027ZZ

AWKIA2568ZZ

RADIATOR CORE SUPPORT

DLK-267

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

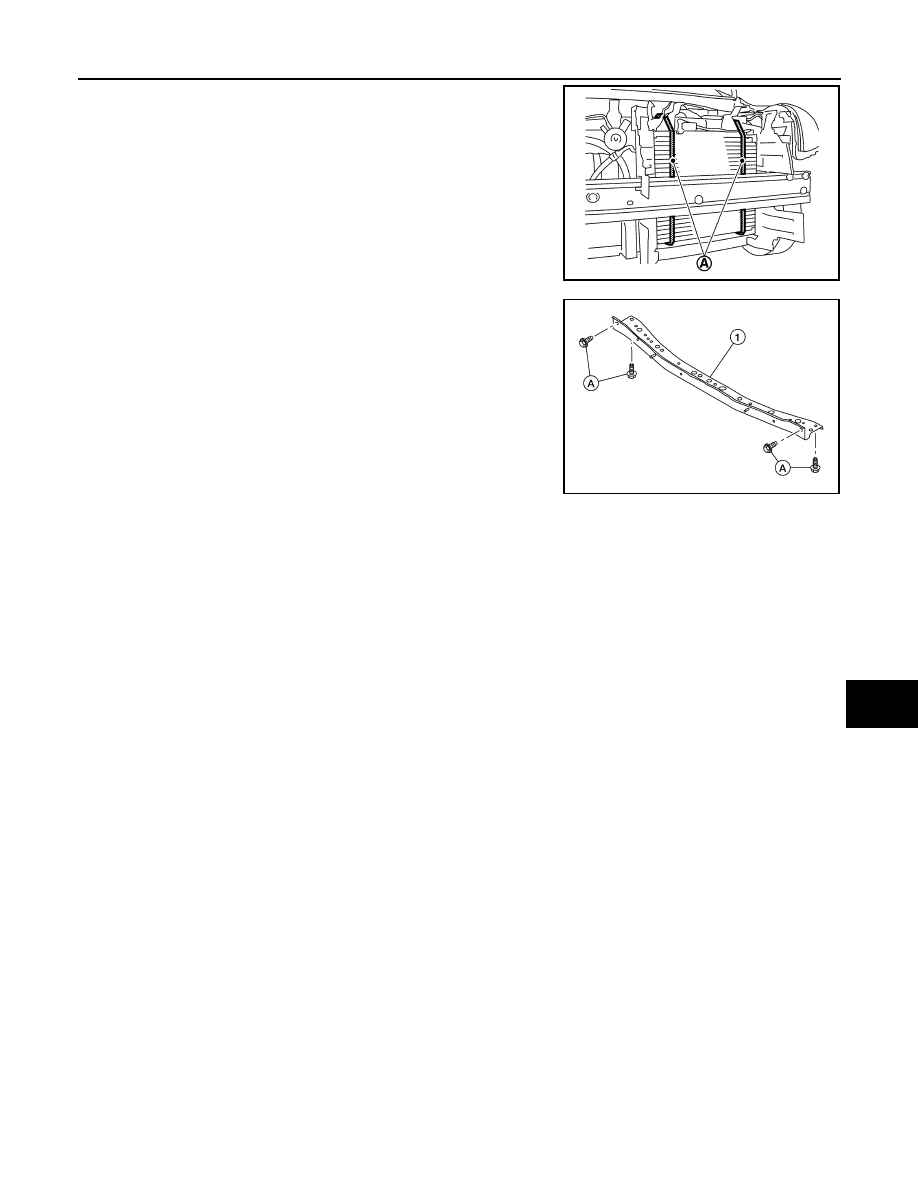

3. Using a suitable tool (A), suspend radiator and condenser to

prevent them from falling.

CAUTION:

Use care to avoid damaging radiator and condenser.

4. Remove bolts (A) and radiator core support lower (1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA8030ZZ

ALKIA3181ZZ

DLK-268

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

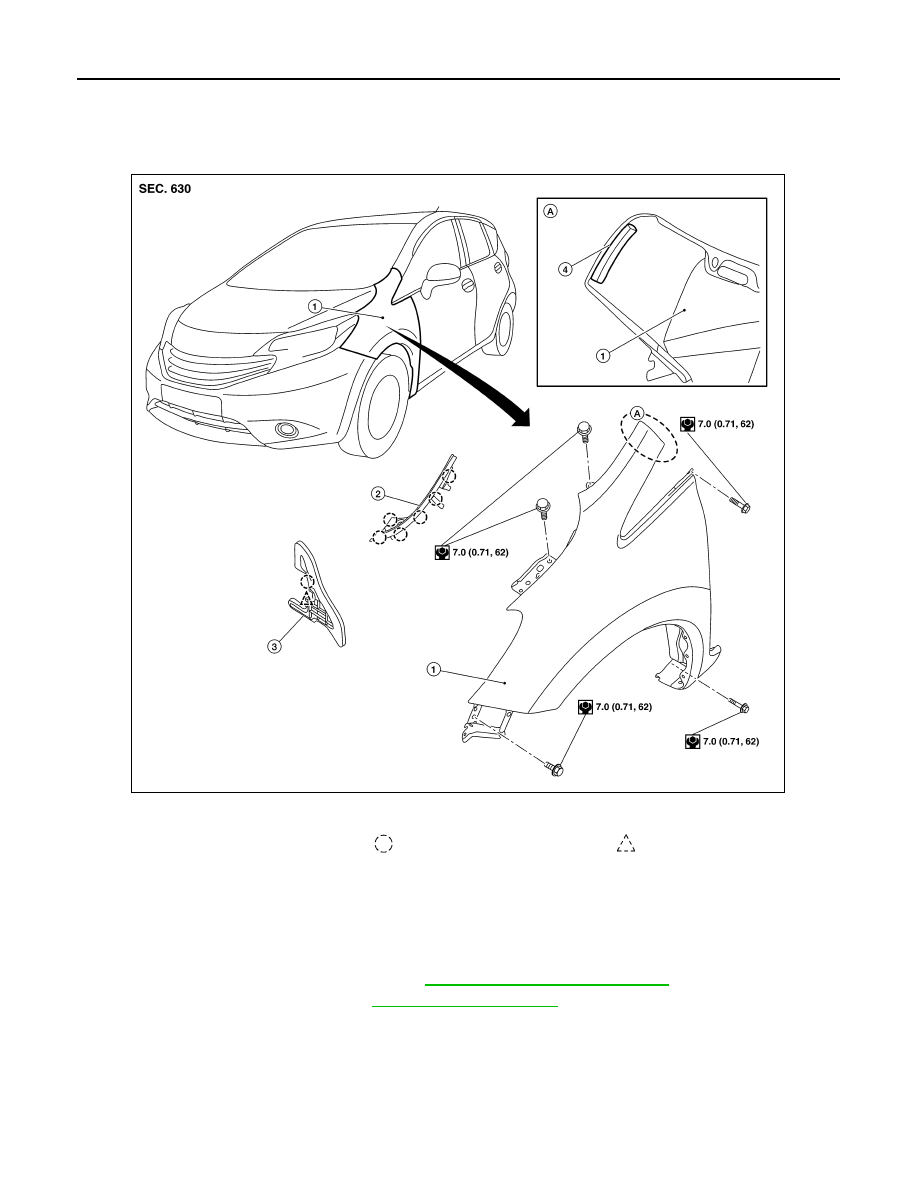

FRONT FENDER

FRONT FENDER

Exploded View

INFOID:0000000009645167

Removal and Installation

INFOID:0000000009645168

CAUTION:

Use a shop cloths to protect the body from being damaged during removal and installation.

REMOVAL

1. Remove the front combination lamp. Refer to

EXL-99, "Removal and Installation"

.

2. Remove cowl top side cover. Refer to

DLK-268, "Exploded View"

.

3. Remove front fender bolts.

1.

Front fender

2.

Cowl top side cover

3.

Front fender insulator

4.

Front fender stiffener

Pawl

Clip

AWKIA2569ZZ
