REMOVAL AND INSTALLATION

HOOD

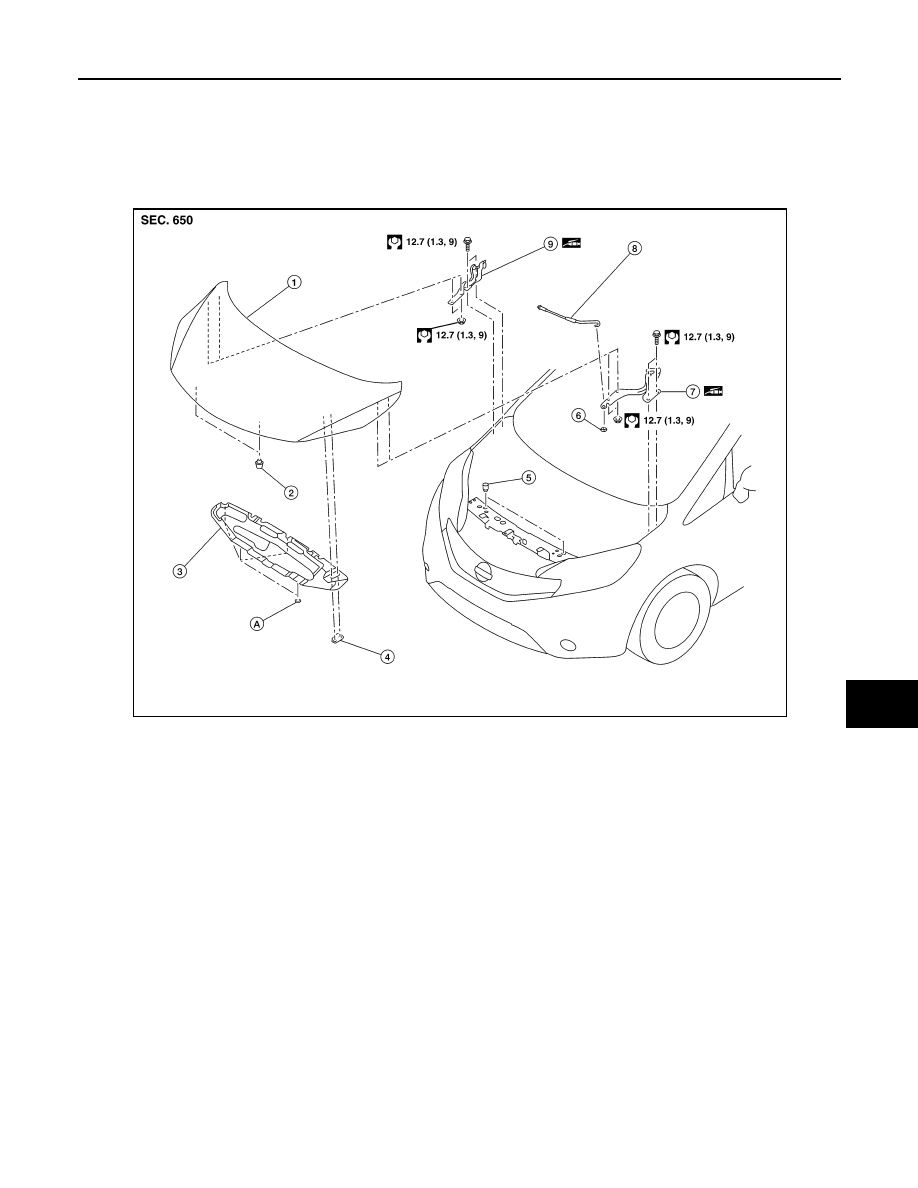

Exploded View

INFOID:0000000009645155

HOOD ASSEMBLY
HOOD ASSEMBLY : Removal and Installation

INFOID:0000000009645156

CAUTION:

• Use two people when removing or installing hood assembly due to its heavy weight.

• Use protective tape or shop cloths to protect surrounding components from damage during removal

and installation of hood assembly.

REMOVAL

1. Support hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood assem-

bly.

2. Remove hood hinge nuts and hood assembly.
3. Remove clips and hood insulator (if necessary).

INSTALLATION

1.

Hood

2.

Bumper rubber (hood side)

3.

Hood insulator

4.

Hood rod clamp

5.

Bumper rubber (body side)

6.

Hood rod grommet

7.

Hood hinge (LH)

8.

Hood support rod

9.

Hood hinge (RH)

A.

Hood insulator clip

AWKIA2564ZZ

DLK-262

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD

Installation is in the reverse order of removal.

CAUTION:

• Before installing hood assembly, apply anticorrosive agent to the surface of hood hinge.

• After installation, perform the hood assembly adjustment procedure. Refer to

DLK-262, "HOOD

ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (body color) to the head of hood hinge nuts.

HOOD ASSEMBLY : Adjustment

INFOID:0000000009645157

Check the clearance and the surface height between hood and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

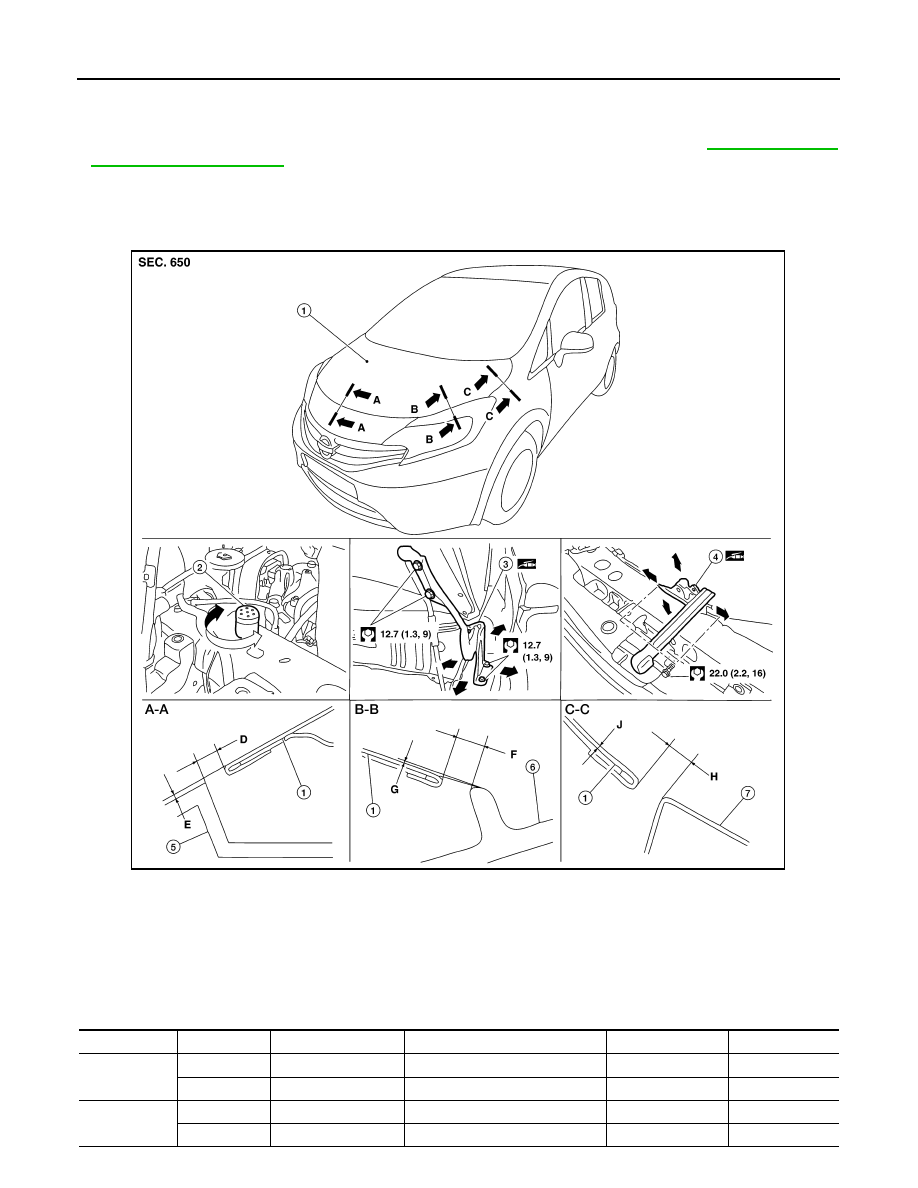

1.

Hood assembly

2.

Bumper rubber (body side)

3.

Hood hinge (LH)

4.

Hood lock

5.

Front grille finisher

6.

Front combination lamp

7.

Front fender

AWKIA2565ZZ

Section

Item

Measurement

Standard

Parallelism

Equality

A – A

D

Clearance

4.4

± 2.0 (0.17 ± 0.08)

2.0 (0.08)

E

Surface height

-0.5 +2.0, -1.5 (0.02 +0.08, -0.06)

2.0 (0.08)

B – B

F

Clearance

4.0

± 2.0 (0.16 ± 0.08)

2.0 (0.08)

3.0 (0.12)

G

Surface height

HOOD

DLK-263

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CLEARANCE ADJUSTMENT

1. Loosen hood hinge nuts and bolts.
2. Loosen hood lock assembly bolts.
3. Adjust the hood lock assembly so the clearance measurements are within the specifications provided.
4. Tighten hood hinge nuts and bolts to specified torque.
5. Tighten hood lock assembly bolts to specified torque.

HEIGHT ADJUSTMENT

1. Loosen hood lock assembly bolts.
2. Adjust the surface height of hood assembly to front upper grille, front fender and front combination lamp to

the specified values by rotating hood bumper rubber.

3. Temporarily tighten hood lock assembly bolts.
4. Adjust (A) as shown to the following value with hood’s own weight by dropping it from approximately 200

mm (7.87 in) height or by pressing hood lightly [approximately 29 N (3.0 kg, 6.5 lb)].

5. After adjustment, tighten hood lock assembly bolts to specified torque.

HOOD HINGE
HOOD HINGE : Removal and Installation

INFOID:0000000009645158

REMOVAL

1. Remove hood assembly. Refer to

DLK-261, "HOOD ASSEMBLY : Removal and Installation"

.

2. Remove front fender. Refer to

DLK-268, "Removal and Installation"

.

3. Remove cowl top side cover. Refer to

EXT-34, "Exploded View"

.

4. Remove hood hinge bolts and hood hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Before installing the hood hinge, apply anticorrosive agent onto the surface of the vehicle.

C – C

H

Clearance

3.5

± 1.0 (0.14 ± 0.04)

1.5 (0.06)

1.5 (0.06)

J

Surface height

0.0

± 1.5 (0.0 ± 0.06)

1.5 (0.06)

1.5 (0.06)

Section

Item

Measurement

Standard

Parallelism

Equality

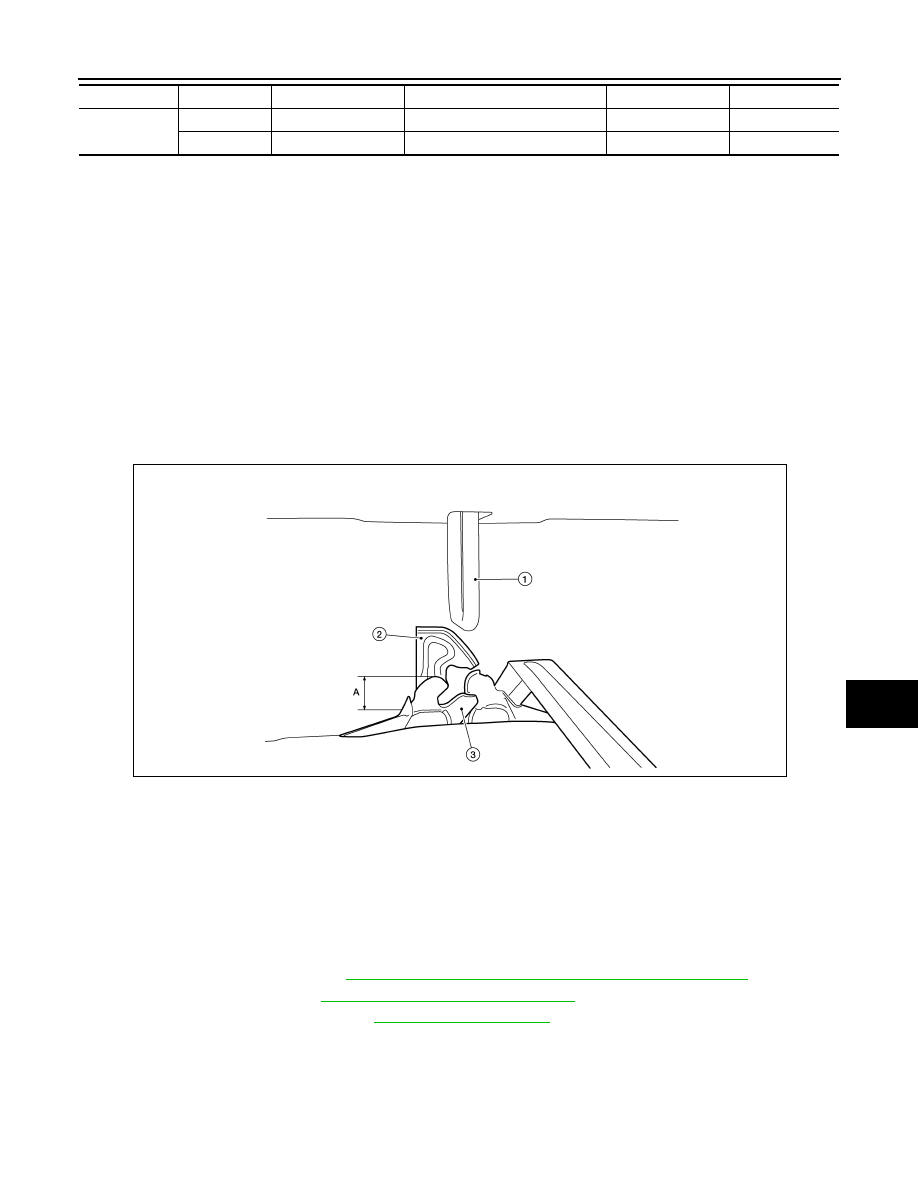

1.

Hood striker

2.

Secondary latch

3.

Primary latch

A.

20.0 mm (0.79 in)

ALKIA3162ZZ

DLK-264

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD

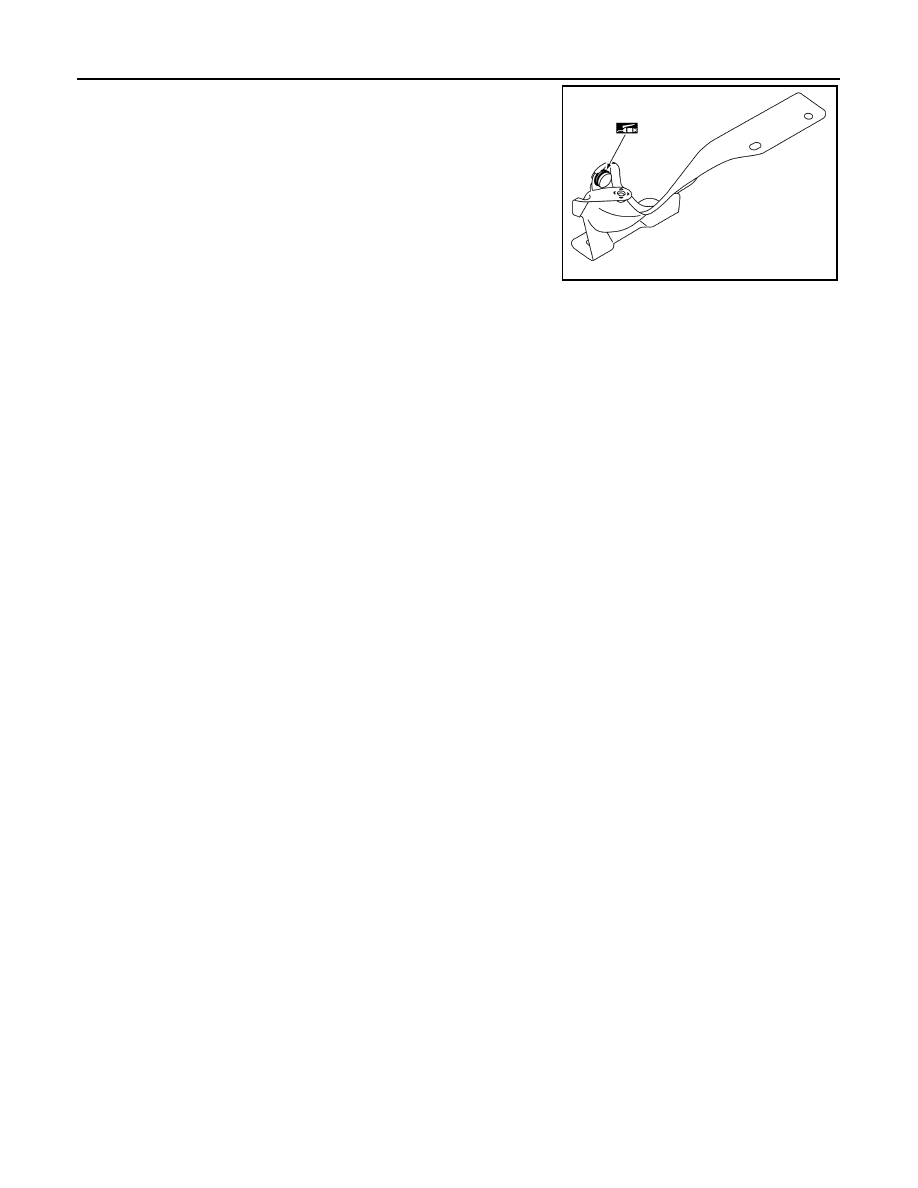

• Check hood hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

HOOD SUPPORT ROD
HOOD SUPPORT ROD : Removal and Installation

INFOID:0000000009645159

REMOVAL

1. Support hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood support

rod.

2. Rotate and remove hood support rod from grommet.
3. Release tab and remove grommet from hood hinge (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA7995ZZ
