Setting change of Automatic Door Locks (LOCK) Function

The LOCK operation setting of the automatic door locks function can be changed.

With CONSULT

The ON/OFF switching of the automatic door locks (LOCK) function and the type selection of the automatic

door locks (LOCK) function can be performed at the WORK SUPPORT setting of CONSULT. Refer to

DLK-31,

"DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

Without CONSULT

The automatic door locks (LOCK) function can be switched ON/OFF by performing the following operation.
1. Close all doors (door switch OFF)
2. Push the ignition switch to the ON position
3. Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-

onds after turning the ignition switch ON.

4. The switching is completed when the hazard lamp blinks.

5. The ignition switch must be turned OFF and ON again between each setting change.

AUTOMATIC DOOR LOCKS (UNLOCK OPERATION)

The automatic door locks (UNLOCK) function is the function that unlocks all doors linked with the key position

or shift position.

IGN OFF Interlock Door Unlock

*1

All doors are unlocked when the power supply position is changed from ON to OFF.

BCM outputs the unlock signal to all door lock actuators when it detects that the power supply position is

changed from ignition switch ON to OFF.

Setting change of Automatic Door Locks (UNLOCK) Function

The UNLOCK operation setting of the automatic door locks function can be changed.

With CONSULT

The ON/OFF switching of the automatic door locks (UNLOCK) function and the type selection of the automatic

door locks (UNLOCK) function can be performed at the WORK SUPPORT setting of CONSULT. Refer to

DLK-

31, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

Without CONSULT

The automatic door locks (UNLOCK) function can be switched ON/OFF by performing the following operation.
1. Close all doors (door switch OFF)
2. Place the ignition switch in the ON position
3. Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20

seconds after turning the power supply position ON.

4. The switching is completed when the hazard lamp blinks.

5. The ignition switch must be turned OFF and ON again between each setting change.

*1

: This function is set to ON before delivery.

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

DLK-22

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (INTELLIGENT KEY SYSTEM)

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000009645273

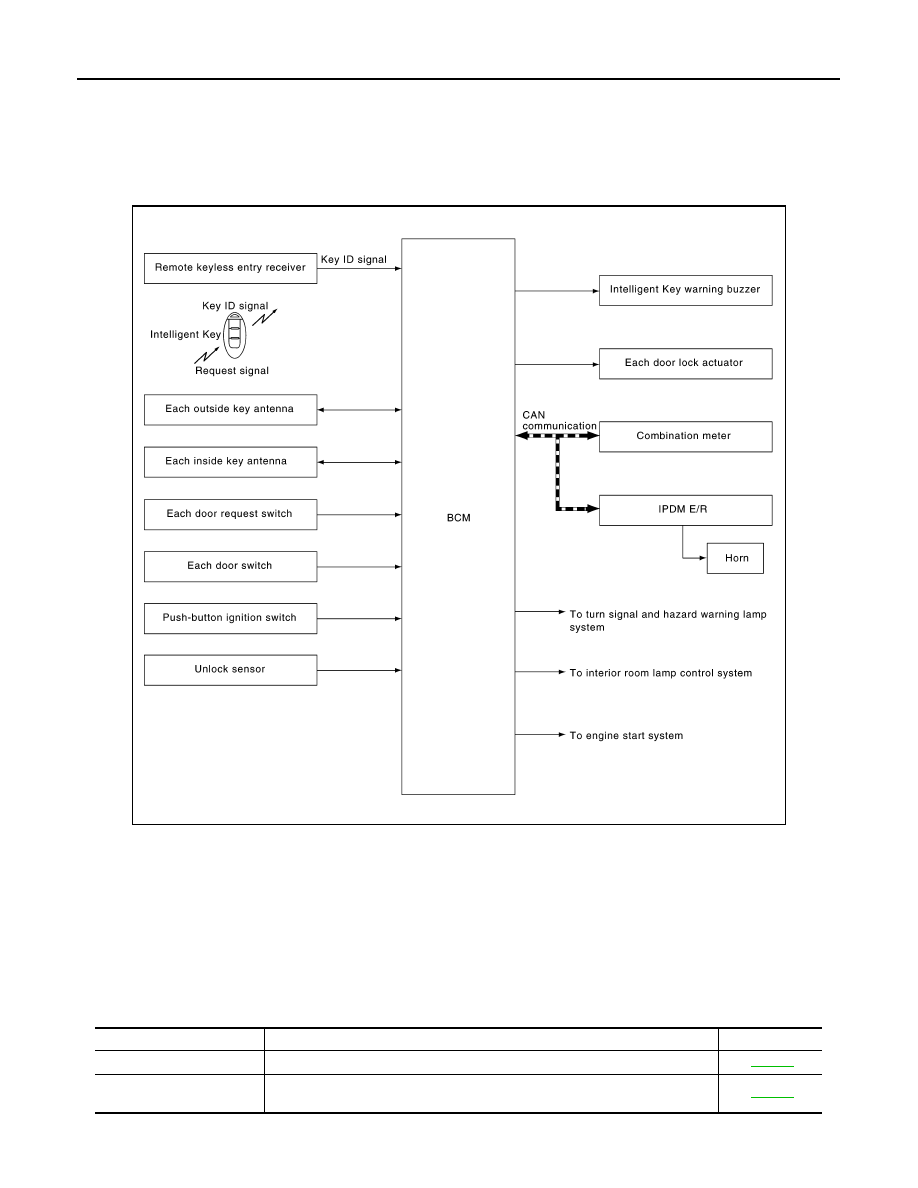

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communication between the Intelligent Key and the vehicle (BCM).

NOTE:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

ALKIA3194GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-23

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the
Intelligent Key

DLK-25

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-23

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK FUNCTION
DOOR LOCK FUNCTION : System Description

INFOID:0000000009645274

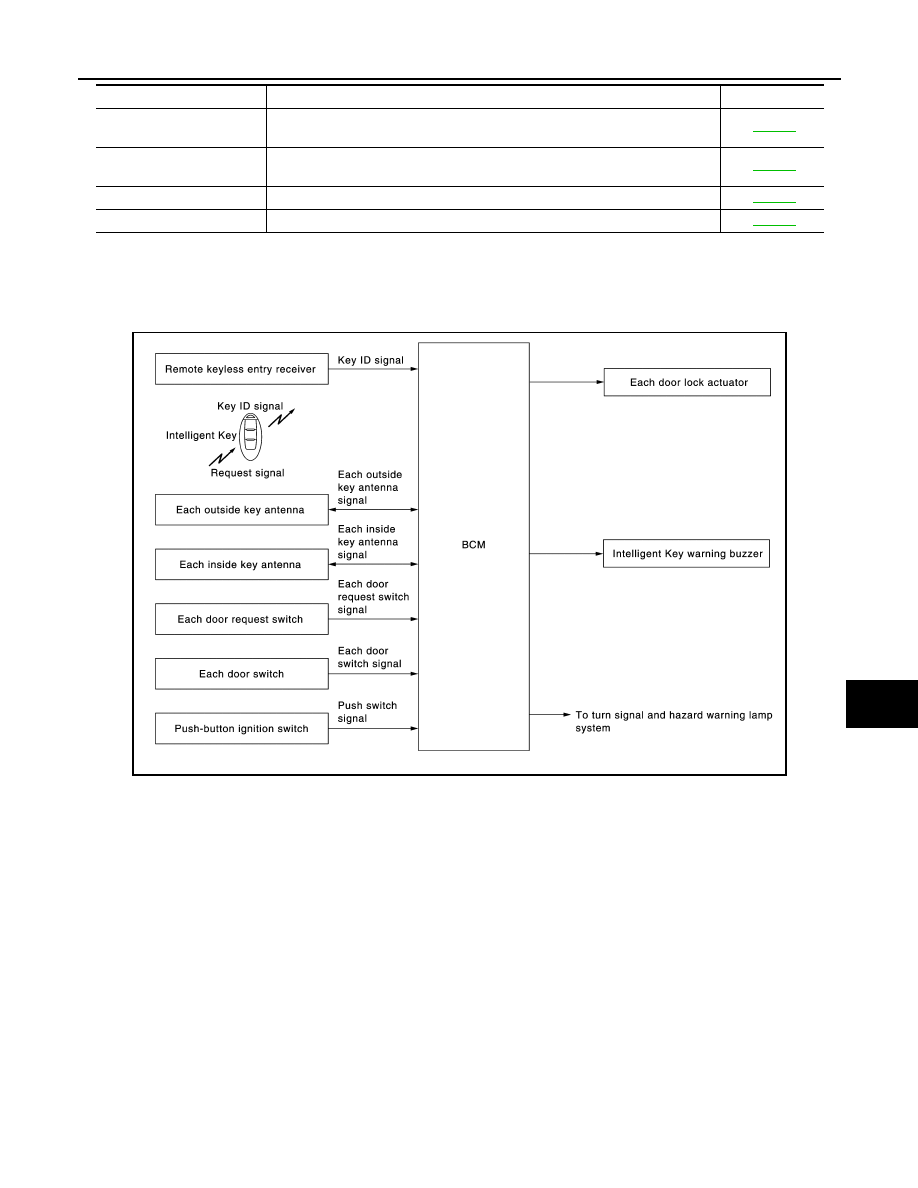

SYSTEM DIAGRAM

DOOR REQUEST SWITCH OPERATION

When pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-

gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM transmits door lock/unlock signal and operates each door lock actuator. At the same time, BCM blinks

hazard warning lamp (lock: 1 time, unlock: 2 times) and sounds Intelligent Key buzzer (lock: 1 time, unlock:

2 times) as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is

operated.

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-27

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-27

Engine start

The engine can be turned on while carrying the Intelligent Key

DLK-22

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

DLK-20

Function

Description

Refer

JMKIA6137GB

DLK-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (INTELLIGENT KEY SYSTEM)

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

Door lock function can be changed using “LOCK/UNLOCK BY I-KEY” mode in “WORK SUPPORT”. Refer to

DLK-31, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

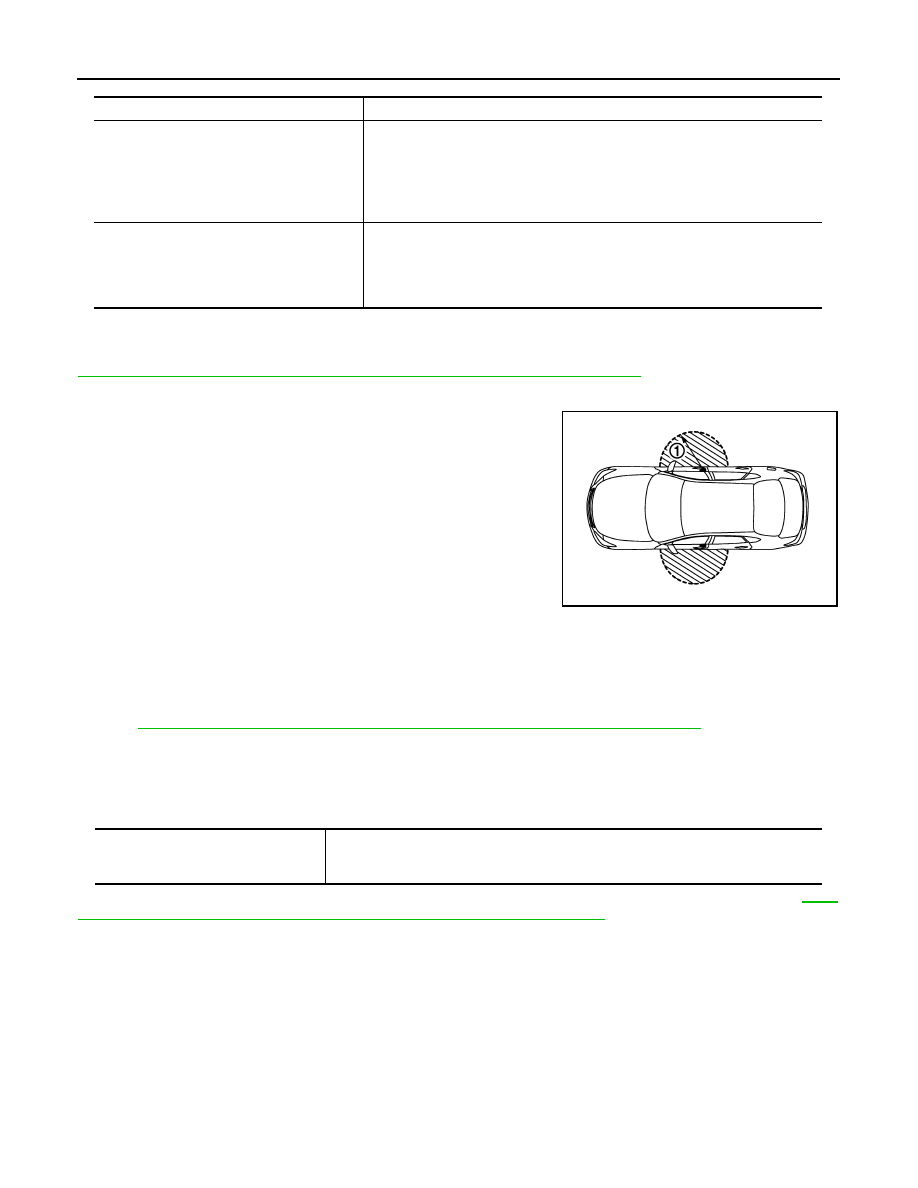

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function

is in the range of approximately 80 cm (31.50 in) surrounding the

driver, passenger door handles (1). However, this operating range

depends on the ambient conditions.

HAZARD AND BUZZER REMINDER FUNCTION

For the operation check, BCM blinks hazard warning lamps (lock: 1 time, unlock: 2 times) and sounds Intelli-

gent Key warning buzzer (lock: 1 time, unlock: 2 times) when door lock or unlock operates by operation of

each door request switch.

How to Change Hazard and Buzzer Reminder Mode

Refer to

DLK-31, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing

the following operation, all doors are automatically locked. However, operation check function does not acti-

vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

31, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

Each request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the LOCK or OFF position
• Panic alarm is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area
• P position warning is not activated

Unlock

• All doors are closed
• Ignition switch is in the LOCK or OFF position
• Panic alarm is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA4881ZZ

Operating condition

• Door switch is ON (door is open)
• BCM receives lock signal
• Push switch is pressed
