COMPONENT PARTS

DLK-13

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DLK

SYSTEM DESCRIPTION

COMPONENT PARTS

INTELLIGENT KEY SYSTEM

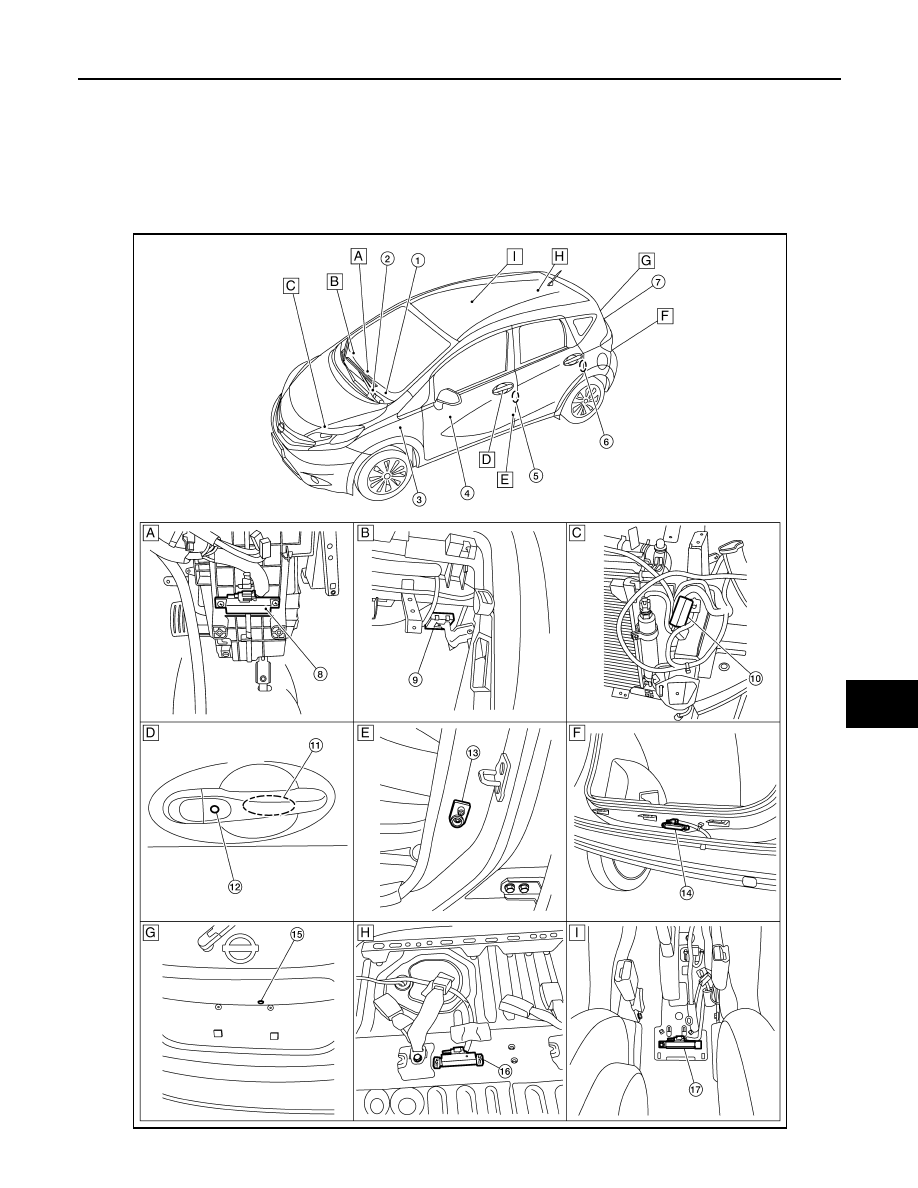

INTELLIGENT KEY SYSTEM : Component Parts Location

INFOID:0000000009693814

ALKIA3191ZZ

DLK-14

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

A. View with instrument panel assembly

removed

B. View with glove box door removed

C. View with front grille removed

D. View of LH door (RH similar)

E. View of LH door switch (RH similar)

View with rear bumper cover re-
moved

G. View from rear of vehicle

H. View with rear seat cushion removed I.

View with center console removed

No.

Component

Function

Combination meter

Combination meter transmits the vehicle speed sig-
nal to BCM via CAN communication.
BCM also receives the vehicle speed signal from
ABS actuator and electric unit (control unit) via CAN
communication. BCM compares both signals to de-
tect the vehicle speed.
Security indicator lamp is located on combination
meter.
Security indicator lamp blinks when ignition switch
is in any position other than ON to warn that NIS-
SAN VEHICLE IMMOBILIZER SYSTEM-NATS
[NVIS (NATS)] is on board.
Refer to

MWI-6, "METER SYSTEM : Combination

Meter"

Push-button ignition switch

Push-button ignition switch has push switch inside
which detects that push-button ignition switch is
pressed, and then transmits ON/OFF signal to
BCM. BCM changes the ignition switch position with
the operation of push-button ignition switch. BCM
maintains the ignition switch position status while
push-button ignition switch is not operated.

BCM

BCM controls INTELLIGENT KEY SYSTEM (EN-
GINE START FUNCTION), NISSAN VEHICLE IM-
MOBILIZER SYSTEM-NATS [NVIS (NATS)] and
VEHICLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and
Intelligent Key when the Intelligent Key is carried
into the detection area of inside key antenna, and
push-button ignition switch is pressed. If the ID ver-
ification result is OK, ignition switch operation is
available.
Then, when the ignition switch is turned ON, BCM
performs ID verification between BCM and ECM. If
the ID verification result is OK, ECM can start en-
gine.
Refer to

BCS-6, "BODY CONTROL SYSTEM :

Component Parts Location"

for detailed installation

location.

Main power window and door lock/unlock switch

Door lock and unlock switch is integrated into the
power window main switch.
Door lock and unlock switch transmits door lock/un-
lock operation signal to BCM.
Refer to

PWC-7, "Power Window Main Switch"

Front door lock assembly LH

Door key cylinder switch is integrated into front door
lock assembly (driver side).
Door key cylinder switch detects door LOCK/UN-
LOCK operation using mechanical key, and then
transmits the operation signal to BCM.
Refer to

DLK-17, "INTELLIGENT KEY SYSTEM :

Front Door Lock Assembly (Driver Side)"

Rear door lock actuator LH

Rear door lock actuator locks/unlocks the rear door
latch assembly.

Back door lock actuator

Back door lock actuator locks/unlocks the back door
latch assembly.

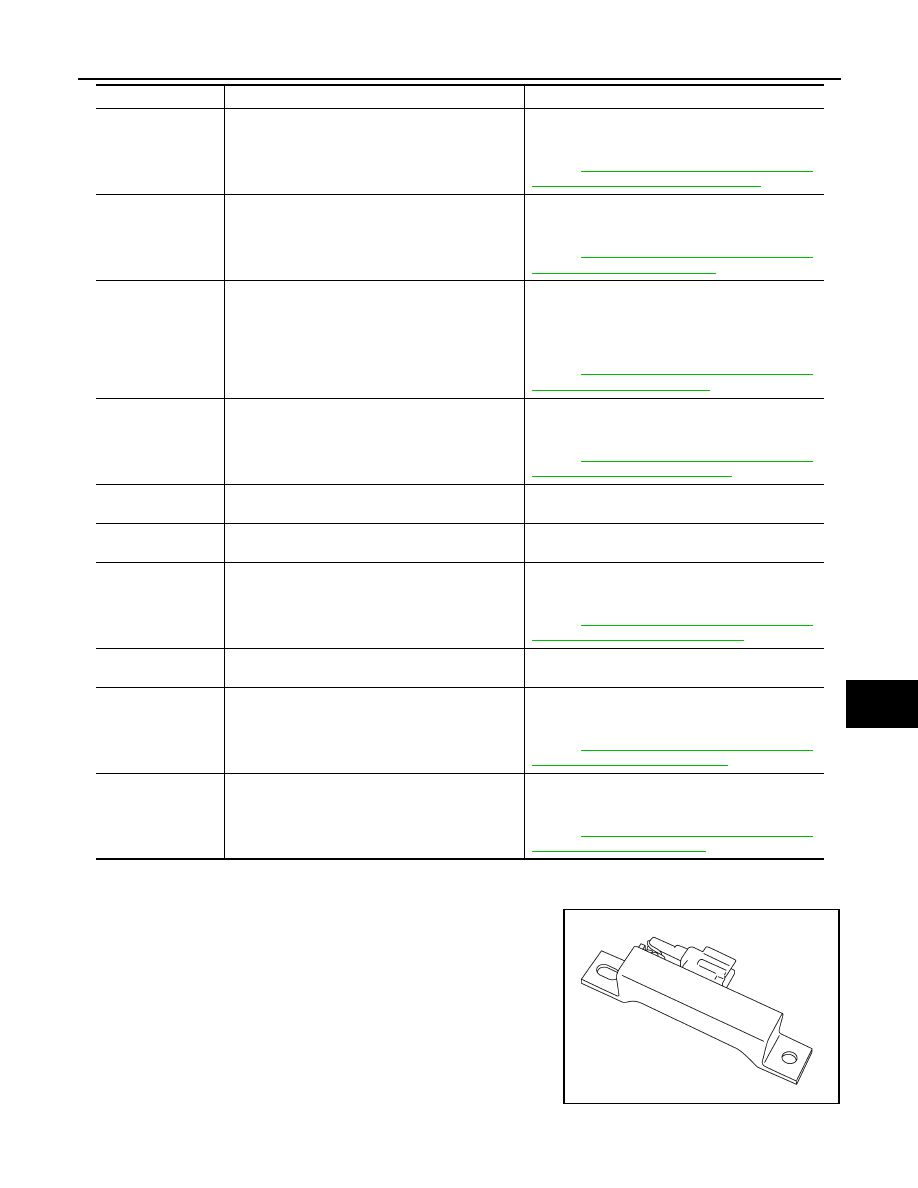

COMPONENT PARTS

DLK-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DLK

INTELLIGENT KEY SYSTEM : Inside Key Antenna (Instrument Center)

INFOID:0000000009693815

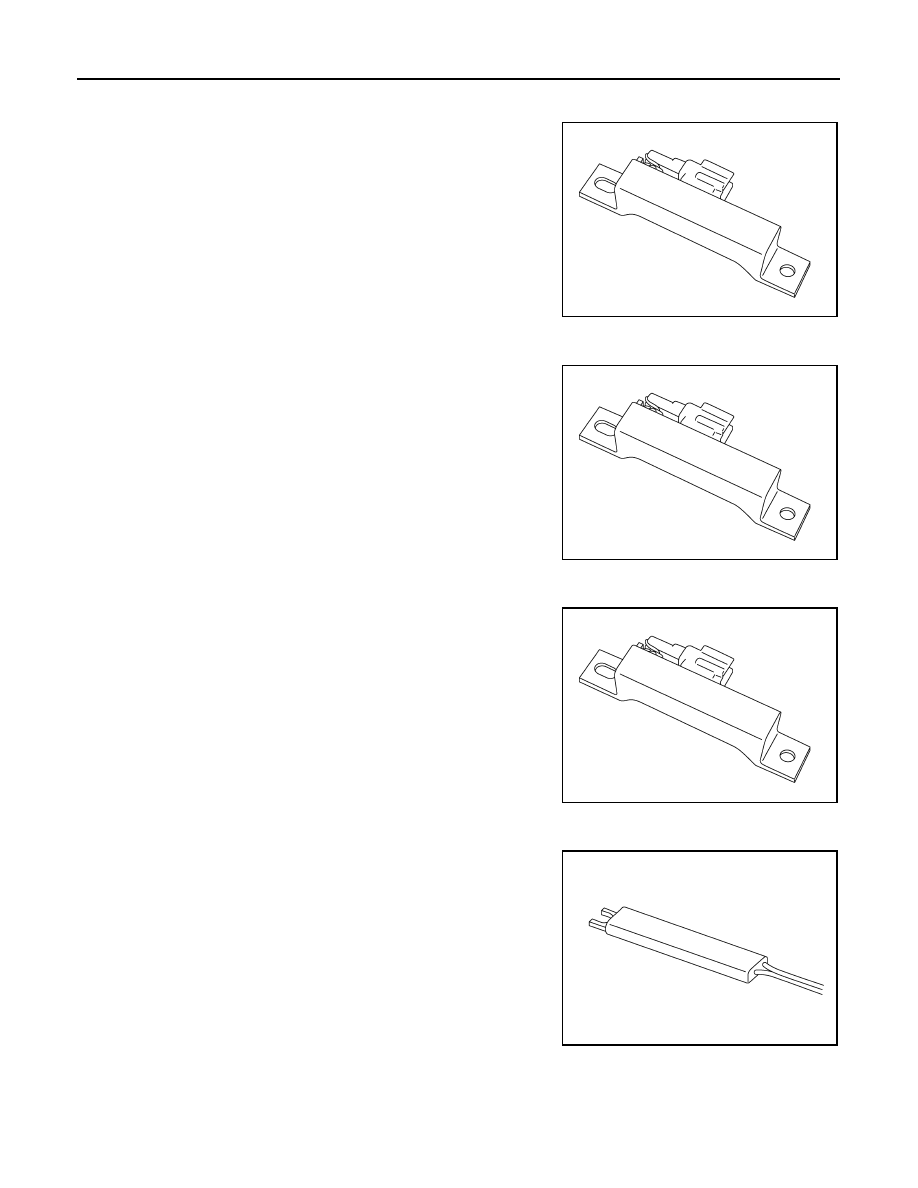

• Inside key antenna (instrument center) detects that Intelligent Key

is within the inside detection area, and then transmits detection

status to BCM.

• Inside key antenna (instrument center) is installed in the rear of

cluster lid C of instrument center.

Inside key antenna (instrument center)

Inside key antenna (instrument center) detects
whether Intelligent Key is inside the vehicle or not,
and then transmits the signal to the BCM.
Refer to

DLK-15, "INTELLIGENT KEY SYSTEM :

Inside Key Antenna (Instrument Center)"

Remote keyless entry receiver

Remote keyless entry receiver receives button op-
eration signal and key ID signal of Intelligent Key,
and them transmits them to the BCM.
Refer to

DLK-17, "INTELLIGENT KEY SYSTEM :

Remote Keyless Entry Receiver"

10.

Intelligent Key warning buzzer

Intelligent Key warning buzzer warns the user, who
is outside the vehicle, of operation confirmation ac-
cording to Intelligent Key operation and door re-
quest switch operation, or of an inappropriate
operation.
Refer to

DLK-17, "INTELLIGENT KEY SYSTEM :

Intelligent Key Warning Buzzer"

11.

Outside key antenna LH

Outside key antenna (LH) detects whether Intelli-
gent Key is outside the vehicle or not, and then
transmits the signal to the BCM.
Refer to

DLK-16, "INTELLIGENT KEY SYSTEM :

Outside Key Antenna (Driver Side)"

12.

Door request switch

Door request switch transmits door lock/unlock re-
quest signal to the BCM.

13.

Door switch
