COMPONENT PARTS

DLK-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DLK

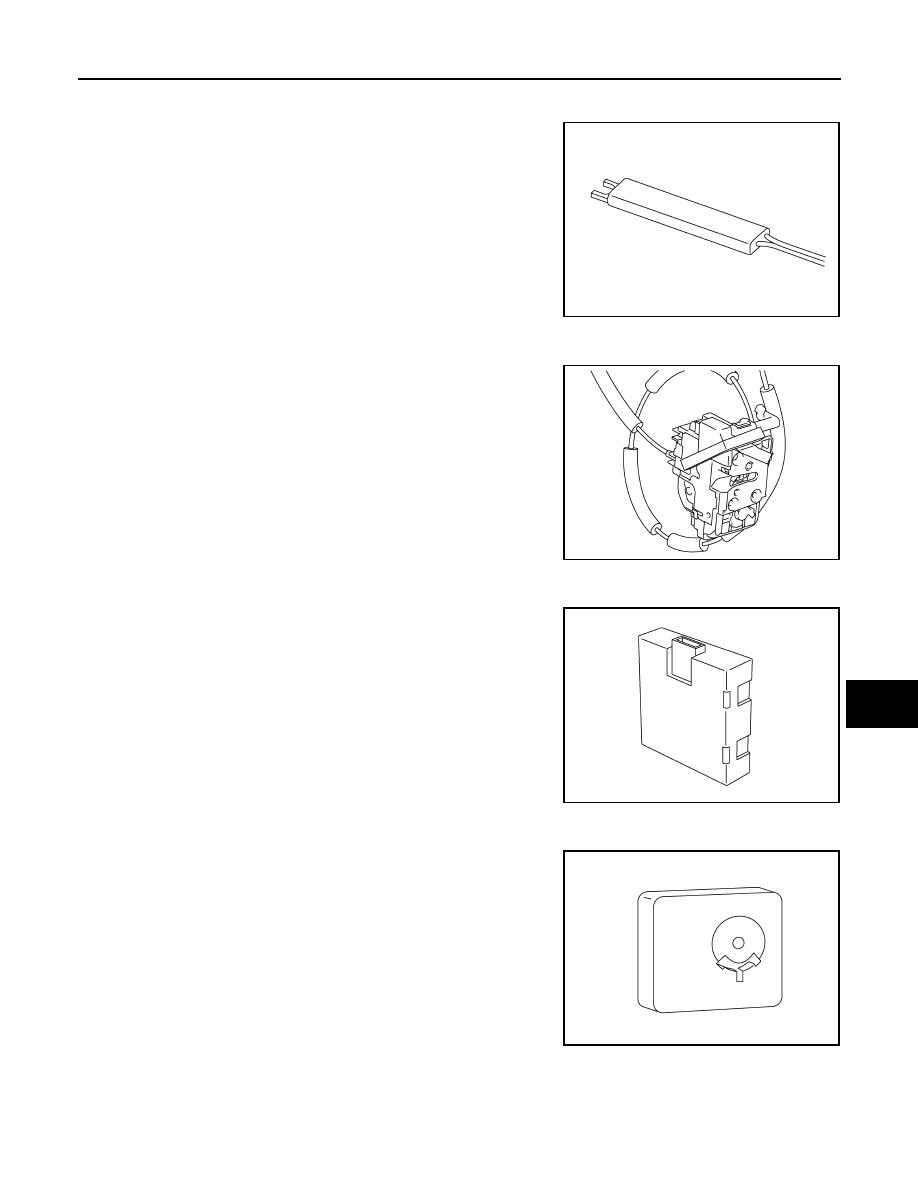

INTELLIGENT KEY SYSTEM : Outside Key Antenna (Passenger Side)

INFOID:0000000009693820

• Outside key antenna (passenger side) detects that Intelligent Key

is within the outside detection area, and then transmits detection

status to BCM. Request signal is transmitted simultaneously to

Intelligent Key.

• Outside key antenna (passenger side) is installed in passenger

side outside handle.

INTELLIGENT KEY SYSTEM : Front Door Lock Assembly (Driver Side)

INFOID:0000000009693821

• Door lock actuator and unlock sensor are Integrated in driver door

lock assembly.

• Door lock actuator receives lock/unlock signal from BCM, and then

locks/unlocks driver door.

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver seat to

BCM.

INTELLIGENT KEY SYSTEM : Remote Keyless Entry Receiver

INFOID:0000000009693822

• Remote keyless entry receiver receives button operation signal

and key ID signal of Intelligent Key, and then transmits them to

BCM.

• Remote keyless entry receiver is installed in the rear of glove box

lid.

INTELLIGENT KEY SYSTEM : Intelligent Key Warning Buzzer

INFOID:0000000009693823

• Intelligent Key warning buzzer warns the user, who is outside vehi-

cle, of operation confirmation according to Intelligent Key operation

and door request switch operation, or of an inappropriate opera-

tion.

• Intelligent Key warning buzzer is installed in the rear of front

bumper and behind LH headlight.

JMKIA8648ZZ

JMKIA8649ZZ

JMKIA8647ZZ

JMKIA8650ZZ

DLK-18

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

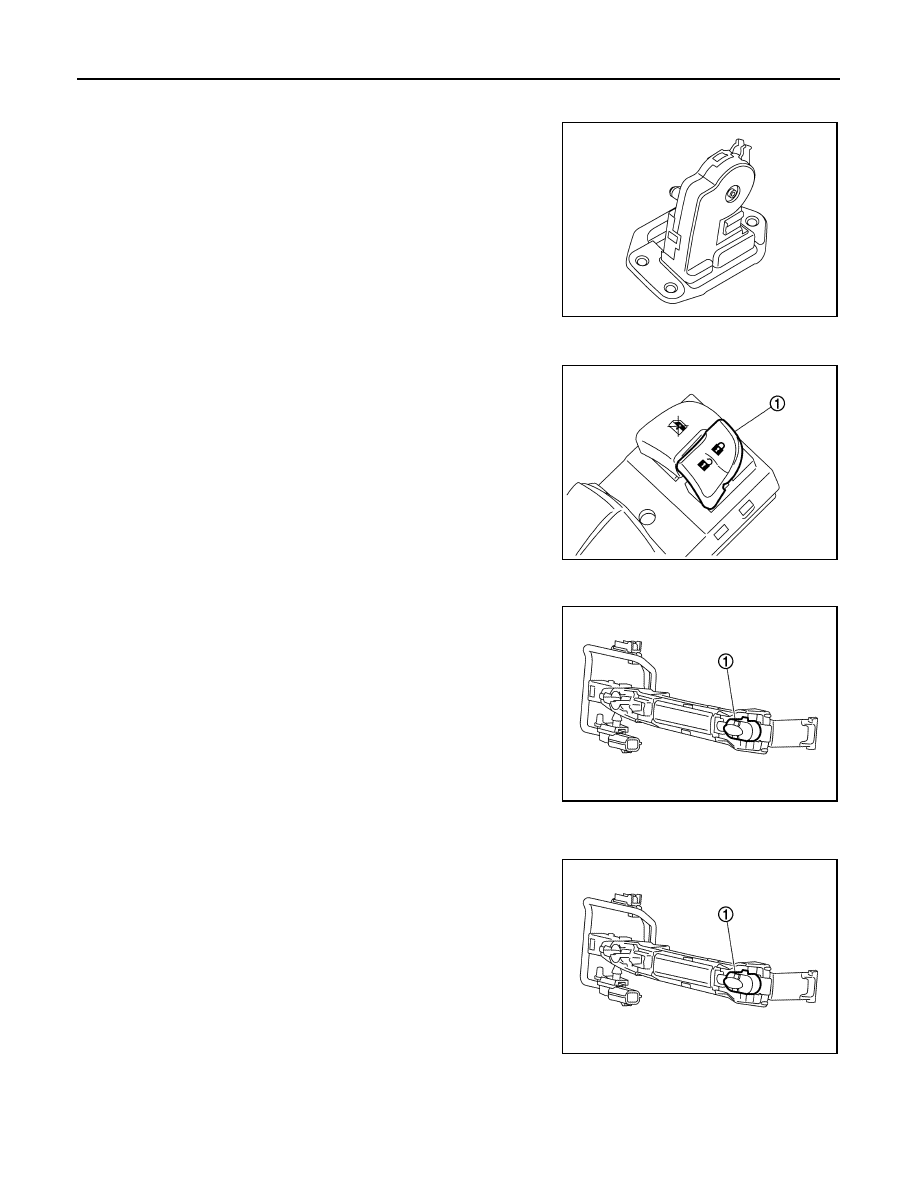

INTELLIGENT KEY SYSTEM : Back Door Lock Assembly

INFOID:0000000009693824

• Back door lock assembly lock assembly integrates door lock actu-

ator and back door latch.

• Door lock actuator locks/unlocks the back door according to the

door lock/unlock signal from BCM.

INTELLIGENT KEY SYSTEM : Door Lock and Unlock Switch

INFOID:0000000009693825

• Door lock and unlock switch transmits door lock/unlock signal

operation to BCM.

• Door lock and unlock switch (1) is integrated in the power window

main switch and front power window switch (passenger side).

INTELLIGENT KEY SYSTEM : Front Door Request Switch (Driver Side)

INFOID:0000000009693826

• Front door request switch (driver side) transmits door request

switch signal to BCM.

• Front door request switch (driver side) (1) is integrated in driver

side outside handle.

INTELLIGENT KEY SYSTEM : Front Door Request Switch (Passenger Side)

INFOID:0000000009693827

• Front door request switch (passenger side) transmits door request

switch signal to BCM.

• Front door request switch (passenger side) (1) is integrated in pas-

senger side outside handle.

JMKIA8651ZZ

JMKIA9352ZZ

JMKIA9353ZZ

COMPONENT PARTS

DLK-19

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DLK

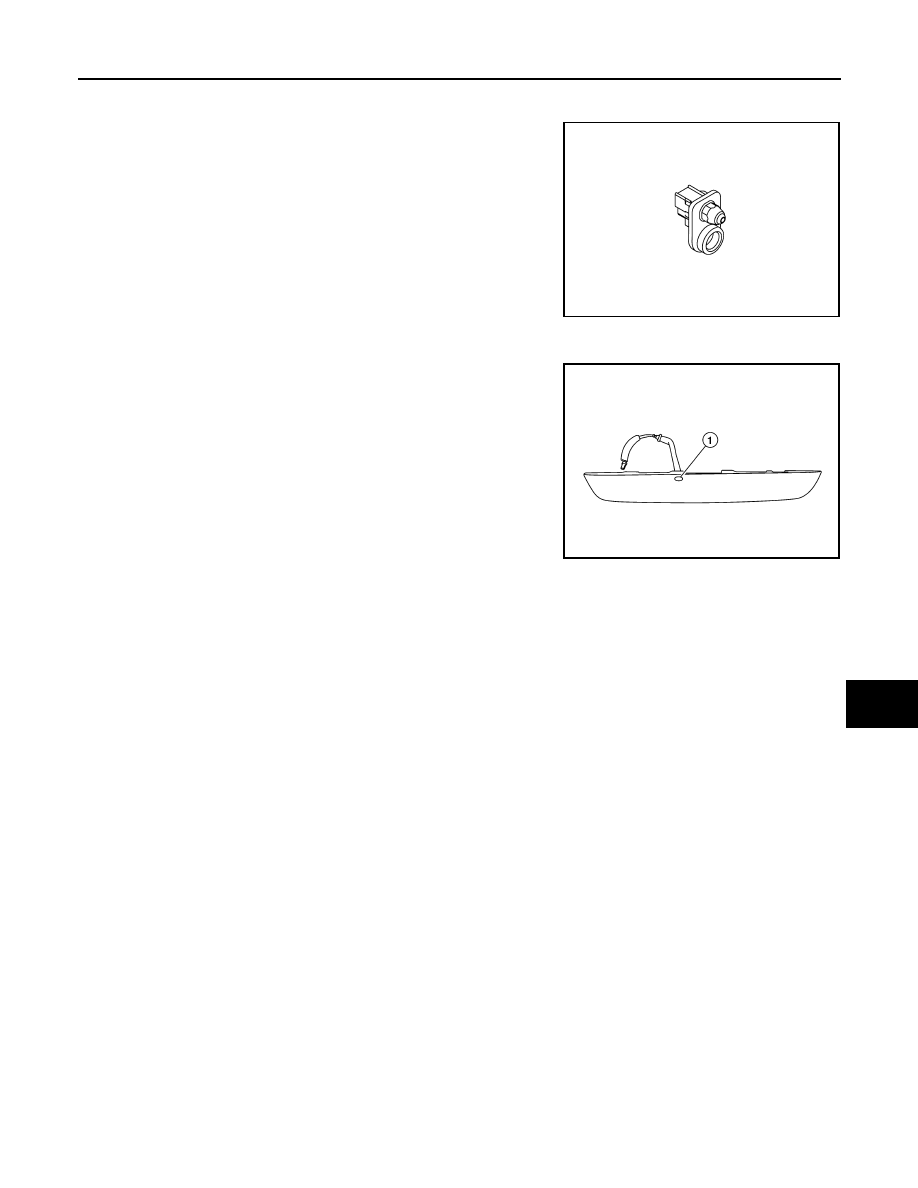

INTELLIGENT KEY SYSTEM : Door Switch

INFOID:0000000009693828

Door switch detects open/close status of door and transmits door

switch signal to BCM.

INTELLIGENT KEY SYSTEM : Back Door Request Switch

INFOID:0000000009693829

• Back door request switch transmits back door request switch sig-

nal to BCM.

• Back door request switch (1) is integrated in outside handle (back

door).

JMKIA6526ZZ

ALKIA3192ZZ

DLK-20

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (POWER DOOR LOCK SYSTEM)

SYSTEM (POWER DOOR LOCK SYSTEM)

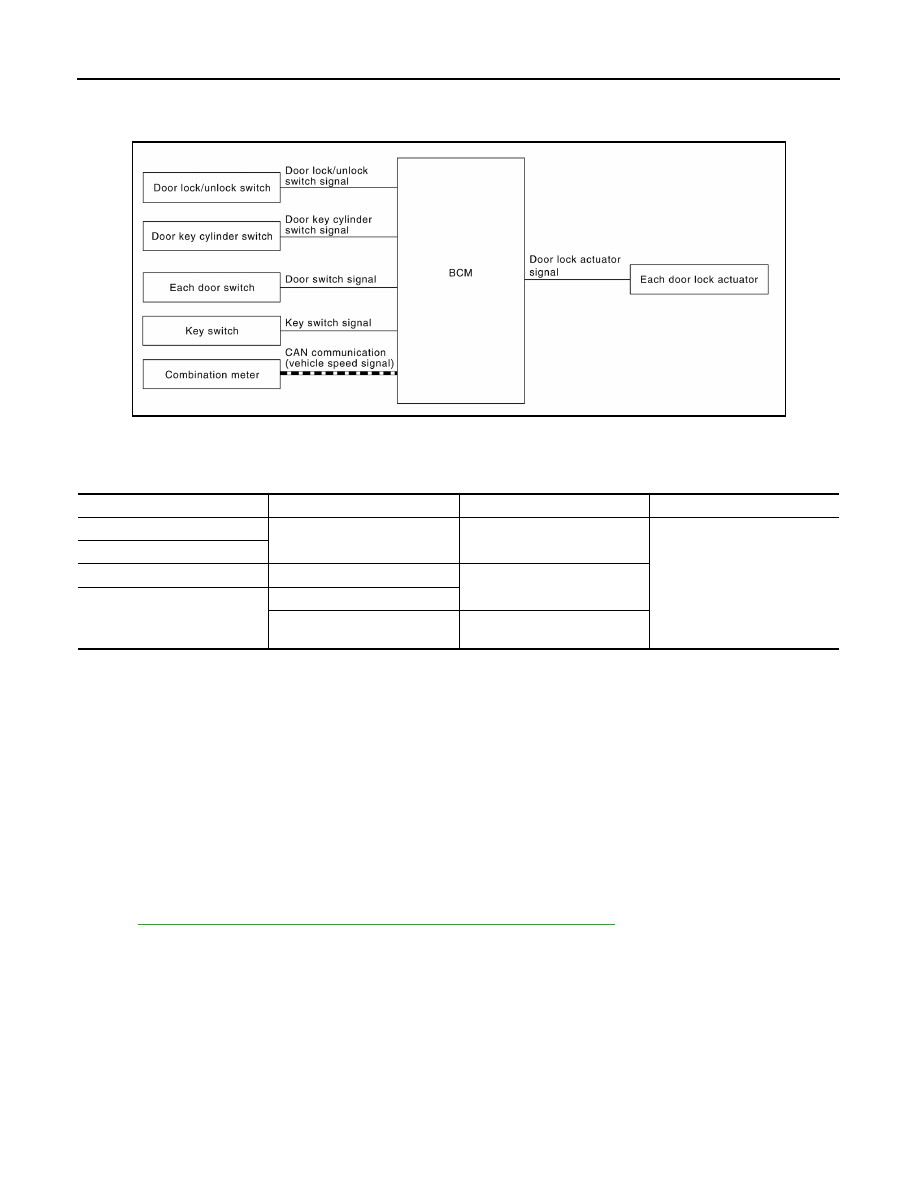

System Diagram

INFOID:0000000009645271

System Description

INFOID:0000000009645272

DOOR LOCK FUNCTION

• The door lock and unlock switch (driver side) is built into power window main switch.

• The door lock and unlock switch (passenger side) is on door trim.

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are

unlocked.

Door Key Cylinder

• With the door key inserted in the door key cylinder on driver side, turning it to “LOCK”, will lock door lock

actuator of all doors.

• With the door key inserted in the door key cylinder on driver side, turning it to “UNLOCK” once unlocks the

driver side door lock actuator; turning it to “UNLOCK” again within 60 seconds after the first unlock operation

unlocks all of the other doors. - (SELECTIVE UNLOCK OPERATION)

Selective unlock operation mode can be changed using “AUTO LOCK SET” mode in “WORK SUPPORT”.

Refer to

DLK-31, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

AUTOMATIC DOOR LOCKS (LOCK OPERATION)

The automatic door locks function is the function that locks all doors linked with the vehicle speed or shift posi-

tion.

Vehicle Speed Sensing Auto Door Lock

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.

BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all

doors are closed and the vehicle speed received from the combination meter via CAN communication

becomes 24 km/h (15 MPH) or more.

If a door is opened and closed at any time during one ignition cycle (OFF

→ ON), even after initial auto door

lock operation has taken place, the BCM will relock all doors when the vehicle speed reaches 24 km/h (15

MPH) or more again.

ALKIA2288GB

Input

Single

Function

Actuator

Door lock/unlock switch

Door lock/unlock signal

Door lock function

• Each door lock actuator

Door key cylinder switch

Each door switch

Door open/close signal

Key reminder function

Combination meter.

Warning buzzer signal

Vehicle speed signal

Automatic door lock/unlock
function
