CL-14

< REMOVAL AND INSTALLATION >

CLUTCH PIPING

CLUTCH PIPING

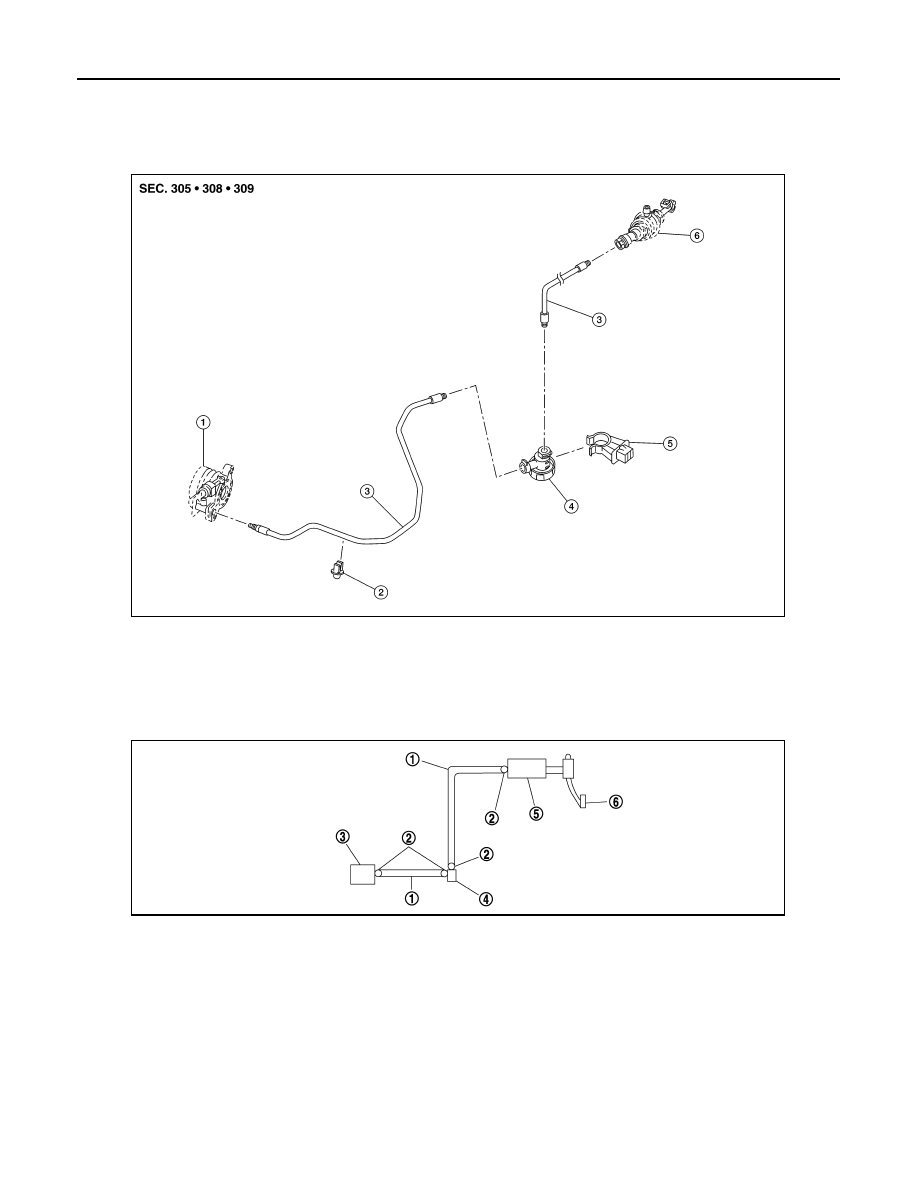

Exploded View

INFOID:0000000009417433

Hydraulic Layout

INFOID:0000000009417434

Removal and Installation

INFOID:0000000009417435

CAUTION:

Do not spill clutch fluid onto painted surfaces. If clutch fluid spills, wipe up immediately and wash the

affected area with water.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

1.

CSC (Concentric Slave Cylinder)

2.

Clip

3.

Clutch tube

4.

Clutch damper

5.

Bracket

6.

Master cylinder

AWDIA1109ZZ

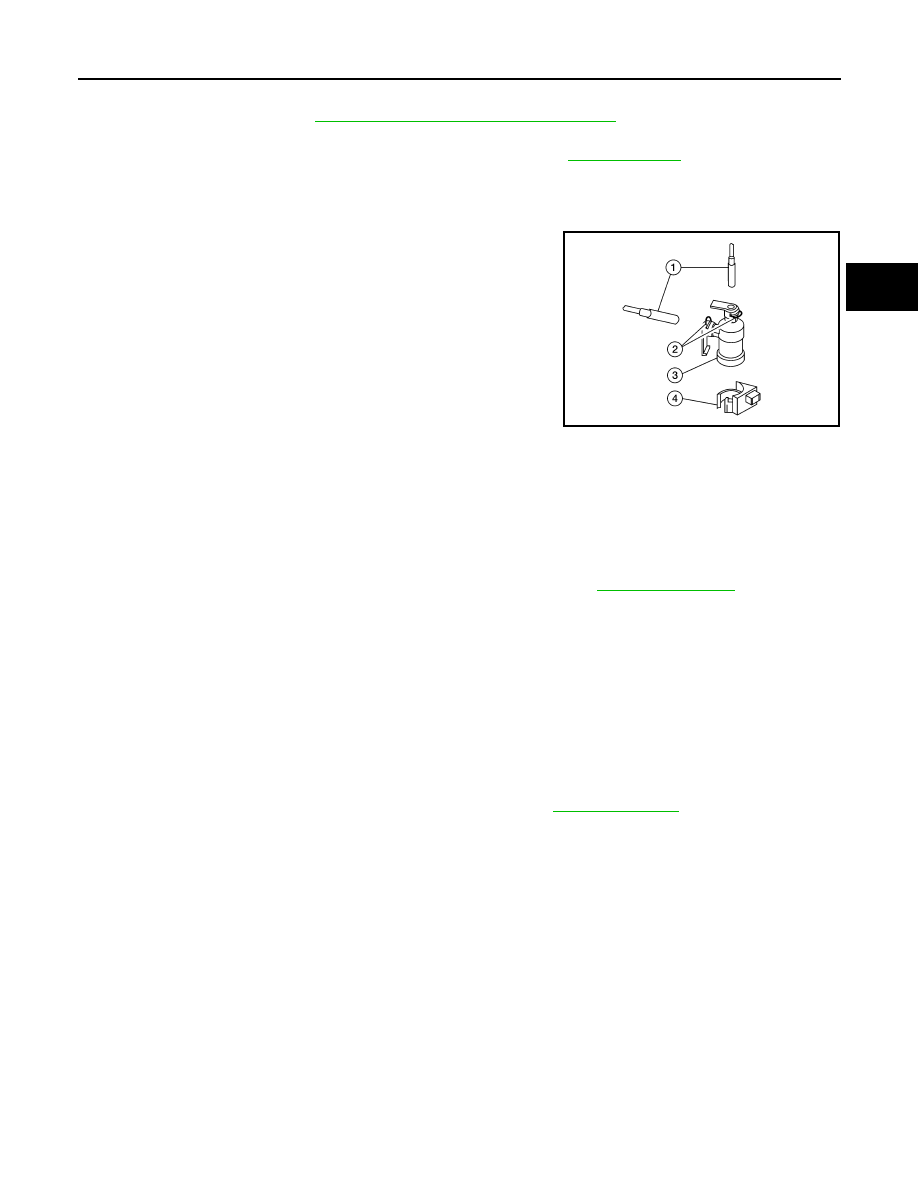

1.

Clutch tube

2.

Lock pin

3.

CSC (concentric slave cylinder)

4.

Clutch damper

5.

Master cylinder

6.

Clutch pedal

PCIB1499E

CLUTCH PIPING

CL-15

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

REMOVAL

1. Remove the battery. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Use one of the following methods to remove hose from clutch master cylinder.

• Drain clutch fluid from reservoir tank and remove hose. Refer to

CL-6, "Draining"

.

• Remove hose from clutch master cylinder.

3. Remove clutch tube lock pin from clutch master cylinder.
4. Remove clutch tube lock pin at clutch housing.
5. Remove clutch tube lock pins (2) from clutch damper (3).
6. Remove clutch tube (1) from clutch damper (3).
7. Remove clutch damper (3) from bracket (4).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not damage clutch tube.

• Insert each clutch tube into the CSC bleeding connector, the clutch damper connector, and the clutch master

cylinder connector until it contacts the end of each connector.

• Install each lock pin into the clutch damper connector and the clutch master cylinder connector until it con-

tacts the end of each connector.

• After installation, bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding"

.

Inspection and Adjustment

INFOID:0000000009417436

INSPECTION AFTER REMOVAL

• Check the clutch tube for cracks and damage. If the clutch tube has cracks or damage, replace it with a new

one.

• Check the O-ring of the clutch tube for cracks and damage. If the O-ring of the clutch tube has cracks or

damage, replace clutch tube with a new one.

• Check the clutch damper for cracks and damage. If the clutch damper has cracks or damage, replace it with

a new one.

INSPECTION AFTER INSTALLATION

Check for clutch fluid leaks and check the clutch fluid level. Refer to

CL-6, "Inspection"

.

WCIA0597E

CL-16

< UNIT REMOVAL AND INSTALLATION >

CSC (CONCENTRIC SLAVE CYLINDER)

UNIT REMOVAL AND INSTALLATION

CSC (CONCENTRIC SLAVE CYLINDER)

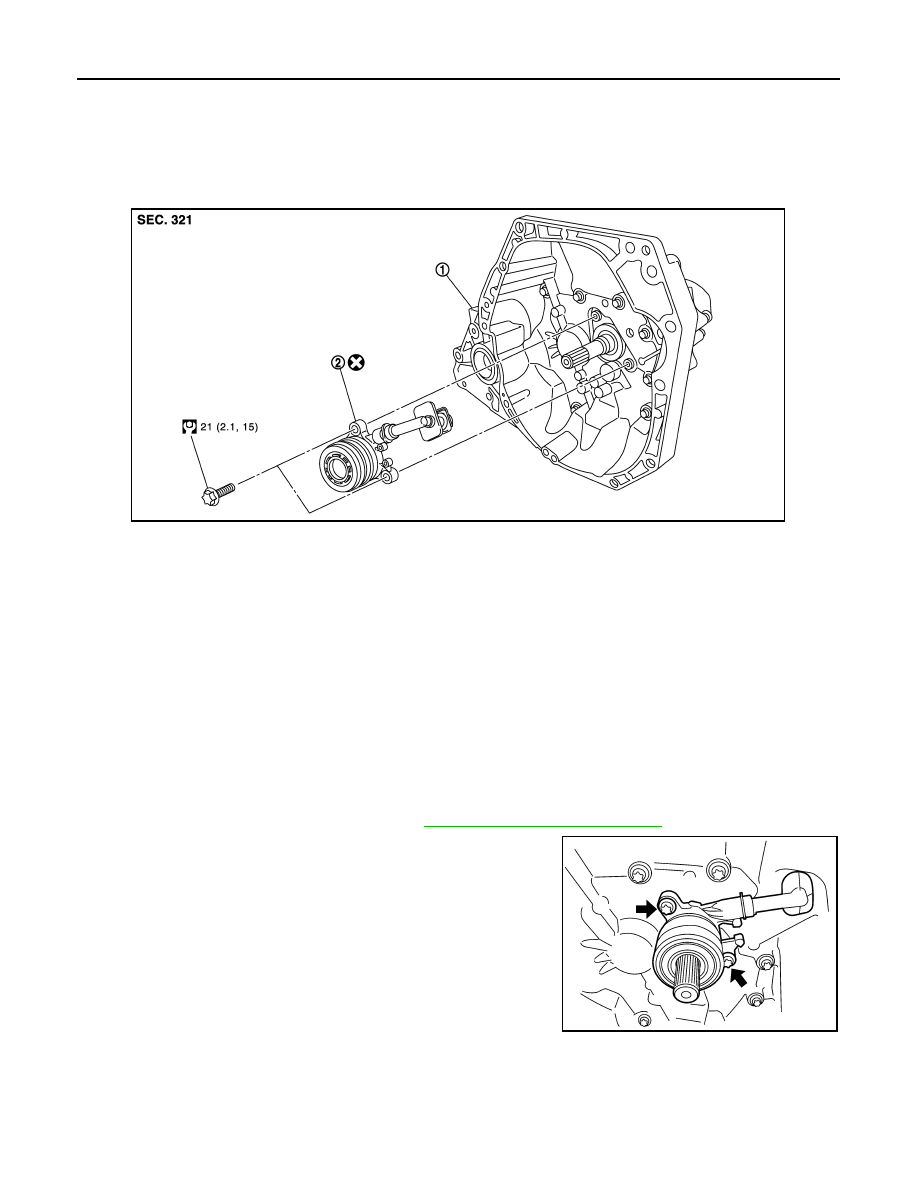

Exploded View

INFOID:0000000009417437

Removal and Installation

INFOID:0000000009417438

CAUTION:

• Do not reuse CSC (concentric slave cylinder). CSC slides back to the original position every time

when removing transaxle assembly. At this time, dust on the sliding parts may damage the seal of

CSC and may cause clutch fluid leaks.

• Do not disassemble CSC.

• Do not spill clutch fluid onto painted surfaces. If clutch fluid spills, wipe up immediately and wash

the affected area with water.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove engine transaxle assembly. Refer to

EM-86, "Removal and Installation"

.

2. Remove CSC bolts and the CSC from clutch housing.

INSTALLATION

1. Install CSC to clutch housing and then tighten CSC bolts to the specified torque.

CAUTION:

• Do not reuse CSC.

1.

Transaxle assembly

2.

CSC (concentric slave cylinder)

JPDIB0146GB

PCIB1498E

CSC (CONCENTRIC SLAVE CYLINDER)

CL-17

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

• Do not insert and operate CSC when transaxle is removed. Piston and stopper of CSC compo-

nents may fall off.

2. Install engine and transaxle assembly. Refer to

EM-86, "Removal and Installation"

.

Inspection and Adjustment

INFOID:0000000009417439

INSPECTION AFTER INSTALLATION

Check for clutch fluid leaks and clutch fluid level. Refer to

CL-6, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Perform the air bleeding. Refer to

CL-8, "Air Bleeding"

.
