Nissan Versa Note. Manual - part 148

BRM-44

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit:mm (in)

Front

LH side

Points

Measurement

Points

Measurement

A-a

904.0 (35.59)

B-b

820.0 (32.28)

C-c

797.0 (31.38).

D-d

1134.0 (44.65)

E-e

797.0 (31.38)

F-f

1220.0 (48.03)

G-g

 746.0 (29.37)

H-h

951.0 (37.44)

J-j

952.0 (37.48)

A-b*

1835.5 (72.26)

A-c*

1192.2 (46.94)

A-d*

1619.6 (63.76)

A-e*

1665.0 (65.55)

E-f*

1362.1 (53.63)

F-g*

1038.5 (40.89)

F-h*

1214.5 (47.81)

F-j*

1379.2 (54.30)

BODY ALIGNMENT

BRM-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

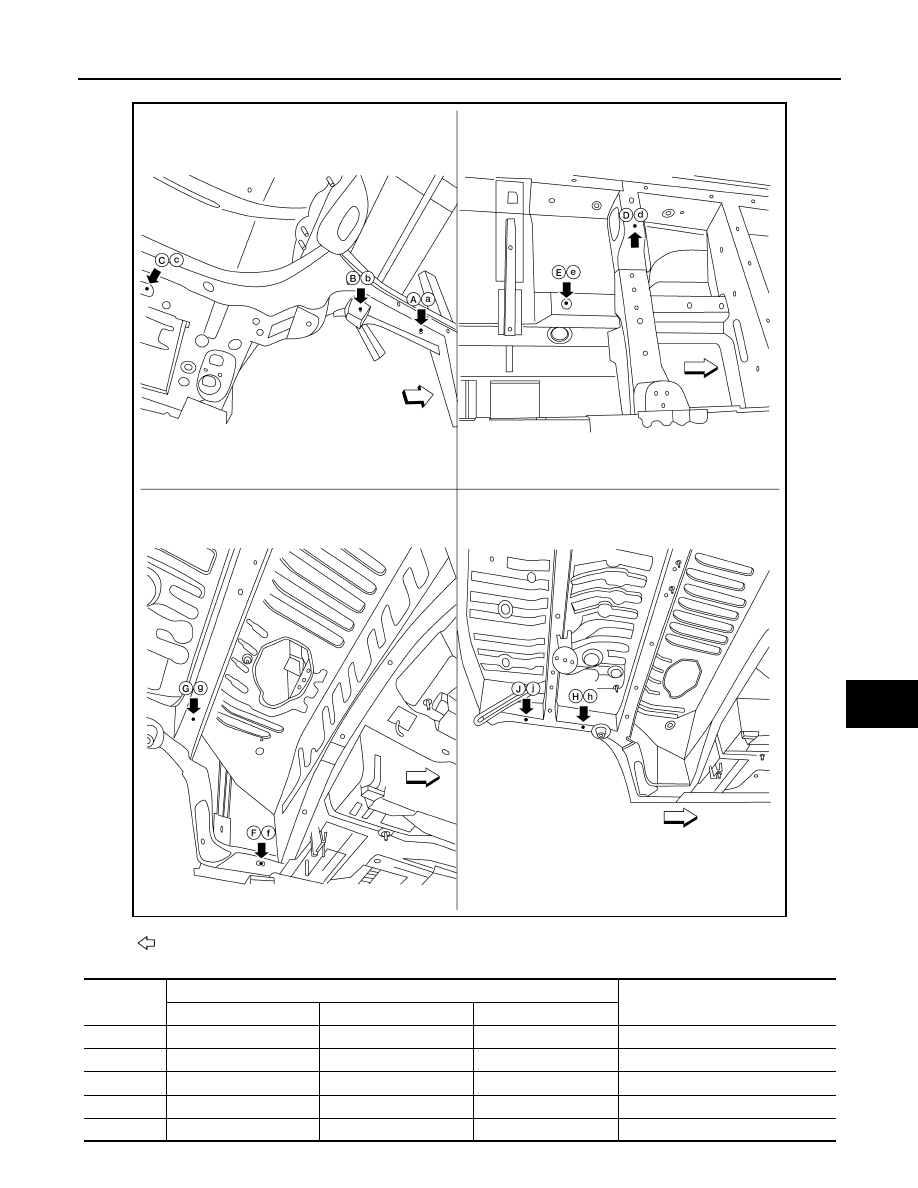

MEASURMENT POINTS

Unit: mm (in)

AWKIA2547ZZ

Front

Points

Coordinates

Remarks

X

Y

Z

A, a

± 299.0 (±11.77)

±±452.0 (17.80)

293.6 (11.56)

Hole 16.0 (0.63)

B, b

1305.0 (51.38)

± 410.0 (16.14)

63.0 (2.48)

Hole 14.0X12.0 (0.55X0.47)

C, c

507.0 (19.96)

± 398.5 (15.69)

73.5 (2.89)

Hole 14.0X12.0 (0.55X0.47)

D, d

950.0 (37.40)

± 567.0 (22.32)

136.0 (5.35)

Hole 12.0 (0.47)

E, e

1107.0 (43.58)

± 398.5 (15.69)

25.0 (0.98)

Hole 12.0 (0.47)

BRM-46

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

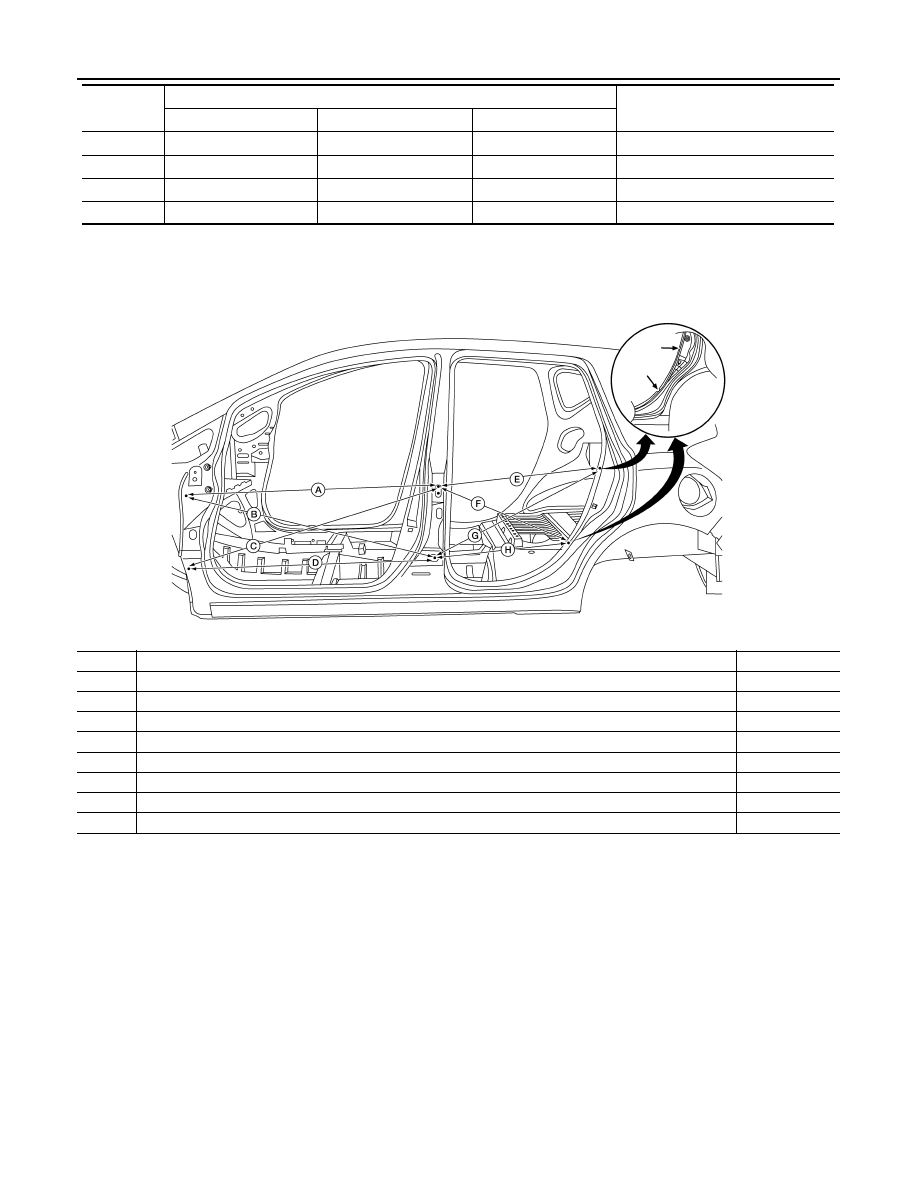

Passenger Compartment

INFOID:0000000009345098

MEASURMENTS

Unit: mm (in)

 The vehicle is symmetrically identical dimensions on both LH and RH sides of the vehicle.

F, f

2022.5 (79.63)

± 610.0 (24.02)

32.8 (1.29)

Hole 16.0 (0.63)

G, g

2305.0 (90.75)

± 373.0 (14.69)

213.0 (8.39)

Hole 16.0 (0.63)

H, h

2535.0 (99.80)

± 475.5 (18.72)

217.5 (8.56)

Hole 18.0x16.0 (0.71x0.63)

J, j

2850.0 (112.20)

± 476.0 (18.74)

227.5 (8.96)

Hole 18.0x16.0 (0.71x0.63)

Points

Coordinates

Remarks

X

Y

Z

ALKIA3130ZZ

Position

Description

Measurement

A.

Front door upper hinge forward bolt hole to rear door upper hinge upper bolt hole.

1166.4 (45.92)

B.

Front door upper hinge forward bolt hole to rear door lower hinge rear bolt hole.

1189.9 (46.85)

C.

Front door lower hinge forward bolt hole to rear door upper hinge upper bolt hole.

1219.7 (48.02)

D.

Front door lower hinge forward bolt hole to rear door lower hinge rear bolt hole.

1142.0 (44.96)

E.

Rear door upper hinge upper bolt hole to rear door body side upper notch.

 755.7 (29.75)

F.

Rear door upper hinge upper bolt to rear door body side lower notch.

 681.5 (26.83)

G.

Rear door lower hinge rear hole to rear door upper body side notch.

 844.3 (33.24)

H.

Rear door rear hinge hole to rear door lower body side notch.

 620.5 (24.43)

BODY ALIGNMENT

BRM-47

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

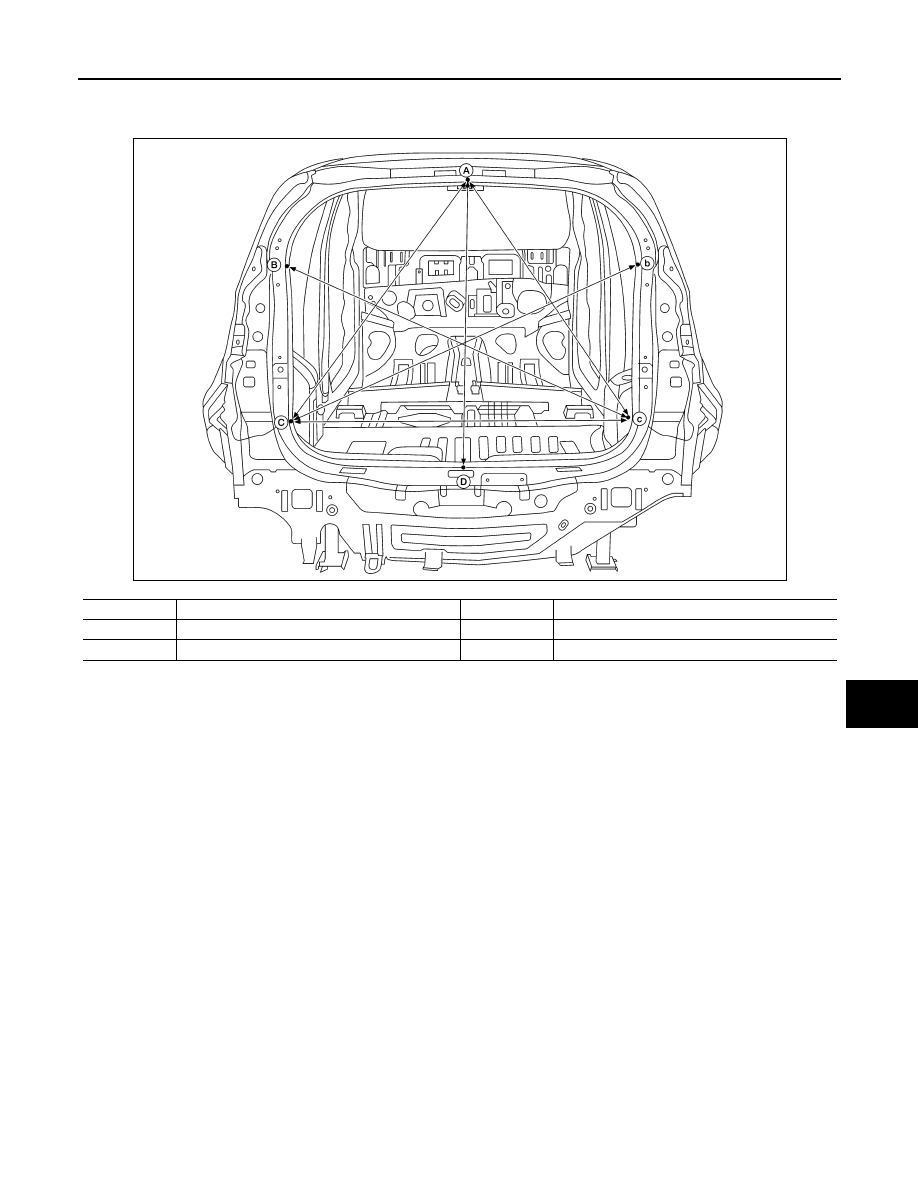

Rear End Panel

INFOID:0000000009345099

Unit: mm (in)

* The vehicle is symmetrically identical dimensions on both RH and LH sides of the vehicle.

MEASUREMENT POINTS

Point

Measurement

Point

Measurement

A - D

853.7 (33.61)

A - C*

871.0 (34.29)

C* - b*

1121.7 (44.16)

C - c

1055.0 (41.5)

ALKIA3132ZZ
