< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

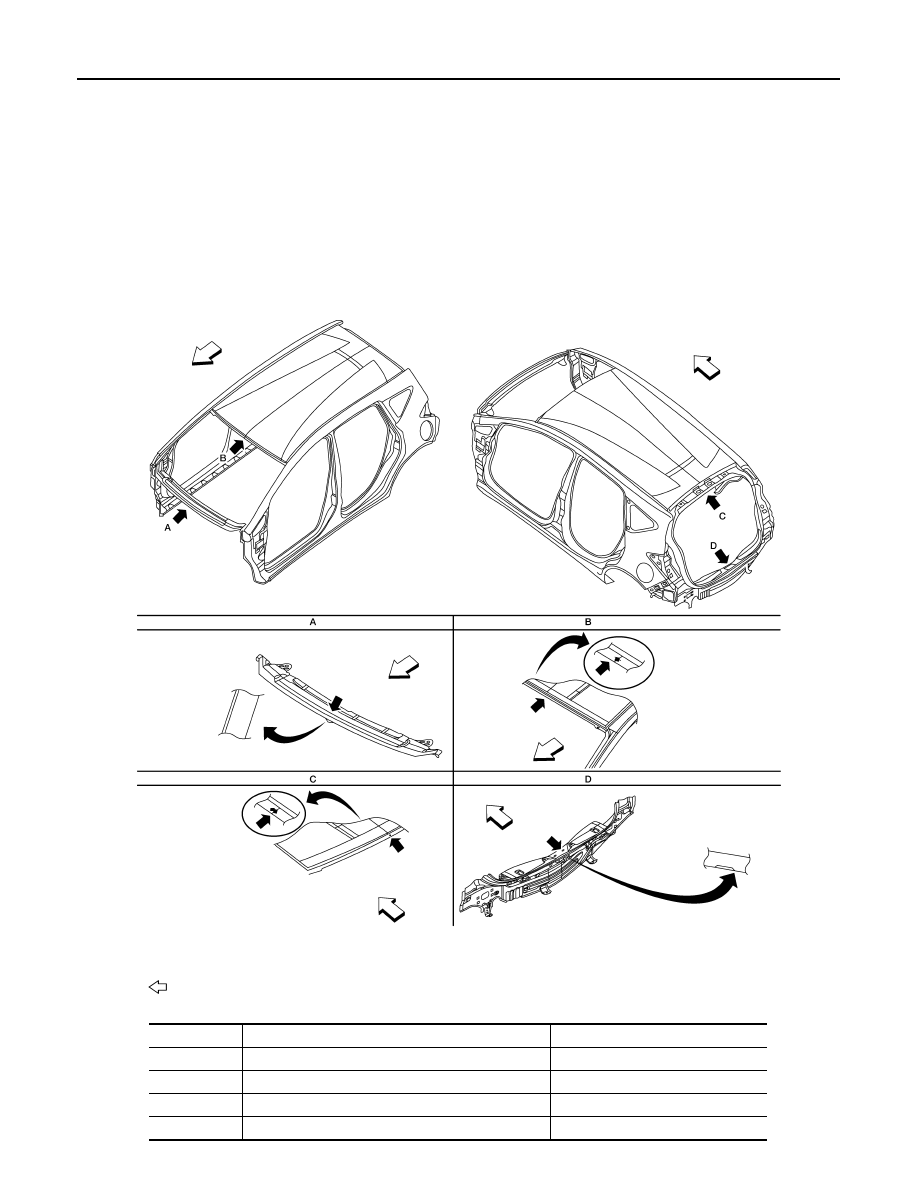

Body Center Marks

INFOID:0000000009345094

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-

aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective

repair will be possible by using these marks together with body alignment specifications.

Front

Point

Portion

Mark

A

Cowl top extension

Hole

B

 Front roof position mark for alignment

Raised dimple

C

Rear roof position mark for alignment

Raised dimple

D

 Rear panel upper

Cut out

AWKIA2546ZZ

BODY ALIGNMENT

BRM-41

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Description

INFOID:0000000009345095

• All dimensions indicated in the figures are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

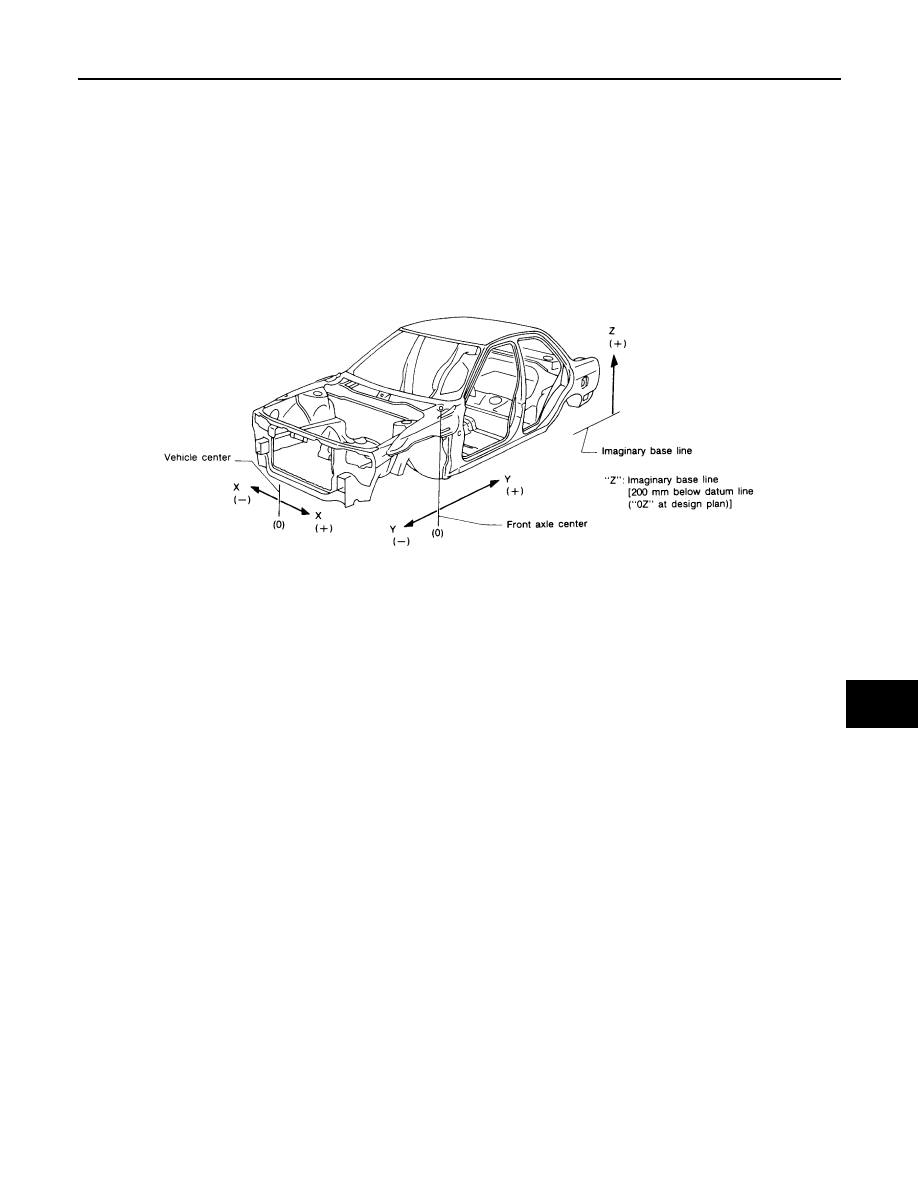

• The coordinates of the measurement points are the distances measured from the standard line of

″X″, ″Y″

and

″Z″.

Engine Compartment

INFOID:0000000009345096

MEASUREMENTS

PIIA0104E

BRM-42

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

ALKIA3123ZZ

Position

Description

Measurement

A.

Center of rear hood hinge hole to center of rear hood hinge hole 12 (0.47)

1407.0 (55.39)

B.

Center shock hole to the center of the shock hole 52 (2.05)

1132.0 (44.57)

C.

Center of front shock tower hole to the center of the front shock tower hole 12 (0.47)

1228.0 (48.35)

D.

Hole for hood locator to the hole for hood locator 12 (0.47)

1346.0 (53.99)

E.

Rear hole for radiator support to rear hole for radiator support 7 (0.28)

893.0 (35.16)

BODY ALIGNMENT

BRM-43

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

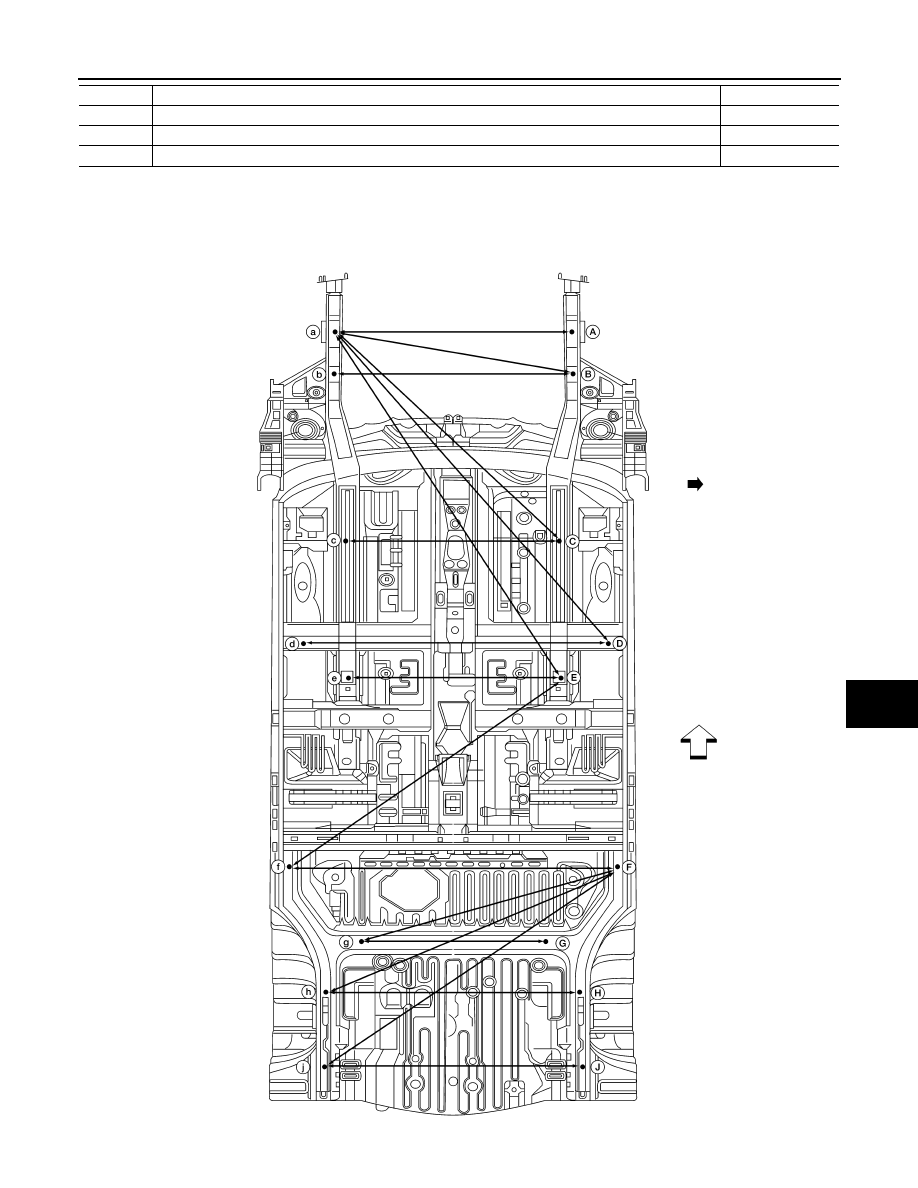

Underbody

INFOID:0000000009345097

MEASUREMENT

F.

   Upper hole for front bumper reinforcement to upper hole front bumper reinforcement 8.2 (0.32)

948.0 (37.32)

G.

Lower hole front radiator support to lower hole front lower radiator support 11 (0.43)

987.0 (38.86)

H.

Rear hinge hole 12 (0.47) to front hole upper radiator support 12 (0.47)

1312.0 (51.65)

J.

Rear hinge hole 12 (0.47) to hood locator hole 7 (0.28)

345.0 (13.58)

ALKIA3128ZZ
