BRM-20

< REMOVAL AND INSTALLATION >

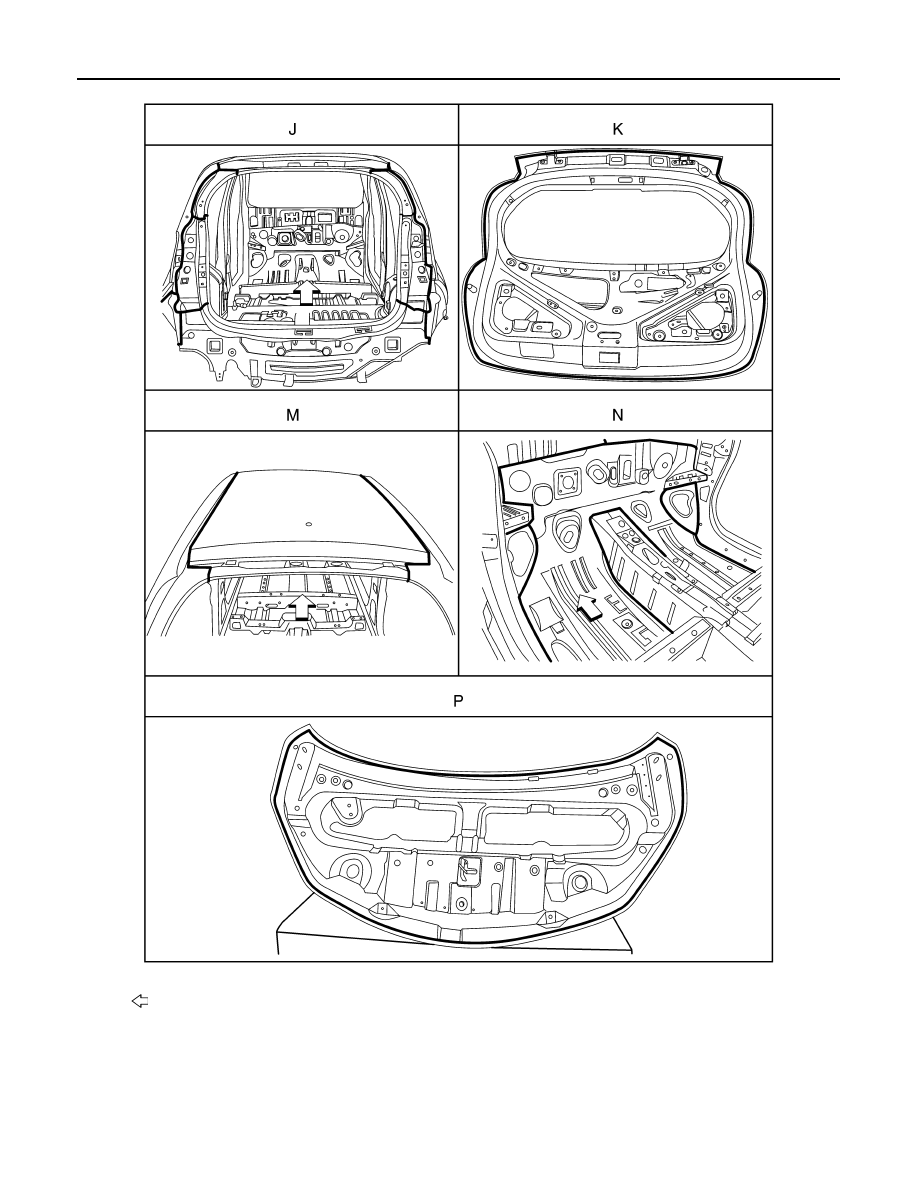

BODY SEALING

ALKIA3142ZZ

Front

REPLACEMENT OPERATIONS

BRM-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REPLACEMENT OPERATIONS

Description

INFOID:0000000009345082

This section is prepared for technicians who have attained a high level of skill and experience in repairing col-

lision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body

repair techniques should not attempt to repair collision-damaged vehicles by using this section.

Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the orig-

inal functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains

additional information, including cautions and warning, that are not including in this manual. Technicians

should refer to both manuals to ensure proper repairs.

Please note that these information are prepared for worldwide usage, and as such, certain procedures might

not apply in some regions or countries.

BRM-22

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

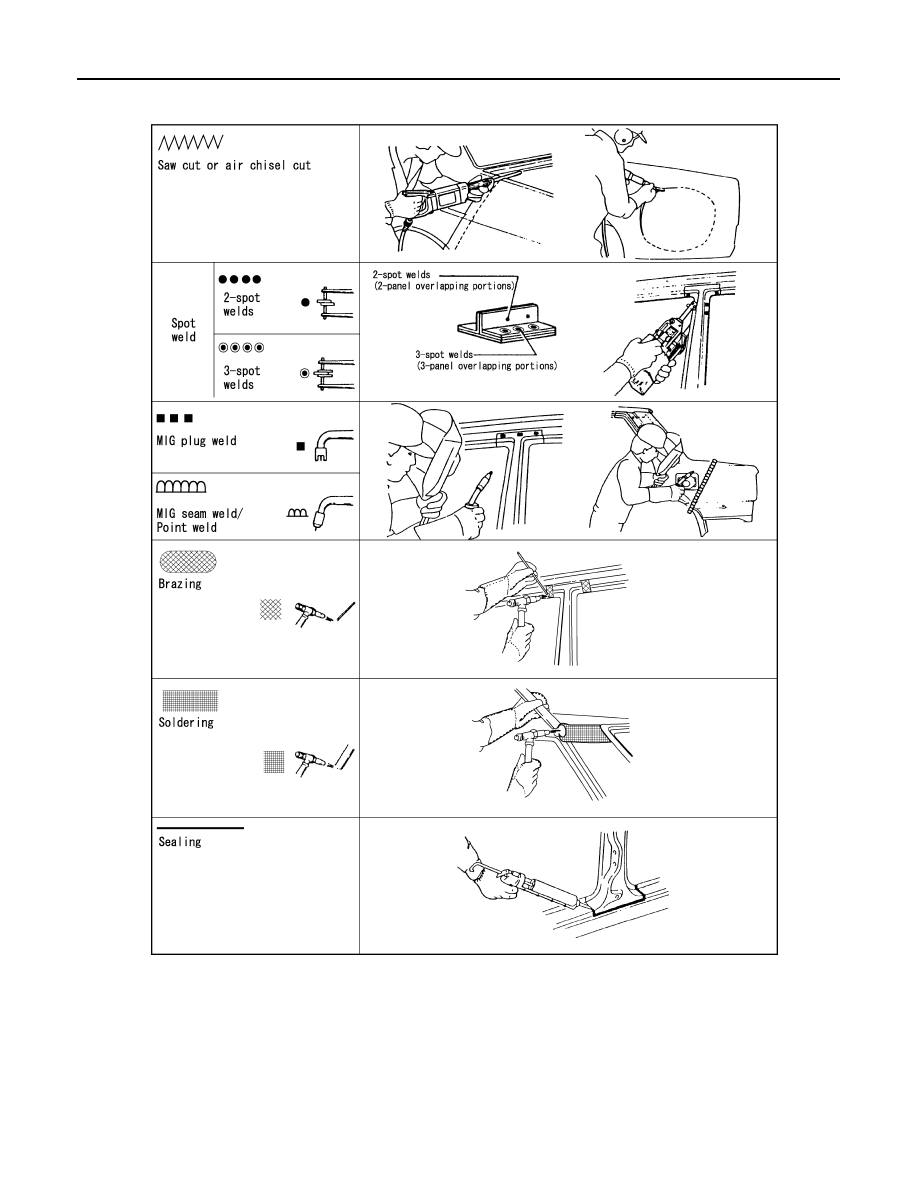

The symbols used in this section for cutting and welding / brazing operations are shown below.

PIIA0149E

REPLACEMENT OPERATIONS

BRM-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

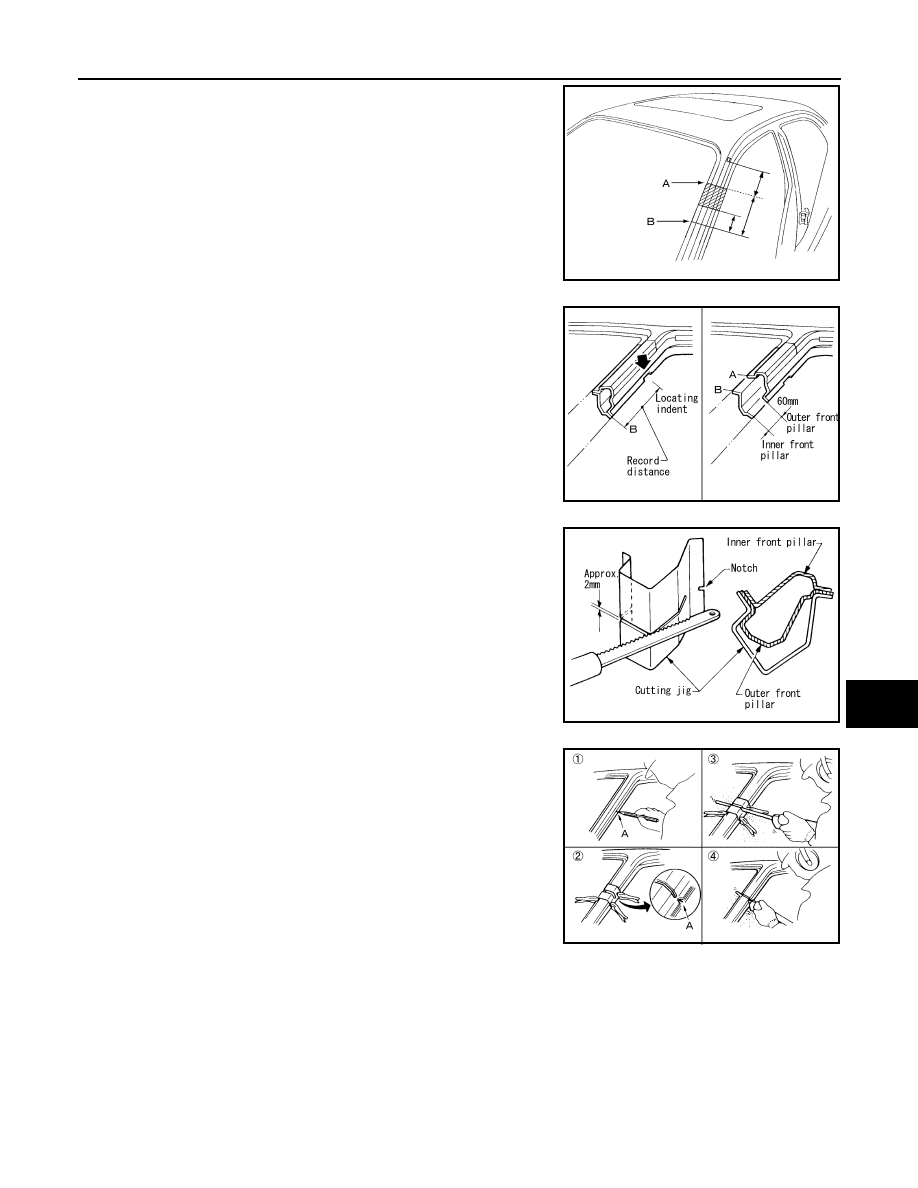

• Front pillar butt joint can be determined anywhere within shaded

area (A) as shown in the figure. The best location for the butt joint

is at position (B) due to the construction of the vehicle. Refer to the

front pillar section.

• Determine cutting position and record distance from the locating

indent (A). Use this distance when cutting the service part. Cut

outer front pillar over 60 mm above inner front pillar cut position

(B).

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit service part to be accurately cut at joint position.

• An example of cutting operation using a cutting jig is as follows.

1. Mark cutting lines.

A: Cut position of outer pillar

B: Cut position of inner pillar

2. Align cutting line with notch on jig. Clamp jig to pillar.

3. Cut outer pillar along groove of jig. (At position A)

4. Remove jig and cut remaining portions.

5. Cut inner pillar at position in same manner.

PIIA0150E

PIIA0151E

PIIA0152E

PIIA0153E
