BODY COMPONENT PARTS

1. Lower dash

2. Lower dash reinforcement (LH/RH)

3. Lower dash close out panel

4. Member dash cross member (LH/RH) 5. Dash side (LH/RH)

6. Front suspension bracket (LH/RH)

7.

Front side member assembly (LH/
RH)

8.

Lower radiator core inner side support
(LH/RH)

9. Front member extension (LH/RH)

10. Upper radiator core support (LH/RH)

11.

Front side member close out plate as-
sembly (LH/RH)

12.

Front side member close out plate
(LH/RH)

13. Radiator core support outer (LH/RH)

14. Strut housing assembly (LH/RH)

15. Strut housing extension (LH/RH)

16. Hood ledge (LH/RH)

17. Rear side member assembly (LH/RH)

18. Rear side member front (LH/RH)

19. Rear side member extension (LH/RH) 20. Inner sill (LH/RH)

21. Front floor side (LH/RH)

22. Front floor center

23. Rear seat back lower reinforcement

24. Rear seat back upper reinforcement

25. Rear floor rear side (LH/RH)

26. Rear floor rear

27. Rear floor cross member

28. Rear floor front

29. Rear floor front extension

A.

Rear side member reinforcement (LH/
RH)

Front

BODY COMPONENT PARTS

BRM-13

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body Component Parts

INFOID:0000000009345077

 Both sided anti-corrosive precoated steel portions

 High strength steel (HSS) portions

 Both sided anti-corrosive steel and HSS portions

ALKIA3223ZZ

BRM-14

< PREPARATION >

BODY COMPONENT PARTS

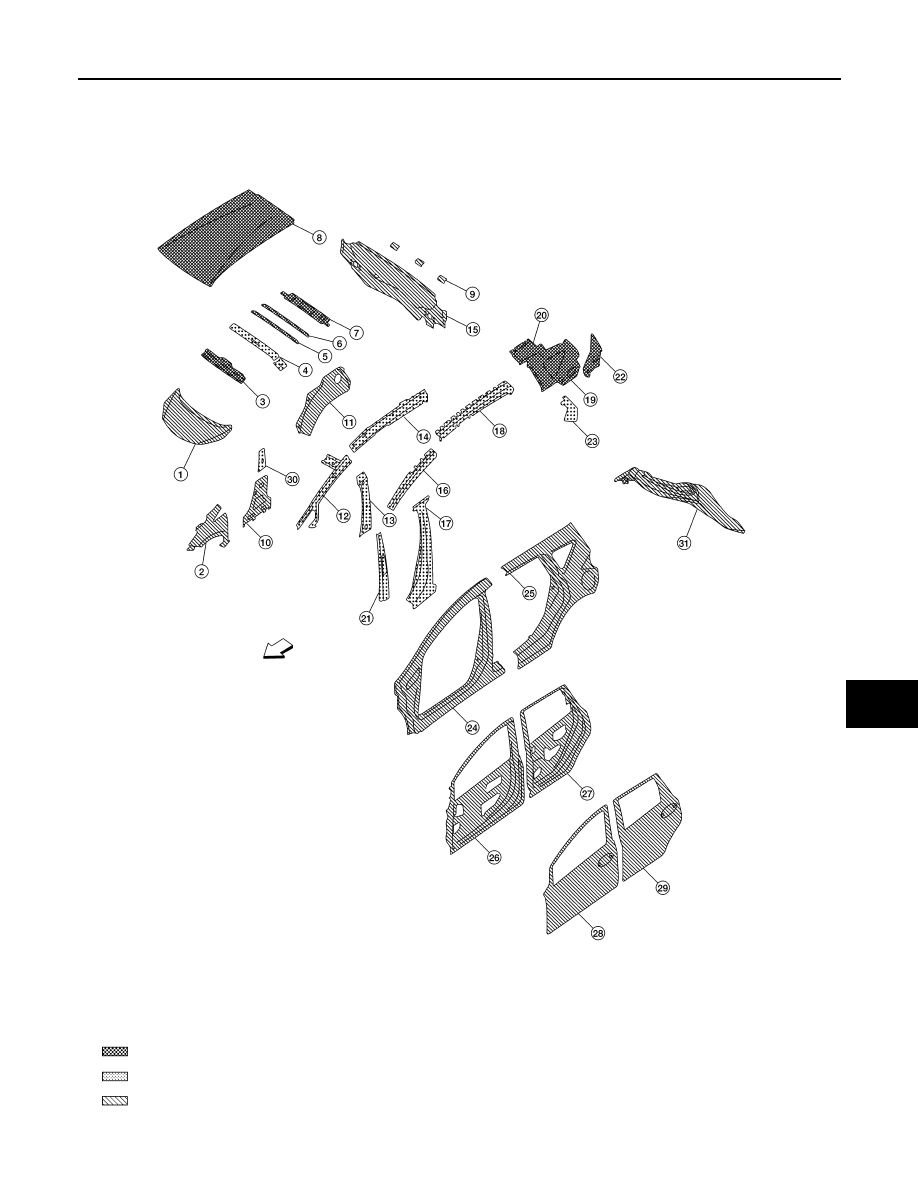

1.

Hood assembly (294 MPa)

2. Front fender (RH/LH) (270 MPa)

3.

Front roof rail assembly (270 MPa)

4.

Roof center reinforcement (590 (MPa) 5. Roof bow 3rd (270 MPa)

6.

Roof bow 4th (270 MPa)

7.

Rear roof rail assembly (270 MPa)

8. Roof (270 MPa)

9.

Rear bumper upper retainer (270
MPa)

10. Center pillar lower (270 MPa)

11.

Outer rear wheel house (LH/RH) (270
MPa)

12. Front inner upper pillar (440 MPa)

13.

Center pillar inner upper (LH/RH) (440
MPa)

14.

Roof rail inner side (LH/RH) (440
MPa)

15. Rear panel upper (270 MPa)

16.

Front pillar outer reinforcement (LH/
RH) (440 MPa)

17.

Center pillar hinge brace (LH/RH)
(440 MPa)

18.

Roof side rail outer reinforcement (LH/
RH) (440 MPa)

19. Rear inner pillar (LH/RH) (270 MPa)

20.

Rear pillar reinforcement (LH/RH)
(270 MPa)

21.

Center pillar reinforcement (LH/RH)
(440 MPa)

22.

Rear pillar reinforcement (LH/RH)
(270 MPa)

23.

Rear seat belt anchor (LH/RH) (440
MPa)

24.

Body side outer front (LH/RH) (270
MPa)

25.

Body side outer rear (LH/RH) (270
MPa)

26. Front door inner (LH/RH) (270 MPa)

27. Rear door inner (LH/RH) (270 MPa)

28. Front door outer (LH/RH) (270 MPa)

29.

Rear door outer panel (LH/RH) (270
MPa)

30.

Center pillar inner reinforcement (LH/
RH) (440 MPa)

31. Rear lid assembly (270 MPa)

Front

CORROSION PROTECTION

BRM-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000009345078

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

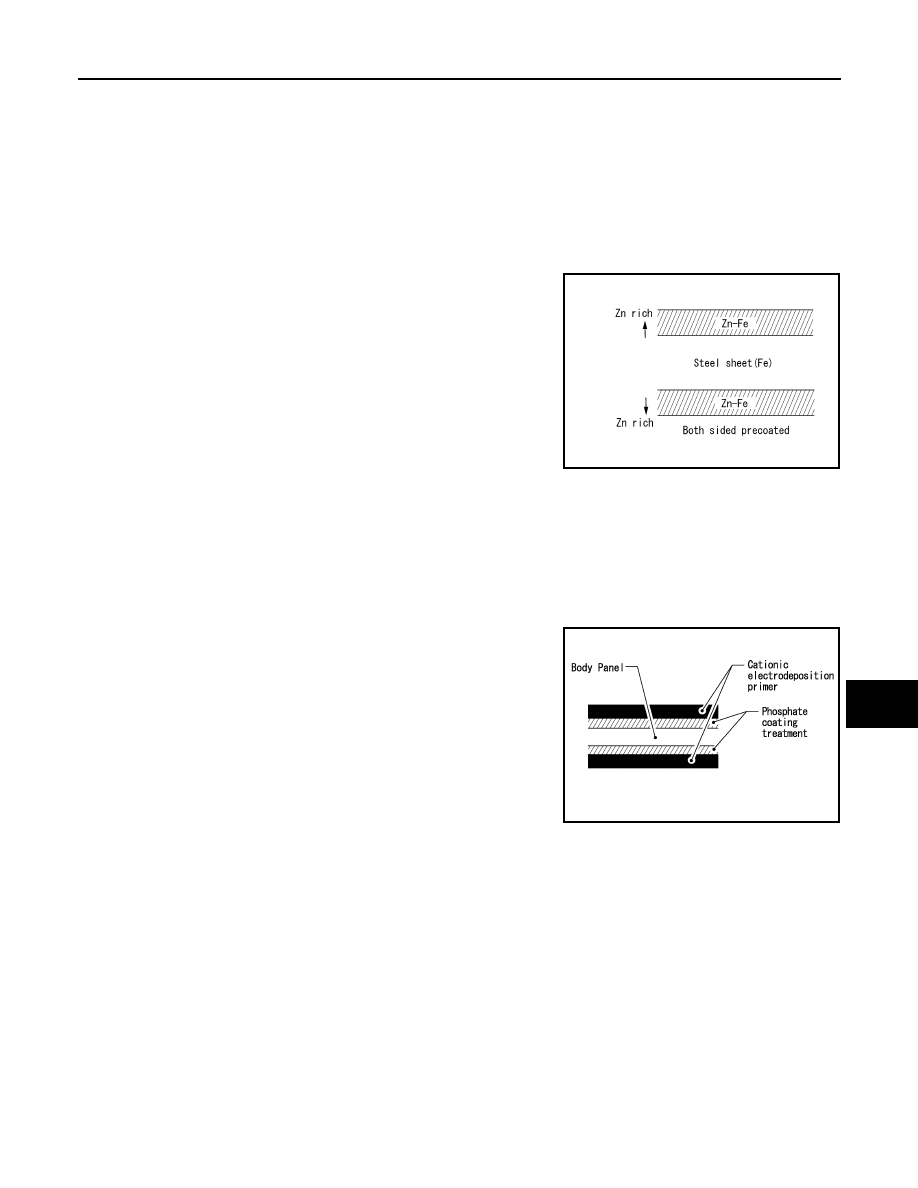

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted replacing conven-

tional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form Zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition primer, which provide excellent corrosion pro-

tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-

INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built

into the vehicle at the factory.

Anti-Corrosive Wax

INFOID:0000000009345079

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

SIIA2294E

PIIA0095E
