BRC-108

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

SENSOR ROTOR

SENSOR ROTOR

FRONT SENSOR ROTOR
FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000009364972

REMOVAL

Remove sensor rotor from steering knuckle. Refer to

FAX-9, "Exploded View"

.

INSTALLATION

Installation is in the reverse order of removal.

REAR SENSOR ROTOR
REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000009364973

REMOVAL

Remove sensor rotor from brake drum. Refer to

RAX-6, "Exploded View"

.

CAUTION:

Do not reuse rear sensor rotor.

INSTALLATION

Installation is in the reverse order of removal.

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-109

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

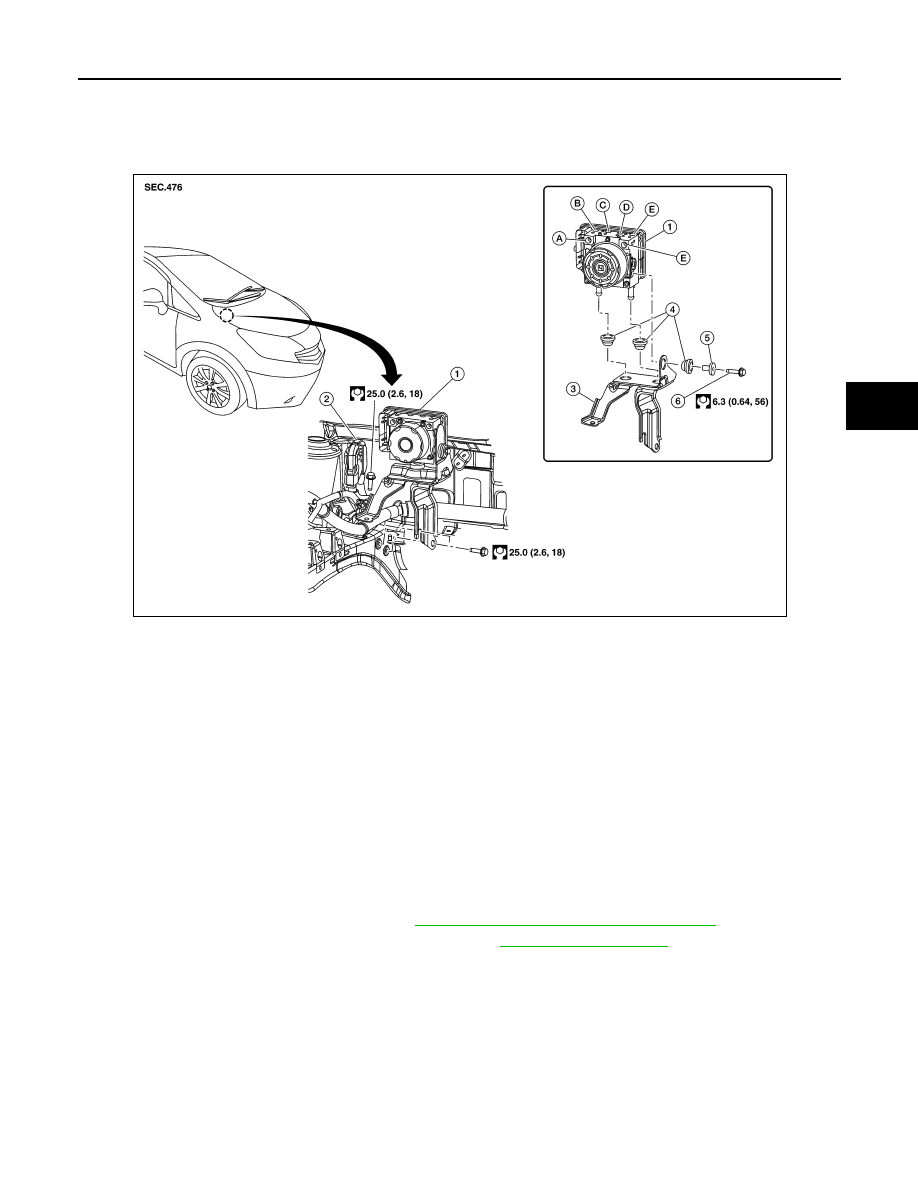

Exploded View

INFOID:0000000009364974

Removal and Installation

INFOID:0000000009364975

REMOVAL

CAUTION:

• Before servicing, disconnect the battery cable from negative terminal.

• Do not remove actuator by holding harness.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Disconnect negative battery cable. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Disconnect vacuum hose from intake manifold. Refer to

BR-32, "Exploded View"

.

1.

ABS actuator and electric unit (con-
trol unit)

2.

ABS actuator and electric unit (con-
trol unit) harness connector

3.

Bracket

4.

Bushing

5.

Insulating clip

6.

Bolt

A.

To master cylinder secondary side

B.

To rear brake tube (RH)

C.

To front brake tube (LH)

D.

To front brake tube (RH)

E.

To rear brake tube (LH)

F.

To master cylinder primary side

AWFIA1024ZZ

BRC-110

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

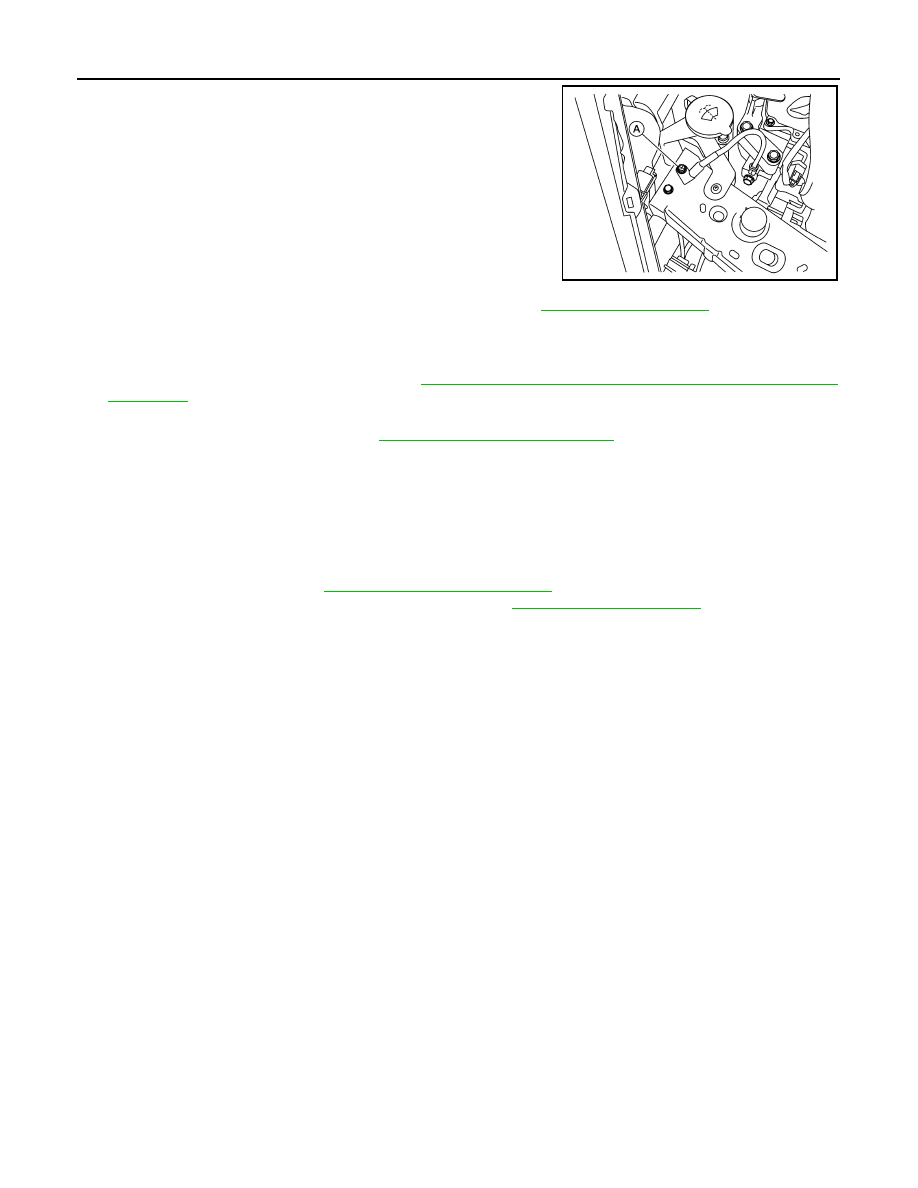

3. Remove ground harness bolt (A) and ground harness from radi-

ator core support.

4. Disconnect high-pressure pipe from expansion valve. Refer to

HA-27, "Exploded View"

.

CAUTION:

Cap or wrap the joint of the A/C piping and expansion valve with suitable material such as vinyl

tape to avoid the entry of air.

5. Remove low-pressure flexible hose. Refer to

HA-27, "LOW-PRESSURE FLEXIBLE HOSE : Removal and

Installation"

.

6. Loosen flare nut from brake tubes using a flare nut wrench, then remove brake tubes from ABS actuator

and electric unit (control unit). Refer to

BR-21, "FRONT : Exploded View"

.

7. Disconnect the harness connector from the ABS actuator and electric unit (control unit).
8. Remove ABS actuator and electric unit (control unit) bracket bolts.
9. Remove the ABS actuator and electric unit (control unit) and bracket as an assembly.
10. Remove bracket and bushing from ABS actuator and electric unit (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

• Bleed the brake system. Refer to

BR-12, "Bleeding Brake System"

.

• Adjust the neutral position of steering angle sensor. Refer to

BRC-52, "Work Procedure"

.

CAUTION:

• Replace the ABS actuator electric unit (control unit) if it has been dropped or sustained an impact.

• Do not install actuator by holding harness.

• After installing harness connector in the ABS acutator and electric until (control unit), make sure

harness connector is securely locked.

ALKIA3174ZZ

VDC OFF SWITCH

BRC-111

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC OFF SWITCH

Removal and Installation

INFOID:0000000009364976

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

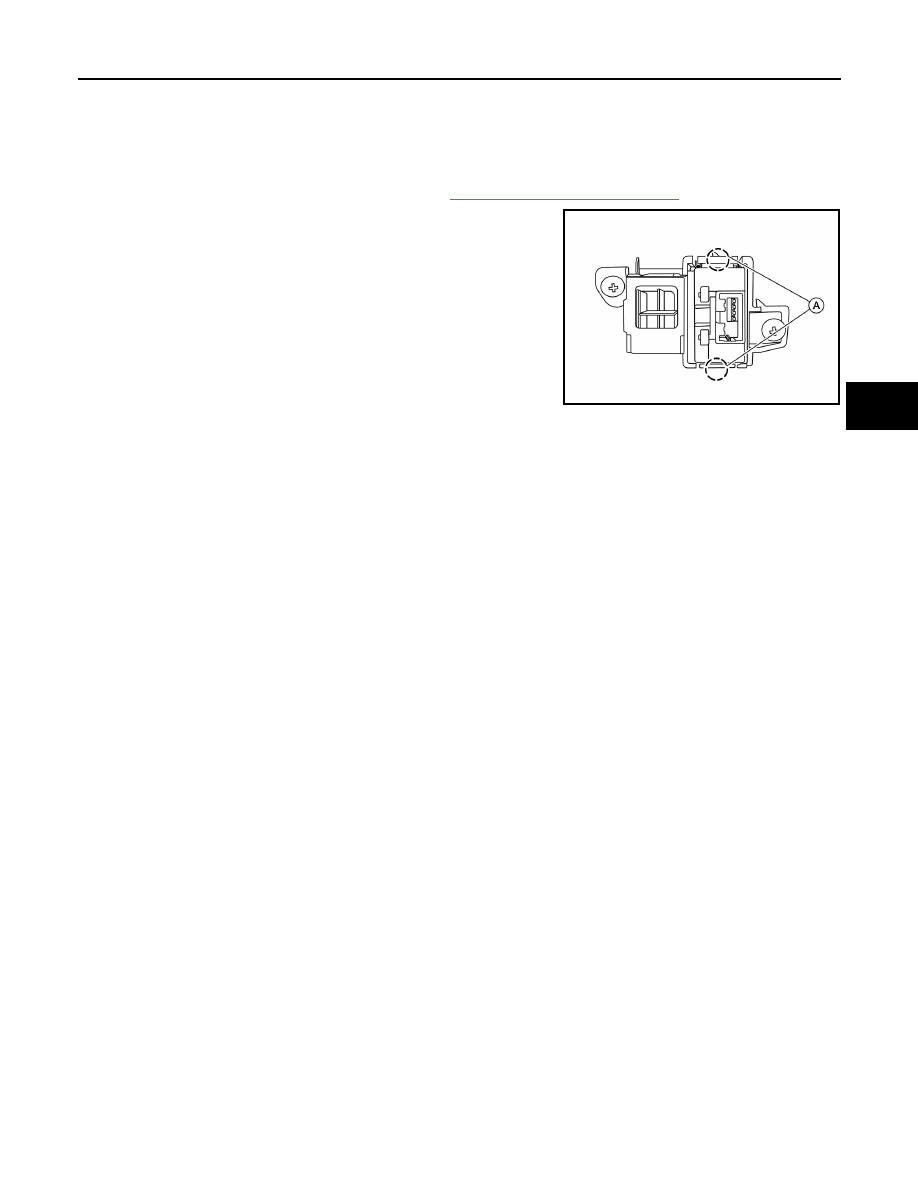

2. Release pawls (A) using suitable tool and remove the VDC OFF

switch.

INSTALLATION

Installation is in the reverse order of removal.

ALFIA0211ZZ
