NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000009364967

Symptom

Result

Slight vibrations are felt on the brake pedal and operation noises occur when VDC, TCS or ABS is activated.

This is a normal condi-
tion due to the VDC,
TCS or ABS activation.

Stopping distance is longer than that of vehicles without ABS when the vehicle drives on rough, gravel, or
snow-covered (fresh, deep snow) roads.

The brake pedal moves and generates noises when TCS or VDC is activated due to rapid acceleration or
sharp turn.

The brake pedal vibrates and motor operation noises occur from the engine room after the engine starts and
just after the vehicle starts.

This is normal, and it is
caused by the ABS op-
eration check.

Depending on the road conditions, the driver may experience a sluggish feel in the brake pedal.

This is normal, because
TCS places the highest
priority on the optimum
traction (stability).

TCS may activate momentarily if wheel speed changes when driving where road friction coefficient varies,
when downshifting, or when fully depressing accelerator pedal.

The ABS warning lamp and SLIP indicator lamp may turn ON when the vehicle is subject to strong shaking
or large vibration, such as when the vehicle is rotating on a turntable or located on a ship while the engine
is running.

In this case, restart the
engine on a normal
road. If the normal con-
dition is restored, there
is no malfunction. At
that time, erase the self-
diagnosis memory.

VDC may not operate normally or the ABS warning lamp, and SLIP indicator lamp may illuminate when driv-
ing on a road that is extremely slanted (e.g., bank in a circuit course).

A malfunction may occur in the yaw rate/side/decel G sensor system when the vehicle turns sharply, such
as during a spin turn, axle turn, or drift driving, while the VDC function is OFF (VDC OFF indicator lamp illu-
minated).

The vehicle speed will not increase even though the accelerator pedal is depressed, when inspecting the
speedometer on a 2-wheel chassis dynamometer.

Normal (Deactivate the
VDC/TCS function be-
fore performing an in-
spection on a chassis
dynamometer.)

SLIP indicator lamp may simultaneously turn ON when low tire pressure warning lamp turns ON.

This is not a VDC sys-
tem error but results
from characteristic
change of tire.

WHEEL SENSOR

BRC-105

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

REMOVAL AND INSTALLATION

WHEEL SENSOR

FRONT WHEEL SENSOR

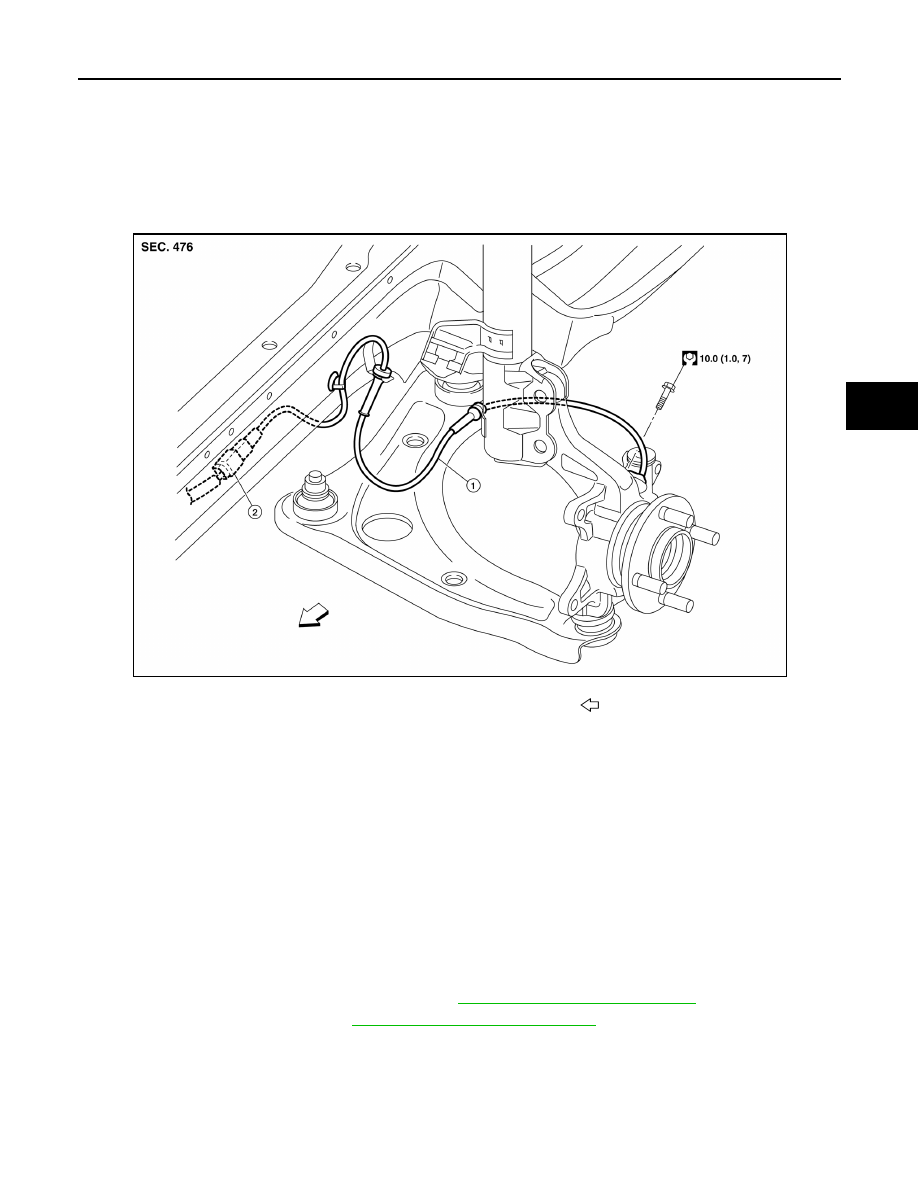

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000009364968

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000009364969

CAUTION:

• Be careful not to damage front wheel sensor edge and sensor rotor teeth.

• When removing the front wheel hub, first remove the front wheel sensor from the steering knuckle.

Failure to do so may result in damage to the front wheel sensor, making the front wheel sensor inop-

erative.

• Pull out the front wheel sensor, being careful to turn it as little as possible. Do not pull on the front

wheel sensor harness.

• Before installation, check if foreign objects, such as iron fragments, are adhered to the pick-up part

of the front wheel sensor or to the inside of the hole in the steering knuckle for the front wheel sen-

sor, or if a foreign object is caught in the surface of the sensor rotor. Fix as necessary and then

install the front wheel sensor.

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-45, "Removal and Installation"

.

2. Remove fender protector. Refer to

EXT-36, "Removal and Installation"

.

3. Disconnect the harness connector from the front wheel sensor.
4. Remove bolt and front wheel sensor from steering knuckle.
5. Release front wheel sensor harness clips from the vehicle.

INSTALLATION

Installation is in the reverse order of the removal.

1.

Front wheel sensor

2.

Harness connector

Front

AWFIA0865GB

BRC-106

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

WHEEL SENSOR

CAUTION:

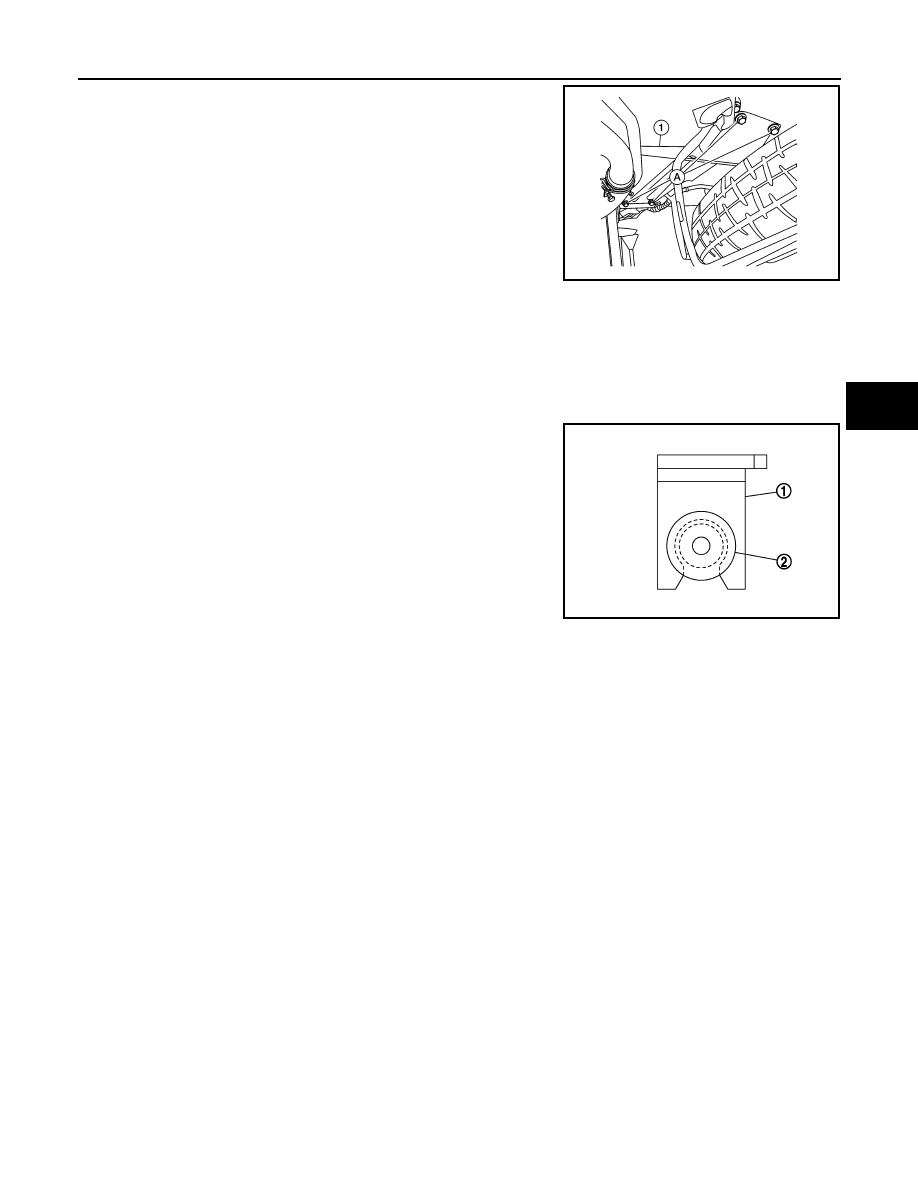

Do not twist front wheel sensor harness when installing front

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that front wheel sensor harness is not

twisted after installation.

REAR WHEEL SENSOR

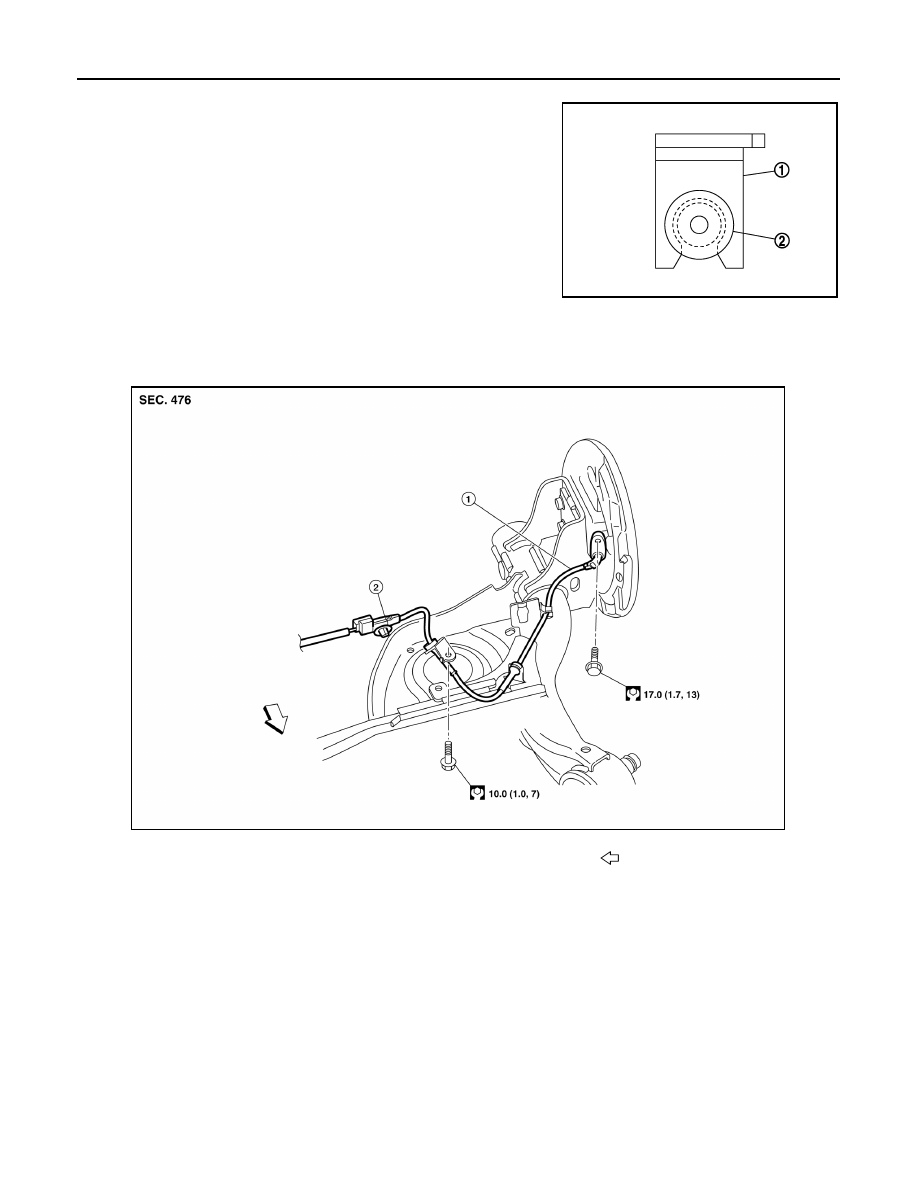

REAR WHEEL SENSOR : Exploded View

INFOID:0000000009364970

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000009364971

CAUTION:

• Be careful not to damage rear wheel sensor edge and sensor rotor teeth.

• When removing the rear wheel hub, first remove the rear wheel sensor from the back plate. Failure to

do so may result in damage to the rear wheel sensor, making the rear wheel sensor inoperative.

• Pull out the rear wheel sensor, being careful to turn it as little as possible. Do not pull on the rear

wheel sensor harness.

• Before installation, check if foreign objects, such as iron fragments, are adhered to the pick-up part

of the rear wheel sensor or to the inside of the hole in the back plate for the rear wheel sensor, or if a

foreign object is caught in the surface of the sensor rotor. Fix as necessary and then install the rear

wheel sensor.

REMOVAL

JPFIC0209ZZ

1.

Rear wheel sensor

2.

Harness connector

Front

AWFIA0866GB

WHEEL SENSOR

BRC-107

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1. Remove bolts (A) and support bracket (1) (LH side only).

2. Disconnect the harness connector from the rear wheel sensor.
3. Release rear wheel sensor harness clips from the vehicle.
4. Remove bolts and rear wheel sensor from back plate.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not twist rear wheel sensor harness when installing rear

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that rear wheel sensor harness is not twisted

after installation.

ALFIA0391ZZ

JPFIC0209ZZ
