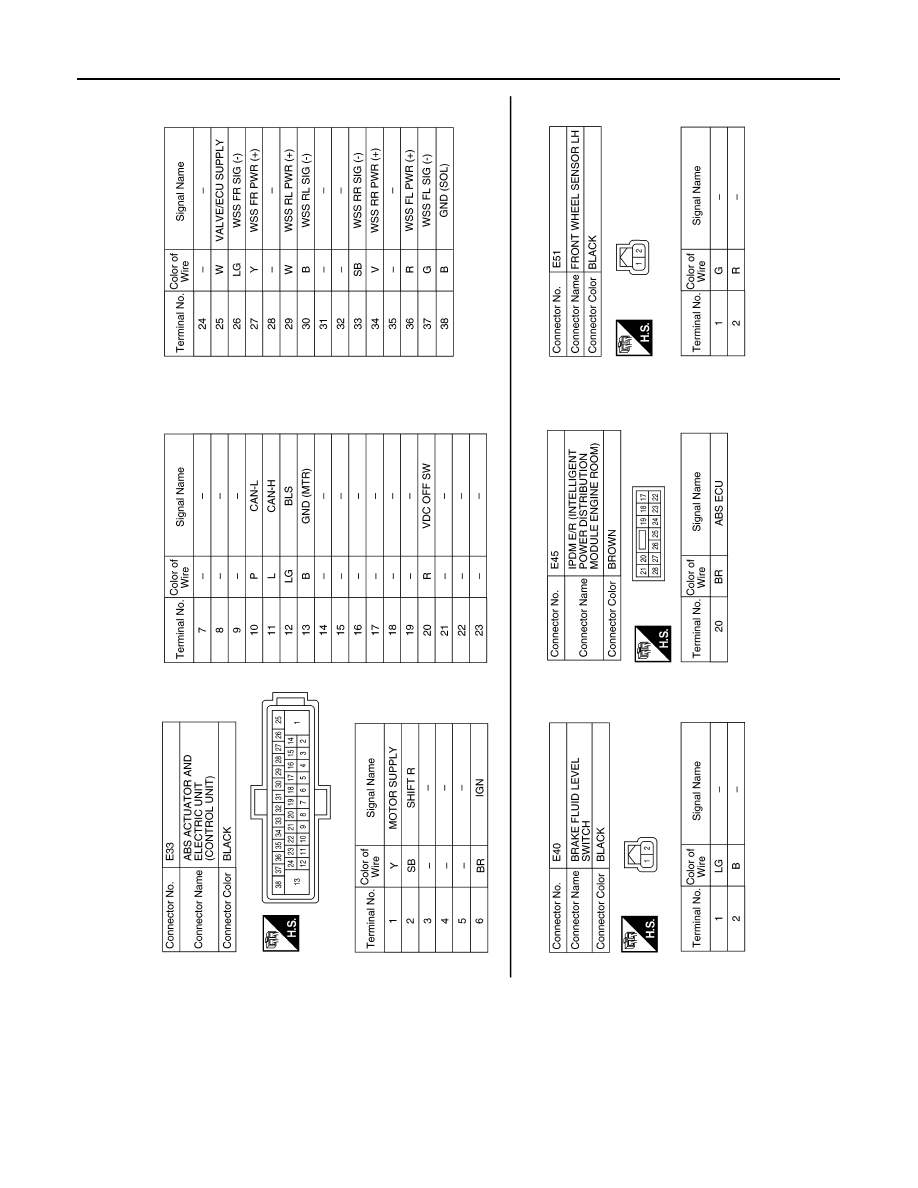

BRC-48

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM

AAFIA0174GB

BRAKE CONTROL SYSTEM

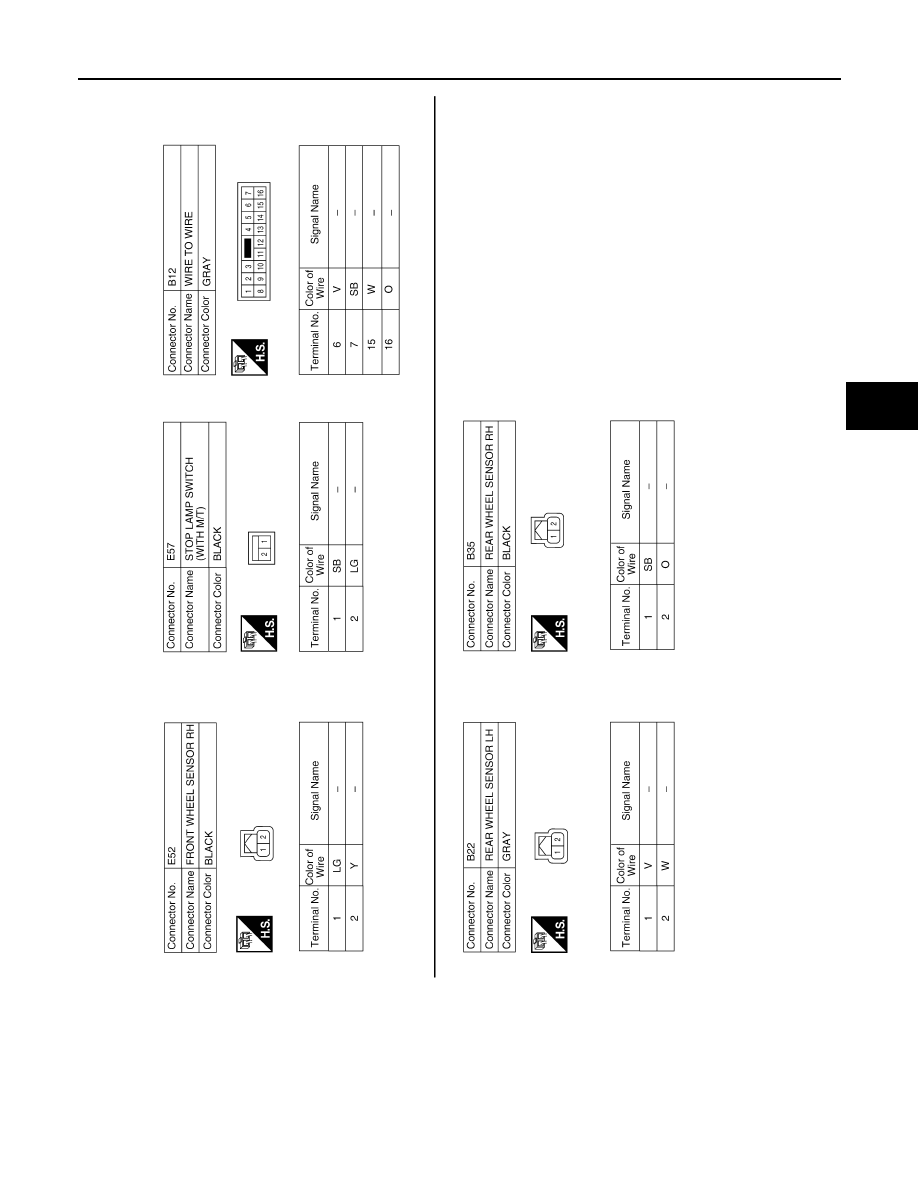

BRC-49

< WIRING DIAGRAM >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

AAFIA0175GB

BRC-50

< BASIC INSPECTION >

[VDC/TCS/ABS]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

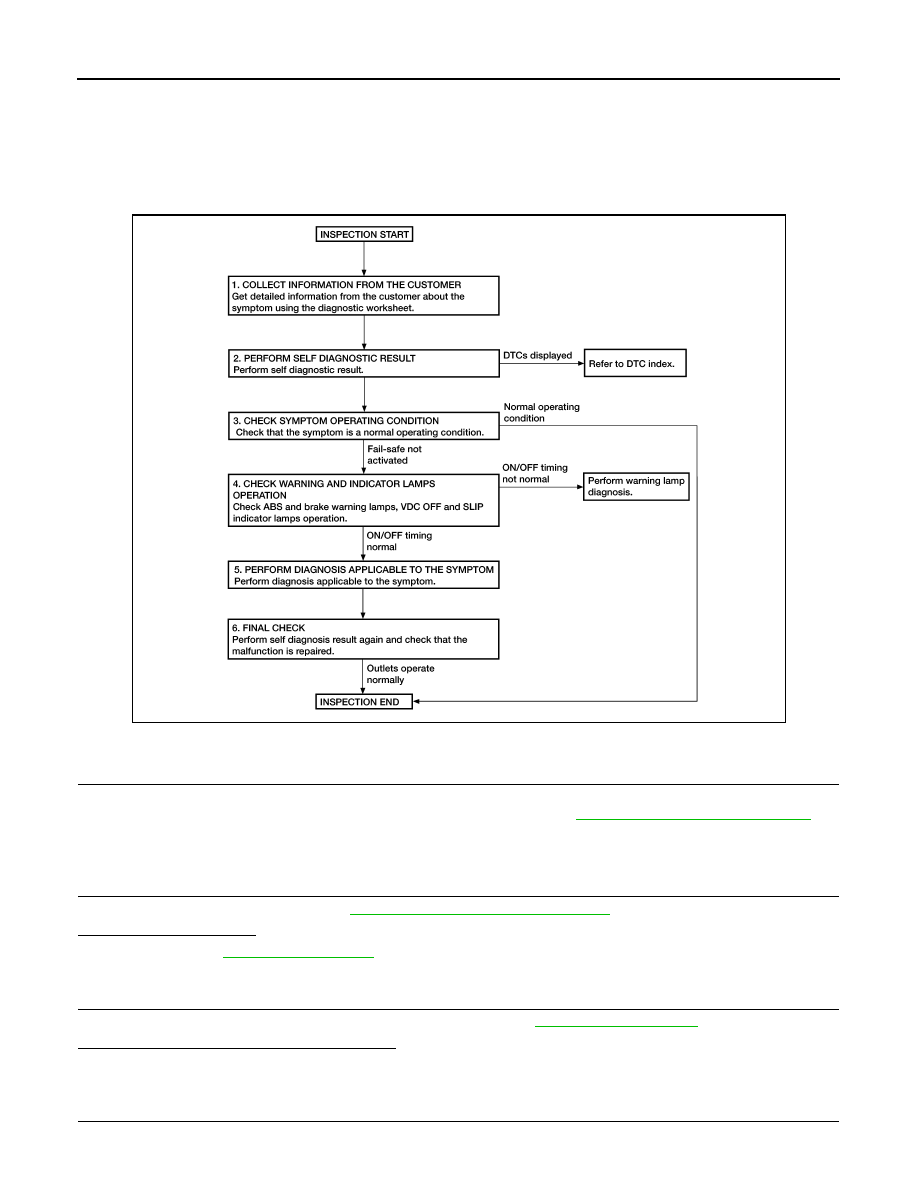

Work Flow

INFOID:0000000009364901

OVERALL SEQUENCE

DETAILED FLOW

1.

COLLECT INFORMATION FROM THE CUSTOMER

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred) using the diagnostic worksheet. Refer to

BRC-51, "Diagnostic Work Sheet"

.

>> GO TO 2.

2.

PERFORM SELF DIAGNOSTIC RESULT

Perform self diagnostic result. Refer to

BRC-30, "CONSULT Function (ABS)"

.

Are any DTCs displayed?

YES

>> Refer to

BRC-41, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK SYMPTOM OPERATING CONDITION

Check that the symptom is a normal operating condition. Refer to

BRC-104, "Description"

.

Is the symptom a normal operating condition?

YES

>> Inspection End.

NO

>> GO TO 4.

4.

CHECK WARNING AND INDICATOR LAMPS OPERATION

AWFIA0208GB

DIAGNOSIS AND REPAIR WORK FLOW

BRC-51

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Check ABS and brake warning lamps, and VDC OFF and SLIP indicator lamps operation. Refer to

MWI-7,

"METER SYSTEM : System Description"

.

Is ON/OFF timing normal?

YES

>> GO TO 5.

NO

>> Perform warning lamp diagnosis. Refer to

BRC-93, "Component Function Check"

 (ABS warning

lamp),

BRC-94, "Component Function Check"

 (brake warning lamp),

BRC-95, "Component Func-

tion Check"

 (VDC OFF indicator lamp) or

BRC-96, "Component Function Check"

 (SLIP indicator

lamp).

5.

PERFORM DIAGNOSIS APPLICABLE TO THE SYMPTOM

Perform diagnosis applicable to the symptom. Refer to

BRC-97, "Symptom Table"

.

>> GO TO 6.

6.

FINAL CHECK

Perform self diagnostic result again, and check that the malfunction is repaired. After checking, erase the self

diagnosis memory. Refer to

BRC-30, "CONSULT Function (ABS)"

.

>> Inspection End.

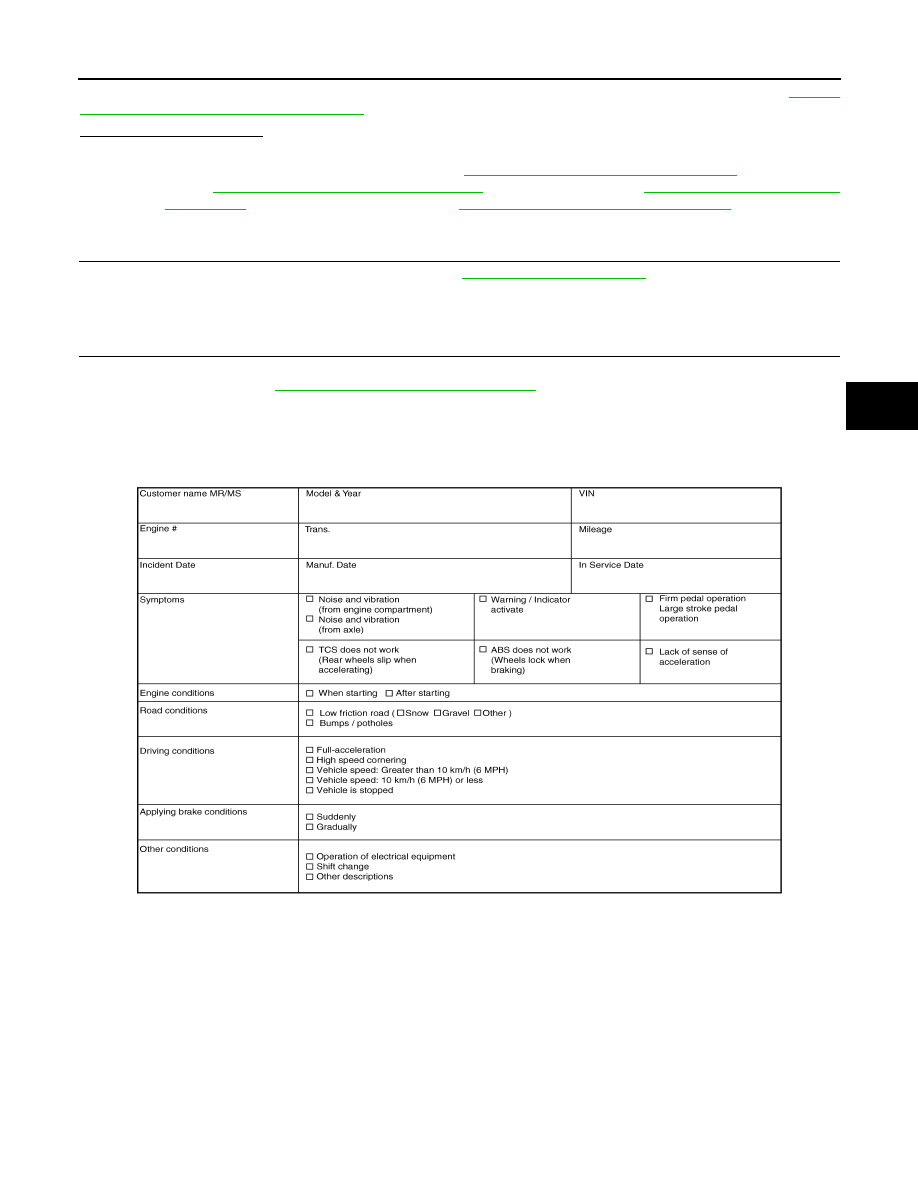

Diagnostic Work Sheet

INFOID:0000000009364902

SFIA3265E
