Nissan Versa Note. Manual - part 7





AV-20

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

AUDIO UNIT

37

(B)

Ground Antenna amp. ON signal

Output

ON

Audio unit ON, AM or FM
selected.

Battery voltage

38

(B)

Ground AM/FM antenna signal

Input

ON

Audio unit ON, AM or FM
selected.

5.0 V

Terminal

 (Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

AV

BLUETOOTH® CONTROL UNIT

AV-21

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH® CONTROL UNIT

Reference Value

INFOID:0000000009459916

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA3057ZZ

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

output

Ignition

switch

Operation

1

 (Y/G)

Ground Battery power

Input

OFF

–

Battery voltage

2

(L/Y)

Ground ACC power

Input

ACC

–

Battery voltage

3

(O)

Ground  IGN power

Input

ON

–

Battery voltage

4

(B)

Ground Ground

–

ON

–

0V

7

(P)

8

(Shield)

MIC in signal

Input

–

–

–

9

(W)

10

(B)

Audio out

Output

ACC

or

ON

Bluetooth

®

 control unit

sends audio signal

11

(SB)

Ground Tel ON signal

Output

ON

While using hands free
phone system

 0V

Except above

5.0V

12

(R)

14

(G)

LAD IN 1

Input

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Except above

5.0V

13

(P)

14

(G)

LAD IN 2

Input

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Except above

5.0V

SKIB3609E

AV-22

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

BLUETOOTH® CONTROL UNIT

17

(BR)

19

(GR)

LAD OUT 1

Output

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Except above

5.0V

18

(V)

19

(GR)

LAD OUT 2

Output

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Except above

5.0V

21

(B)

Ground CONT2 Ground

–

ON

–

0V

22

(B)

Ground CONT3 Ground

–

ON

–

0V

24

(B)

Ground CONT5 Ground

–

ON

–

0V

27

(B)

Ground CONT6 Ground

–

ON

–

0V

28

 (Y)

Ground

Vehicle speed signal (2-
pulse)

Input

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

29

(L)

Ground Microphone power

Output

ON

–

5V

33

(SB)

–

AV communication (H)

–

–

–

—

34

(LG)

–

AV communication (L)

–

–

–

—

37

(LG)

–

AV communication jumper
(H)

–

–

–

—

38

(LG)

–

AV communication jumper
(H)

–

–

–

—

39

(SB)

–

AV communication jumper
(L)

–

–

–

—

40

(SB)

–

AV communication jumper
(L)

–

–

–

—

41

(B)

–

Bluetooth

®

 antenna

–

–

–

—

42

(Shield)

–

Bluetooth

®

 antenna shield

–

–

–

—

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

output

Ignition

switch

Operation

PKIA1935E

AV

BASE AUDIO

AV-23

< WIRING DIAGRAM >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

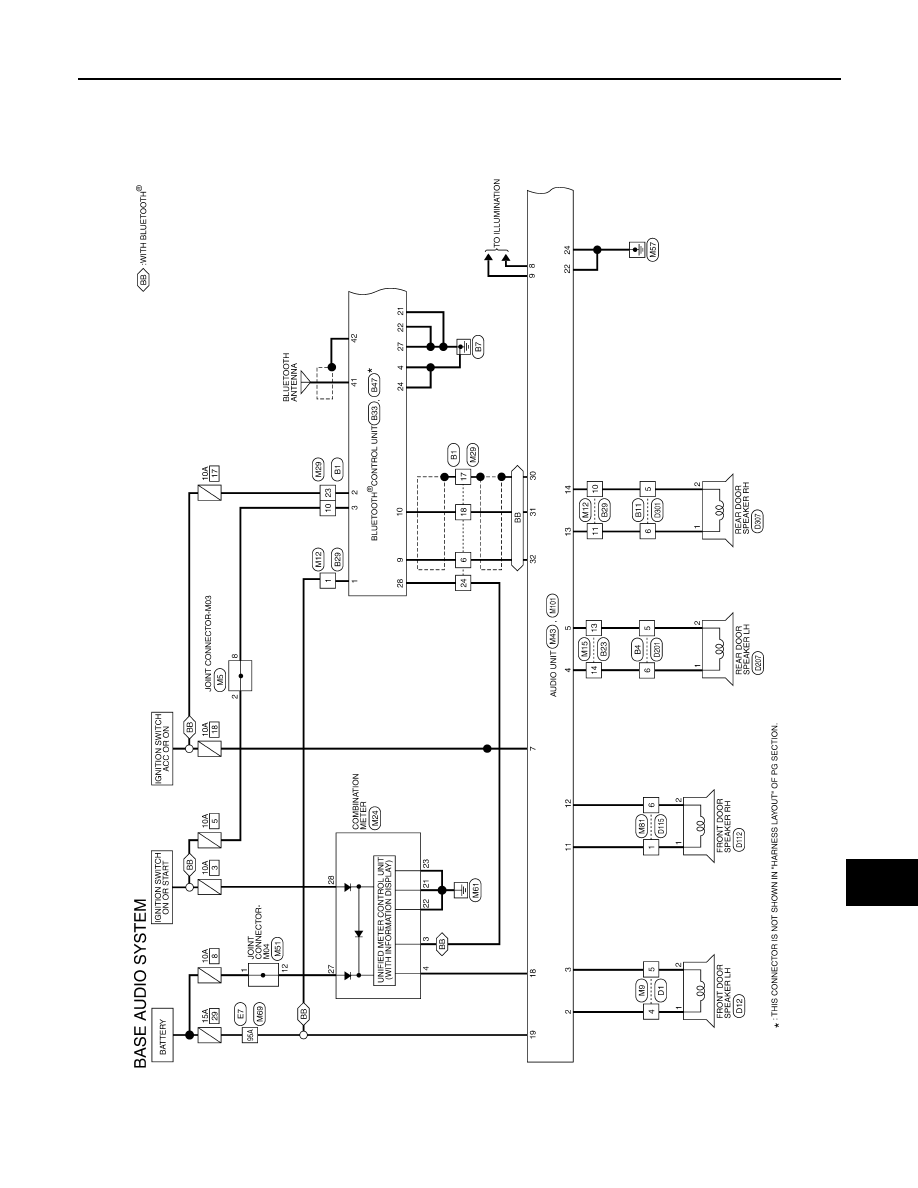

WIRING DIAGRAM

BASE AUDIO

Wiring Diagram

INFOID:0000000009459917

AANWA0887GB
