Nissan Versa Note. Manual - part 6





AV-16

< SYSTEM DESCRIPTION >

[BASE AUDIO]

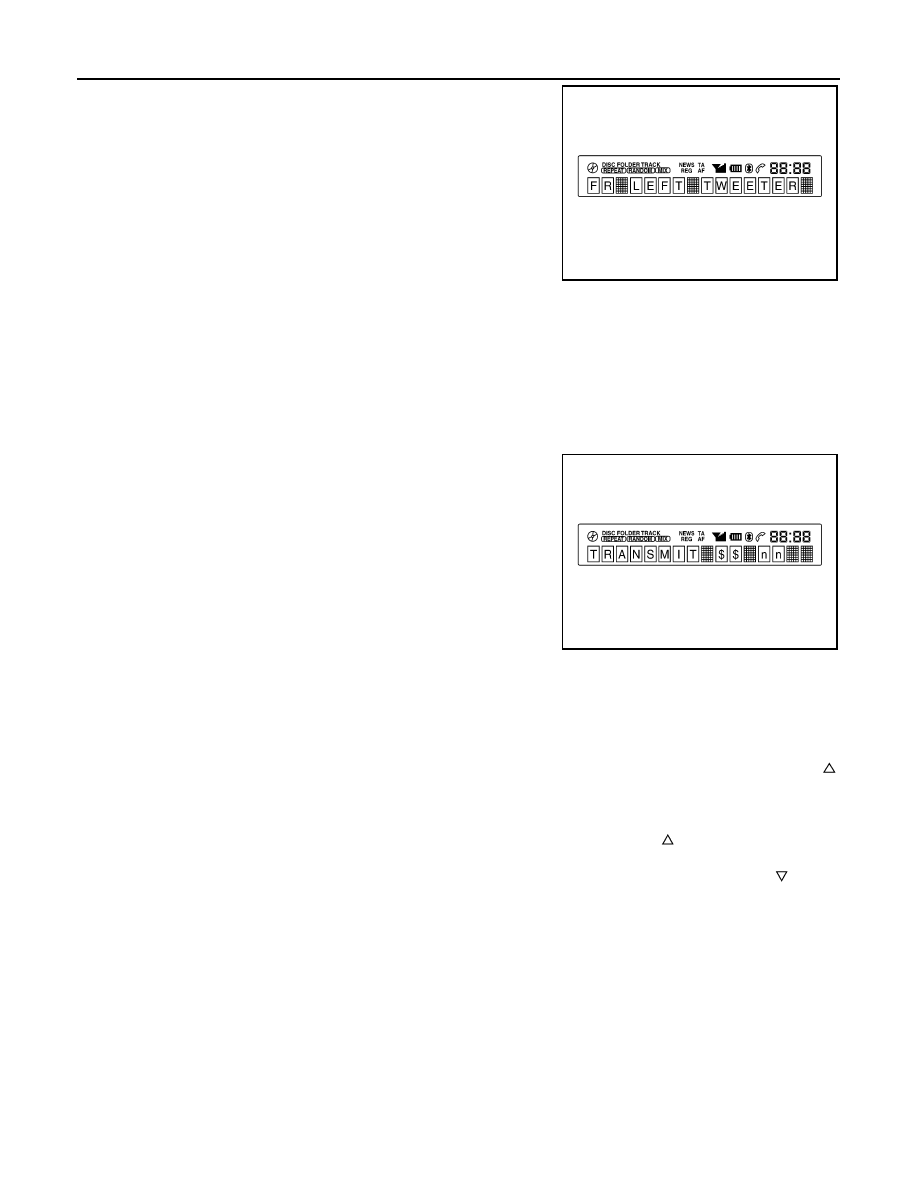

DIAGNOSIS SYSTEM (AUDIO UNIT)

1. Press the RPT/DRM button to enter speaker channel check, and

the front left tweeter (front tweeter LH) is displayed.

2. With each additional press of the RPT/DRM button, the following information is available:

-

FR RIGHT TWEETER (front tweeter RH)

-

FR RIGHT (front door speaker RH)

-

RR RIGHT (rear speaker RH)

-

RR LEFT (rear speaker LH)

-

FR LEFT (front door speaker LH)

3. Hold the RPT/DRM button down to return to all display segments screen.

Communication Diagnosis

1. Press the DISP button, and the M-CAN message transmission

error history screen is displayed.

2. Press the DISP button again, and the TEL $$ nn (CMF message reception error history from M-CAN TEL)

screen is displayed.

3. Press the DISP button again, and the TROUBLE DEL. (deletion of M-CAN message communication his-

tory) screen is displayed. To retain the M-CAN message communication history and return to the commu-

nication diagnosis mode screen, press the DISP button.

4. To proceed to the M-CAN message communication history deletion screen, press the SEEK/TRACK

button. The REC DEL-NO? (selection of M-CAN message communication history deletion) screen is dis-

played. To cancel M-CAN message communication history deletion, wait 6 seconds and you will be

returned to the TROUBLE DEL. (deletion of M-CAN message communication history) screen. To proceed
with M-CAN message communication history deletion, press the SEEK/TRACK   button again.

5. The REC DEL-YES?@ (selection of M-CAN message communication history deletion) screen is dis-

played. To cancel M-CAN message communication history deletion, press the SEEK/TRACK   button

and you will be returned to the REC DEL-NO? (selection of M-CAN message communication history dele-

tion) screen. To proceed with M-CAN message communication history deletion, wait 6 seconds and the

communication history deletion will be executed. After the communication history deletion has been exe-

cuted, you will be returned to the TROUBLE DEL. (deletion of M-CAN message communication history)

screen. To return to the communication diagnosis mode screen, press the DISP button.

ALNIA1384GB

ALNIA1386GB

AV

DIAGNOSIS SYSTEM (BLUETOOTH® CONTROL UNIT)

AV-17

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

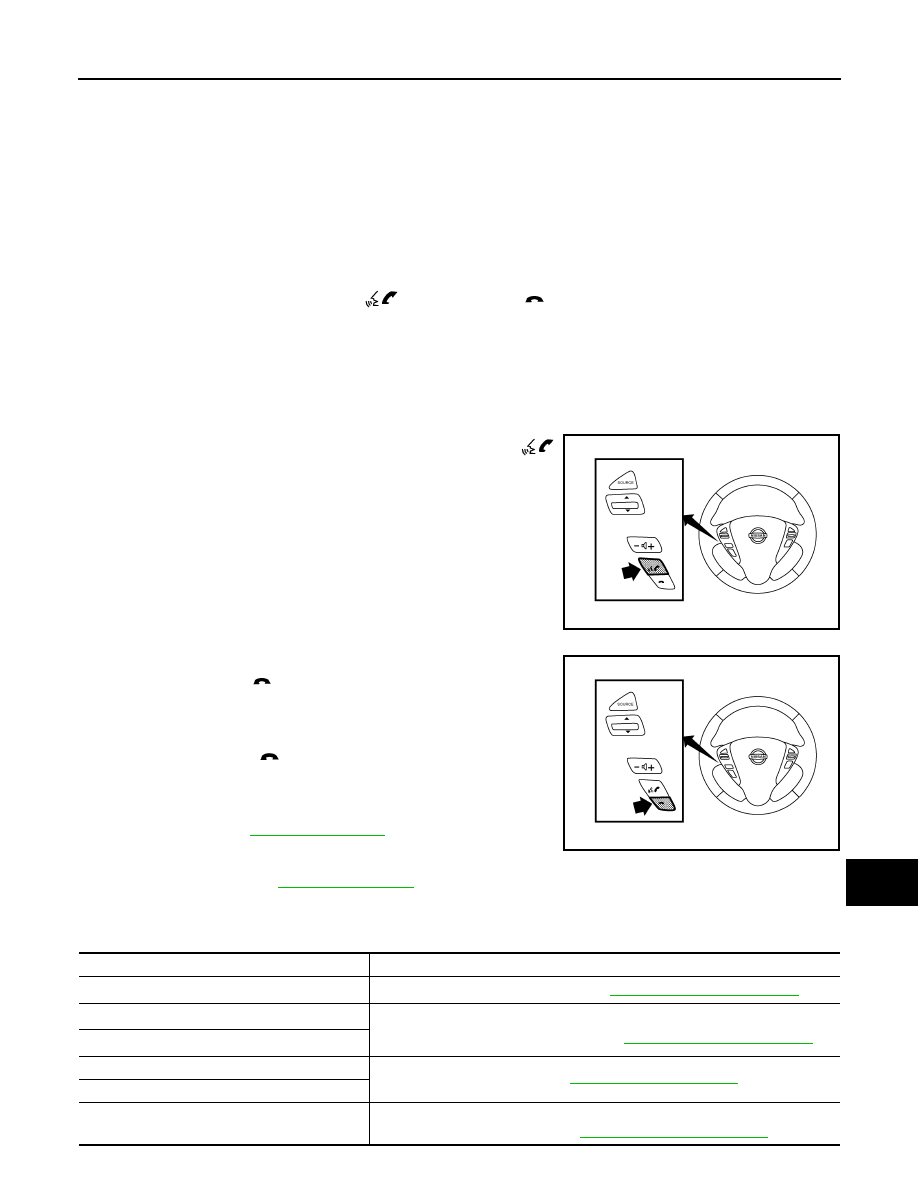

DIAGNOSIS SYSTEM (BLUETOOTH® CONTROL UNIT)

Diagnosis Description

INFOID:0000000009681843

The Bluetooth

®

 control unit has two diagnostic checks. The first diagnostic check is performed automatically

every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-

cian using the steering wheel audio control switches prior to trouble diagnosis.

Bluetooth

®

 CONTROL UNIT INITIALIZATION CHECKS

• Internal control unit failure
• Bluetooth

®

 antenna connection open or shorted

• Steering wheel audio control switches [

 (PHONE/SEND),   (PHONE/END)] stuck closed

• Vehicle speed pulse count

• Microphone connection test (with playback to operator)
• Bluetooth

®

 inquiry check

OPERATION PROCEDURE

1. Turn ignition switch to ACC or ON.
2. Wait for the Bluetooth

®

 system to complete initialization. This may take up to 20 seconds.

3. Press and hold the steering wheel audio control switch

(PHONE/SEND) button for at least 5 seconds. The Bluetooth

®

system will begin to play a verbal prompt.

4. While the prompt is playing, press and hold the steering wheel

audio control switch   (PHONE/END) button until you hear the
“Diagnostics mode” prompt. The Bluetooth

®

 system will sound a

5-second beep.

5. While the beep is sounding, press and hold the steering wheel

audio control switch

 (PHONE/END) button again until you

hear prompts.

6. The Bluetooth

®

 system has now entered into the diagnostic

mode. Results of the diagnostic checks will be verbalized to the

technician. Refer to

AV-17, "Work Flow"

.

7. After the failure records are reported, an interactive microphone

test will be performed. Follow the voice prompt. If the micro-

phone test fails, refer to

AV-17, "Work Flow"

.

Work Flow

INFOID:0000000009459914

AWNIA3082ZZ

AWNIA3083ZZ

Failure Message

Action

“Internal failure”

Replace Bluetooth

®

 control unit. Refer to

AV-56, "Removal and Installation"

“Bluetooth

®

 antenna open”

1.

Inspect harness connection.

2.

Replace Bluetooth

®

 antenna. Refer to

AV-57, "Removal and Installation"

.

“Bluetooth

®

 antenna shorted”

“Phone/Send for Hands Free System is stuck”

Check steering switches. Refer to

AV-46, "Diagnosis Procedure"

.

“Phone/End for the Hands Free System is stuck”

“Microphone test” (failed interactive test)

1.

Inspect harness between Bluetooth

®

 control unit and microphone.

2.

Replace microphone. Refer to

AV-56, "Removal and Installation"

 .

AV-18

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

AUDIO UNIT

ECU DIAGNOSIS INFORMATION

AUDIO UNIT

Reference Value

INFOID:0000000009459915

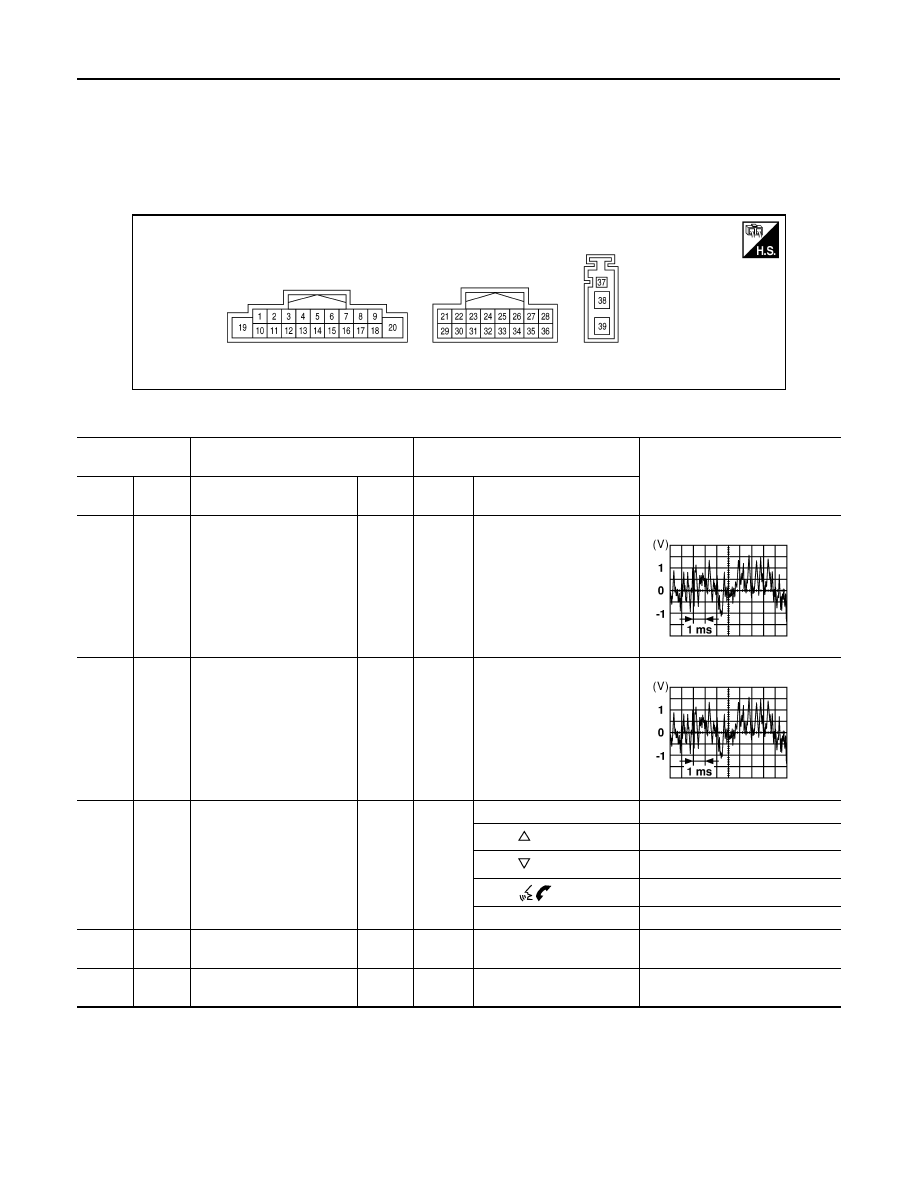

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA3055ZZ

Terminal

 (Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Ignition

switch

Operation

(GR)

3

 (P)

Sound signal front speaker
LH

Output

ON

Sound output.

(W)

(R)

Sound signal rear speaker
LH

Output

ON

Sound output.

6

(BR)

15

(GR)

Steering switch signal A

Input

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Except above

5.0V

7

 (W)

Ground

ACC power supply

Input

ACC

Battery voltage

9

 (LG/R)

8

 (B)

Illumination control signal

Input

ON

Headlamps ON.

Battery voltage

SKIA0177E

SKIA0177E

AV

AUDIO UNIT

AV-19

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

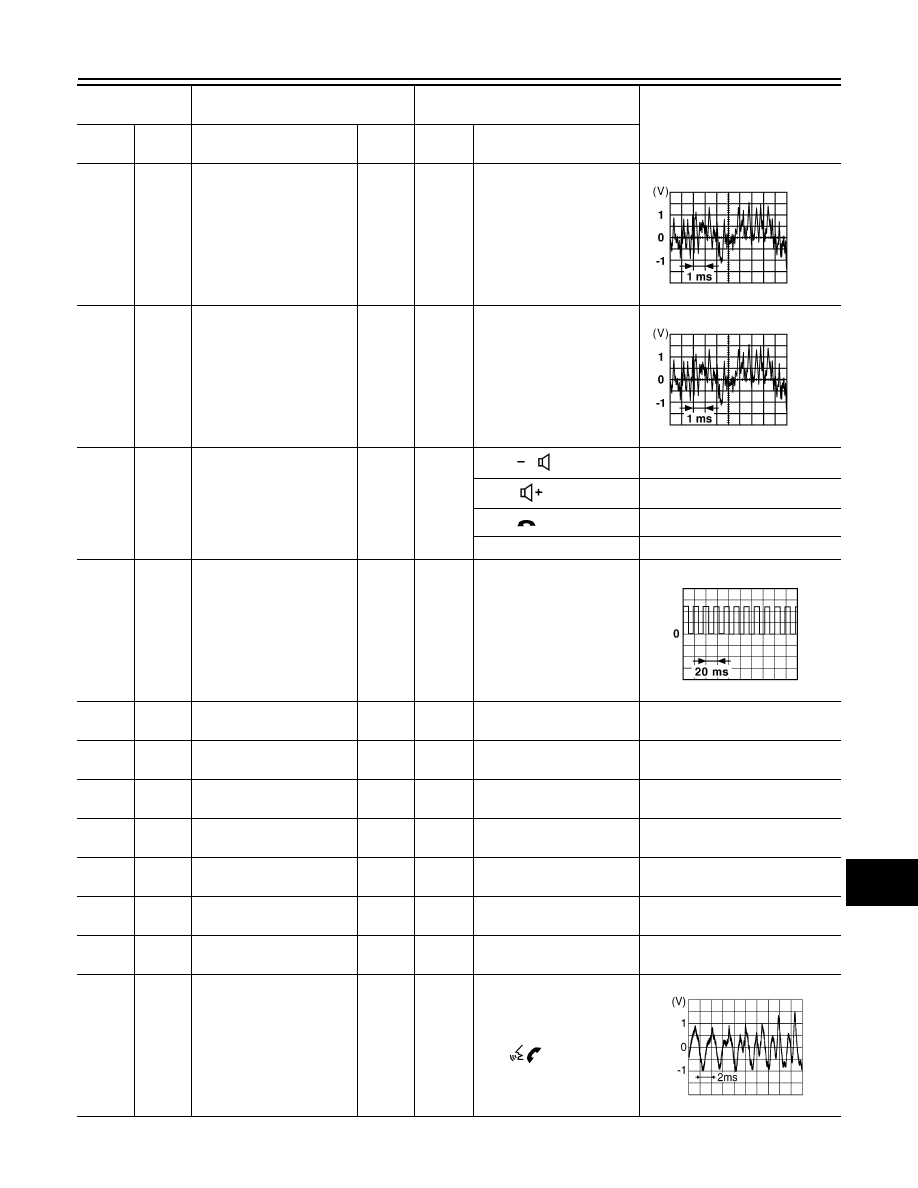

11

(O)

12

(V)

Sound signal front speaker
RH

Output

ON

Sound output.

13

 (L)

14

 (Y)

Sound signal rear speaker
RH

Output

ON

Sound output.

16

(V)

15

(GR)

Steering switch signal B

Input

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Except above

5.0V

18

(LG)

Ground Vehicle speed signal

Input

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH).

19

(Y)

Ground

Battery power supply

Input

OFF

Battery voltage

22

(B/W)

Ground EQ2 Ground

ON

0 V

24

(B)

Ground EQ4 Ground

ON

0 V

27

(SB)

AV communication (H)

Input/

Output

28

(LG)

AV communication (L)

Input/

Output

29

(P)

Ground TEL ON

Output

ON

30

(Shield)

TEL voice signal shield

32

(G)

31

(R)

TEL voice signal

Input

ON

During voice guide output
with

switch

pressed.

Terminal

 (Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Ignition

switch

Operation

SKIA0177E

SKIA0177E

JSNIA0012GB

SKIB3609E
