Nissan Versa Note. Manual - part 5





AV-12

< SYSTEM DESCRIPTION >

[BASE AUDIO]

SYSTEM

SYSTEM

System Description

INFOID:0000000009681842

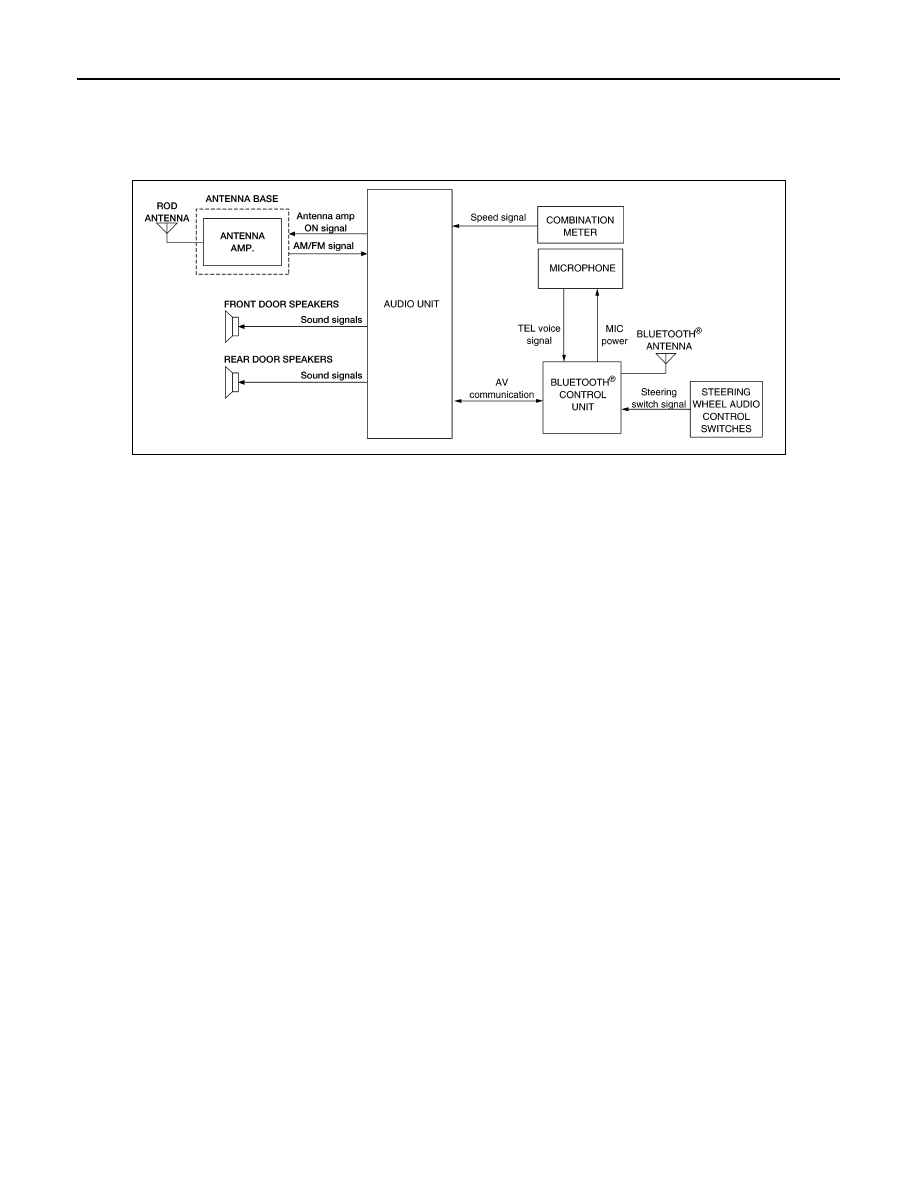

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Front door speakers

• Rear door speakers

• Steering switches

• Antenna amp.

• Rod antenna

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the audio unit. The audio unit then sends audio signals to the front door speakers and rear door

speakers.

Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

®

 telephone

system.
The Bluetooth

®

 telephone system allows users who have a Bluetooth

®

 cellular telephone to make a wireless

connection between their cellular telephone and the Bluetooth

®

 control unit. Hands-free cellular telephone

calls can be sent and received. Some Bluetooth

®

 cellular telephones may not be recognized by the Bluetooth

®

control unit. When a cellular telephone or the Bluetooth

®

 control unit is replaced, the telephone must be paired

with the Bluetooth

®

 control unit. Different cellular telephones may have different pairing procedures, refer to

the cellular telephone operating manual.
Refer to the Owner's Manual for Bluetooth

®

 telephone system operating instructions.

Bluetooth

®

 Control Unit

When the ignition switch is turned to ACC or ON, the Bluetooth

®

 control unit will power up. During power up,

the Bluetooth

®

 control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-

onds. If a phone is present in the vehicle and paired with the Bluetooth

®

 control unit, Nissan Voice Recognition

will then become active. Bluetooth

®

 telephone functions can be turned off using the Nissan Voice Recognition

system.

Steering Switches

AWNIA3132GB

AV

SYSTEM

AV-13

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

When buttons on the steering switches are pushed, the resistance in steering wheel audio control switch cir-
cuit changes, depending on which button is pushed. The Bluetooth

®

 control unit uses this signal to perform

various functions while navigating through the voice recognition system.

The following functions can be performed using the steering switches:
• Initiate self-diagnosis of the Bluetooth

®

 telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

Microphone

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth

®

control unit. The microphone can be actively tested during self-diagnosis.

Audio Unit

The audio unit receives signals from the Bluetooth

®

 control unit and sends audio signals to the speakers.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AV-14

< SYSTEM DESCRIPTION >

[BASE AUDIO]

DIAGNOSIS SYSTEM (AUDIO UNIT)

DIAGNOSIS SYSTEM (AUDIO UNIT)

Diagnosis Description

INFOID:0000000009459911

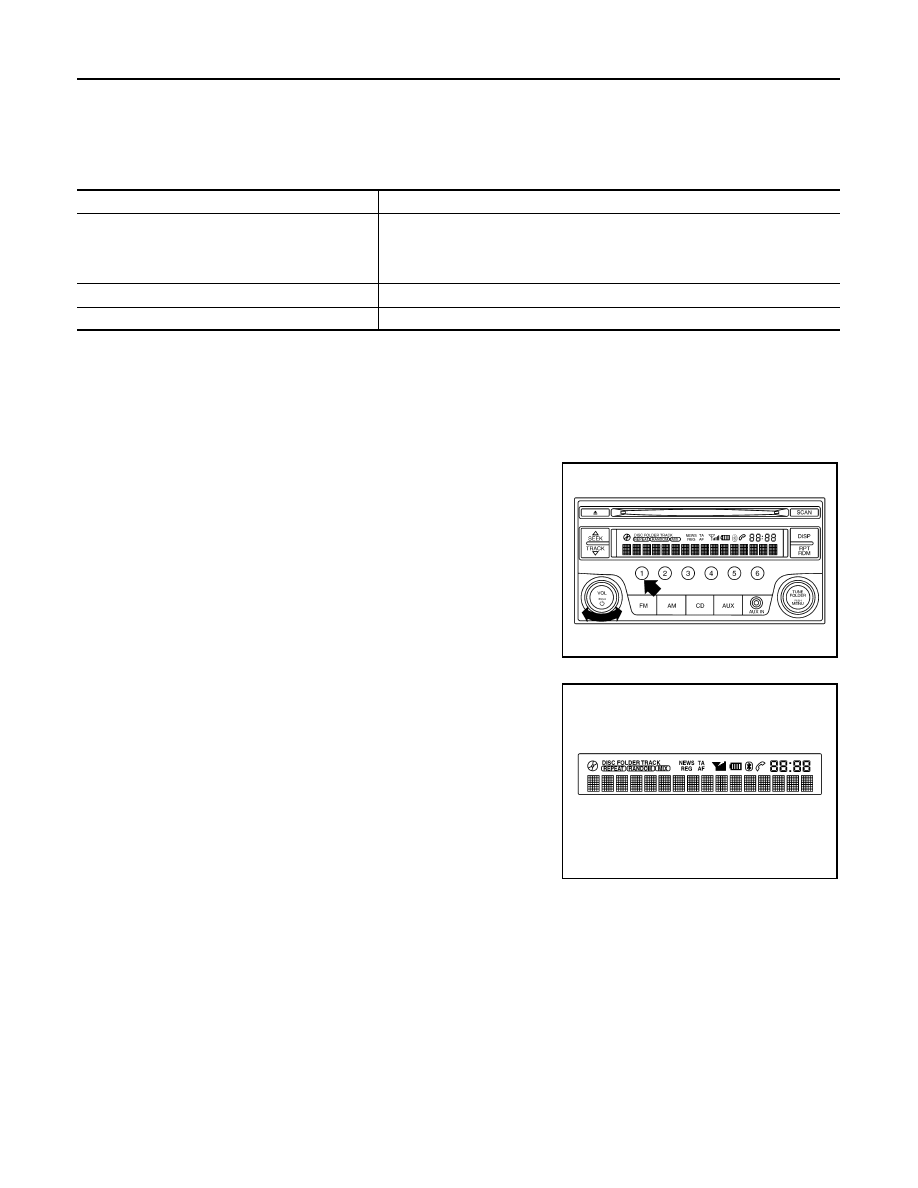

The audio unit on board diagnosis performs the functions listed in the table below:

On Board Diagnosis Function

INFOID:0000000009459912

METHOD OF STARTING

Hardware/Software Versions and Speaker Channel Check

1. Turn the ignition ON.

2. Turn the audio system OFF.

3. While pressing the preset 1 button, turn the volume control dial

clockwise or counterclockwise 30 clicks or more.

4. Initially, all display segments will be illuminated.

5. To exit hardware/software versions and speaker channel check, turn the ignition OFF.

Communication Diagnosis

1. Turn the ignition ON.

2. Turn the audio system OFF.

Mode

Description

Hardware/Software Versions

The following information is available for the audio unit:
• hardware version.
• software version.
• EQ pin info.

Speaker Channel Check

The connection of the speakers to the audio unit can be confirmed.

Communication Diagnosis

The AV communication (M-CAN) message history can be monitored.

AWNIA3042ZZ

ALNIA1382GB

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-15

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

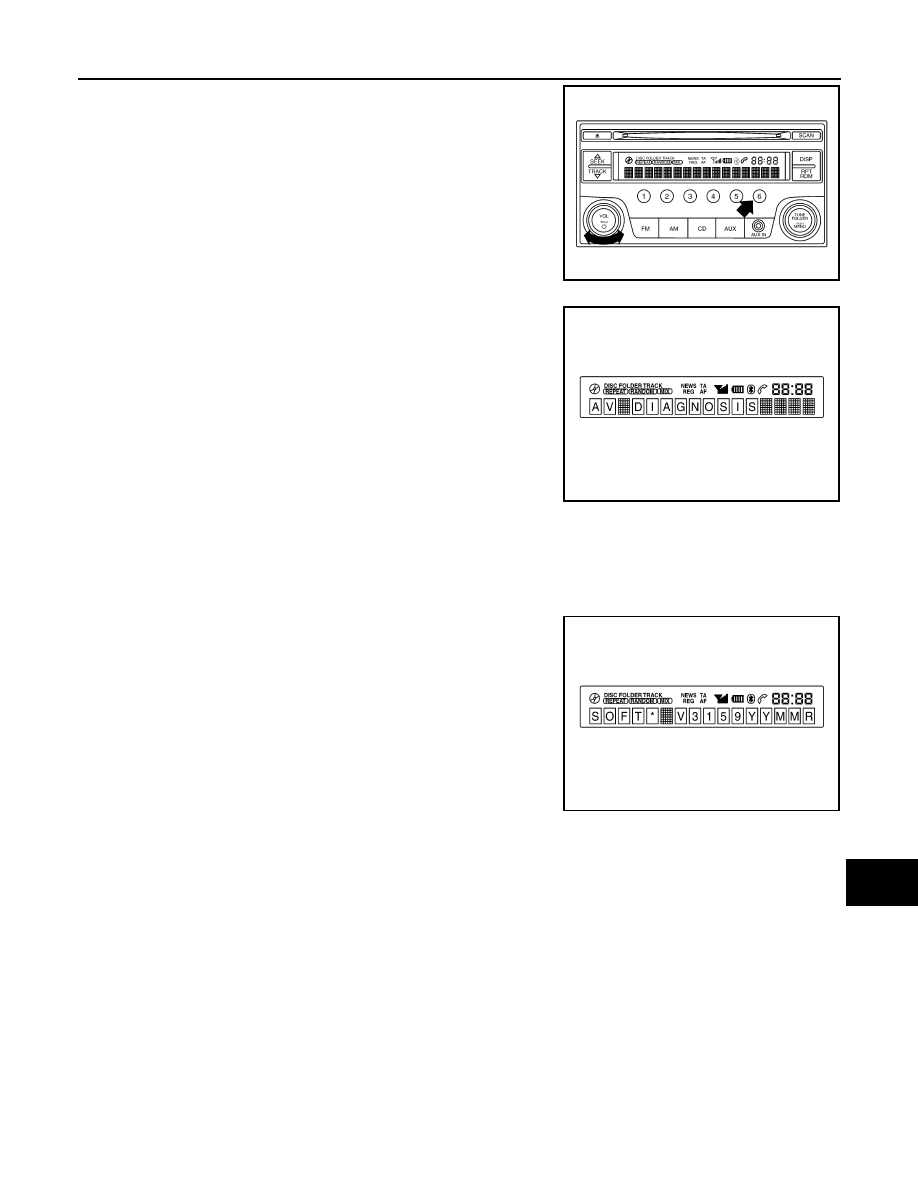

3. While pressing the preset 6 button, turn the volume control dial

clockwise or counterclockwise 30 clicks or more.

4. Initially, the communication diagnosis mode is displayed.

5. To exit communication diagnosis, turn the ignition OFF.

SELF DIAGNOSIS MODE

Hardware/Software Versions

1. Press the DISP button to enter versions display, and the audio

head unit software version is displayed.

2. With each additional press of the DISP button, the following information is available:

-

HARD V###### (hardware version)

-

EEP V###### (EEPROM version)

-

@@@@ EQ1-4 # (EQ pin info)

If an EQ error is present, INVALID EQ is displayed

3. Hold the DISP button down to return to all display segments screen.

Speaker Channel Check

ALNIA1516ZZ

ALNIA1387GB

ALNIA1383GB
